User Manual for sE Electronics sE8 Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the sE Electronics sE8 Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Small Diaphragm Condenser
 |
User manual for the sE Electronics sE8 Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

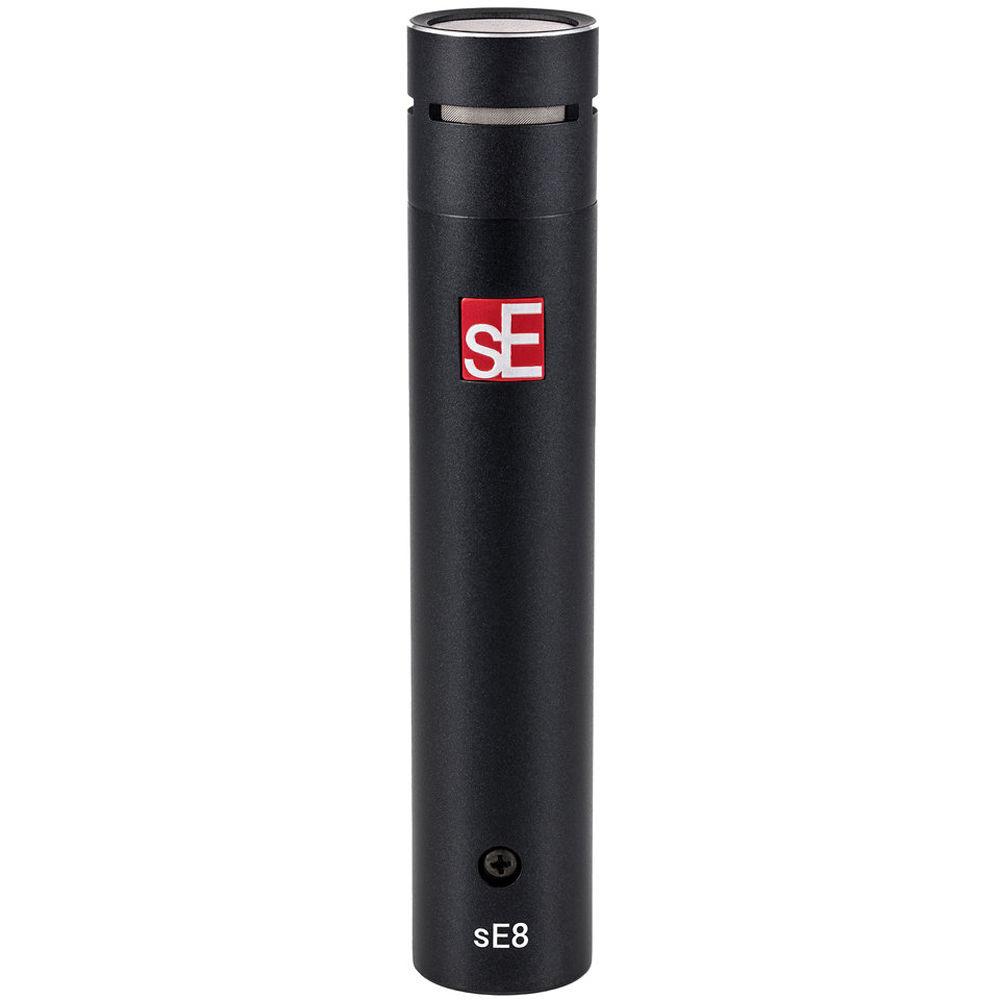

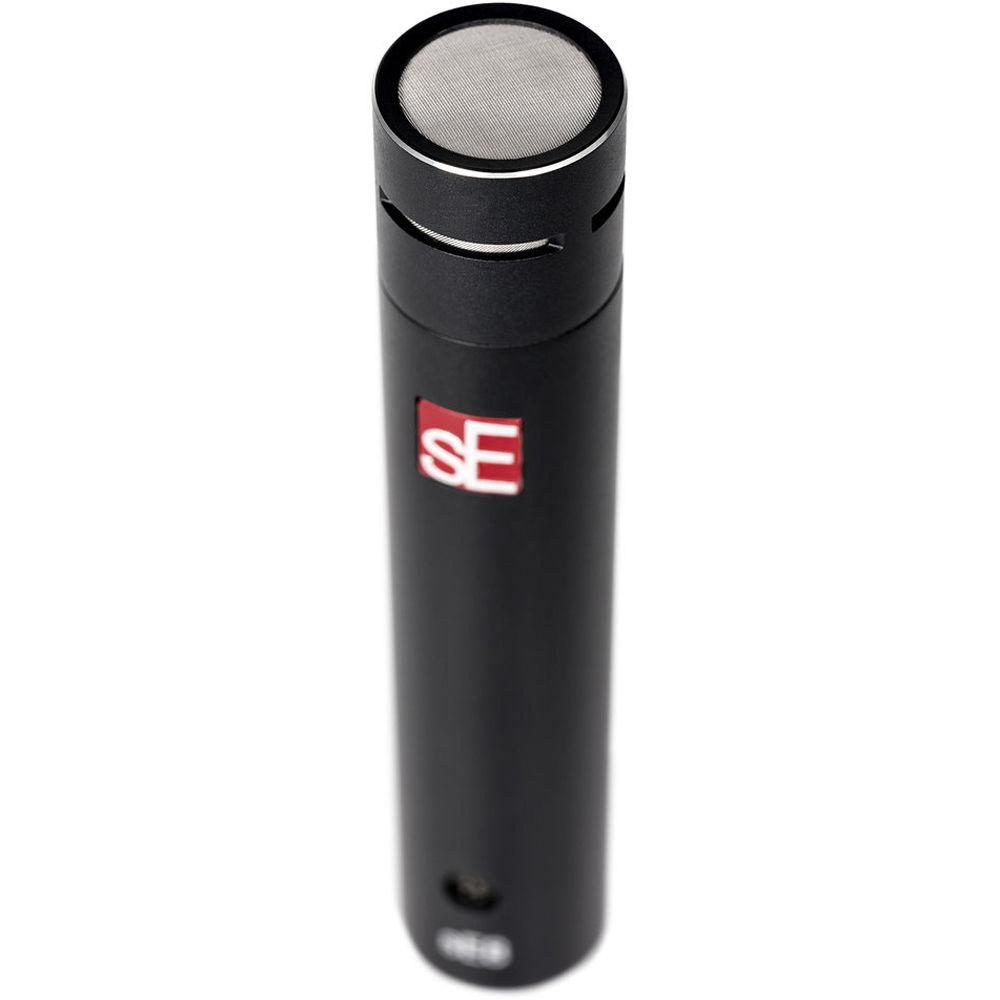

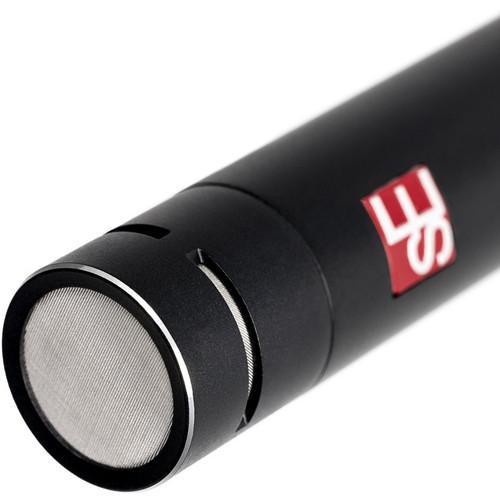

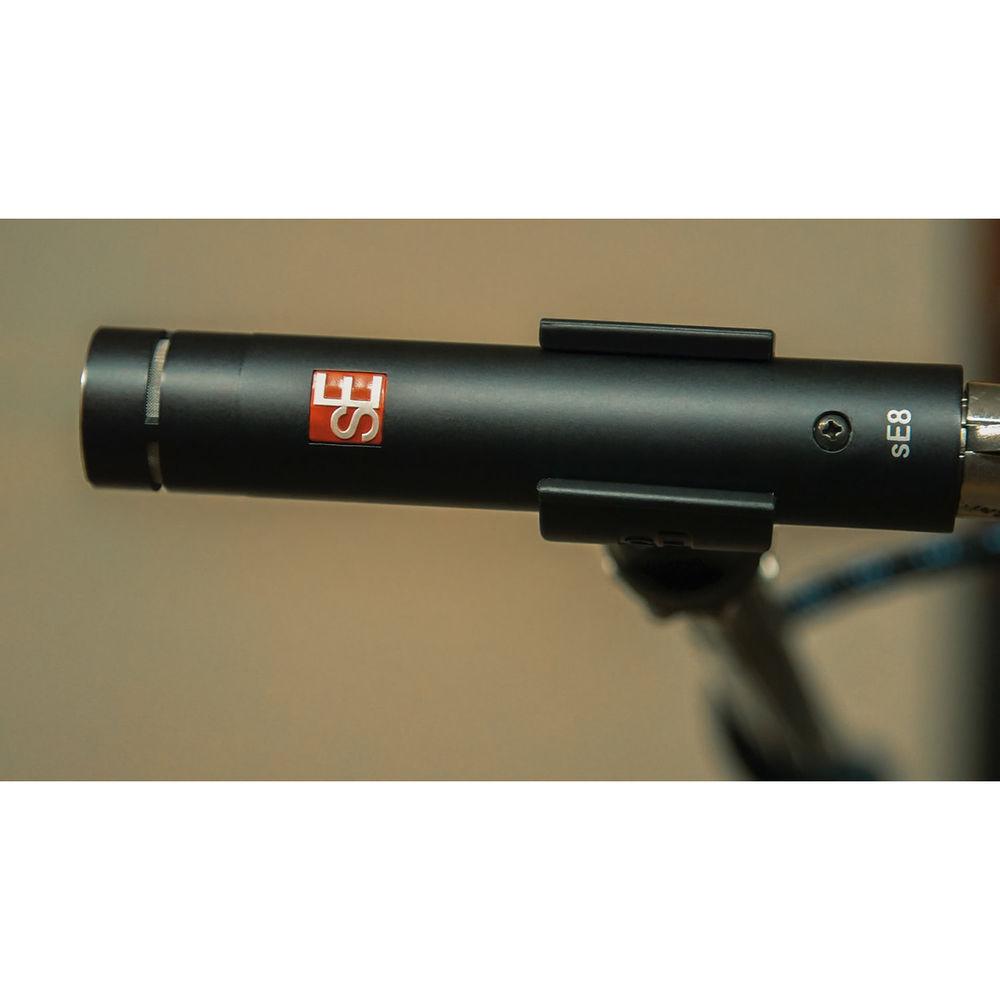

Product description Designed for stereo recording, the sE Electronics sE8 Matched Pair gives you two sE8 microphones in one convenient package. The sE8 itself is is a small-diaphragm condenser microphone with a hand-made, gold-sputtered cardioid capsule. Suitable for live and recording scenarios, the microphone has been engineered to provide a balanced, transparent, and natural sound, as well as a detailed transient response. With two microphones matched specifically for consistency, you'll be able to capture a clear and accurate stereo image.
The sE8 boasts inherently low self-noise for capturing audio in particularly quiet situations. It also sports an SPL high enough to handle drums, and a dynamic range large enough to handle record triple-piano to triple-forte velocities accurately.

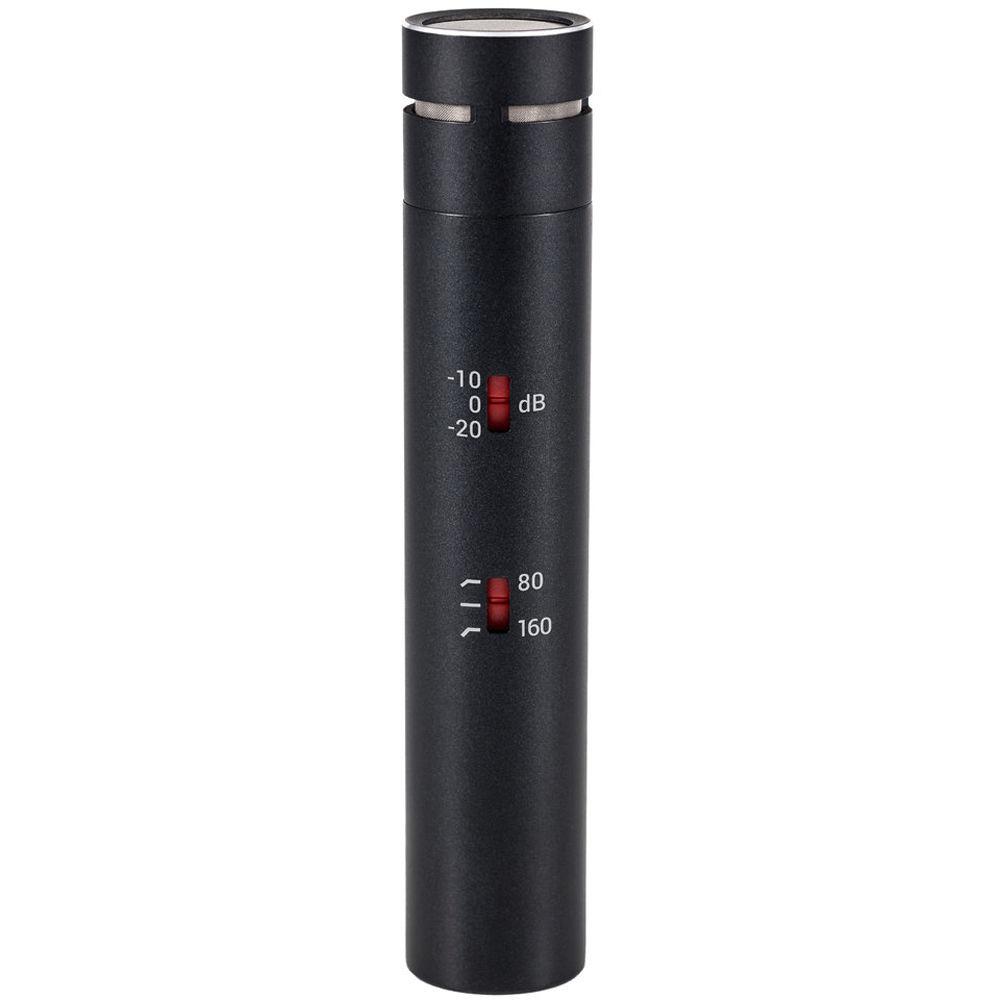

Two switchable pre-attenuation pads are on hand, should you encounter particularly loud sound sources; one will shave off 10 dB, while the other will attenuate 20 dB. You'll also note a switchable low-pass filter that rolls off low end at either 80 Hz or 160 Hz at 6 dB per octave.

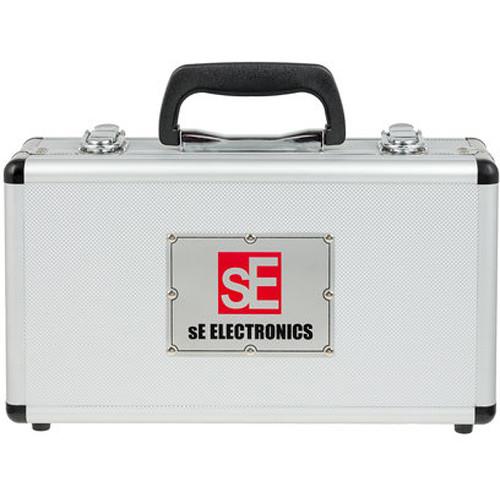

To enhance durability—and to reject electrical interference and noise—the sE8 sports an all-metal chassis. The gold-plated, 3-pin XLR connector ensures signal reliability for a long time to come. Handcrafted and hand-tuned, the microphones come with two mic clips, two thread adapters, two windscreens, a stereo bar for mounting the microphones, and a robust metal case for protecting the mics when they're not in use. - Key Features at a Glance
-
- 3-micron, gold-sputtered diaphragm
- Handcrafted, hand-tuned capsule
- Precision electrode design for a linear, naturalistic response
- Backplate design provides smooth, natural sound and consistent off-axis response

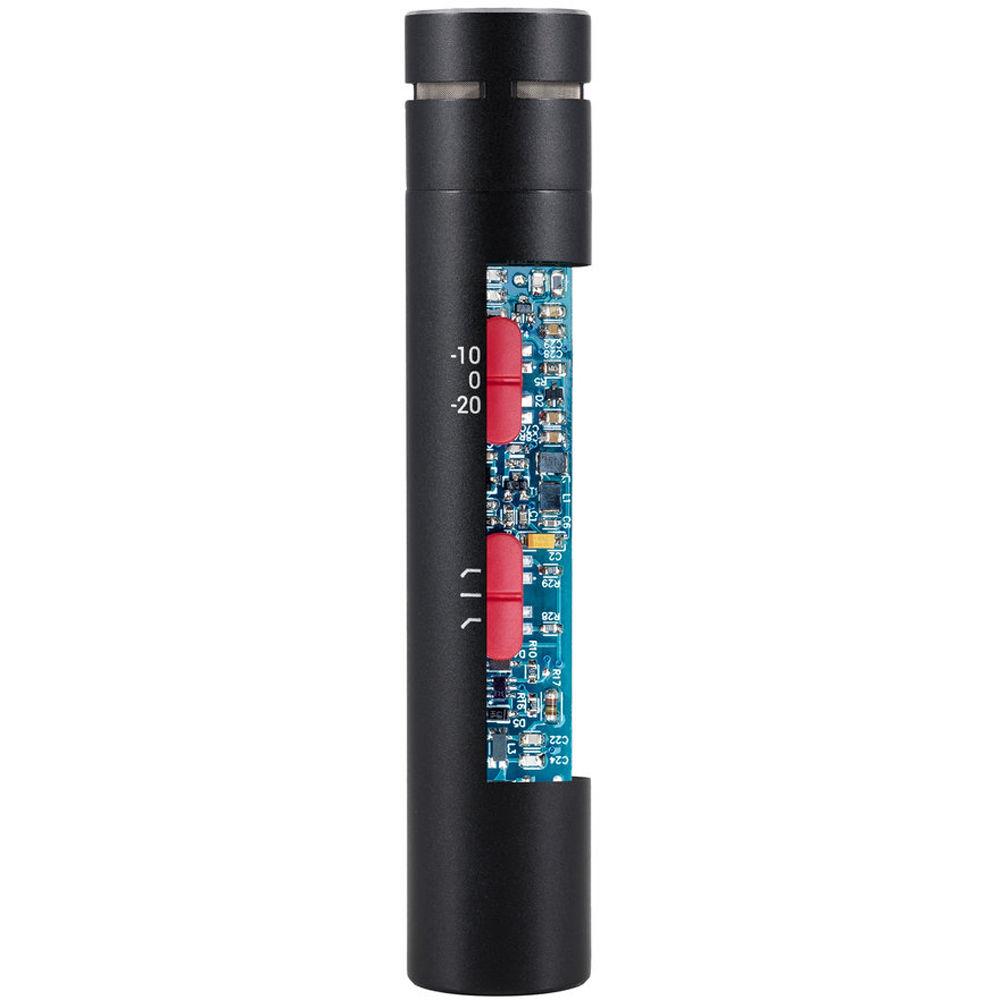

- Electronic design provides low noise without the use of integrated circuits
- Transformerless design for transparency and clarity
- Class-A circuitry for a high dynamic range and transient response without distortion
- -10 dB and -20 dB pads, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more
- Low-pass filters, selectable between 80 Hz and 160 Hz
- All-metal chassis provides efficient rejection of electrical interference and noise

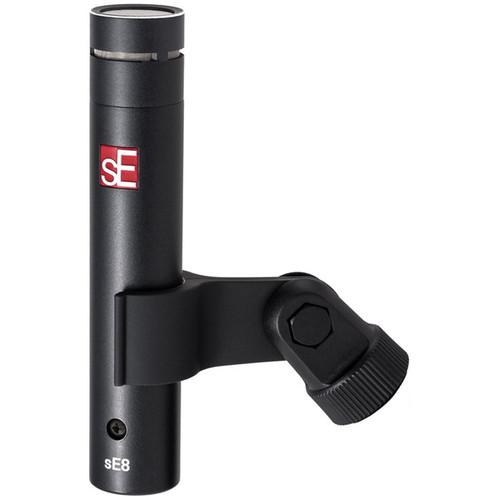

- Includes two mic clips, each with a thread adapter
- Includes two windscreens

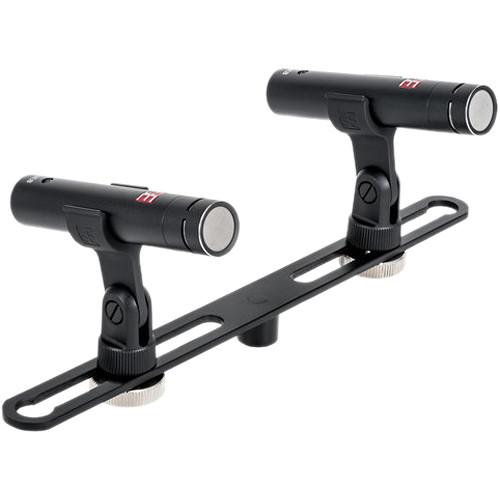

- Includes stereo bar for mounting microphones for stereo recording
- includes a robust metal case

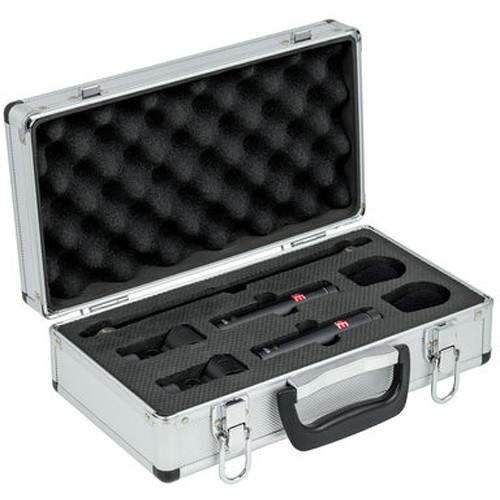

UPC: 819032011225 In the Box sE Electronics sE8 Small-Diaphragm Condenser Microphone (Matched Pair) Set of Mic Clips and Thread Adapters Set of Windscreens (2x) Stereo Mounting Bar Metal Flight Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics sE8 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics sE8 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 81 dB | | Equivalent Noise Level | Cardioid: 13 dB A-Weighted | | Maximum SPL | Cardioid: 159 dB SPL Peak | | Pad | -10 dB
-20 dB | | Impedance | Cardioid: 110 Ohms | | Load Impedance | 1 kOhms >1 kOhms | | Sensitivity | Cardioid: 25 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz
6 dB/Octave @ 160 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.7 mA | | Operating Voltage | 48 V | | Length | 4.72" / 120 mm | | Diameter | 0.91" / 23 mm | | Weight | 4.97 oz / 141 g | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 13.9 x 8.4 x 4.6" |
