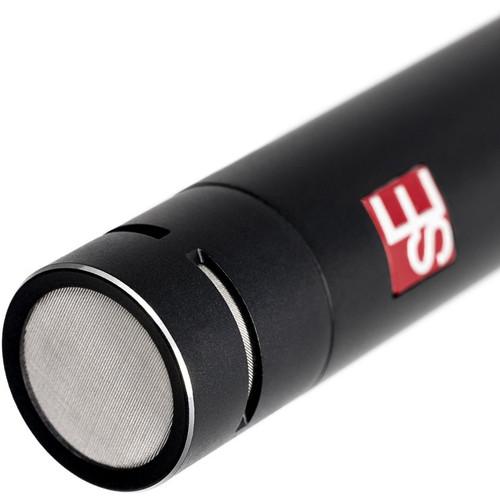

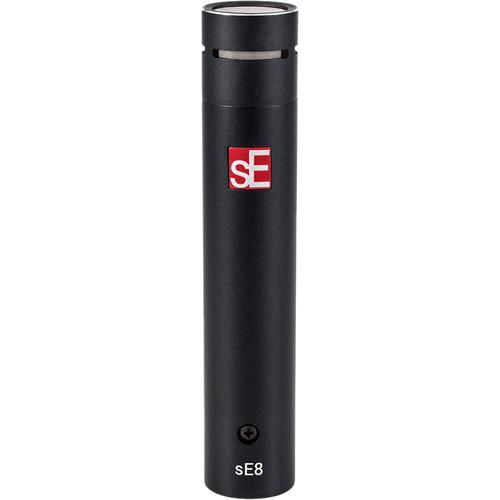

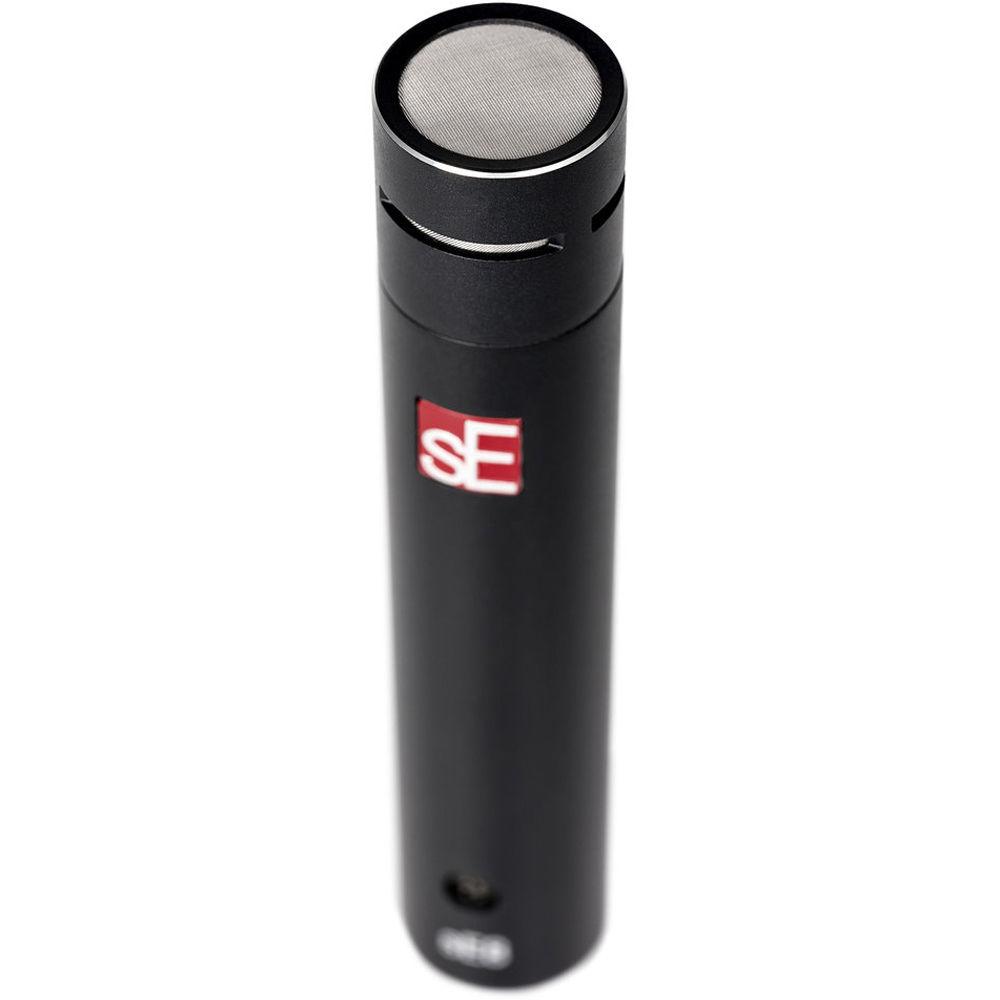

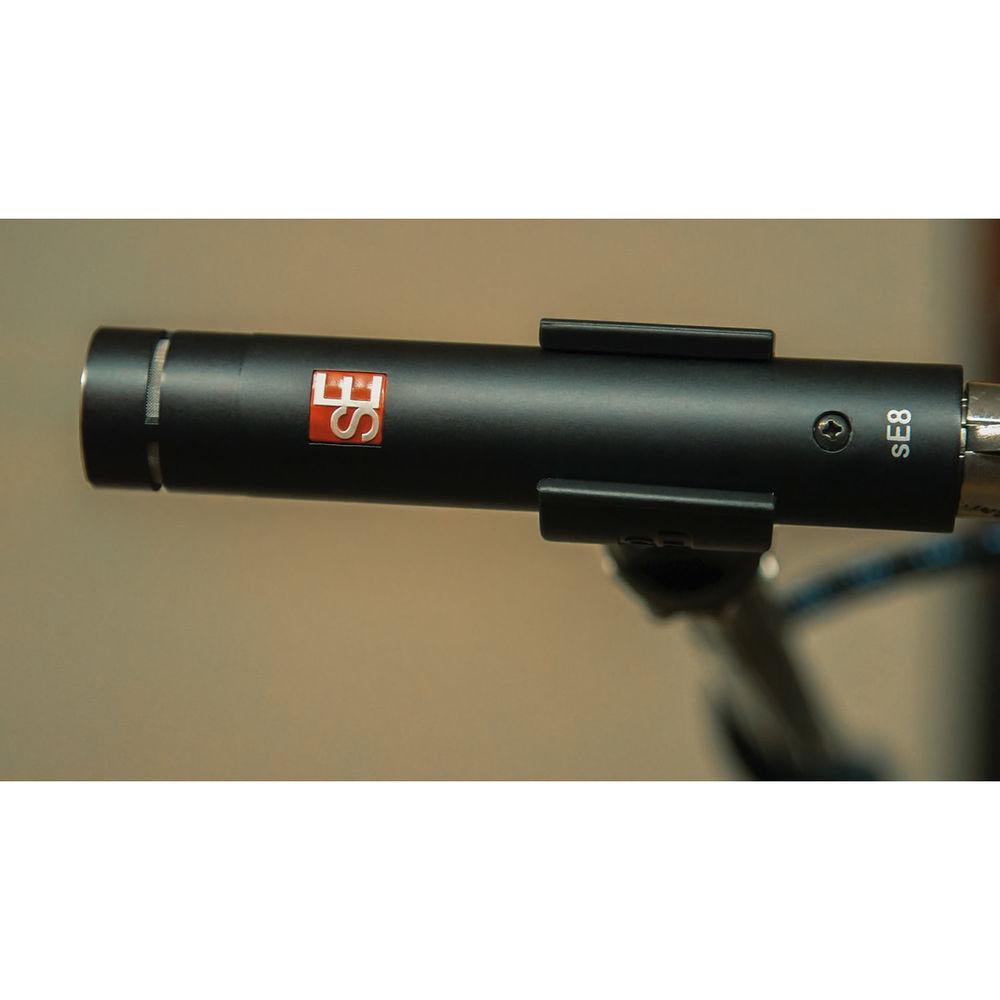

Product description The sE Electronics sE8 is is a small-diaphragm condenser microphone with a hand-made, gold-sputtered cardioid capsule. Suitable for live and recording scenarios, the microphone has been engineered to provide a balanced, transparent, and natural sound, as well as a detailed transient response.

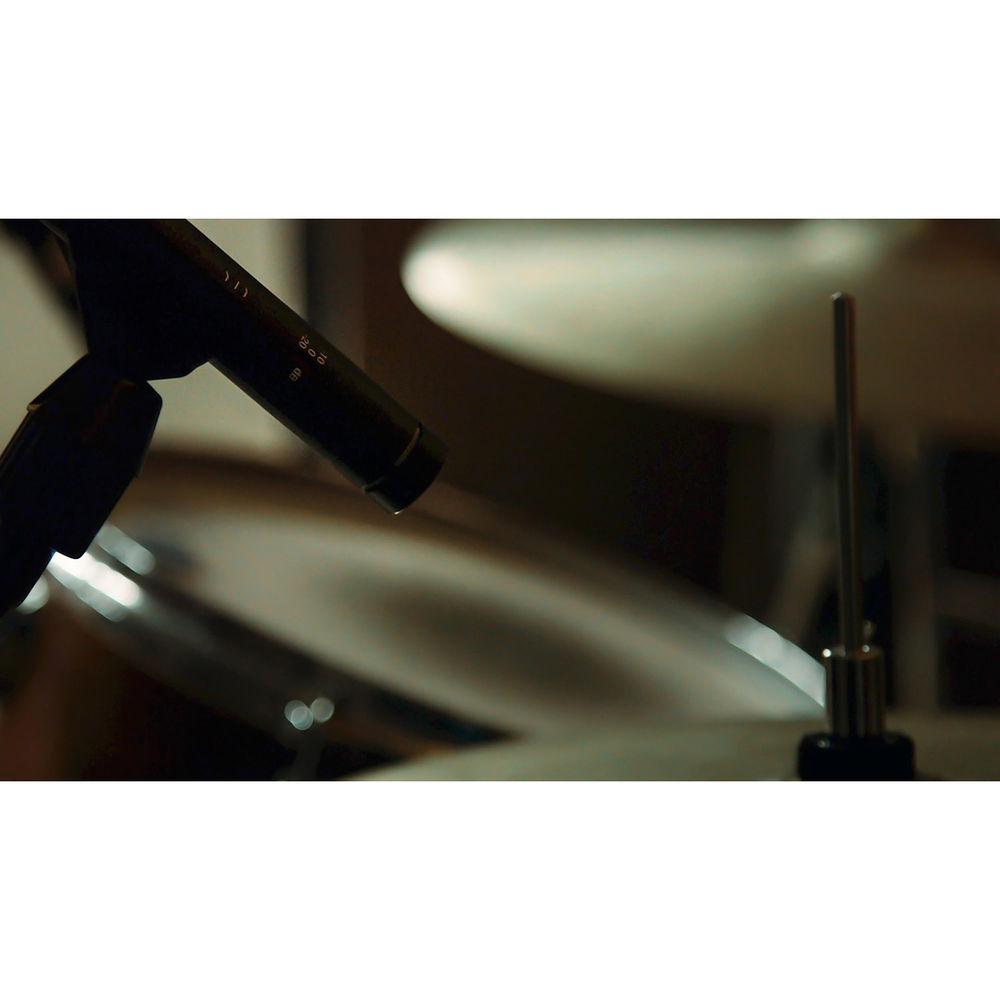

The sE8 boasts inherently low self-noise for capturing audio in particularly quiet situations. It also sports an SPL high enough to handle drums, and a dynamic range large enough to handle record triple-piano to triple-forte velocities accurately.

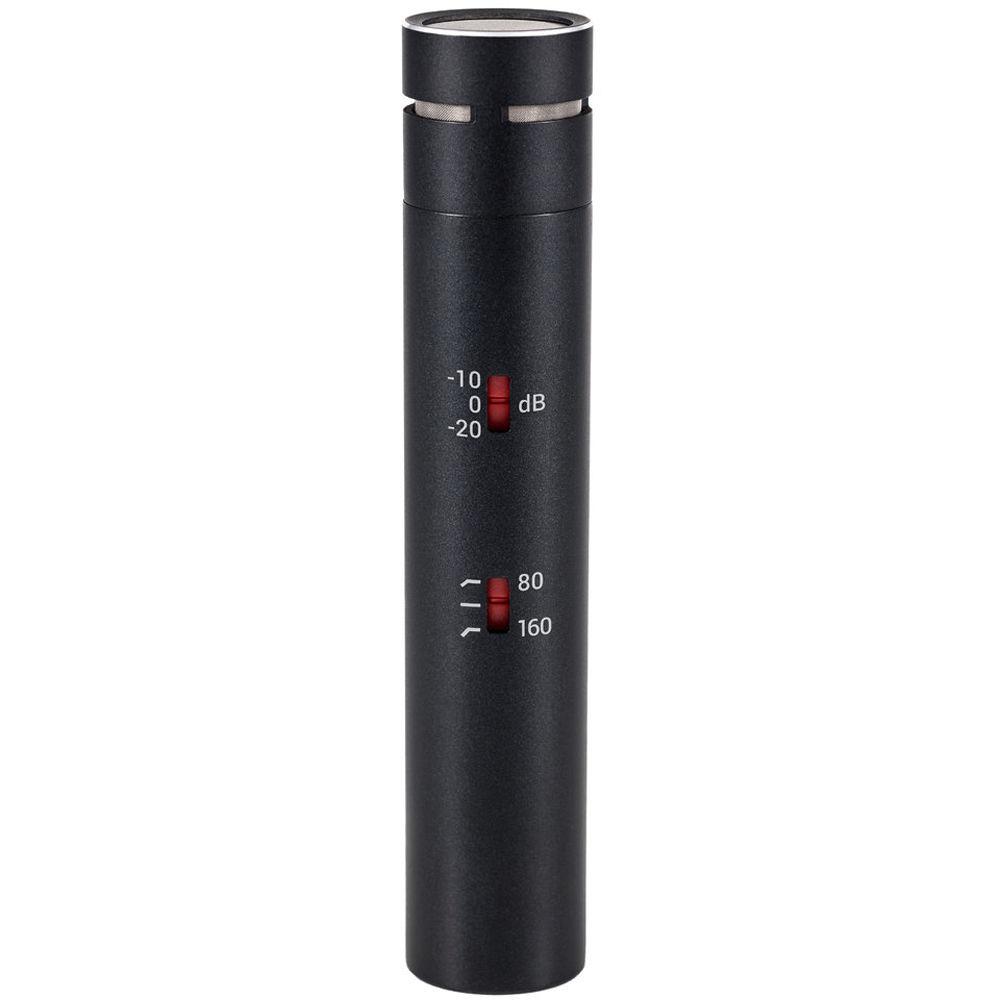

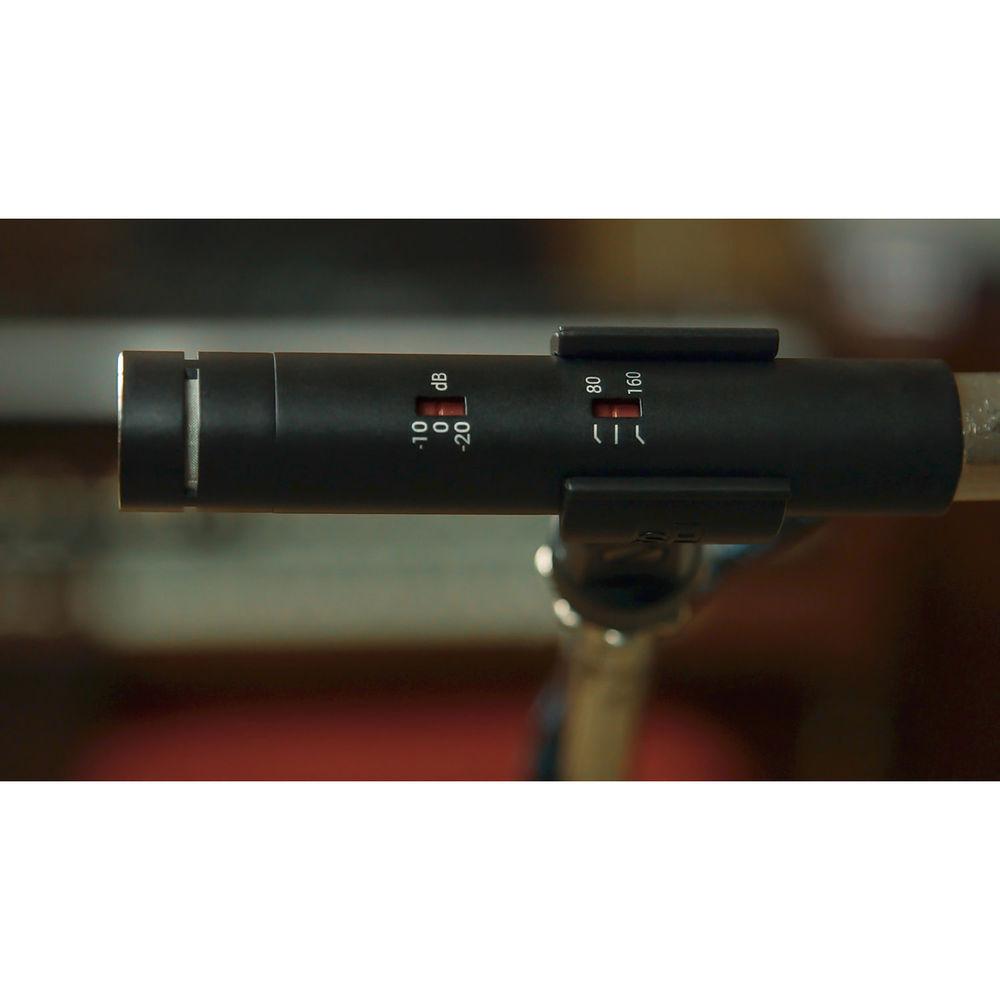

Two switchable pre-attenuation pads are on hand, should you encounter particularly loud sound sources; one will shave off 10 dB, while the other will attenuate 20 dB. You'll also note a switchable low-pass filter that rolls off low end at either 80 Hz or 160 Hz at 6 dB per octave.
To enhance durability—and to reject electrical interference and noise—the sE8 sports an all-metal chassis. The gold-plated, 3-pin XLR connector ensures signal reliability for a long time to come. Handcrafted and hand-tuned, microphone comes with a mic clip, a thread adapter, and a windscreen. - Key Features at a Glance
-
- 3-micron, gold-sputtered diaphragm
- Handcrafted, hand-tuned capsule
- Precision electrode design for a linear, naturalistic response
- Backplate design provides smooth, natural sound and consistent off-axis response

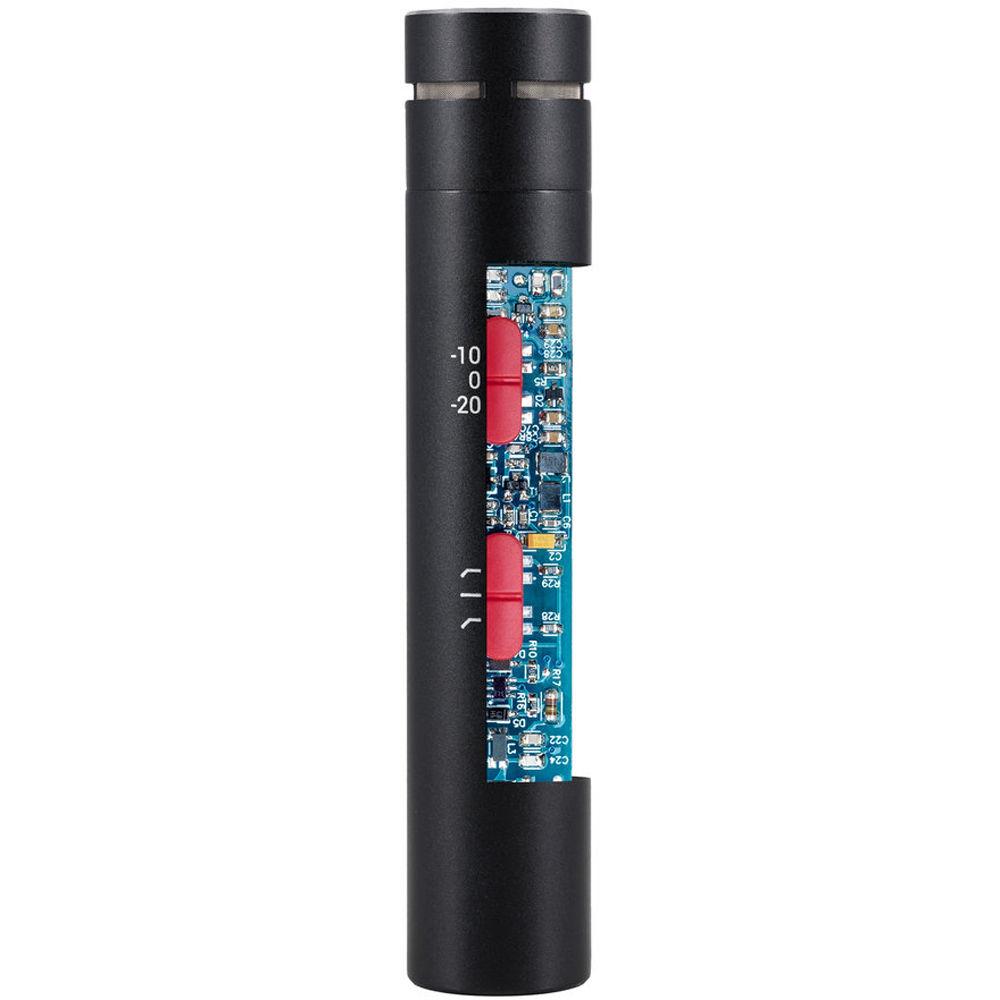

- Electronic design provides low noise without the use of integrated circuits
- Transformerless design for transparency and clarity
- Class-A circuitry for a high dynamic range and transient response without distortion
- -10 dB and -20 dB pads, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more
- Low-pass filters, selectable between 80 Hz and 160 Hz
- All-metal chassis provides efficient rejection of electrical interference and noise

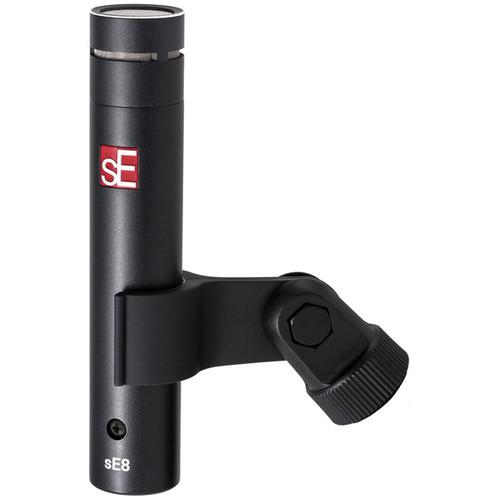

- Includes mic clip with thread adapter
- Includes windscreen
UPC: 819032011218 In the Box sE Electronics sE8 Small-Diaphragm Condenser Microphone Mic Clip (with Thread Adapter) Windscreen Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics sE8 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics sE8 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 81 dB | | Equivalent Noise Level | Cardioid: 13 dB A-Weighted | | Maximum SPL | Cardioid: 159 dB SPL Peak | | Pad | -10 dB
-20 dB | | Impedance | Cardioid: 110 Ohms | | Load Impedance | 1 kOhms >1 kOhms | | Sensitivity | Cardioid: 25 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz
6 dB/Octave @ 160 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.7 mA | | Operating Voltage | 48 V | | Length | 4.72" / 120 mm | | Diameter | 0.91" / 23 mm | | Weight | 4.97 oz / 141 g |
