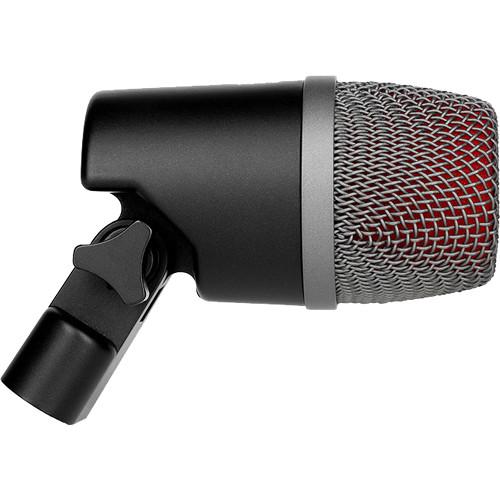

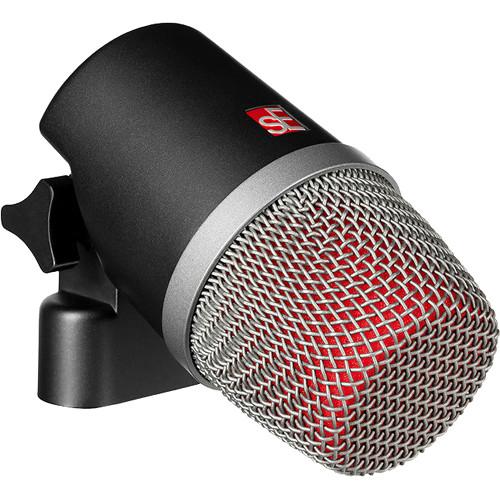

User Manual for sE Electronics V Kick Dynamic Percussion Instrument Microphone for Drums & Bass Click to enlarge the picture
Contents of the user manual for the sE Electronics V Kick Dynamic Percussion
- Product category: Dynamic Microphones sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Dynamic Microphones
 |
User manual for the sE Electronics V Kick Dynamic Percussion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

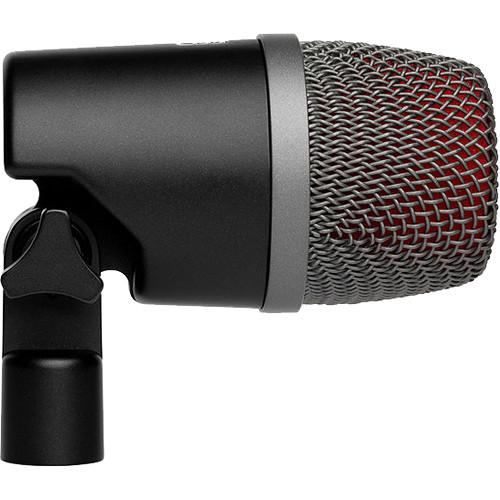

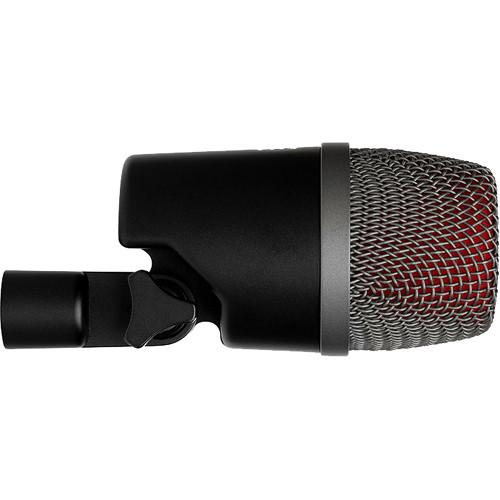

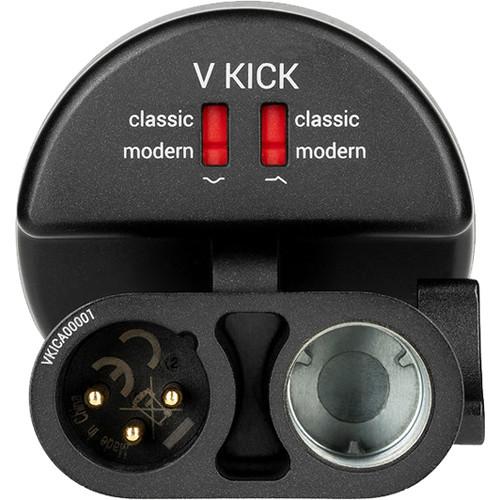

Product description Primarily designed for kick drums, floor-toms, and electric bass, the sE Electronics V Kick is a dynamic microphone with a supercardioid polar pattern. It's intended to be quite versatile, with four different tonalities thanks to two switches mounted on the rear of the mic. One switch controls the frequency content of the midrange, while the other changes the high-frequency capture of the V Kick.
Thanks to these switches, you can secure a rounded midrange with a softer high end, a scooped midrange with a defined high end—or the complete opposite: A scooped midrange with a softer high-end, or a round midrange with a softer high end. This allows you to use the mic with all sorts of styles of kick drum, from big-band jazz to aggressive metal. The same is true for basses. You can tailor this mic for something that complements a round, vintage Ampeg tone, or a more modern back-pickup style.

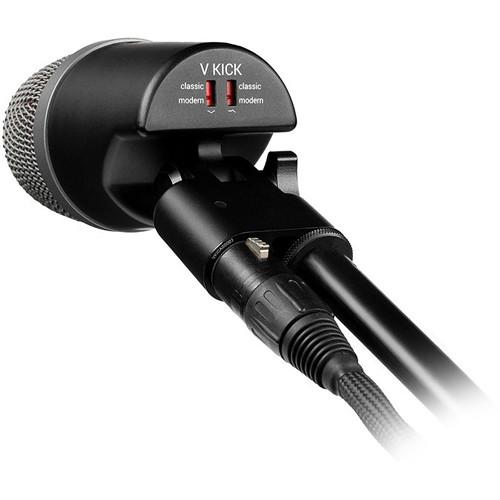

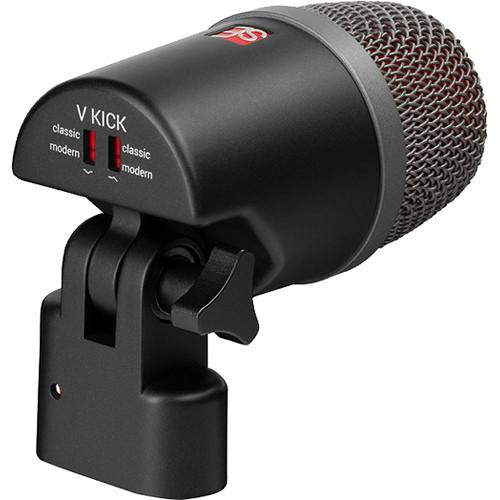

These switches are positioned on the rear of the mic, and this helps with live-sound functionality. With different bands switching their instruments between sets, this mic can be of service in keeping changeover time to a minimum in club venues.

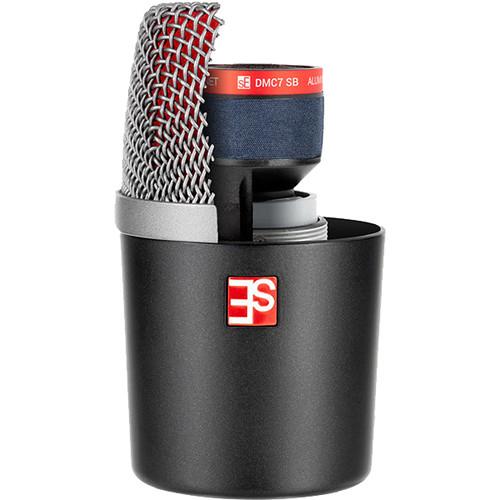

At the heart of the V Kick is its DMC7 SB capsule, which utilizes an aluminum voice coil for a transient-rich sound and a bottom end extending low enough to record the fundamental frequencies of kick drums and basses. Its supercardioid pickup pattern ensures little bleed, helping you isolate the sound-source from other drums or cymbals. The capsule is suspended inside the mic to keep it decoupled from mechanical vibration, shocks, jolts, and other issues.

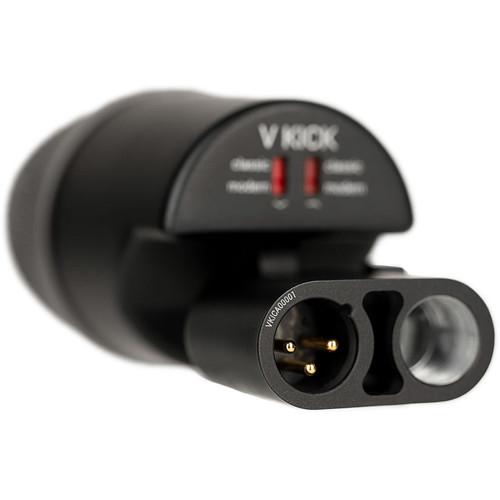

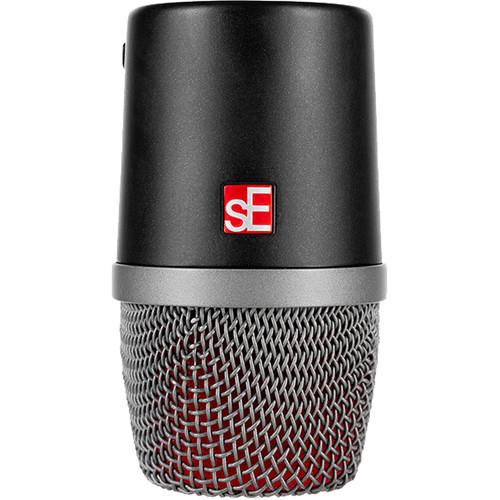

The mic's all-metal housing is rugged, making the mic suitable for live use on the road. A gold-plated XLR connector helps to provide a reliable signal connection. With a windscreen built into the mic, it's already internally protected against winds, plosives, and extraneous noise. A black windscreen and a knurled nut for third-party mounting kits are included. UPC: 819032011591 In the Box sE Electronics V Kick Dynamic Percussion Instrument Microphone for Drums & Bass Thread Adapter Zipper Pouch Spare Internal Windscreen (Black) Knurled Nut for 3rd-Party Mounting Systems Limited 2-Year Warranty (Extendable to 3 Years Upon Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics V Kick Dynamic Percussion Instrument Microphone for Drums & Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterssE Electronics V Kick Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 19 kHz | | Impedance | Supercardioid: 300 Ohms | | Load Impedance | 1 kOhms Less than 1 kOhm | | Sensitivity | Supercardioid: 0.2 mV/Pa
Supercardioid: 0.4 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 5.31" / 135 mm | | Diameter | 2.36" / 60 mm | | Weight | 16.51 oz / 468 g | | | | Package Weight | 1.515 lb | | Box Dimensions (LxWxH) | 10.9 x 5.3 x 3.1" |
