User Manual for sE Electronics X1 S Studio Bundle - Vocal Recording Package with Reflection Filter Click to enlarge the picture
Contents of the user manual for the sE Electronics X1 S Studio Bundle
- Product category: Large Diaphragm Condenser sE Electronics
- Brand: sE Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for sE Electronics Large Diaphragm Condenser
 |
User manual for the sE Electronics X1 S Studio Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any sE Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official sE Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a sE Electronics product will considerably shorten its lifespan!
|

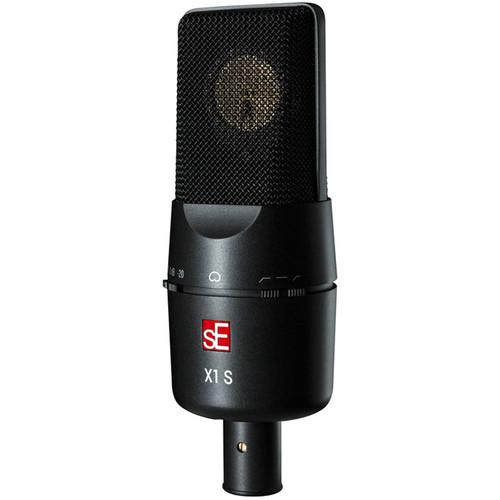

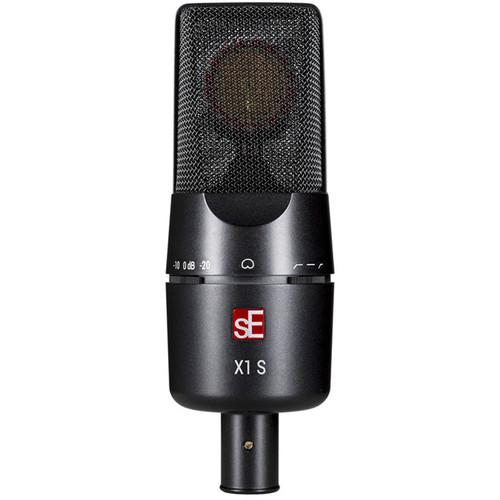

Product description The SE Electronics X1 S Studio Bundle is a large-diaphragm condenser microphone and accessory package designed for vocal and instrument recording in project studios, home setups, mobile rigs, and commercial facilities. It includes the X1 S cardioid studio condenser mic, an RF-X reflection filter, a pop filter, shockmount, and a 10’ microphone cable.The metal-bodied X1 S features a handcrafted gold-sputtered capsule, 20 Hz to 20 kHz frequency response, and a selectable 80 or 160 Hz low-cut filter to reduce rumble and low-frequency buildup. A switchable -10 or -20 dB pad minimizes distortion when miking loud sources. The mic can handle a maximum SPL of 140 dB (160 dB with the -20 dB pad engaged). It utilizes a gold-plated XLR 3-pin jack and requires 48 VDC phantom power. The included accessories aid in eliminating unwanted sounds from plosives, room reflections, and vibration. - X1 S Large-Diaphragm Cardioid Condenser Microphone The SE Electronics X1 S is a large-diaphragm cardioid condenser microphone designed for versatile, full-range vocal and instrument recording in commercial facilities, project studios, home setups, and mobile rigs. The handcrafted gold-sputtered capsule features a pressure-gradient design for directional focus and rejection of off-axis sounds. It utilizes a gold-plated XLR 3-pin jack and requires 48V phantom power. The metal-bodied X1 S delivers a 20 Hz to 20 kHz frequency response and a selectable 80 Hz or 160 Hz low-cut filter to reduce rumble and low-frequency buildup. A switchable -10 dB or -20 dB pad minimizes distortion when miking loud sources such as drums and amplified guitars. Even without a pad, the X1 S can handle a maximum SPL of 140 dB. It ships with a mic clip and thread adapter for easy mounting on a mic stand.
- The X1 S utilizes a handcrafted condenser capsule, meticulously constructed and tuned in SE's capsule room by technicians with decades of experience
- Its internal redesign allows for improved sensitivity, dramatically increased SPL handling (up to 160 dB), and a large reduction in self-noise

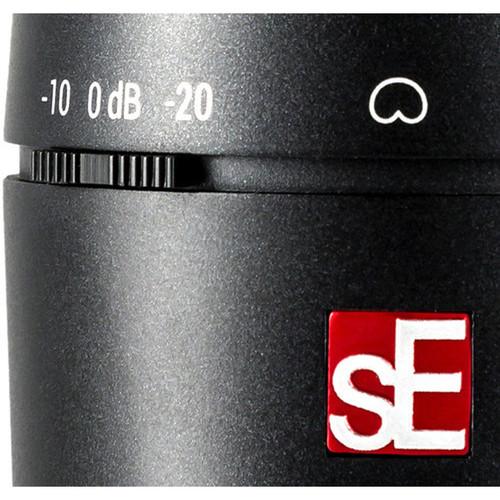

- The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques

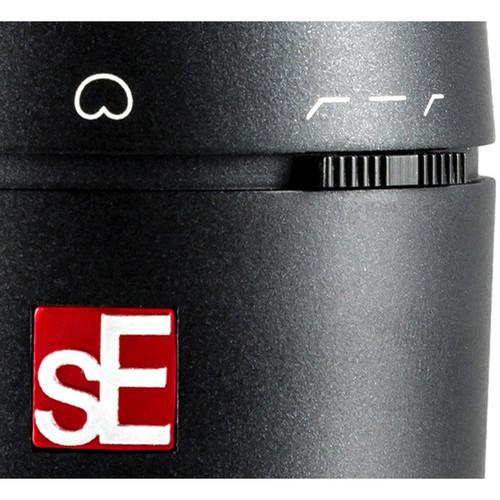

- Selectable at either 80 Hz or 160 Hz, the two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques
- The X1 S's all-metal chassis provides efficient rejection of electrical interference and noise
- A gold-plated XLR connector ensures loss-free, reliable signal connection

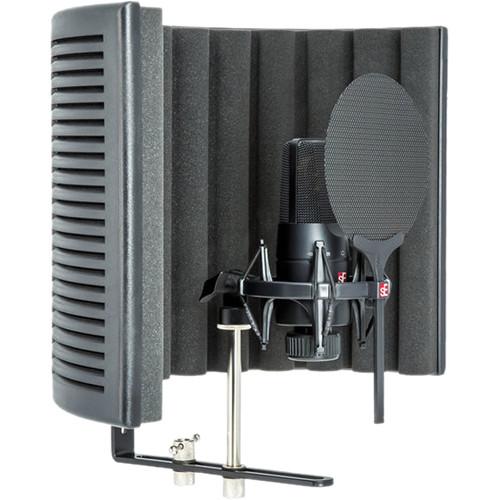

UPC: 819032011188 - RF-X Reflection Filter The RF-X Reflection Filter from sE Electronics prevents unwanted audio ambience from contaminating your vocal tracks in untreated acoustic environments. This acoustic filter uses the same patented technology as the RF-Pro. Its lightweight body and clamp assembly makes the RF-X simple and easy to use.
The RF-X is lighter than its predecessors, but still maintains durability. It features a four-layer acoustic filter design comprising the outer composite panel itself, a wool fabric layer, an air gap layer and an inner acoustic foam layer. The air gap ensures that recordings exhibit almost no sound coloration when the RF-X filter is used.
The RF-X clamp assembly's lightweight design can be used on almost any microphone stand. It allows vertical mounting only, making it ideal for vocal recording. UPC: 819032010013 - Isolation Pack - Shock Mount and Pop Filter for Magneto, X1 & sE 2200a II Series The sE Electronics Isolation Pack is a quick-release shock mount that is designed specifically for the Magneto, X1 Series (sE X1, X1 Vocal Pack and X1 Studio Bundle) and sE 2200a II series (sE2200a II MP and sE2200a II C) of microphones. It can be used by professionals and amateurs alike to capture vocals free of pops caused by vocal plosives and low end rumble and noise caused by unwanted vibrations.
- Pop shield features metal as opposed to a fabric shield for durability
UPC: 819032010112 In the Box Bundle Items X1 S Large-Diaphragm Cardioid Condenser Microphone rcrtvatzfbsvsstxrxtvvrveurxtxdseb - Limited 2-Year Warranty (Extendable to Three Years via Online Registration)

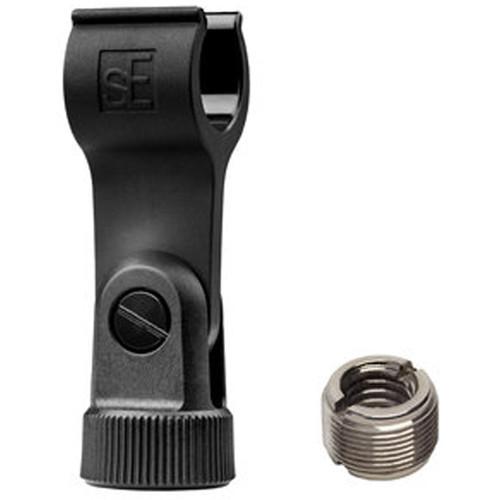

RF-X Reflection Filter - Microphone Stand Mounting Clamp
- Limited 3-Year "Zero Downtime" Free Replacement Warranty
Isolation Pack - Shock Mount and Pop Filter for Magneto, X1 & sE 2200a II Series
Also Includes - 10' / 3 m Microphone Cable
- Limited 2-Year Warranty (Extendable to Three Years via Online Registration)
Table of Contents
|
Upload User Manual
Have you got an user manual for the sE Electronics X1 S Studio Bundle - Vocal Recording Package with Reflection Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - X1 S Large-Diaphragm Cardioid Condenser Microphone
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 85 dB | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 140 dB SPL 150 dB with 10 dB pad engaged
160 dB with 20 dB pad engaged | | Pad | -10 dB
-20 dB | | Impedance | 125 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | 30 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz
6 dB/Octave @ 160 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 6 mA | | Operating Voltage | 48 V | | Length | 6.65" / 169 mm | | Diameter | 2.28" / 58 mm | | Weight | 15.70 oz / 445 g | | | | Box Dimensions (LxWxH) | 10.6 x 5.1 x 3.9" | - RF-X Reflection Filter
| Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 16.5 x 14.0 x 8.2" | - Isolation Pack - Shock Mount and Pop Filter for Magneto, X1 & sE 2200a II Series
| | | Box Dimensions (LxWxH) | 12.2 x 7.0 x 4.1" |
