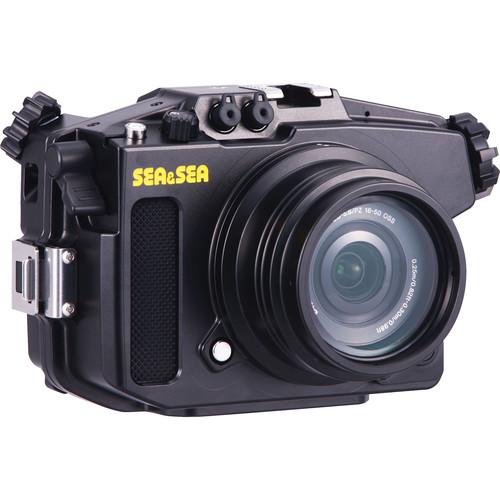

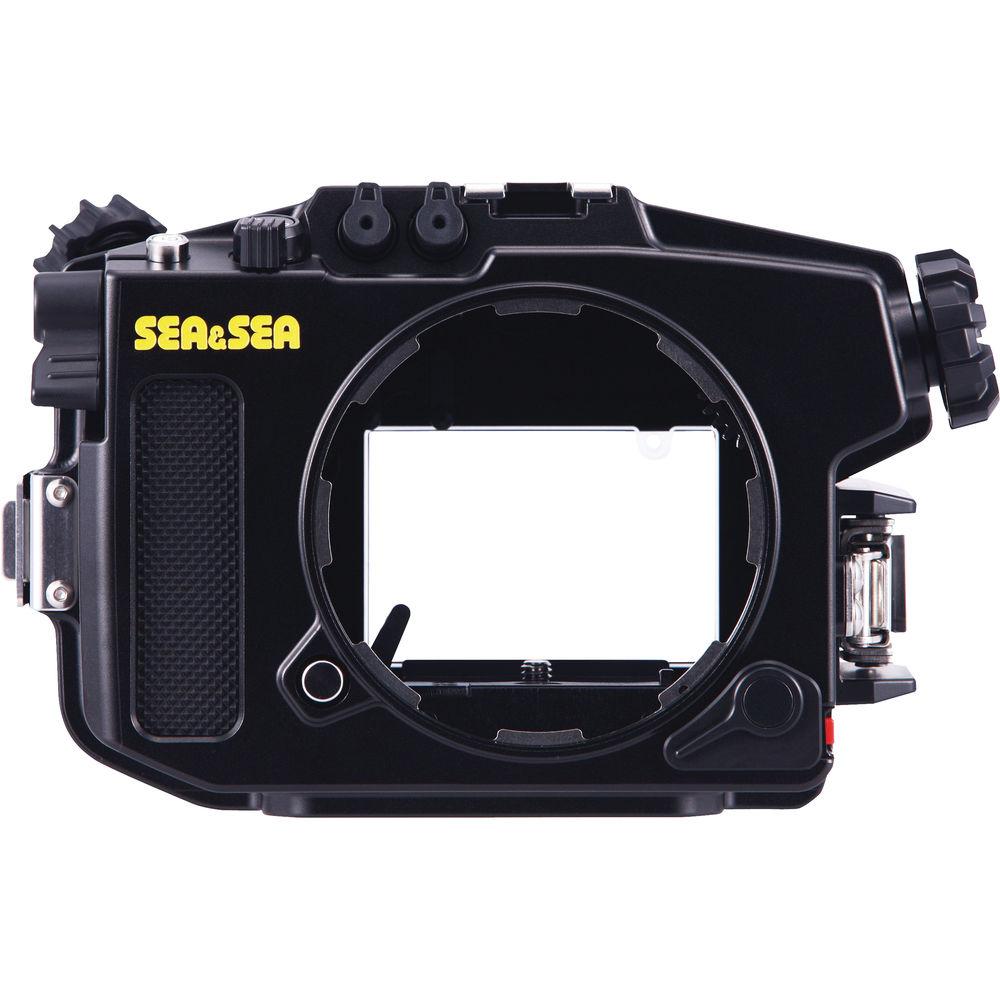

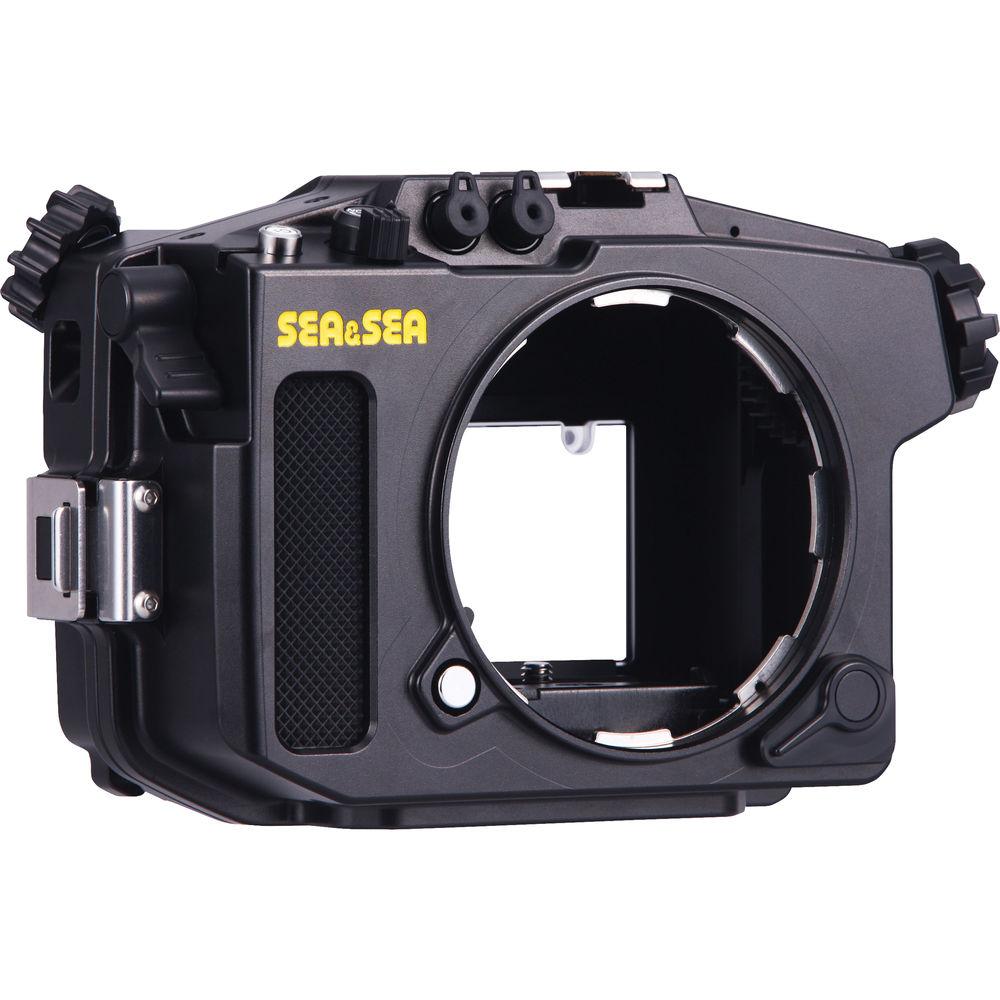

User Manual for Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 and ML Flat Lens Port 33 Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-a6000 Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea MDX-a6000 Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|
Product description Capture the beauty and variety of sea life at depths up to 328' with your Sony Alpha a6000 Mirrorless Digital Camera and 30mm f/3.5 Macro or 16-50mm f/3.5-5.6 lens, thanks to this Sea & Sea MDX-a6000 Underwater Housing. Dual fiber-optic ports enable the connection of optional external strobes via cables. Mechanical controls afford access to all camera functions.
Built for durability, the housing is constructed from a galvanized, corrosion-resistant aluminum alloy. It ships with the ML Flat Port 33 for the Sony 30mm f/3.5 Macro or 16-50mm lens, and accepts the optional ML Dome Port for the 10-18mm, 16mm f/2.8, or 16-50mm lens. See System Chart for the most complete and up-to-date compatibility information. Additionally, an optional leak sensor can be installed to alert you in the unlikely event of a breach in the waterproof seal. - Construction Details
-
- Depth Rating: 328' for body and lens port
- Made from a galvanized, corrosion-resistant aluminum alloy
- Equipped with front and rear sacrificial zinc anodes, which corrode in seawater to prevent sensitive parts of housing from doing so
- Optional leak sensor with LED lamp can be installed to alert you in unlikely event of a breach in waterproof seal
- By attaching optional SA8 Fixed Ball Bases to designated mounts on top of housing, you can use SA8 components without a hand grip or tray
- Optional SA8 Ball Base for Accessory Shoe gives you even more lighting options

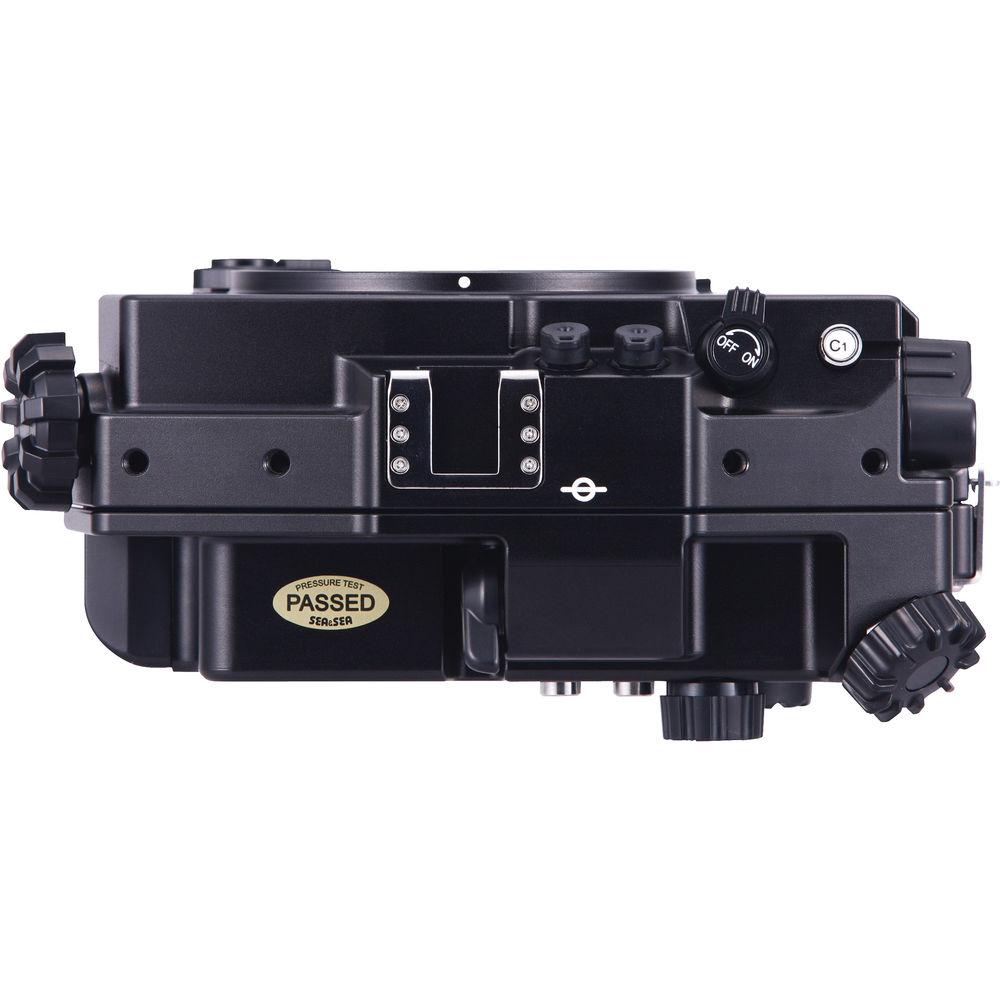

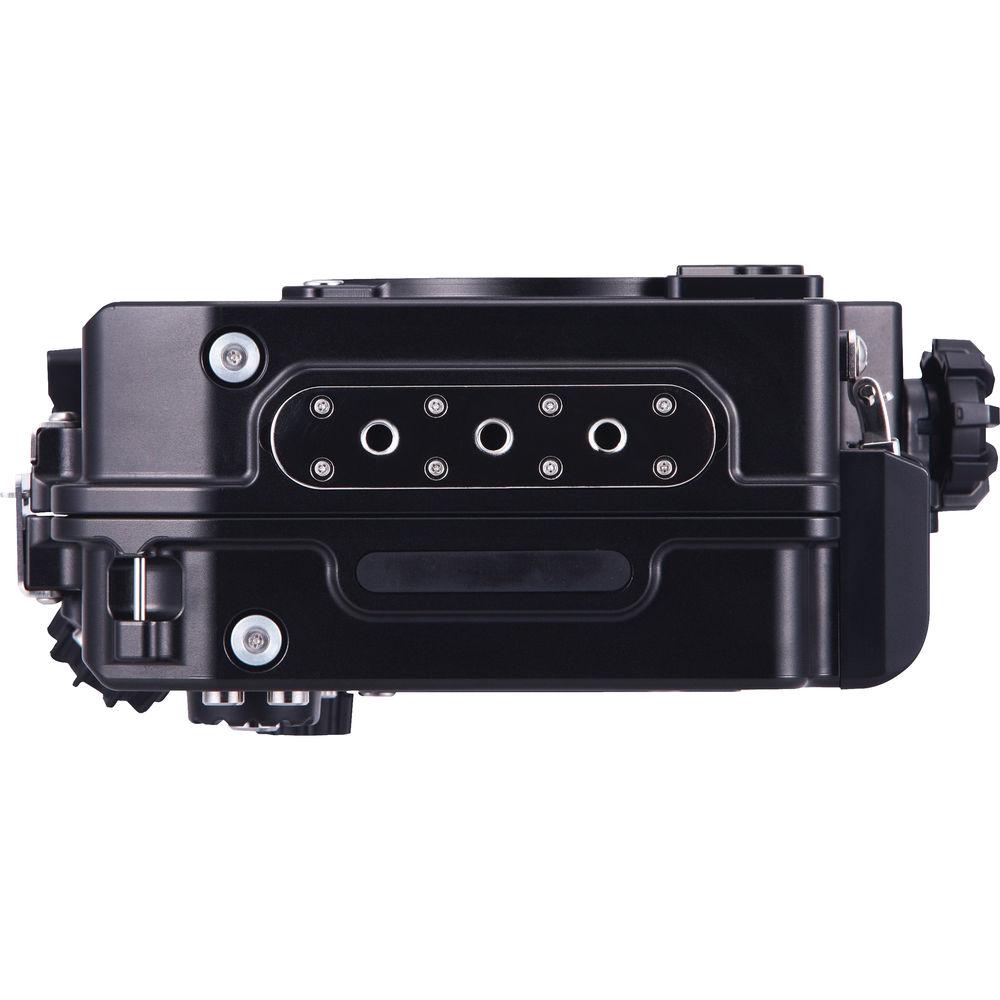

- Housing has accessory shoe on top for lighting arm connection, and threaded mount on bottom for tripod/tray attachment
- Strobe Connection and Use
-
- Dual fiber-optic ports enable connection of optional external strobes via cables
- Compatible with YS-01, YS-02, YS-03, YS-110a, and YS-D1 strobes
- Controls, Handling, and Operation
-

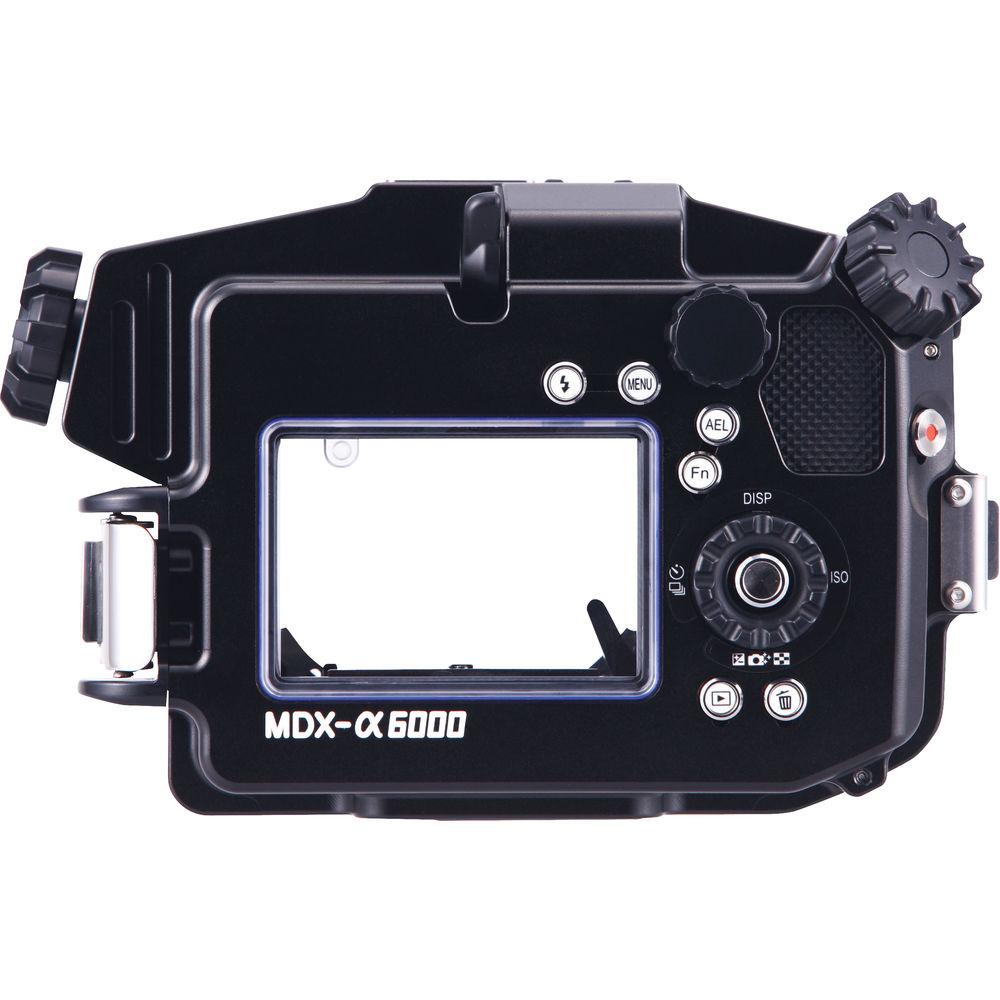

- Mechanical controls, including grooved dials, push-buttons, and levers, afford access to all camera functions
- Designed and shaped for easy, comfortable operation
- Control dial can be reached and operated easily with your right thumb
- Large mode dial is easy to turn with thumb and forefinger, even when wearing gloves
- Movie recording button can be activated with no trouble, although surrounding area is hollowed out to avoid accidental pressing
- Trigger-shaped shutter lever
- Camera's built-in flash can be activated and deactivated via housing's built-in flash activation button and flash disablement lever
- Housing allows camera's LCD monitor to be tilted up 10°
- Use of optional hand strap recommended when tray/stay is not used
- Lens Port System
-

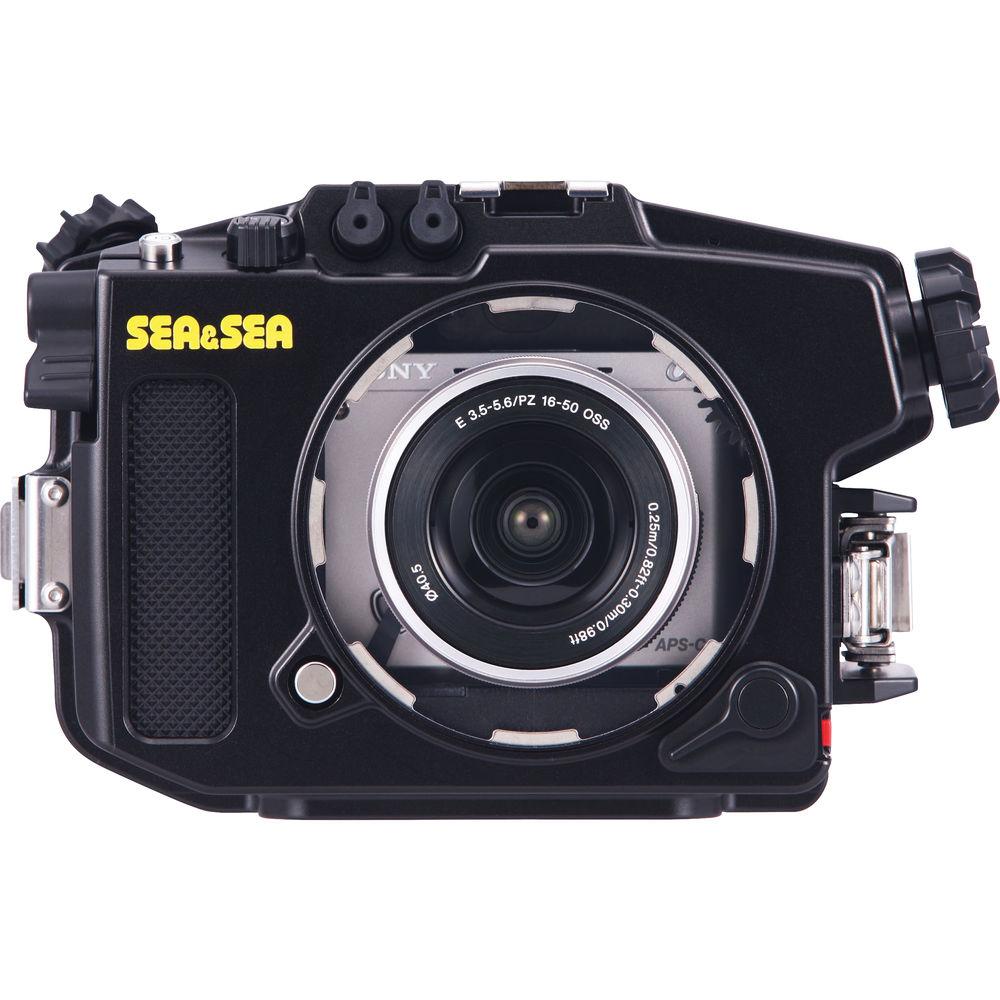

- Ships with ML Flat Port 33 for Sony 30mm f/3.5 Macro or 16-50mm f/3.5-5.6 Zoom lens
- Port has flat glass front element and M67 (67mm) screw mount on front, and measures 93mm in diameter and 59mm in depth
- Housing accepts optional ML Dome Port with acrylic front element, which measures 154mm in diameter and 72mm in depth
- ML Dome supports Sony 16mm f/2.8 Wide Angle and 16-50mm f/3.5-5.6 Zoom lenses
- Conversion lenses VCL-ECU1 and VCL-ECF1 are also supported
- Sony 10-18mm Wide Angle Zoom lens and VCL-ESU1 conversion lens may be used when ML Extension Ring 25 is added
- See system chart linked above

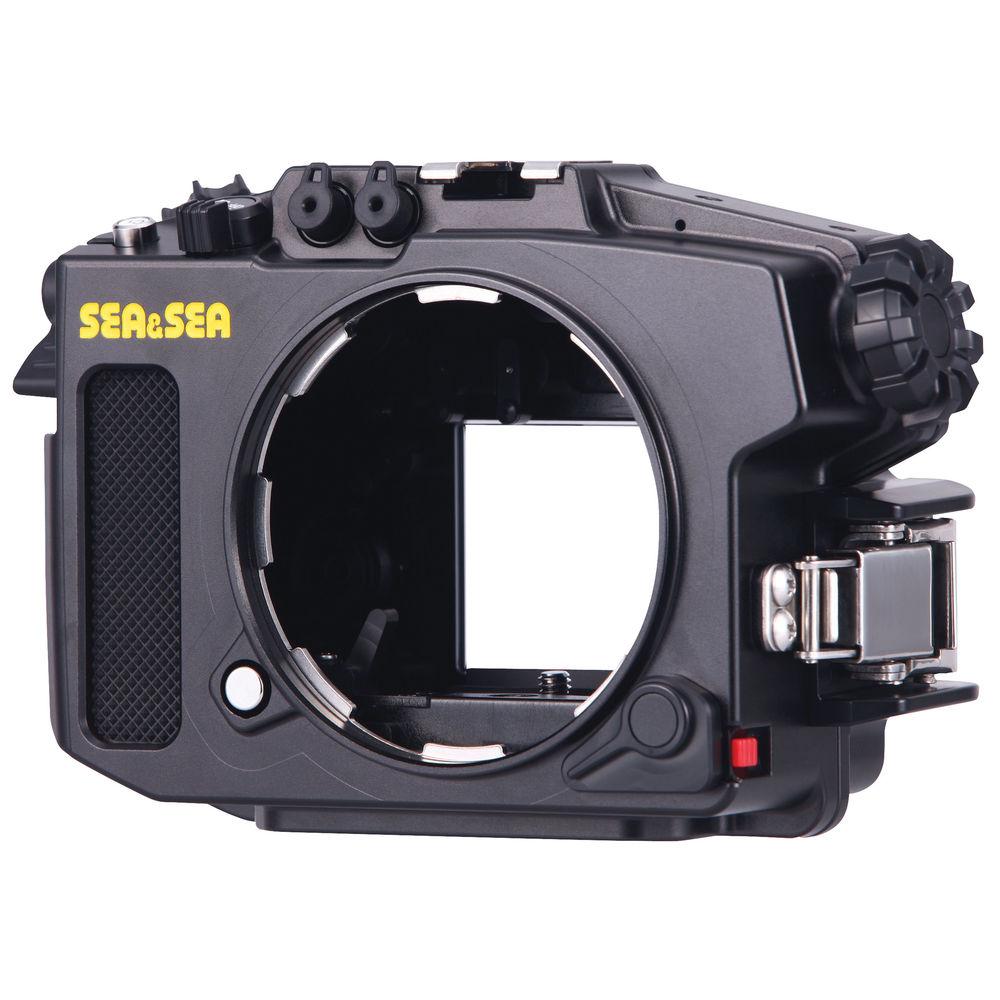

- Lenses can be changed with ease, thanks to lens lock button located on front of housing
In the Box Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 and ML Flat Lens Port 33 O-Ring Silicone Grease O-Ring Remover Housing Body Cap 2 x Fiber-Optic Cable Socket Caps Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 and ML Flat Lens Port 33 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 and ML Flat Lens Port 33 can be downloaded in PDF format at the link stated below.
Technical parametersSea & Sea MDX-A6000 Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical dials, push-buttons, and levers | | Controls | Provide access to all camera functions | | Material of Construction | Housing: Galvanized, corrosion-resistant aluminum alloy
Lens Port (Flat Port 33): Corrosion-resistant anodized aluminum body, tempered glass front element
Optional ML Dome Port: Corrosion-resistant anodized aluminum body, acrylic front element, ABS plastic shade | | Lens Port | Ships with ML Flat Port 33 for Sony 30mm f/3.5 Macro or 16-50mm lens
Accepts optional ML Dome Port for 10-18mm, 16mm f/2.8, or 16-50mm lens
Flat port has glass front, anodized aluminum body, M67 (67mm) screw mount, 3.7" / 93 mm diameter, 2.3" / 59 mm depth
Optional ML Dome Port fits Sony 16mm f/2.8, 30mm f/3.5 Macro, 16-50mm f/3.5-5.6 lenses, and 10-18mm lenses
Dome has acrylic front, 6.1" / 154 mm diameter, 2.8" / 72 mm depth
ML ports also support optional conversion lenses VCL-ECU1, VCL-ECF1, and VCL-ESU1
See system chart linked in Overview | | Buoyancy | Housing Only: Positive
May vary depending on choice of lens and port | | External Flash Connector | Dual fiber-optic ports enable connection of optional strobes
Compatible with YS-01, YS-02, YS-03, YS-110a, and YS-D1 strobes | | Other Connectors | Accessory shoe on top for lighting arm
Tripod/tray mount on bottom | | Moisture Alarm | Optional leak sensor with LED lamp can be installed | | Mounting | Designated mounts on top for optional SA8 Fixed Ball Bases | | Dimensions | Housing: 7.6 x 5.0 x 3.6" / 19.3 x 12.6 x 9.2 cm
ML Flat Port 33 Diam. x L: 3.7 x 2.3" / 93 x 59 mm | | Weight | Housing Only:
Out of Water: Approx. 2.6 lb / 1.2 kg
Underwater: Approx. -8.1 oz / -230 g
ML Flat Port 33:
Out of Water: 7.75 oz / 220 g |
