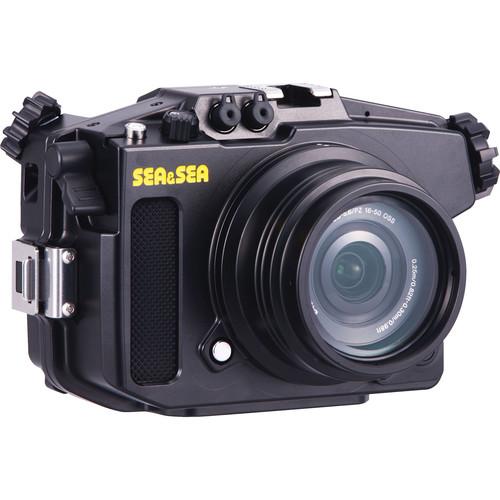

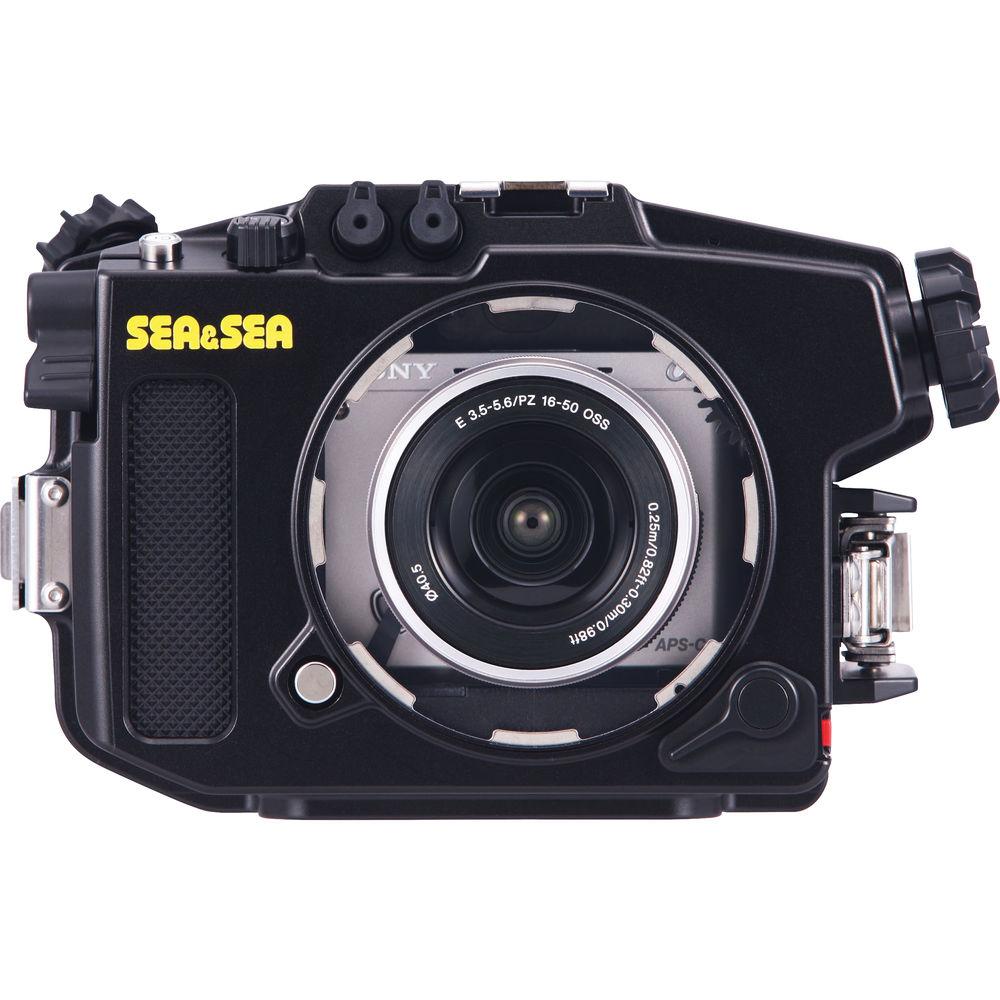

Product description Capture the beauty and variety of sea life at depths up to 328' with your Sony Alpha a6000 Mirrorless Digital Camera and 16-50mm f/3.5-5.6 or 30mm f/3.5 lens, thanks to this Sea & Sea MDX-a6000 Underwater Housing. Dual fiber-optic ports enable the connection of optional external strobes via cables. Mechanical controls afford access to all camera functions.
Built for durability, the housing is constructed from a galvanized, corrosion-resistant aluminum alloy. It ships with the ML Flat Port 33 for the 16-50mm or 30mm lens, and accepts the optional ML Dome Port for the 16mm f/2.8, 10-18mm, or 16-50mm lens. See System Chart for the most complete and up-to-date compatibility information. Additionally, an optional leak sensor can be installed to alert you in the unlikely event of a breach in the waterproof seal. - Construction Details
-
- Depth Rating: 328' for body and lens port
- Made from a galvanized, corrosion-resistant aluminum alloy
- Equipped with front and rear sacrificial zinc anodes, which corrode in seawater to prevent sensitive parts of housing from doing so
- Optional leak sensor with LED lamp can be installed to alert you in unlikely event of a breach in waterproof seal
- By attaching optional SA8 Fixed Ball Bases to designated mounts on top of housing, you can use SA8 components without a hand grip or tray
- Optional SA8 Ball Base for Accessory Shoe gives you even more lighting options

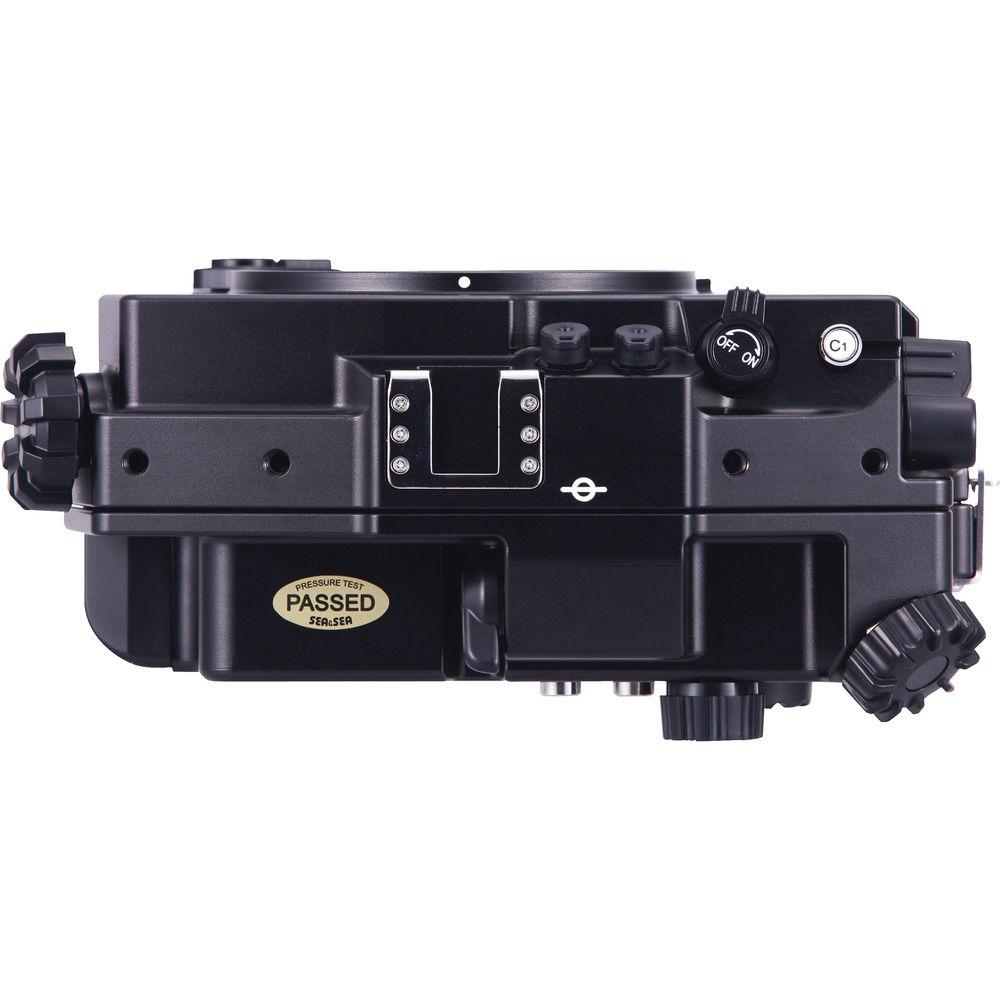

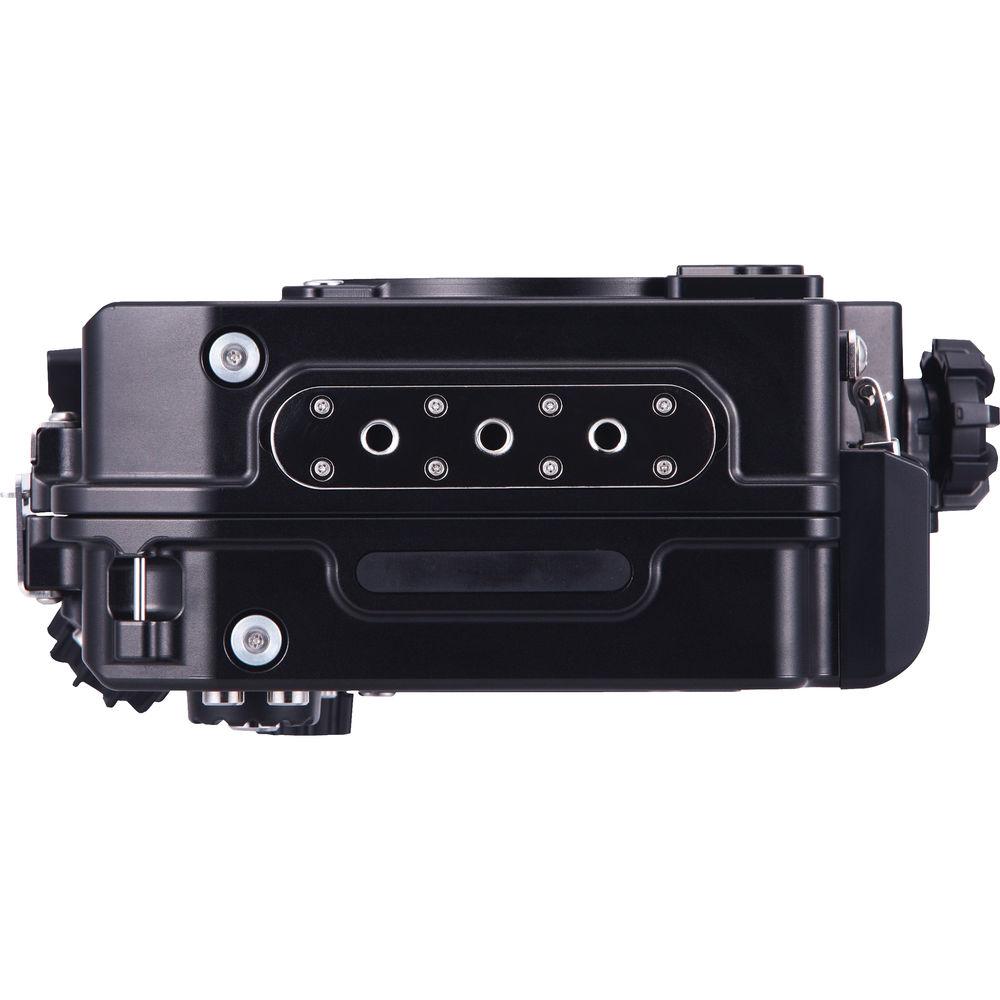

- Housing has accessory shoe on top for lighting arm connection, and threaded mount on bottom for tripod/tray attachment
- Strobe Connection and Use
-
- Dual fiber-optic ports enable connection of optional external strobes via cables
- Compatible with YS-01, YS-02, YS-03, YS-110a, and YS-D1 strobes
- Controls, Handling, and Operation
-

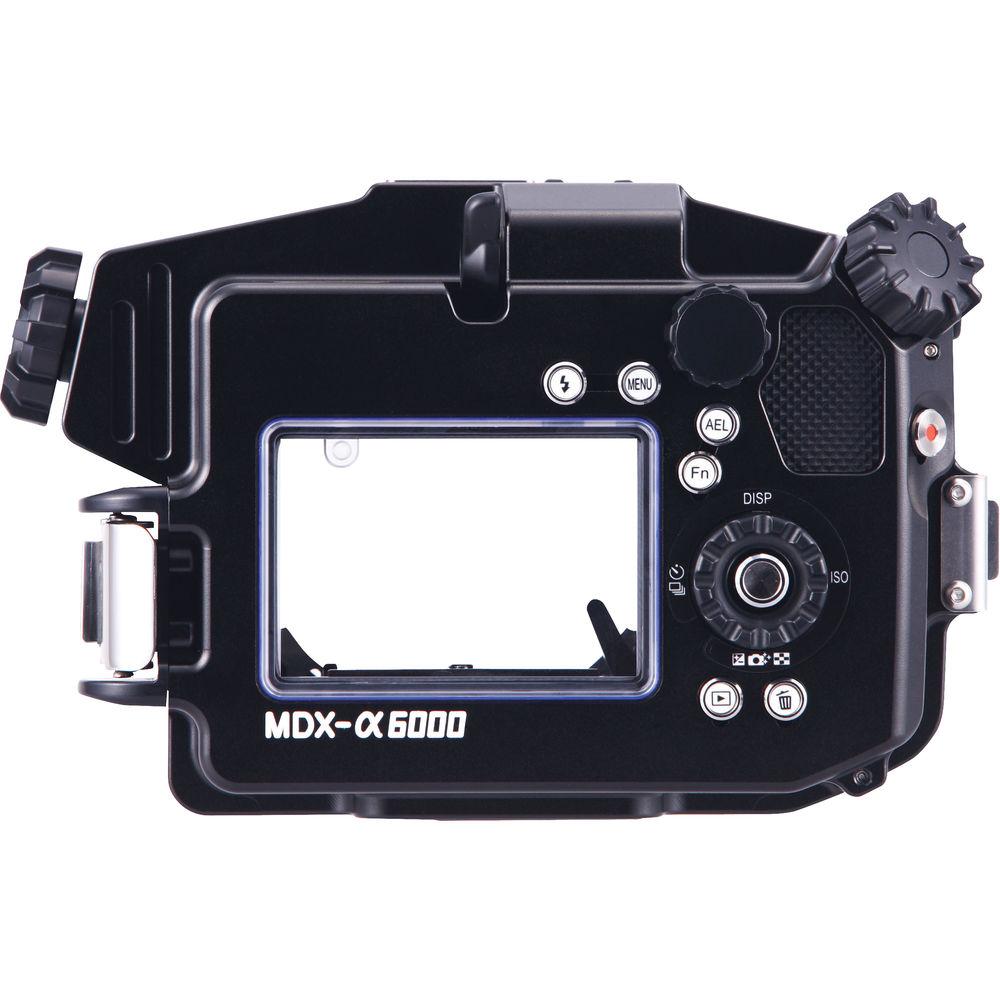

- Mechanical controls, including grooved dials, push-buttons, and levers, afford access to all camera functions
- Designed and shaped for easy, comfortable operation
- Control dial can be reached and operated easily with your right thumb
- Large mode dial is easy to turn with thumb and forefinger, even when wearing gloves
- Movie recording button can be activated with no trouble, although surrounding area is hollowed out to avoid accidental pressing
- Trigger-shaped shutter lever
- Camera's built-in flash can be activated and deactivated via housing's built-in flash activation button and flash disablement lever
- Housing allows camera's LCD monitor to be tilted up 10°
- Use of optional hand strap recommended when tray/stay is not used
- Lens Port System
-
- Compatible with two interchangeable lens ports: the ML Flat Port 33, which is included, and the ML Dome Port, which is optional
- Ports accommodate Sony 16mm f/2.8, 30mm f/3.5 Macro, and 16-50mm f/3.5-5.6 Zoom lenses
- Sony 10-18mm Wide Angle Zoom lens may be used when optional ML Extension Ring 25 is added
- ML Flat Port 33 has 67mm (M67) thread diameter for attaching optional filters and lenses, such as the conversion lenses VCL-ECU1 and VCL-ECF1. VCL-ESU1 conversion lens is usable with ML Extension Ring 25
- Zoom gear for the 16-50mm f/3.5-5.6 OSS lens is supplied
- See system chart linked above

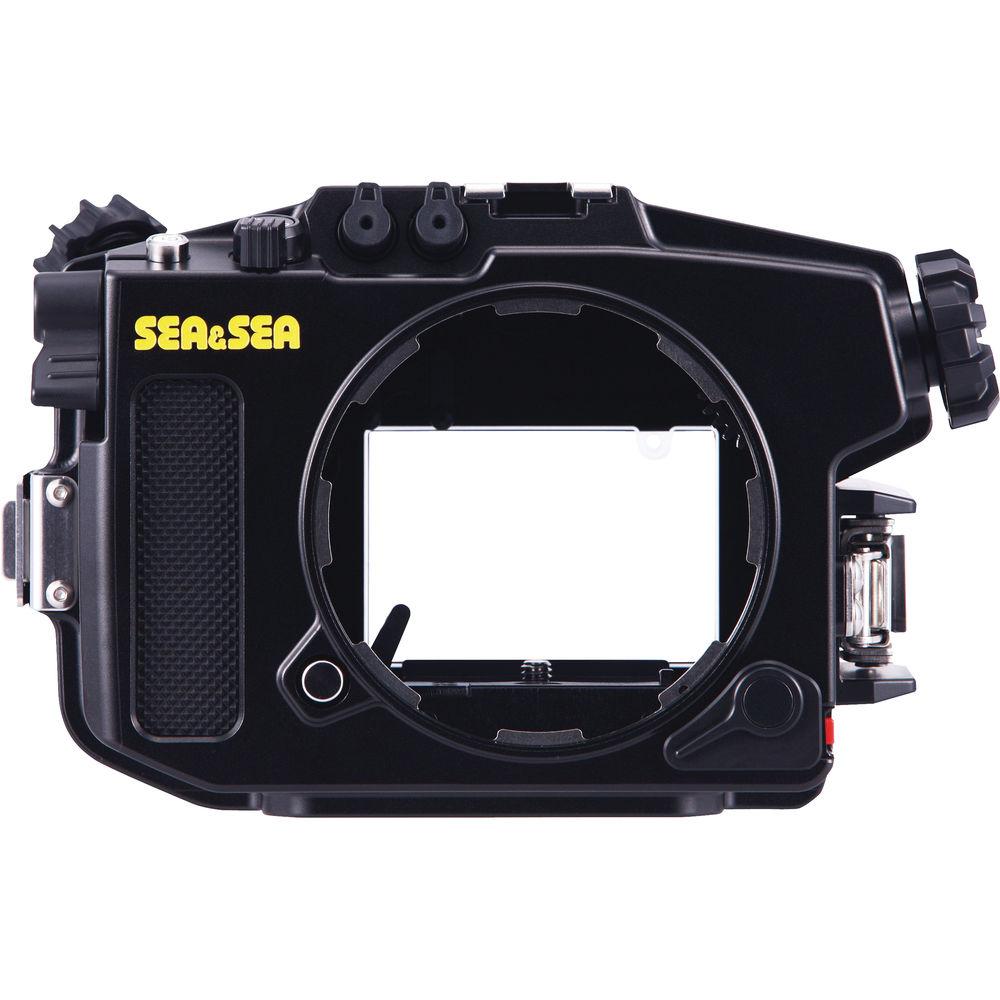

- With the lens lock button located on the front of the housing, lenses can be changed with ease
In the Box Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 with Lens Port for 16-50mm O-Ring Silicone Grease O-Ring Remover Housing Body Cap 2 x Fiber-Optic Cable Socket Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-a6000 Underwater Housing for Sony Alpha a6000 with Lens Port for 16-50mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-A6000 Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical dials, push-buttons, and levers | | Controls | Provide access to all camera functions | | Material of Construction | Housing: Galvanized, corrosion-resistant aluminum alloy
Lens Port (Flat Port 33): Corrosion-resistant anodized aluminum body, tempered glass front element
Optional ML Dome Port: Corrosion-resistant anodized aluminum body, acrylic front element, ABS plastic shade | | Lens Port | ML Flat Port 33 with flat, multi-coated front element (included)
67 mm threaded M67 screw mount on front
Optional ML Dome Port
Ports accommodate 16mm f/2.8, 30mm f/3.5 Macro, and 16-50mm f/3.5-5.6 lenses
10-18mm Wide Angle lens may be used when optional ML Extension Ring 25 added
See system chart linked in Overview | | Buoyancy | Housing Only: Positive
May vary depending on choice of lens and port | | External Flash Connector | Dual fiber-optic ports enable connection of optional strobes
Compatible with YS-01, YS-02, YS-03, YS-110a, and YS-D1 strobes | | Other Connectors | Accessory shoe on top for lighting arm
Tripod/tray mount on bottom | | Moisture Alarm | Optional leak sensor with LED lamp can be installed | | Mounting | Designated mounts on top for optional SA8 Fixed Ball Bases | | Dimensions | Housing: 7.6 x 5.0 x 3.6" / 19.3 x 12.6 x 9.2 cm
Lens Port Diam. x L: 3.7 x 2.3" / 93 x 59 mm | | Weight | Housing Only:
Out of Water: Approx. 2.6 lb / 1.2 kg
Underwater: Approx. -8.1 oz / -230 g
Housing Underwater with camera, 16-50 mm lens, and Flat Port 33: Approx. 1.0 lb / 0.45 kg
Flat Port 33: 7.75 oz / 220 g |
