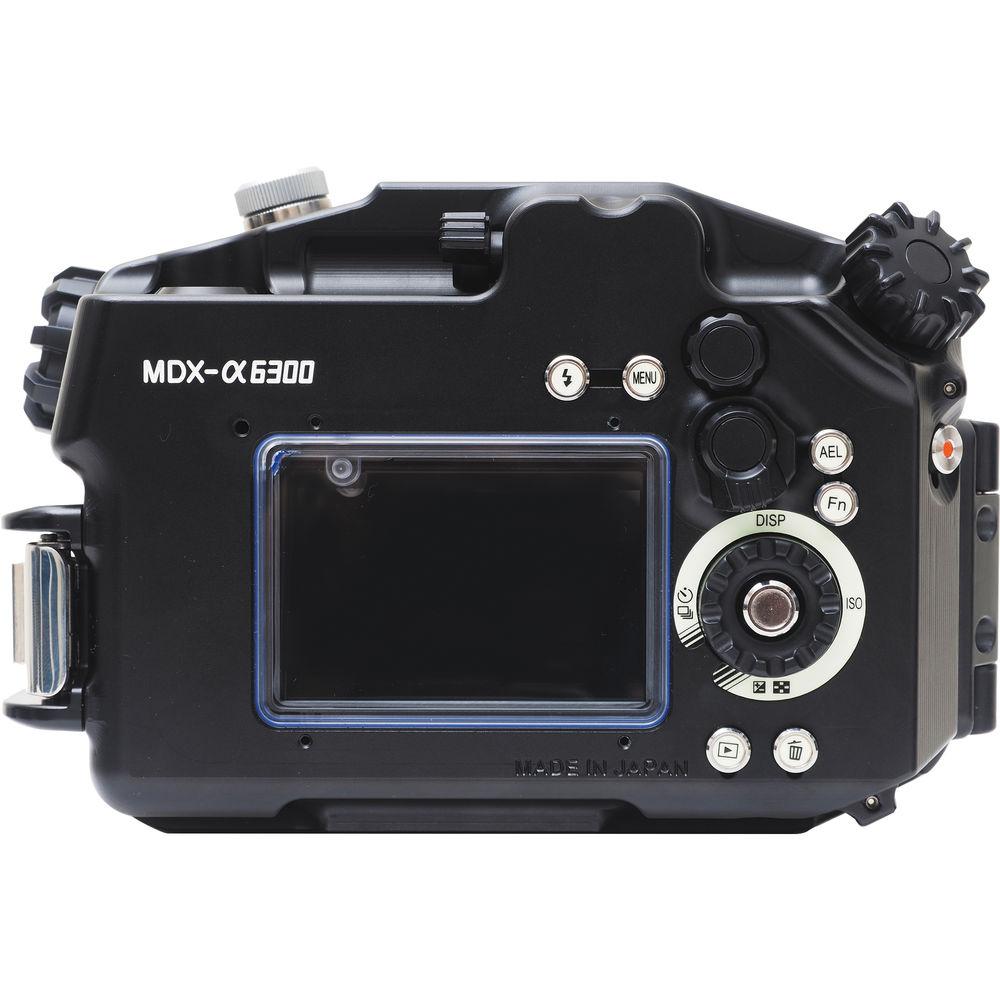

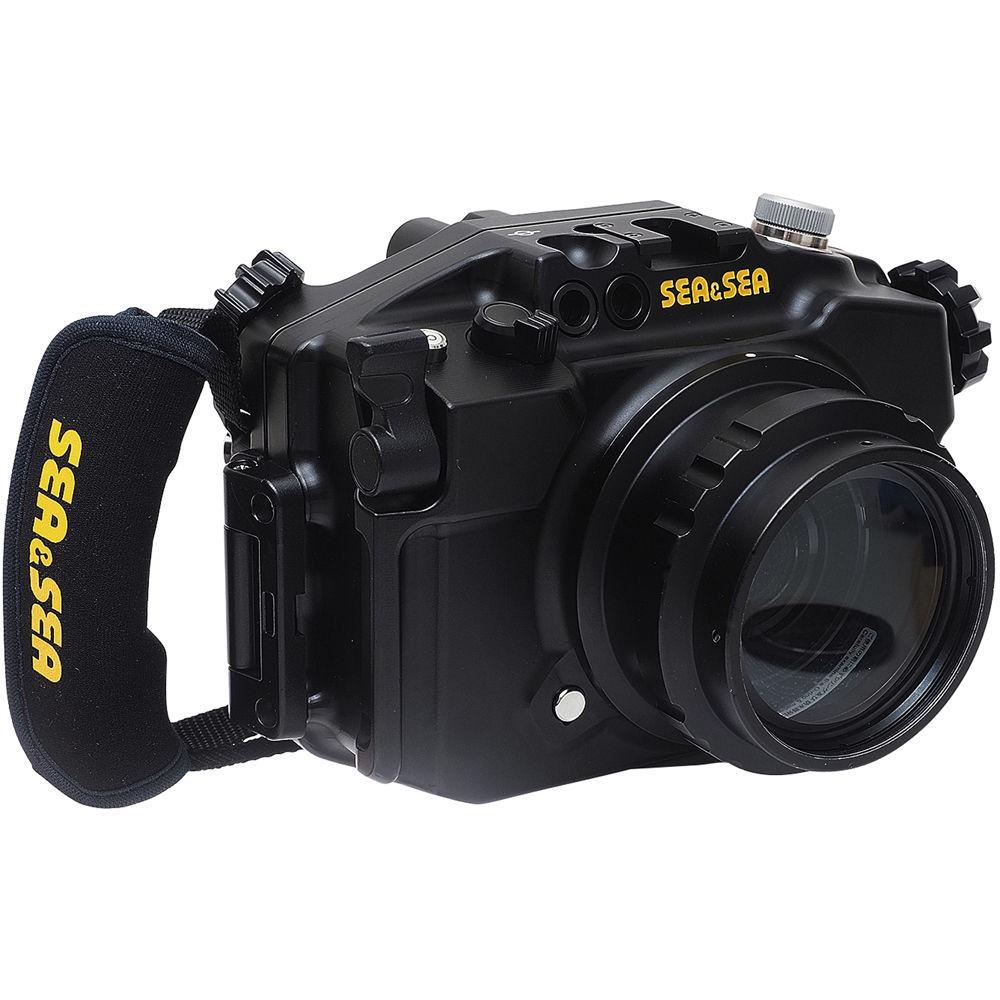

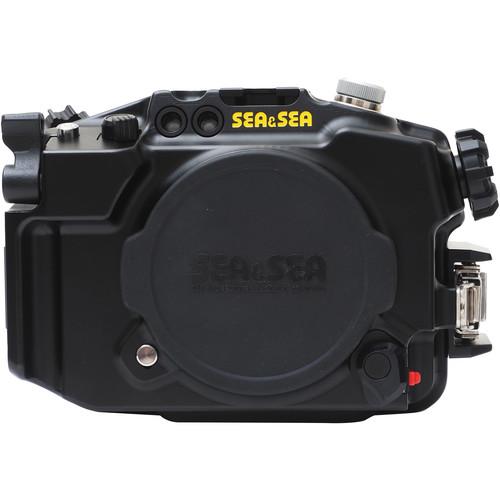

User Manual for Sea & Sea MDX-a6300 Underwater Housing for Sony Alpha a6500, a6300, or a6000 Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-a6300 Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea MDX-a6300 Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

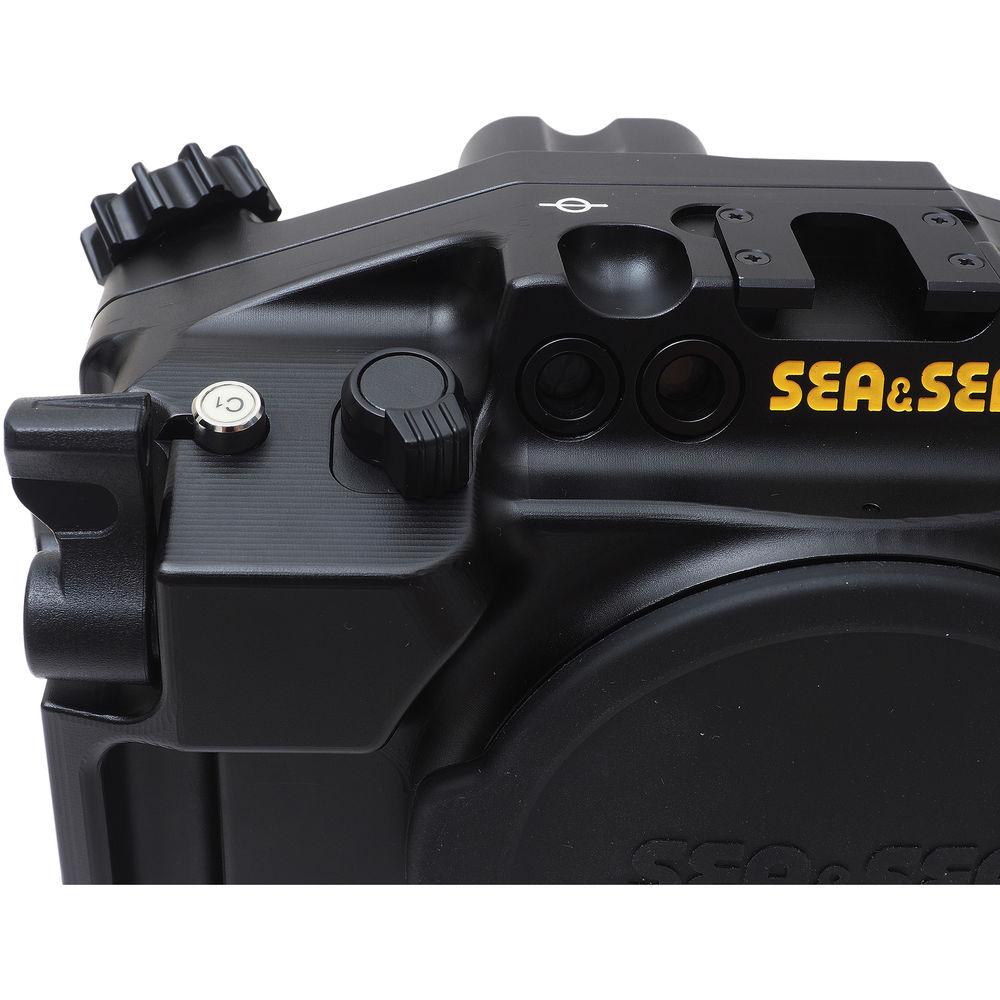

Product description You can capture the beauty of sea life at depths as great as 250', thanks to the black Sea & Sea MDX-a6300 Underwater Housing for Sony's Alpha a6500, a6300, or a6000 Mirrorless Camera. Dual fiber-optic cable ports enable the connection of optional external strobes via cables. Mechanical controls afford access to virtually all camera functions.
Built for durability, the housing is constructed from a precision-machined, corrosion-resistant aluminum alloy. It ships without a required lens port and accepts a series of interchangeable ports for different lenses, including the ML Flat Port 33 for Sony's 30mm f/3.5 Macro or 16-50mm and the ML Dome Port for the 10-18mm, 16mm f/2.8, or 16-50mm. For full, up-to-date compatibility details, see the System Chart. Additionally, an optional leak sensor can be installed to alert you in the unlikely event of a breach in the waterproof seal. - Construction Details
-
- Depth rating: 250'
- Optional leak sensor can be installed to alert you immediately in unlikely event of a breach in waterproof seal
- Optional Leak Sentinel vacuum system also available to confirm watertight integrity
- Weight is roughly same as that of MDX-a6000 housing, but redesigning of key components and greater precision in machining have allowed for adjustment in underwater buoyancy for better balance
- Made from corrosion-resistant aluminum alloy
- Equipped with front and rear sacrificial zinc anodes, which corrode in seawater to prevent sensitive parts of housing from doing so
- Three 1/4"-20 threaded mounts on bottom enable mounting onto optional tray, tripod, or monopod
- Cold shoe/accessory shoe mount on top for lighting arm connection
- Strobe Connection and Use
-

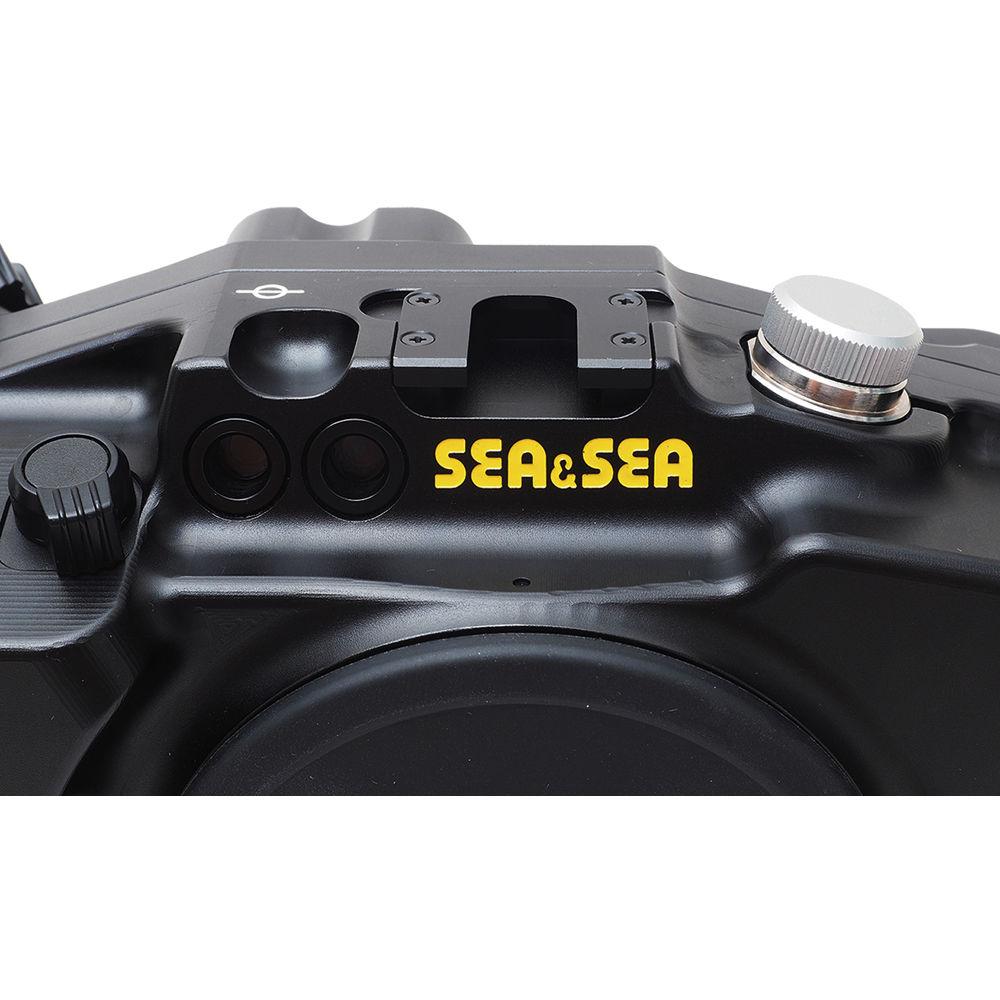

- Dual fiber-optic cable ports enable connection of optional external strobes via cables
- Also accepts optional N-type, 2-pin sync connector for attaching strobes via sync cords
- Compatible with Sea & Sea YS series strobes, including YS-01, YS-02, YS-03, YS-110a, and YS-D1
- Controls, Handling, and Operation
-

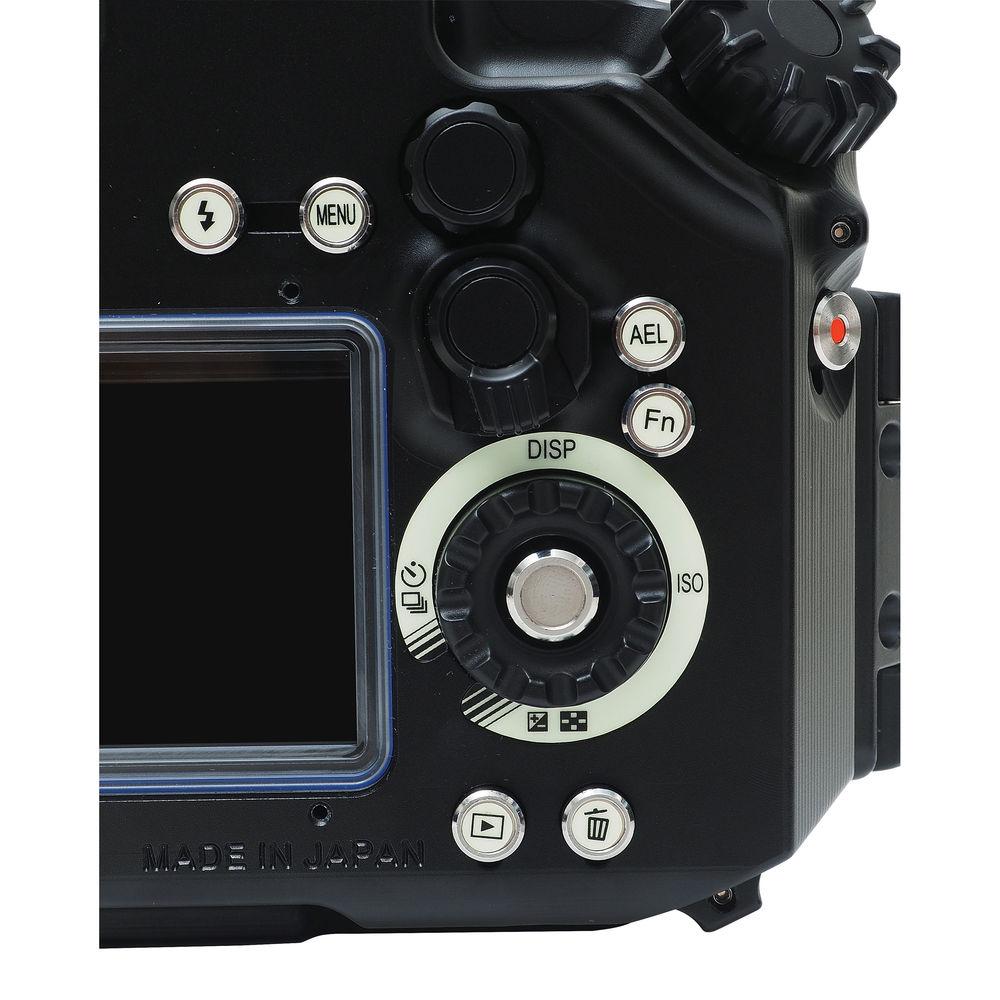

- Mechanical push-buttons, dials/knobs, and lever enable access to virtually all camera functions

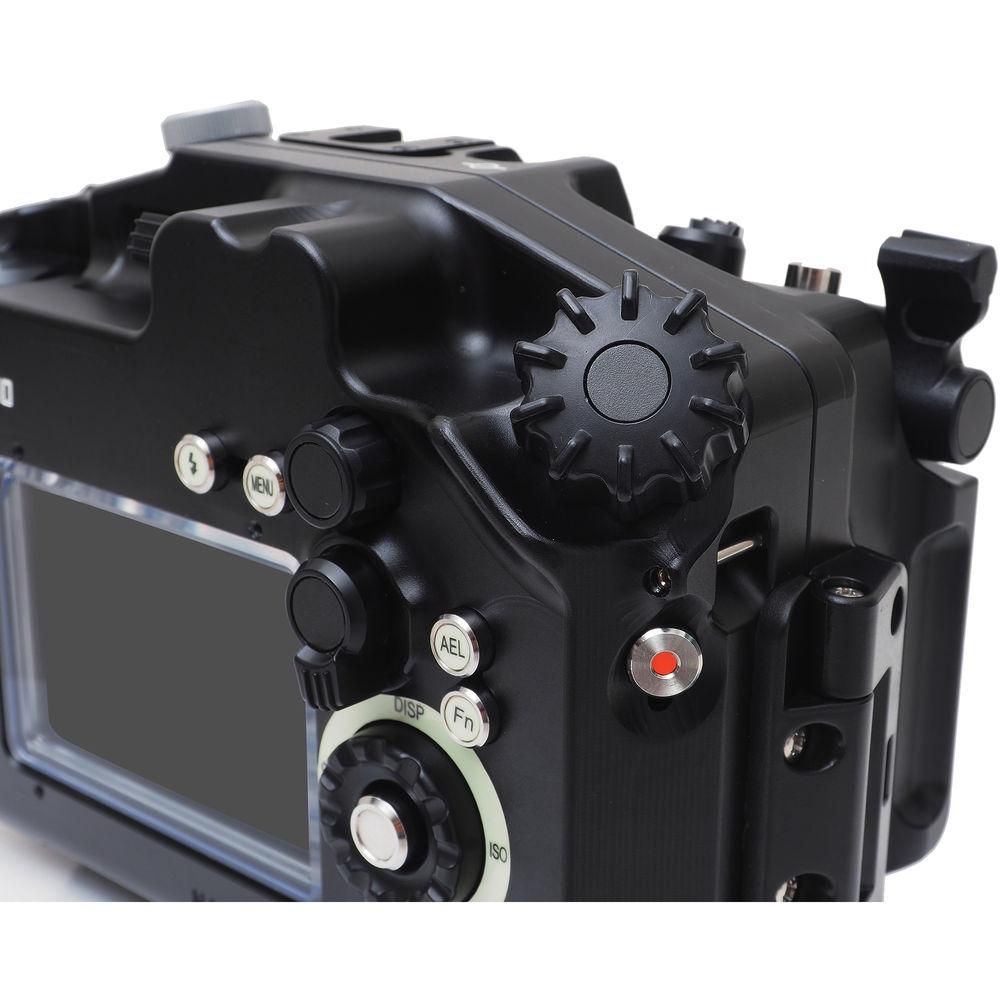

- Control dial can be reached and operated easily with your thumb
- Large mode dial is easy to turn with thumb and forefinger, even when wearing gloves
- Movie recording button located right underneath right-hand dial, and surrounding area is hollowed out to avoid accidental pressing
- Camera's LCD monitor can be tilted up to 10° for easier viewing
- Luminescent buttons make it easy to view and distinguish controls in low-light conditions
- Attach optional SA8 Tray and Grips to improve balance and handling
- Grips also provide attachment points for optional lighting arms
- Optional SA8 Ball Base for Accessory Shoe gives you even more lighting options
- Optional ML Hand Strap is recommended when tray and grips are not used, in order to enable a secure grip on housing with one hand
- Two ergonomic thumb rests on rear help you maintain a good grip when not using tray and handles
- Lens Port System
-
- Ships without a required lens port
- Accepts a series of interchangeable ports for different lenses
- Compatible with ML Flat Port 33 for Sony's 30mm f/3.5 Macro or 16-50mm f/3.5-5.6, as well as ML Dome Port for Sony 10-18mm, 16mm f/2.8, or 16-50mm f/3.5-5.6
- For full, up-to-date details, see System Chart linked above
- Port lock can be activated from outside housing
- Lens release button for quick, easy changes between dives
In the Box Sea & Sea MDX-a6300 Underwater Housing for Sony Alpha a6500, a6300, or a6000 (Black) O-Ring Set Housing Body Cap Limited 1-Year Warranty System Chart PDF 99.4kbrsuutbszrxbszzrdutuuwwffvuxtebxaee Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-a6300 Underwater Housing for Sony Alpha a6500, a6300, or a6000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-a6300 Specs | Depth Rating | 250' / 75 m | | Control Type | Mechanical push-buttons, dials/knobs, and lever | | Controls | Enable access to virtually all camera functions | | Material of Construction | Precision-machined, corrosion-resistant aluminum alloy | | Lens Port | Ships without a required lens port
Accepts a series of interchangeable ports for different lenses
Compatible with ML Flat Port 33 for Sony's 30mm f/3.5 Macro or 16-50mm f/3.5-5.6, as well as ML Dome Port for Sony 10-18mm, 16mm f/2.8, or 16-50mm f/3.5-5.6
For full, up-to-date details, see System Chart linked in Overview
Port lock and lens release controls on housing | | External Flash Connector | 2x built-in fiber-optic cable ports
Optional N-type, 2-pin sync cord connector
Compatible with Sea & Sea YS series strobes, including YS-01, YS-02, YS-03, YS-110a, and YS-D1 | | Other Connectors | 2x accessory ports:
1 for optional sync cord connector for strobe
1 for optional vacuum system | | Moisture Alarm | Optional | | Mounting | 3x standard 1/4"-20 threaded holes on bottom for optional tray/tripod
Cold/accessory shoe mount on top for lighting arm
Optional grips on tray provides additional points for lighting arms | | Dimensions | 7.7 x 4.9 x 3.9" / 19.5 x 12.5 x 10 cm | | Weight | Housing Only: 2.9 lb / Approx. 1.3 kg |
