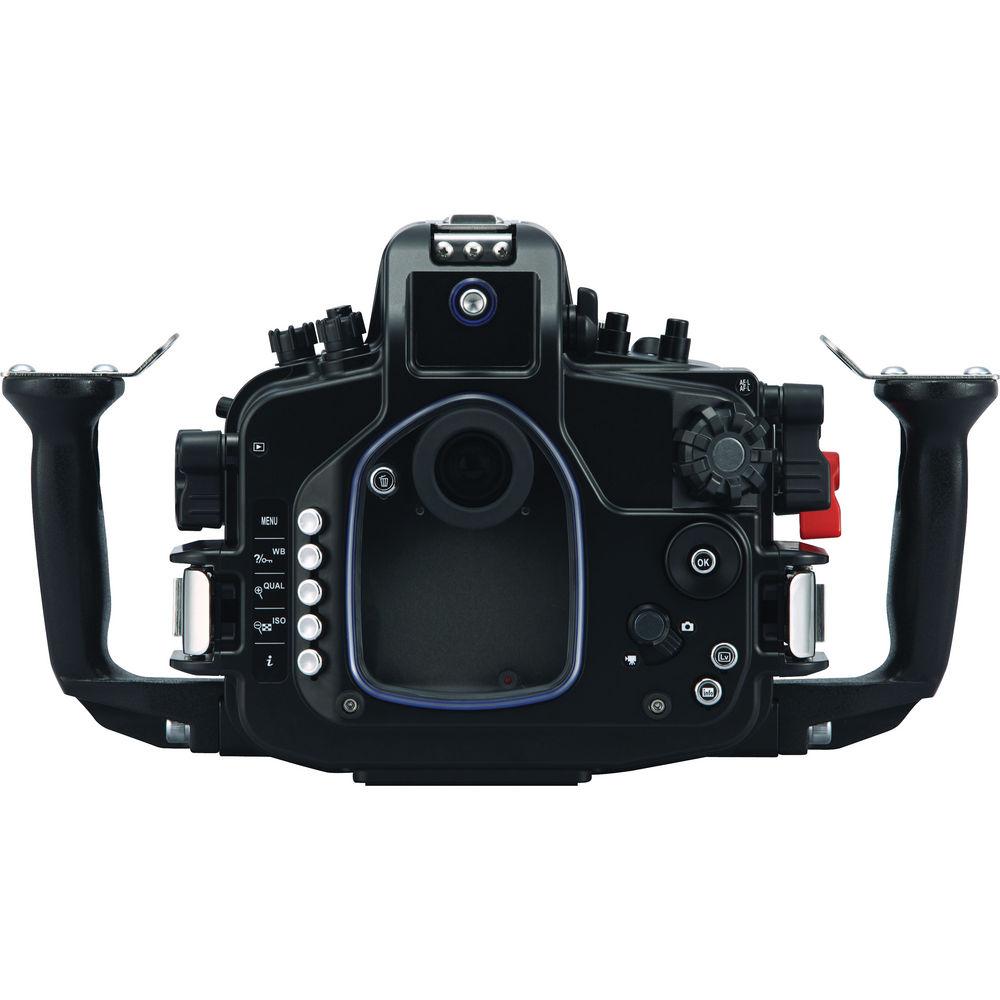

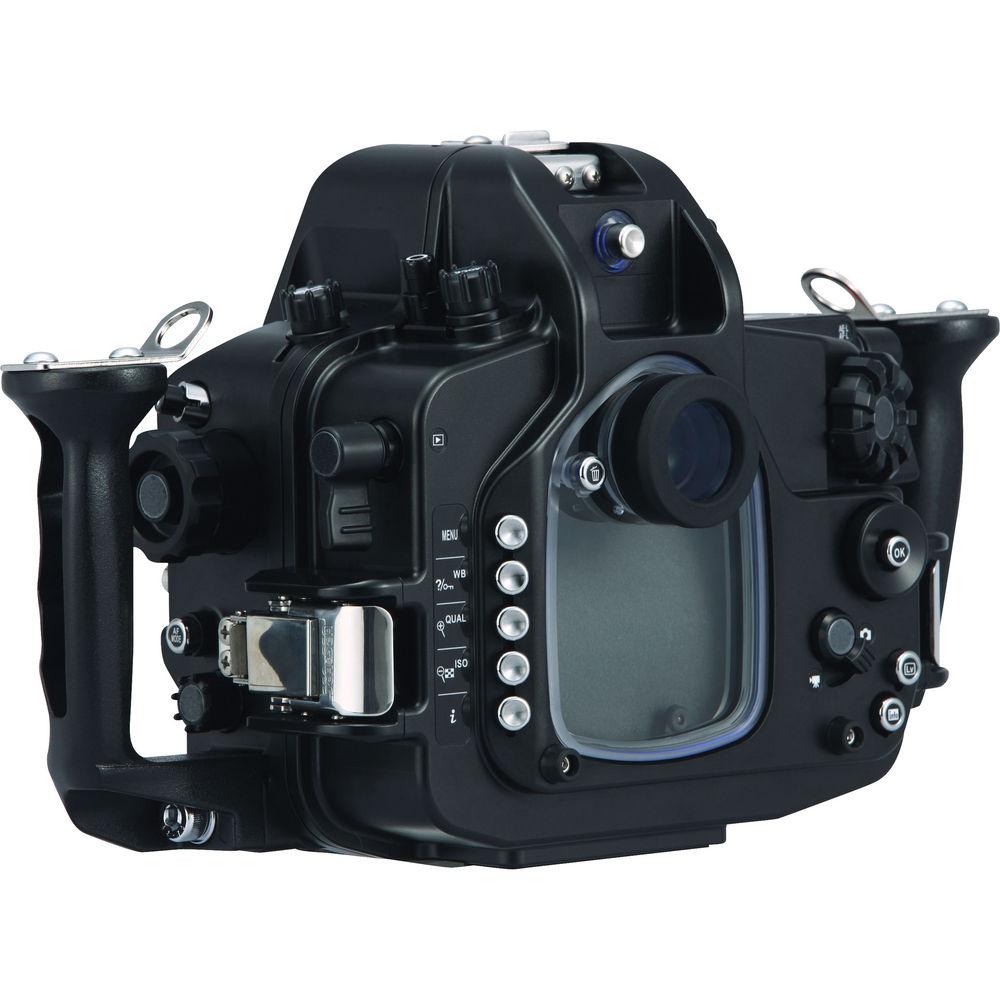

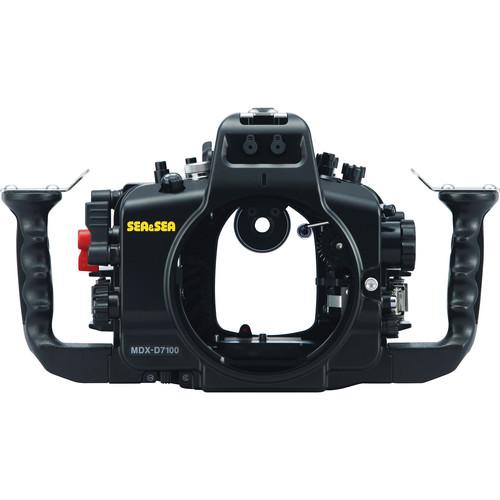

User Manual for Sea & Sea MDX-D7100 Underwater Housing for Nikon D7100 or D7200 Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-D7100 Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea MDX-D7100 Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|
Product description Capture brilliant photos and Full HD 1080i video of parrot fish, moray eels, and coral reefs with Sea & Sea's MDX-D7100 Underwater Housing for the Nikon D7100 or D7200 DSLR camera. It has a depth rating of 330', and features a built-in leak sensor that immediately alerts you in the unlikely event of a breach in the waterproof seal. Dual fiber-optic ports enable the attachment of optional external strobes via cables, and both TTL and manual flash exposure are possible with the purchase of the Optical YS Converter N (#50126). Additional strobes can be triggered as slave units.
The housing provides access to virtually all camera functions via mechanical controls; bracketing, preview, and function buttons are inaccessible. The multi-selector is designed the same way as the camera's, and you can comfortably reach it without taking your hand off the grip. Pressing the multi-selector allows you to change AF areas and focus points.
Built for durability, especially resistance to corrosion, the housing is constructed from precision-machined, anodized aluminum. It ships without a required lens port, and accepts one of several interchangeable ports for wide-angle, macro, and zoom lenses. For complete compatibility details, please see the System Chart.
The MDX-D7100 features a 0.5x optical viewfinder and is compatible with the optional VF180 1.2x and VF45 1.2x prism viewfinders. Additionally, the housing's accessory port enables HDMI output. - Waterproofing
-
- Depth rating: 330'
- Built-in leak sensor immediately alerts you in the unlikely event of water ingress, so you can get back to the surface right away
- Controls, Handling, and Operation
-
- Provides access to virtually all camera functions, including all essential ones, via mechanical push-buttons, knobs/dials, and levers; bracketing, preview and function buttons are inaccessible
- Multi-selector is designed the same way as the camera's, and you can comfortably reach it without taking your hand off the grip
- Pressing the multi-selector allows you to change AF areas and focus points
- Camera's built-in flash can be activated and deactivated from the housing, except when the accessory light-shielding plate is in place
- Features a 0.5x optical viewfinder
- Compatible with the optional VF180 1.2x and VF45 1.2x prism viewfinders, which allow you to see the entire field of view
- Construction Details
-
- Made from durable, precision-machined, anodized aluminum for corrosion resistance
- Dual die-cast aluminum grips are mounted without threads, in order to facilitate easy transportation, mounting, and removal
- Lens Port System
-
- Ships without a required lens port
- Accepts interchangeable ports for various wide-angle, zoom, and macro lenses
- For complete details, see the System Chart linked above
- Port lock can be activated from outside the housing, meaning the port can be replaced without opening the housing
- Activation from inside the housing is also possible
- MDX-D7100 features a lens-lock release button, which allows you to replace the lens without opening the housing
- External Strobe Use
-
- Dual fiber-optic ports allow for connection of optional external strobes via L-type fiber-optic cables
- Both TTL and manual flash exposure are possible
- Optical YS Converter N (#50126), an optional component, connects directly to the camera's hot shoe and changes the camera's TTL signal to a light signal
- YS Converter enables strobe triggering via fiber-optic connection--without requiring the camera's built-in flash to fire. This allows for rapid firing and reduced recycle time. The YS Converter / N 5-pin connector (#50123) is required
- With the addition of the optional sync cord 2-pin connector, a sync cord can be used instead of a fiber-optic cable for strobe attachment
- Mounting and Connectivity
-
- Has a mount for connection to a tripod
- Supplied quick shoe makes easy work of installing and removing your camera
- Equipped with an accessory port, which can be used for HDMI output
UPC: 752221061673 In the Box Sea & Sea MDX-D7100 Underwater Housing for Nikon D7100 or D7200 Housing Body Cap Camera Quick Shoe Light-Shielding Plate 2 x Hex Wrenches Limited 1-Year Warranty Compatibilty chart PDF 147.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-D7100 Underwater Housing for Nikon D7100 or D7200 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-D7100 Specs | Depth Rating | 330' / 100 m | | Control Type | Mechanical push-buttons, knobs/dials, and levers | | Controls | Provide access to virtually all camera functions (including all essential ones):
Power
Shutter lever
Movie recording lever
Main command dial
Sub-command dial
Focus-mode selector dial
AF mode button
Focus/zoom dial
Flash mode/light control correction button
Release mode dial
Mode dial lock button
Shooting mode dial
Playback lever
Delete button
Menu button
Help/protect/white balance button
Playback zoom in/image quality/picture size button
Playback zoom out/thumbnail display/ISO sensitivity/Auto sensitivity control button
i button
Live view selector
Live view button
Info button
OK button
Multi-selector button
AE/AF lock lever
Metering mode/memory card formatting button
Bracketing, preview, and function buttons are inaccessible | | Construction | Body: Precision-machined, anodized aluminum alloy
Grips: Die-cast aluminum alloy | | Lens Port | Ships without a required lens port
Accepts interchangeable ports for various wide-angle, zoom, and macro lenses
For full details, see Port Chart linked in Overview | | Buoyancy | Not specified by manufacturer | | Internal Flash Usable | Yes, camera's built-in flash | | External Flash Connector | 2x fiber-optic ports for L-type cables
Accepts Optical YS Converter N (not included)
Accepts sync cord 2-pin connector (not included) | | Other Connectors | Accessory port for HDMI output | | Viewfinder | 0.5x optical viewfinder
Accepts optional VF180 1.2x and VF45 1.2x prism viewfinders | | Moisture Alarm | Built-in | | Mounting | Tripod mount
Camera quick shoe | | Dimensions | 13.4 x 7.6 x 5.4" / 34.1 x 19.2 x 13.6 cm | | Weight | Approx. 6.0 lb / 2.7 kg | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 17.1 x 10.9 x 9.7" |
