User Manual for Sea & Sea MDX-RX100II Underwater Housing for Sony Cyber-shot RX100 or RX100 II Digital Camera Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-RX100II Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea MDX-RX100II Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

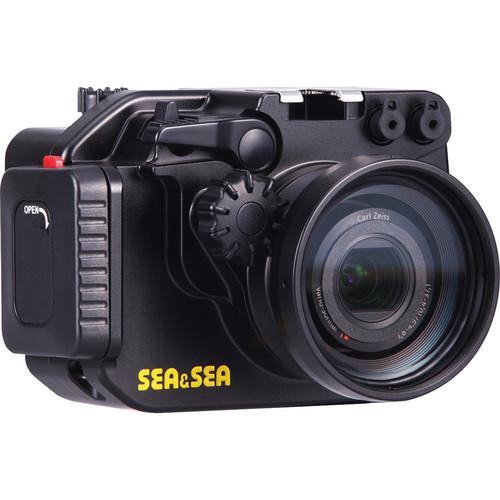

Product description The MDX-RX100II Underwater Housing from Sea & Sea is a waterproof case for the Sony Cyber-shot DSC-RX100 or DSC-RX100 II digital camera. It has a depth rating of 328'. Mechanical controls provide access to virtually all camera functions. Built for durability, the housing is precision CNC machined from a solid block of anodized aluminum for corrosion resistance.
The lens port features an M67 threaded screw mount for the attachment of optional wide-angle and macro accessory lenses. The optional M67 Wide-angle Conversion Lens offers 0.6x magnification and increases the field of view from that of a 28mm lens to that of a 17mm one, correcting for the water's reduction of your lens's field of view.
Two built-in fiber-optic cable ports enable the attachment of optional external strobes. Additionally, an optional leak sensor is available to alert you to any breaches in the housing's waterproof seal. - Depth Rating
- Can be used at a maximum depth of 328'.
- Controls

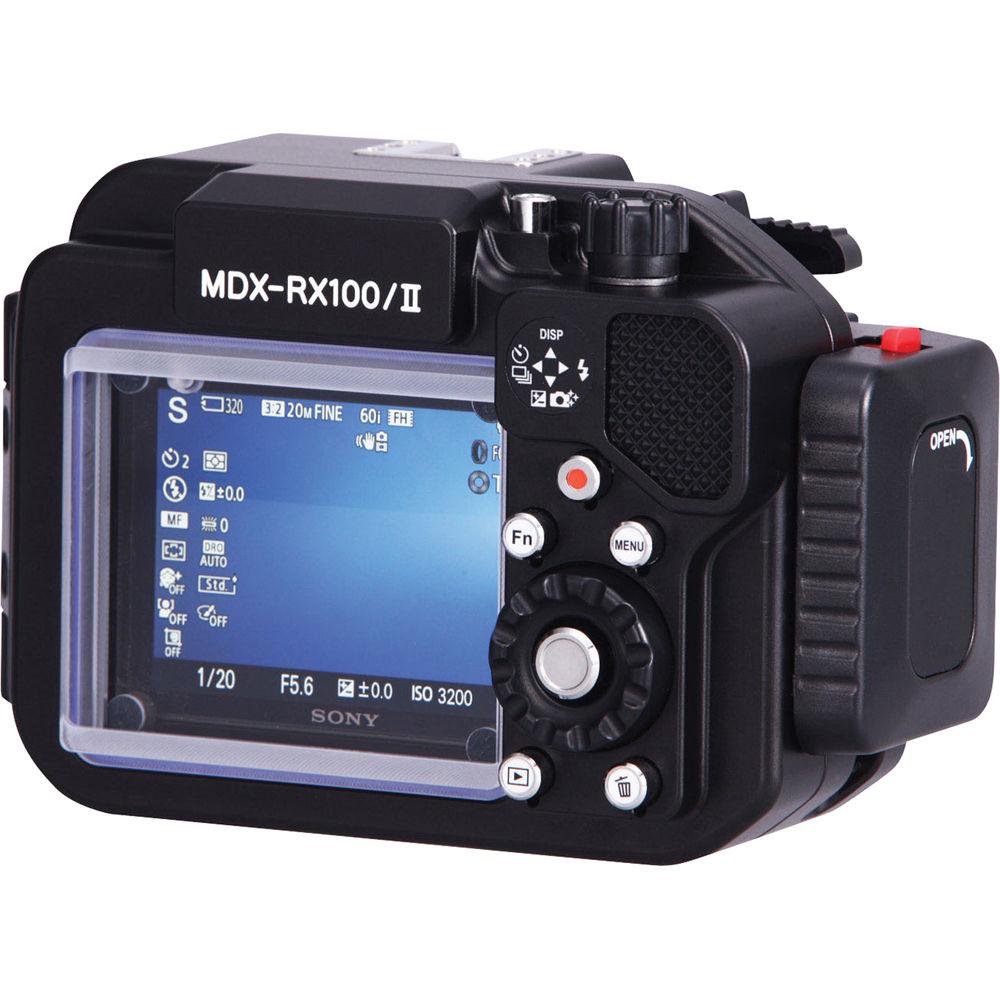

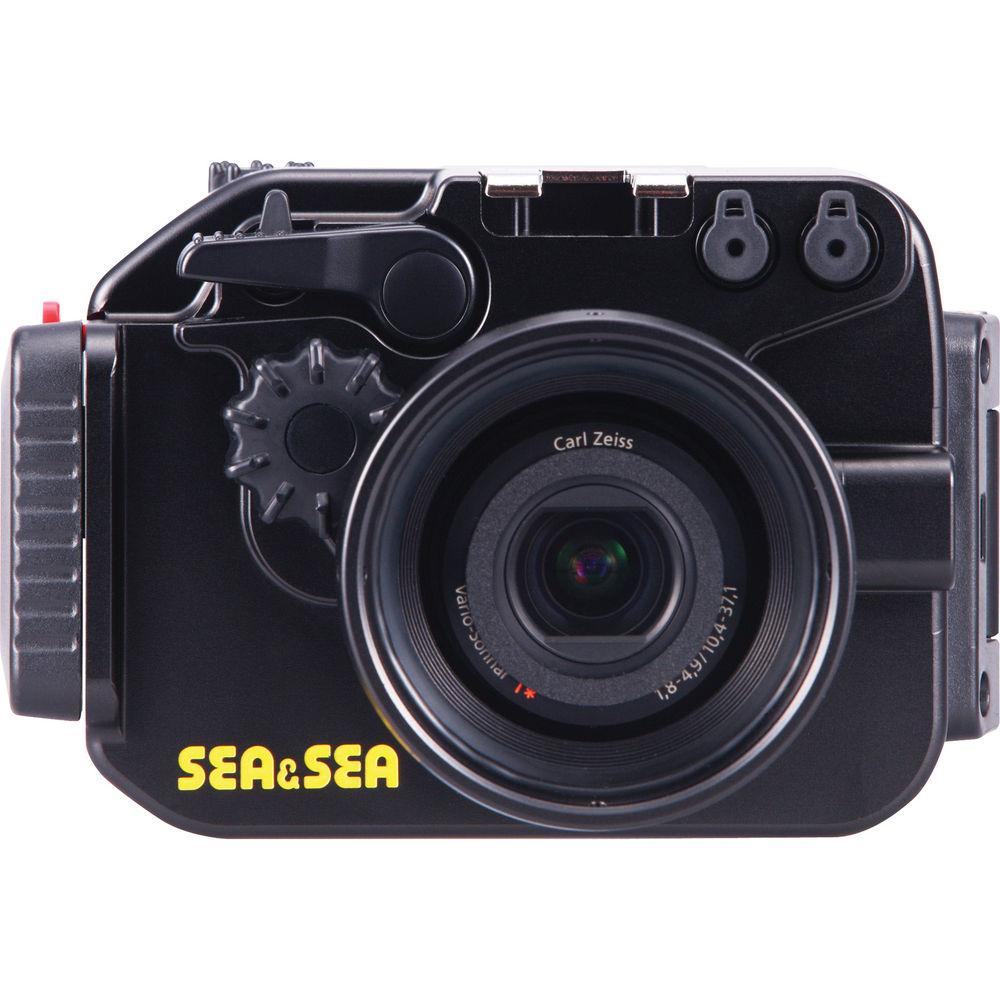

- Mechanical controls provide access to virtually all camera functions. The large dial on the housing's front connects to the camera's control ring and allows for smooth operation of manual focus and other functions. The multi-purpose control wheel on the camera's rear is operated by the multi-point controller on the back of the housing. All controls can easily be reached and operated with your right hand.
- Construction

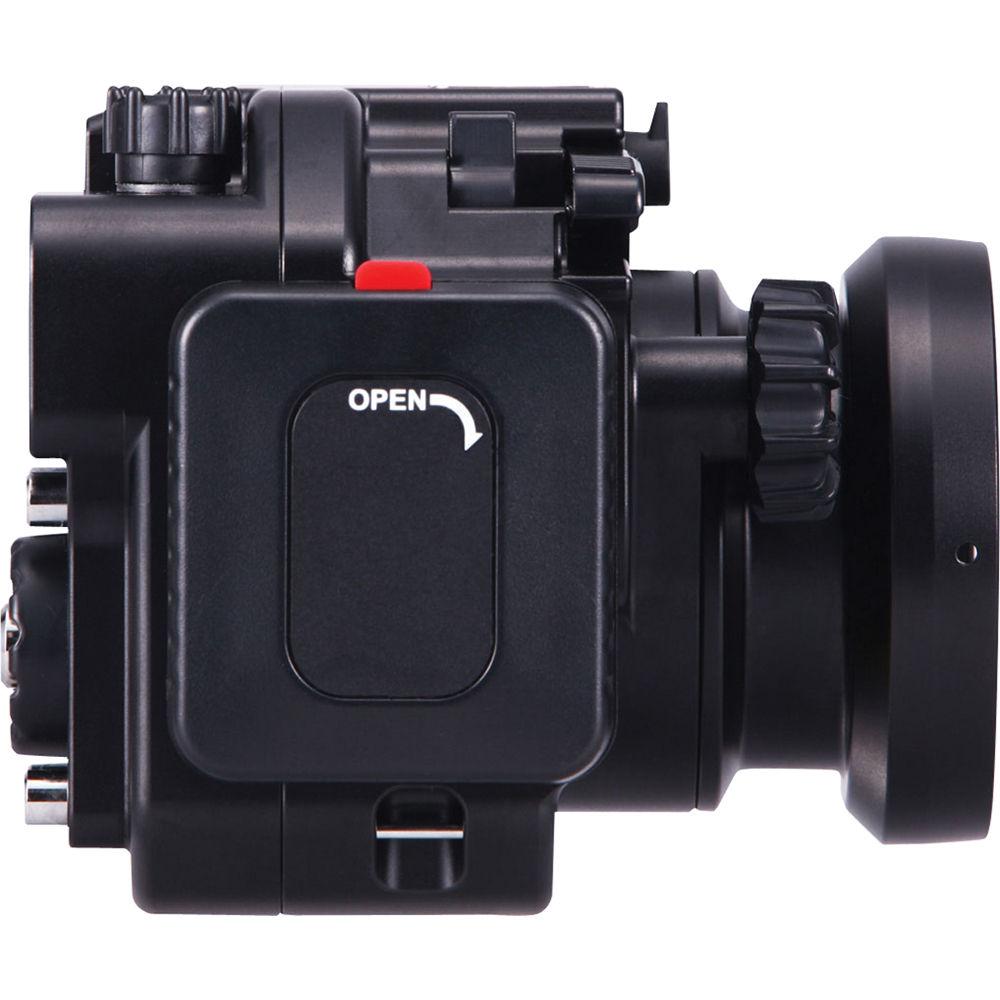

- Built for durability, the housing is precision CNC machined from a solid block of anodized aluminum for corrosion resistance. It's also equipped with two sacrificial zinc diodes: one on the front of the case and one on the rear. These corrode over time in order to protect parts of the housing that are not anodized, so that the parts themselves will not corrode. Additionally, an anti-slip rubber piece located on the rear upper right-hand side helps you hold the housing steady. The case is easily opened and locked using the rotary latch and hinge.
- Lens Port
- Features M67 threaded screw mount for the attachment of optional accessory wide-angle and macro lenses with 67mm diameter threads, or those with smaller threads via the use of step-down rings, such as the M67-M62 for 62mm lenses. Optional M67 Wide-angle Conversion Lens offers 0.6x magnification and increases the field of view from that of a 28mm lens to that of a 17mm one, for an angle of about 94°, thus correcting for the water's reduction of your lens's field of view. Above water, your angle of view will be about 150°. The M67 wide lens can be detached and attached underwater.
- External Strobe Use
- Two built-in fiber-optic cable ports enable the attachment of optional external strobes
- Optional Moisture Alarm
- Alerts you to any breaches in the housing's waterproof seal, so you can get to the surface before your camera and lens sustain any damage. Its LED lamp gets positioned in the LCD monitor window.
- Mounting
- The optional SA8 Fixed Ball Base enables various light-mounting options. It attaches to a grip or a tray and holds a single or double-ball arm with ball clamp. The optional Sea Arm VII Compact kit (#22124) includes a camera/housing tray, double ball arm section, another arm section with single attached ball joint, a ball joint with tray connector, and a ball joint clamp. Trays can be connected to the tripod mount on the bottom of the housing.
- Additional Optional Accessories
- The LCD Monitor Hood with Lens (#52121) attaches to the LCD window of the housing to reduce excessive light that can cause glare and reflections, in order to provide corner-to-corner clarity while still giving you a complete view of the LCD. It's treated with an anti-reflective coating.
UPC: 752221061703 In the Box Sea & Sea MDX-RX100II Underwater Housing for Sony Cyber-shot RX100 or RX100 II Digital Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-RX100II Underwater Housing for Sony Cyber-shot RX100 or RX100 II Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-RX100II Specs | Depth Rating | 328' (100 m) | | Control Type | Mechanical | | Controls | Provide access to virtually all camera functions | | Construction | Anodized aluminum
2 sacrificial zinc diodes | | Lens Port | M67 screw mount with 67mm diameter threads | | Buoyancy | Negative | | External Flash Connector | 2 built-in fiber-optic cable ports | | Moisture Alarm | Optional | | Mounting | Tripod mount
Accepts optional SA8 Fixed Ball Base, Sea Arm VII Compact | | Dimensions | 5.8 x 3.8 x 4.6" / 14.7 x 9.7 x 11.7 cm | | Weight | Underwater:
11.6 oz / 330 g with DSC-RX100 ll camera
10.2 oz / 290 g with DSC-RX100 camera
Above water:
Approx. 31.7 oz / 900 g without camera | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 5.6" |
