User Manual for Sea & Sea MDX-RX100III Underwater Housing for Sony Cyber-Shot RX100 III, IV, or V Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-RX100III Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
|
User manual for the Sea & Sea MDX-RX100III Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

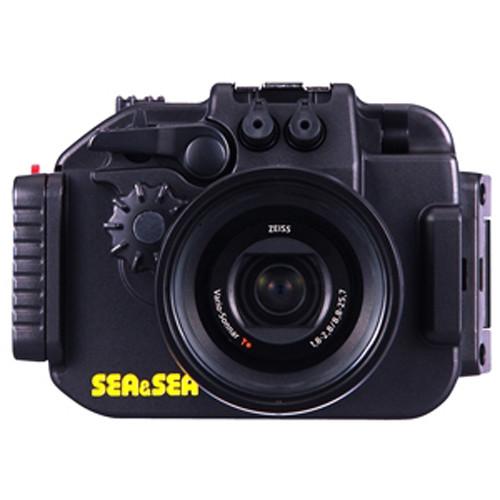

Product description Capture images of coral, humpback whales, and hippo tang fish with your Sony Cyber-Shot RX100 III, IV, or V Camera in Sea & Sea's black MDX-RX100III Underwater Housing, which features a depth rating of 328'. Dual fiber-optic ports enable the attachment of optional external strobes via cables. Mechanical push-buttons, dials, and a lever afford access to all camera functions.
A flat glass port protects the camera's lens, and features 67mm threads for attaching external wide-angle and macro lenses or color-correction filters. Built for durability, the enclosure is constructed from a galvanized aluminum alloy. - Construction Details
-
- Depth rating: 328'
- Made from a durable aluminum alloy, which has been galvanized for superb resistance to corrosion
- Dual replaceable, sacrificial zinc anodes on the front and rear of the housing shield sensitive parts of the enclosure from saltwater, eventually being corroded in the process
- Rotary-style latch and hinge allow for easy opening, closing, and locking
- Housing allows for installation of an optional leak sensor with an LED lamp, which will alert you immediately in the unlikely event of water ingress
- There is sufficient space inside the enclosure to keep the optional Sony AG-R2 grip attached to the camera during installation
- Strobe Connection and Operation
-
- Dual fiber-optic ports allow for the connection of optional external strobes via cables
- Camera's built-in flash cannot be used to illuminate shots underwater, but can trigger strobes via fiber-optic cables
- Compatible with Sea & Sea YS-01, YS-02, YS-03, YS-110a, and YS-D1 strobes
- External flash units have greater range, coverage, power, and color-correcting capability than the camera's built-in flash
- Controls and Handling
-
- Mechanical push-buttons, dials, and a lever afford access to all camera functions
- Large dial on the front of the housing connects to the camera's control ring, and enables smooth manual focusing and other functions
- Multi-purpose control wheel on the rear of the camera is operable via the multi-controller on the back of the housing
- All controls are accessible with your right hand
- Camera's flash can be activated and deactivated while inside the housing
- Piece of non-slip rubber in the upper right-hand corner on the back of the enclosure acts as a mini-grip, helping you maintain a secure hold while shooting
- Optional LCD monitor hood blocks out excess light to prevent glare and improve visibility
- Two ball mounts serve as connection points for optional SA8 Fixed Ball Bases, which enable the addition of arms for strobes and video lights--without requiring a grip or tray. The mounts are located on the top and side of the housing
- Optional SA8 Ball Base for Accessory Shoe can be added to the housing's cold shoe mount to expand your lighting possibilities even further
- Optional SA8 Tray & Grip can be connected via the tripod mount on the bottom, in order to improve handling and enable the attachment of lighting arms
- Lens Port
-
- Built-in, flat glass port protects the camera's lens
- Features 67mm threads for attaching external wet lenses or color-correction filters
- Wide-angle lenses allow you to get closer to your subjects while still fitting everything in the frame
- M67 Wide-Angle Conversion Lens 0.6x features a 94° angle of view underwater, providing an increase in coverage that's equivalent to the difference between a 24mm and an 18mm lens (in 35mm format)
- Macro lenses enable extreme close-ups with great clarity and detail, so you can fill the whole frame with a tiny sea creature
- Getting closer to your subjects reduces distortion caused by the water, resulting in better image quality
- When you're not using an external strobe, attach an optional, external color-correction filter for blue or green water to your port, in order to restore hues that are absorbed beneath the surface
UPC: 752221061710 In the Box Sea & Sea MDX-RX100III Underwater Housing for Sony Cyber-Shot RX100 III, IV, or V Lens Port Cap 2 x Fiber-Optic Port Caps Hand Strap Non-Reflective Tape Set of O-Rings Silicone Grease O-Ring Remover Locking Rubber Stopper and M3 Screw for LCD Hood Hex Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-RX100III Underwater Housing for Sony Cyber-Shot RX100 III, IV, or V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-RX100II Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Afford access to all camera functions | | Material of Construction | Galvanized aluminum alloy | | Lens Port | Built-in glass port with flat front element
M67 / 67 mm threads for optional wet lenses and filters | | Buoyancy | Not specified by manufacturer | | Internal Flash Usable | Yes, camera's built-in flash triggers external strobes | | External Strobe Connector | 2x Fiber-optic ports for connecting optional external strobes (cables required) | | Mounting | 2x Mounts for Sea & Sea SA8 Fixed Ball Bases | | Dimensions | 5.8 x 4.1 x 5.0" / 14.7 x 10.3 x 12.7 cm | | Weight | Approx. 2.0 lb / 0.9 kg | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 8.1 x 5.8 x 5.6" |
