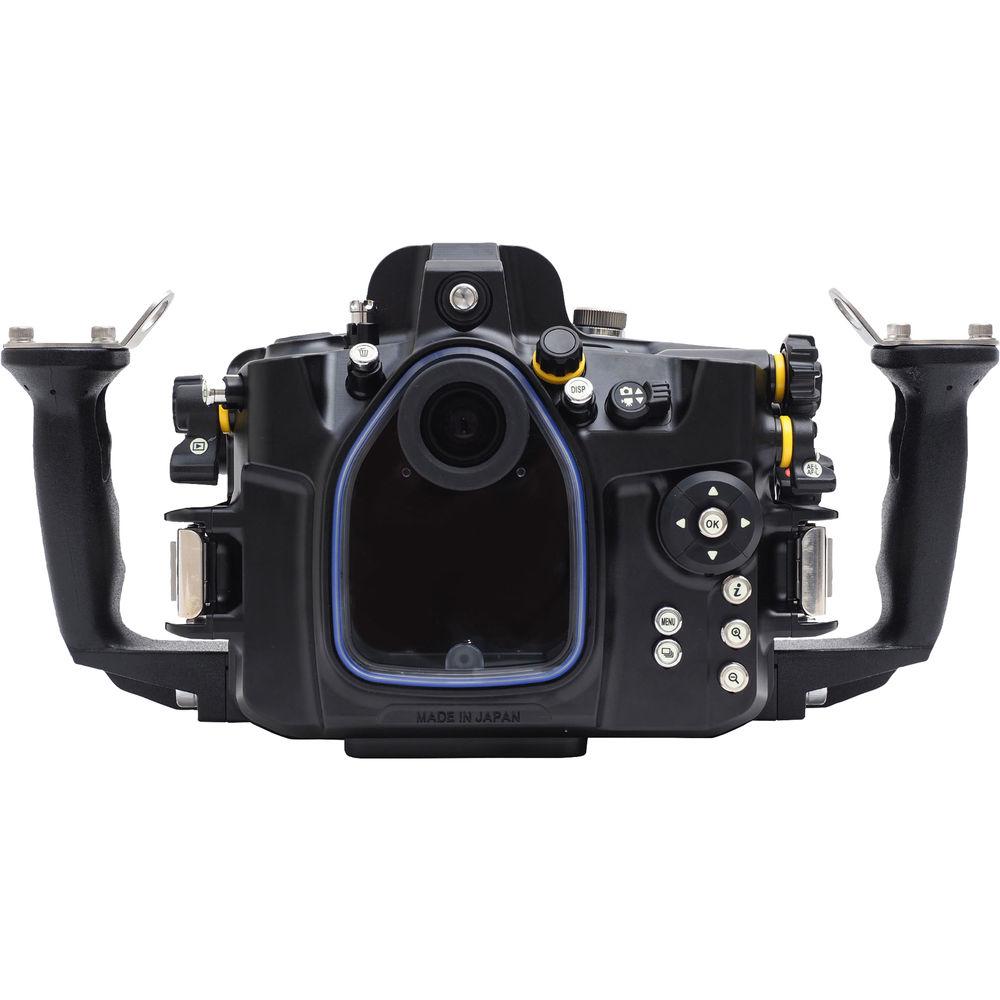

User Manual for Sea & Sea MDX-Z7 Housing for Nikon Z7 and Z6 Mirrorless Digital Cameras Click to enlarge the picture
Contents of the user manual for the Sea & Sea MDX-Z7 Housing for
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea MDX-Z7 Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

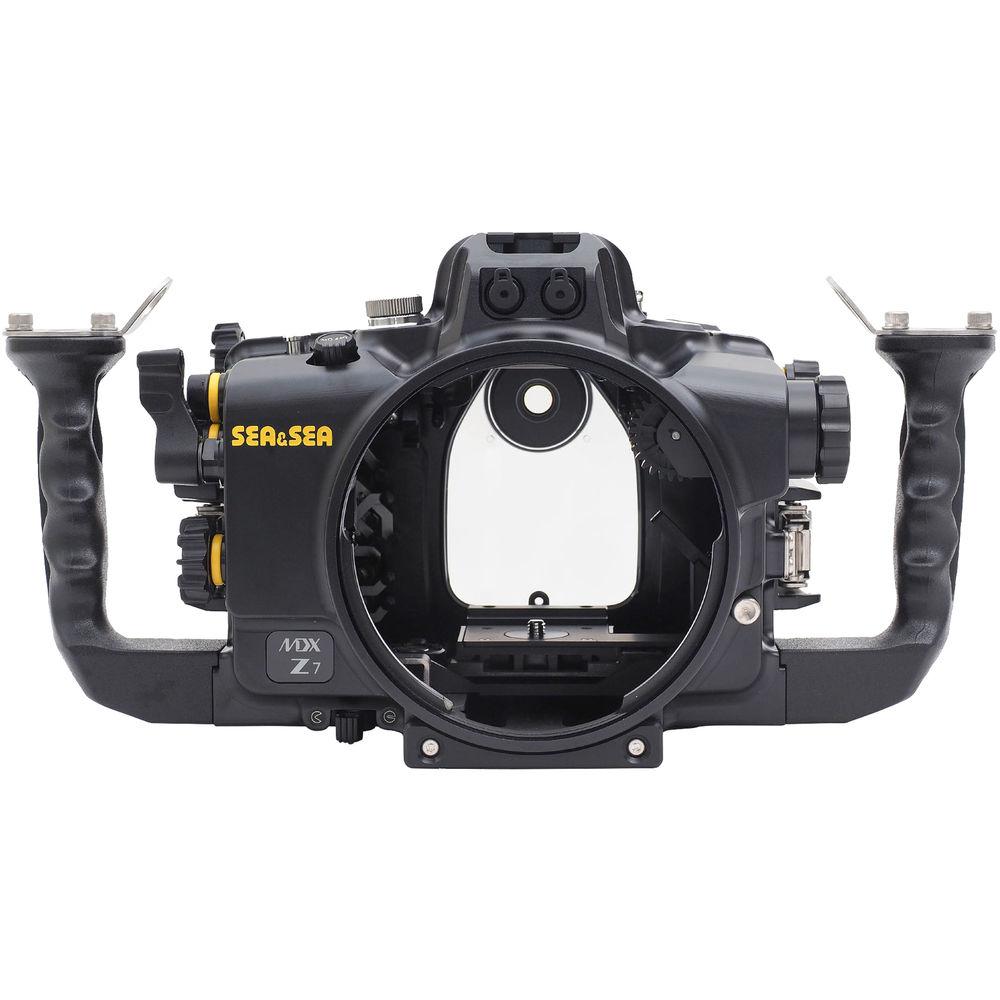

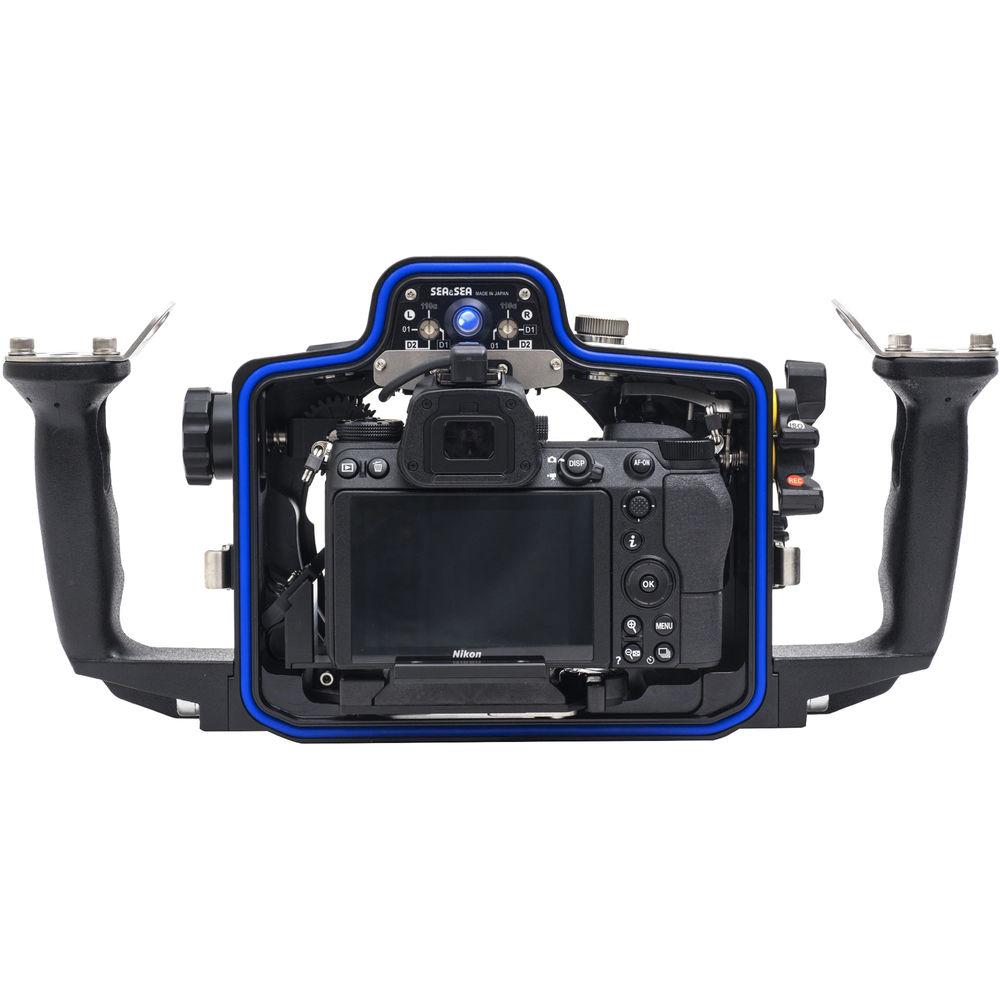

Product description Use your Nikon Z7/Z6 mirrorless camera to capture the beauty of sea life and environments at depths as great as 328' with the Sea & Sea MDX-Z7 Underwater Housing. This aluminum-bodied waterproof enclosure is equipped with dual fiber-optic cable ports and support for an optional, internal Optical YS Converter for fiber-optic strobe use, as well as an N-Type 2-pin connector, for sync cord strobes. Ergonomic, mechanical controls, including levers, push buttons, and dials, provide access to virtually all camera functions, while dual side grips offer better balance and handling and give you attachment points for lighting arms.
Built for durability, the housing is constructed from precision-machined aluminum that has been anodized for resistance to corrosion. A built-in leak sensor alerts you immediately in the unlikely event of a breach in the waterproof seal.
The MDX-Z7 ships without a required lens port, and accepts a series of interchangeable ports for various lenses. For compatibility details, see the Port Chart. The housing's focus and zoom gears work with standard F mount lenses and the Nikon FTZ adapter, as well as with Z mount lenses. The housing's external port lock and lens release function allow you to swap lenses quickly and easily between dives--without removing the back of the housing. Optional VF45 and VF180 viewfinders can be added on for easier viewing underwater. - Construction Details
-
- Depth rating: 328'
- Built-in leak sensor immediately alerts you in the unlikely event of a breach in the waterproof seal
- Built to be durable, housing is precision-machined from anodized aluminum alloy for resistance to corrosion
- Grips are made from a die-cast aluminum alloy, which is also corrosion resistant
- Equipped with two sacrificial zinc anodes that will corrode to protect sensitive parts of housing
- Cold shoe mount for connecting lighting arms and other accessories
- Strobe Connection and Use
-

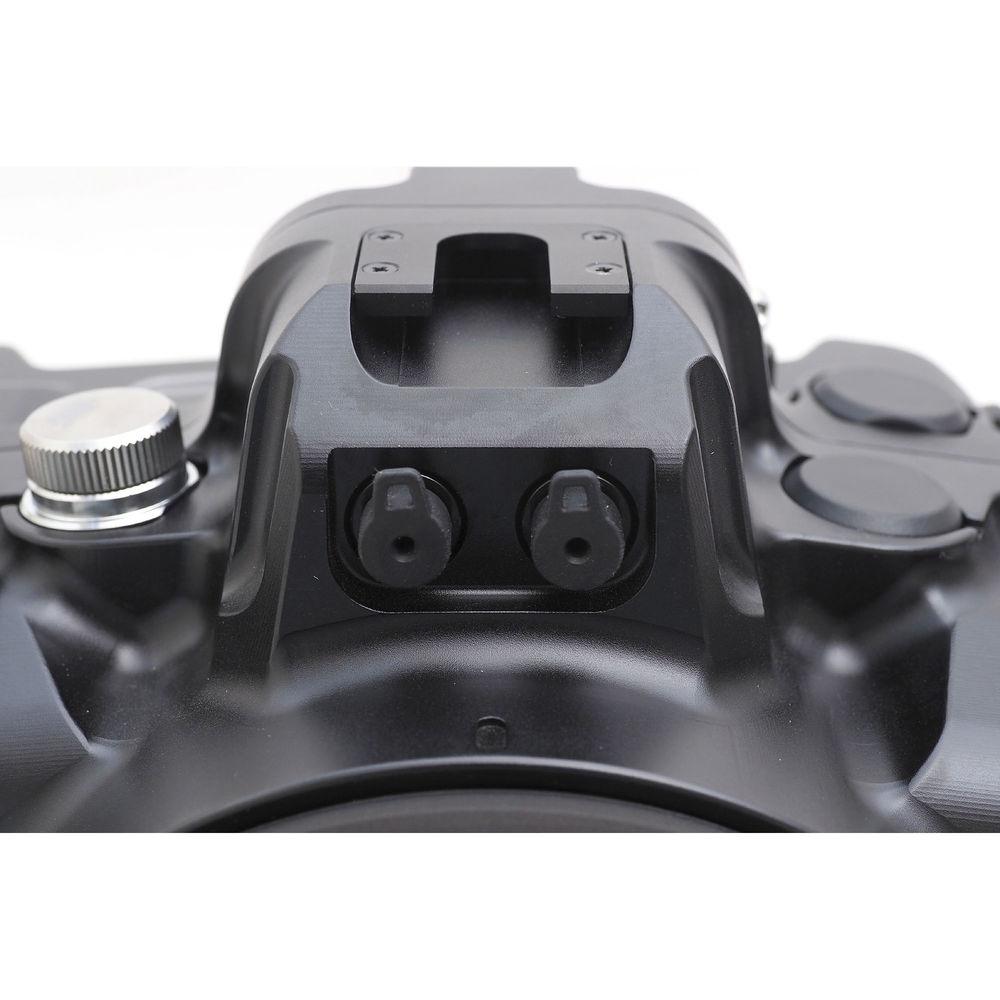

- Configured with dual fiber-optic cable ports, an N-Type 2-pin sync cord connector, and support for optional, internal Optical YS Converter--all for attachment of external strobes to improve lighting
- Sync cord connector allows for manual flash exposure
- YS Converter converts camera's TTL signal into a light signal, which allows for external flash triggering via the optional Fiber-Optic Cable II. Both TTL and manual exposure are possible with optional, external YS series strobes
- Controls, Handling, and Operation
-

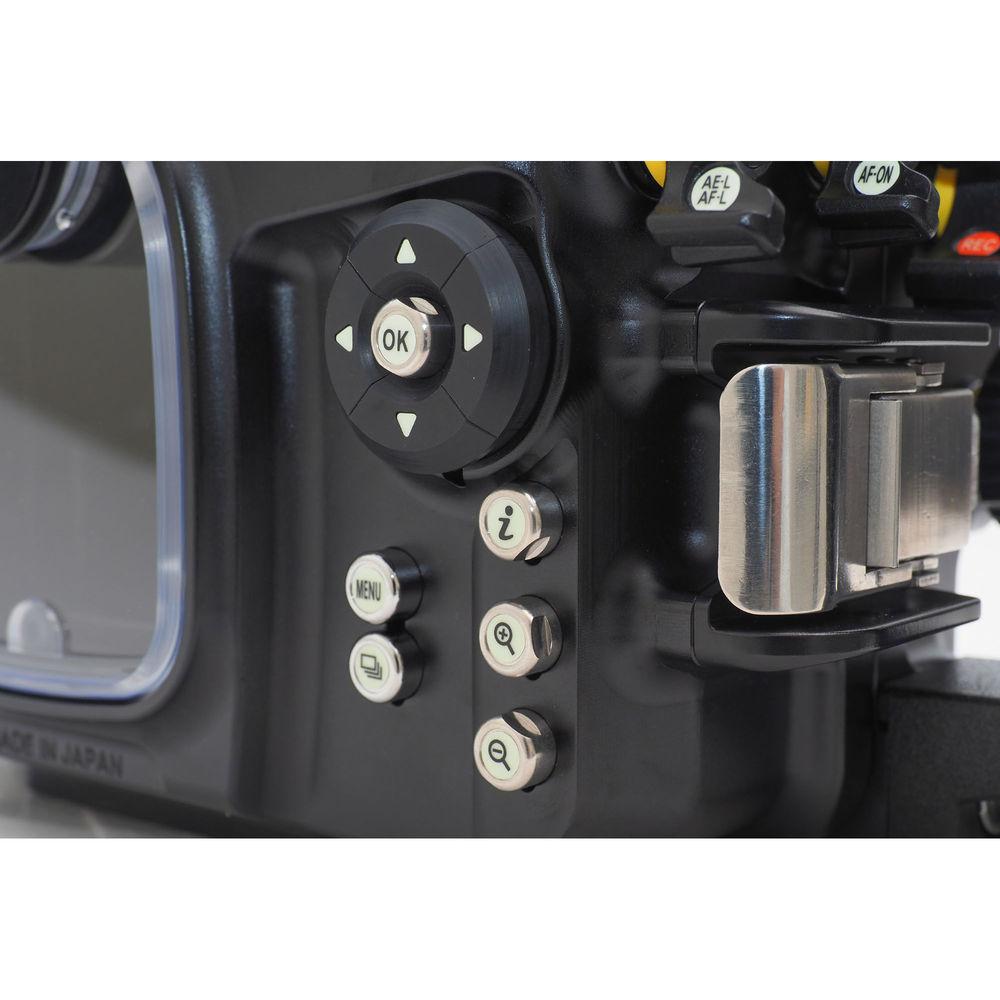

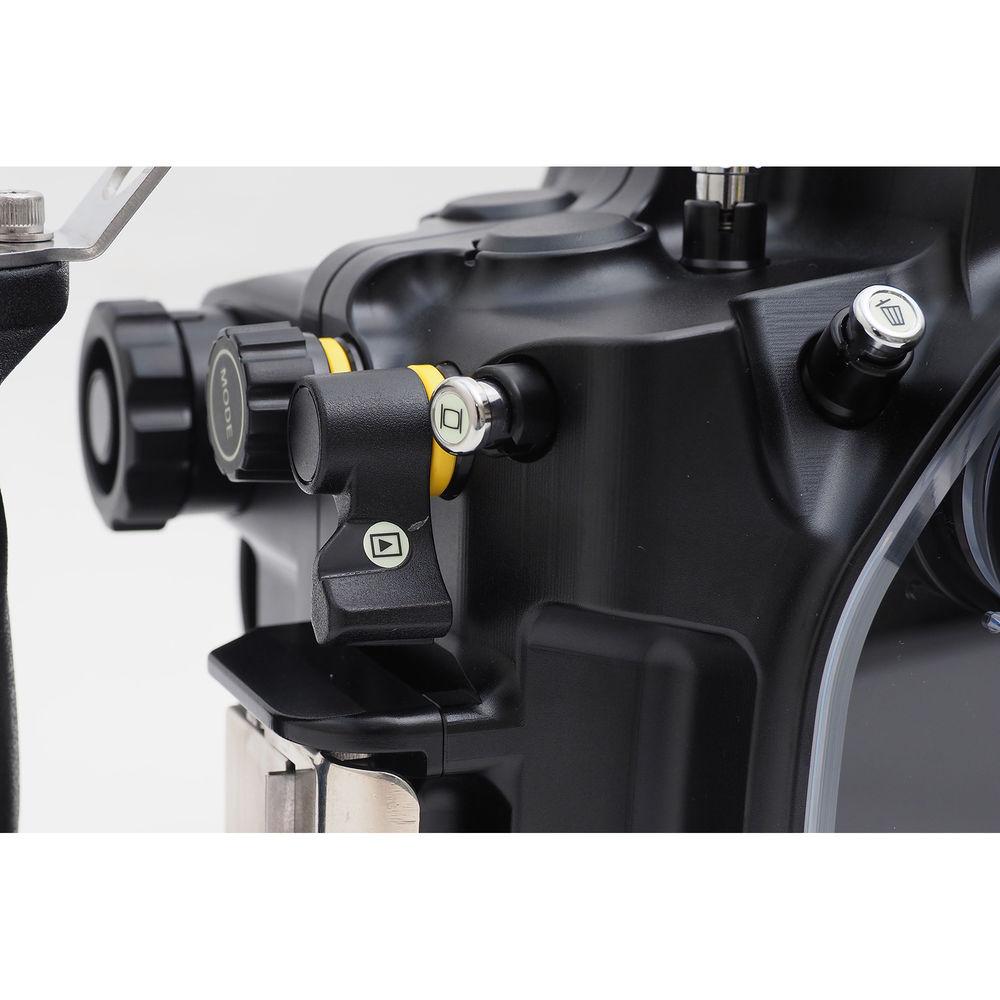

- Ergonomic, mechanical controls, including levers, push buttons, and dials, provide access to virtually all camera functions, including diopter adjustment dial

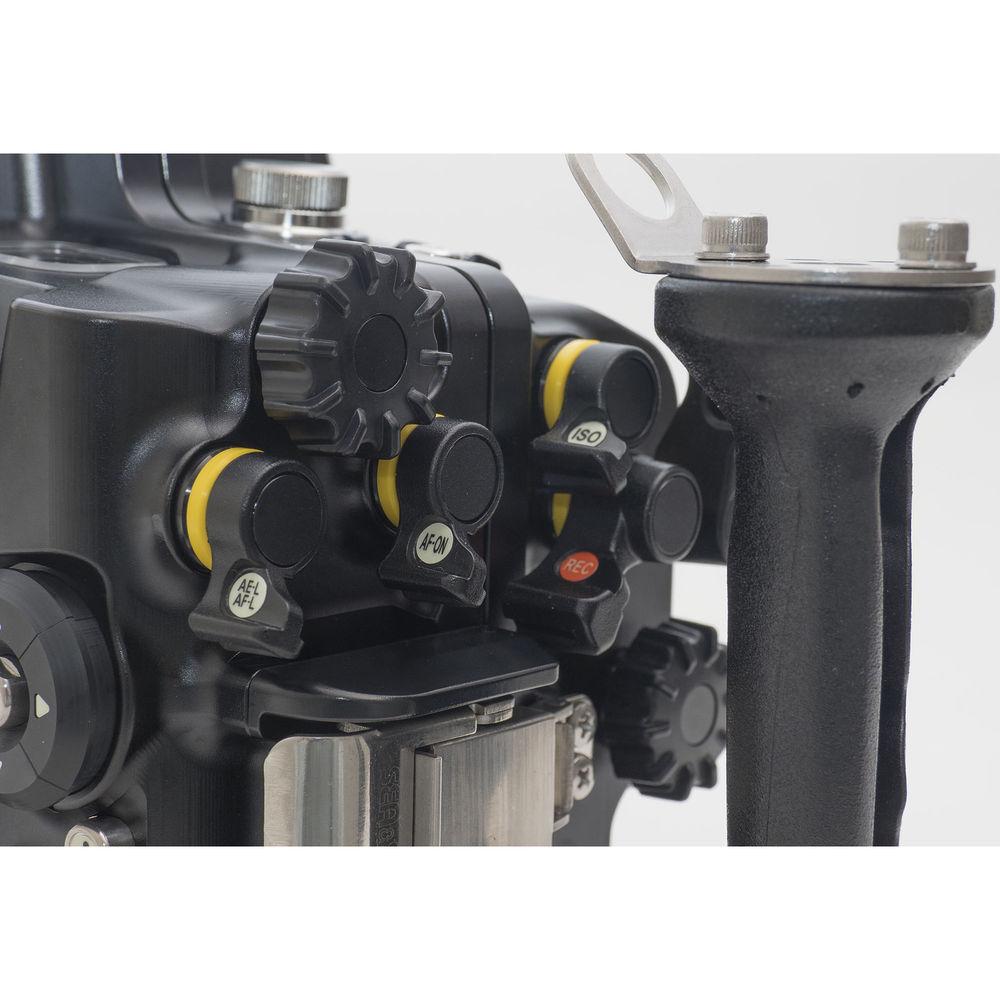

- Important controls, such as Info, ISO, and FN, have been positioned on right and left sides to make them easily accessible while you're holding grips
- When focus/zoom dial is pulled out, gear inside housing moves outwards to allow lenses with large diameters to be mounted easily
- Two comfortable, grooved side grips offer better balance and handling and give you attachment points for optional lighting arms
- Optical Viewfinders
-
- Comes standard with 0.5x optical viewfinder
- Optional VF180 and VF45 1.2x viewfinders can be added on to enhance your view through camera's finder for better shot composition underwater
- Lens Port System
-
- Ships without a required lens port
- Accepts a series of interchangeable ports for various lenses
- For compatibility details, see port chart linked above

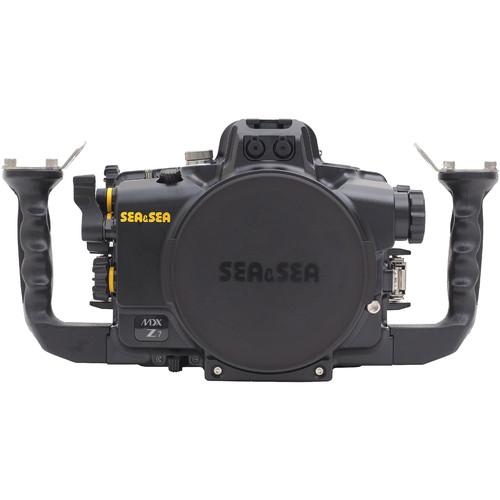

In the Box Sea & Sea MDX-Z7 Housing for Nikon Z7 and Z6 Mirrorless Digital Cameras Silicone Grease O-Ring Remover Hex Wrench 6mm Hex Wrench 4mm Housing Body Cap 2 x Fiber Optic Cable Socket Cap CR1623 Battery for Leak Detector Limited 1-Year Warranty System Chart PDF 510.1kbfdxayftcwwb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea MDX-Z7 Housing for Nikon Z7 and Z6 Mirrorless Digital Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea MDX-Z7 Specs | Depth Rating | 328' / 100 m | | Material of Construction | Aluminum Alloy | | Lens Port | See Port Chart Linked in Overview | | External Flash Connector | 2 x Fiber Optic Cable Ports
1 x N-Type 2-Pin Sync Cord Connector for Manual Exposure
Supports Optional Internal Optical YS Converter for TTL and Manual Exposure | | Viewfinder | 0.5x Optical Viewfinder | | Moisture Alarm | Built-In Leak Sensor | | Mounting | Cold Shoe Mount for Lighting Arms and Other Accessories | | Dimensions | 13.3 x 6.7 x 6.2" / 33.9 x 16.9 x 15.8 cm | | Weight | Approx. 5.9 lb / 2.7 kg |
