User Manual for Sea & Sea Optical YS Converter C1 for RDX-100D Underwater Housing Click to enlarge the picture
Contents of the user manual for the Sea & Sea Optical YS Converter
- Product category: Sync Cords & Connectors Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Sync Cords & Connectors
|
User manual for the Sea & Sea Optical YS Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

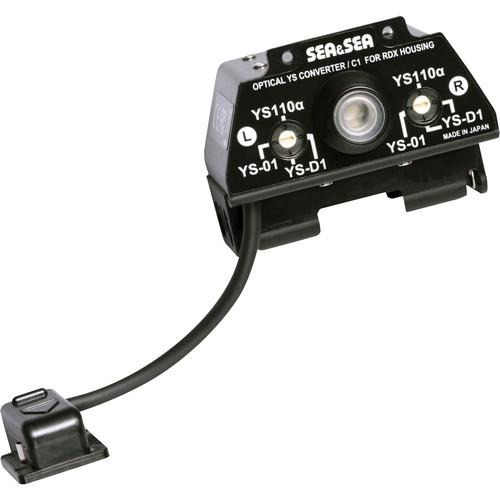

Product description Convert your Canon Rebel SL1 DSLR camera's TTL signal to a light signal with the Optical YS Converter/C1 for RDX-100D Underwater Housing from Sea & Sea. The unit can be installed inside the housing with the help of an official Sea & Sea service center near you. It features a sync connector that mounts on the camera's accessory shoe.
The converter allows you to switch between TTL and manual flash exposure control with optional, external YS series strobes, which are connected to the housing's dual fiber-optic ports using optional Fiber-Optic Cable II cords. Indicator lamps tell you which mode is activated at a given time. Compatible strobes include the Sea & Sea YS-110a, YS-01, and YS-D1.
Additionally, the converter will automatically power off if the shutter lever or mode switch is not activated for more than one hour. It runs on 2 AAA alkaline or NiMH batteries and has a flashing LED to indicate low battery life. UPC: 752221501377 In the Box Sea & Sea Optical YS Converter/C1 for RDX-100D Underwater Housing 2 x Light Guide Pipes 2 x Screws Sticker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea Optical YS Converter C1 for RDX-100D Underwater Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea SS-50137 Specs | Controls | Power on/off, auto power off, TTL mode, manual mode | | Indicators | Blue Lamp: TTL mode
Green Lamp: Manual mode
Flashing LED: Low battery life | | Material of Construction | Aluminum alloy housing | | Power Source | 2x AAA 3.0 V alkaline or 2.4 V NiMH batteries (not included) | | Run Time | Alkaline Batteries: Approx. 15 hr
NiMH Batteries: Approx. 12 hr | | Operating Temperature | 33.8 to 104°F / 1.0 to 40° C | | Dimensions | 2.1 x 1.6 x 1.9" / 54.4 x 41.4 x 48.8 mm without cable | | Weight | 1.9 oz / 54 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 3.6 x 3.2 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
