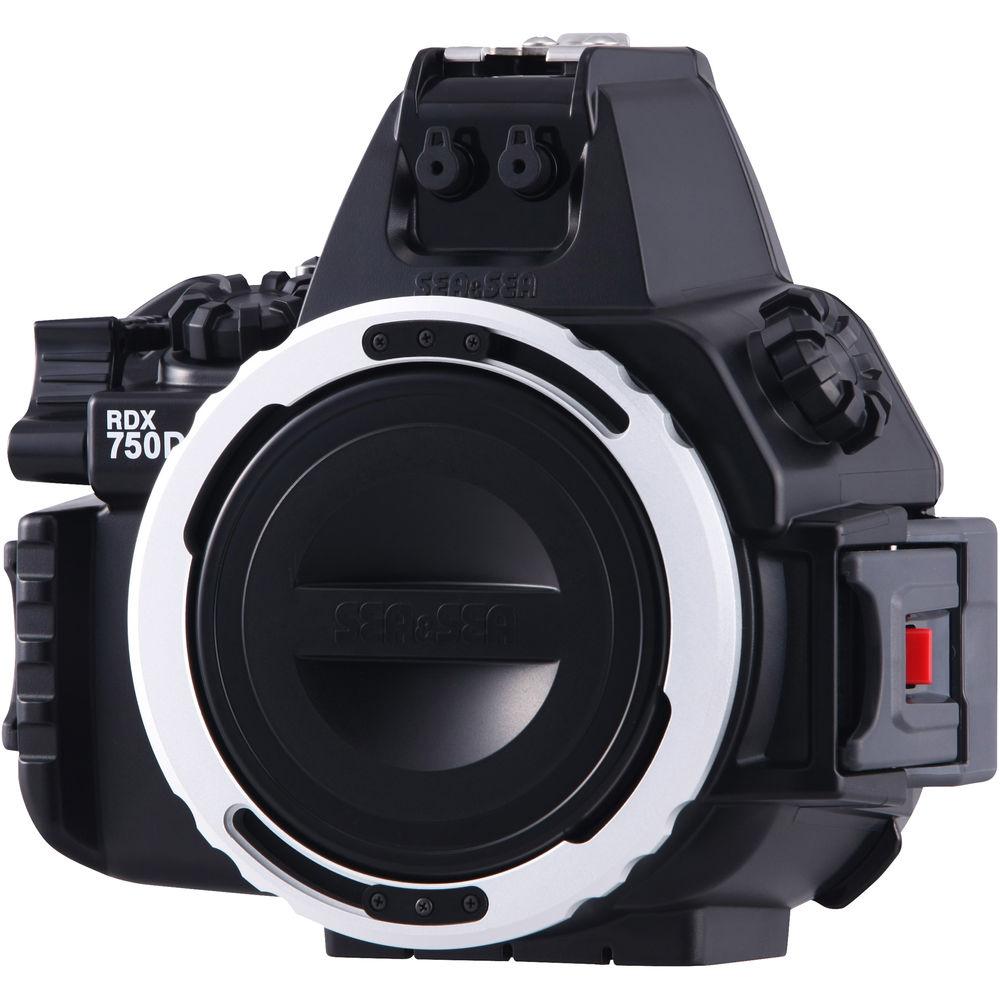

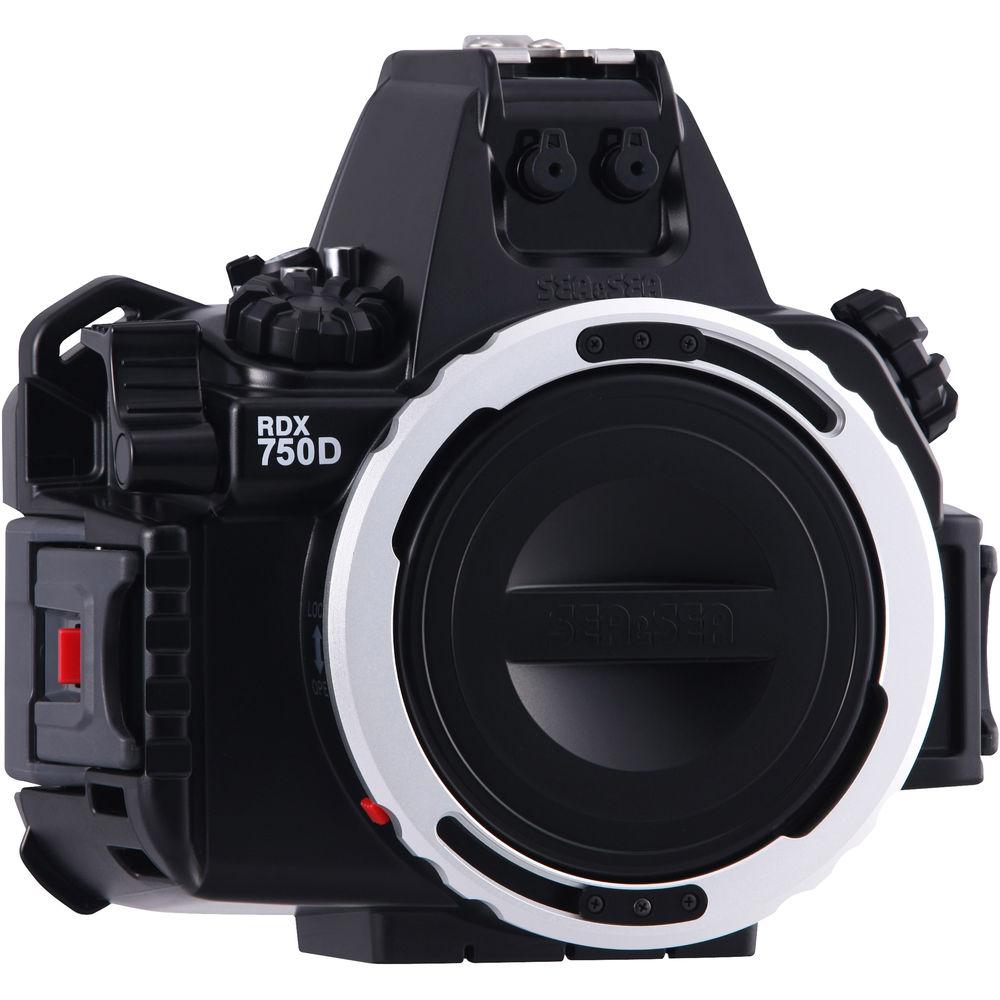

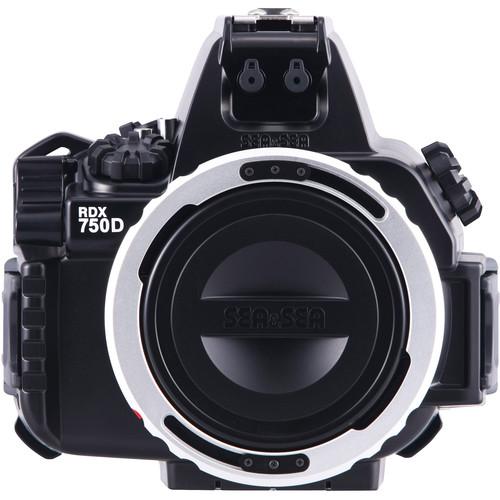

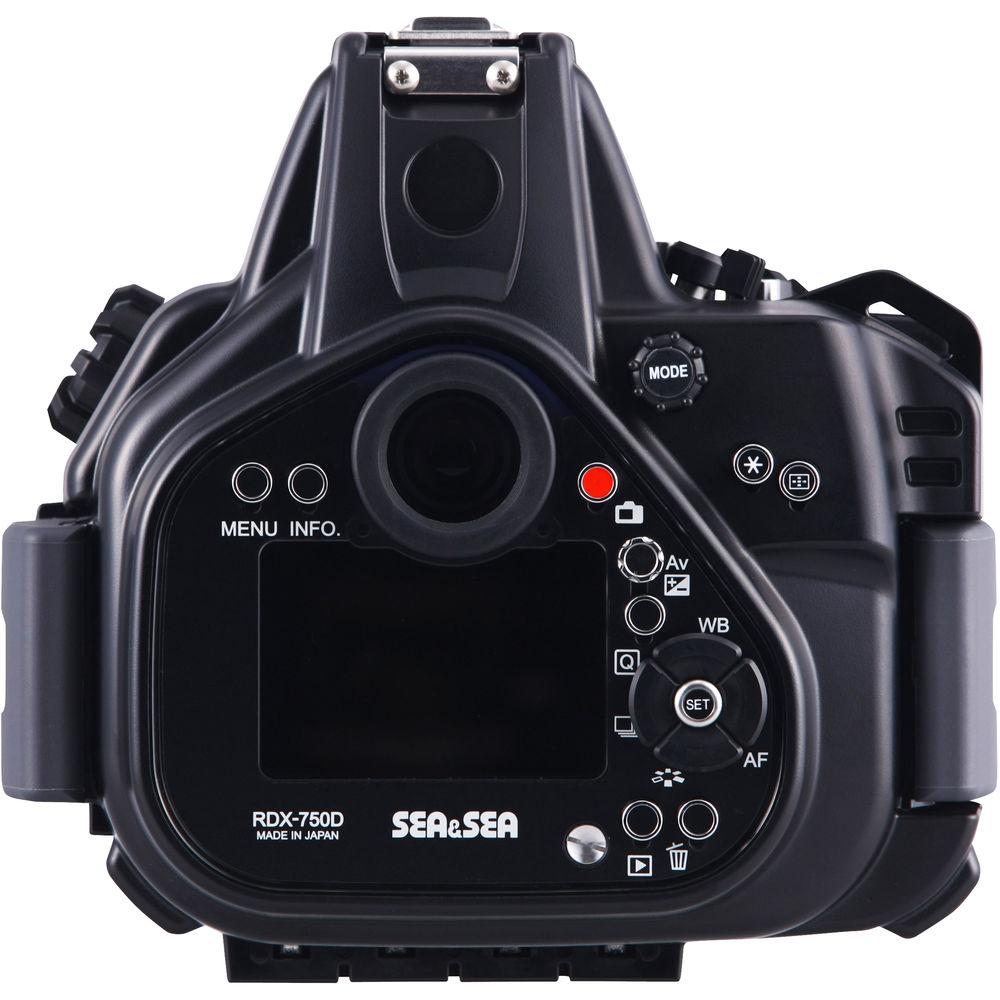

User Manual for Sea & Sea RDX-750D Underwater Housing for Canon EOS Rebel T6i Click to enlarge the picture
Contents of the user manual for the Sea & Sea RDX-750D Underwater Housing
- Product category: Still Cameras & Housings Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Still Cameras & Housings
 |
User manual for the Sea & Sea RDX-750D Underwater Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|
Product description Capture brilliant photos and Full HD 1080p video of parrot fish, moray eels, and coral reefs with your Canon EOS Rebel T6i DSLR camera, a.k.a. 750D, in Sea & Sea's RDX-750D Underwater Housing. Built for durability, it has a depth rating of 200' and is constructed from corrosion-resistant polycarbonate. Dual fiber-optic ports enable the attachment of optional external strobes via cables.
The housing provides access to virtually all camera functions via mechanical controls, including push-buttons, dials, and levers. Optional ergonomic grips can be added to improve handling and enable the attachment of lighting arms. A standard 0.5x optical viewfinder is supplied, and the housing is compatible with the optional VF180 1.2x finder, which affords an enhanced view. The RDX-750D ships without a required lens port, and accepts one of several interchangeable ports for wide-angle, macro, and zoom lenses. For complete compatibility details, please see the System Chart. - Construction Details
-
- Depth rating: 200'
- Crafted from a durable, corrosion-resistant polycarbonate resin
- Quick shoe facilitates hassle-free installation and removal of the camera
- Buckle-style lock allows for easy opening and closing of the back cover
- Controls and Handling
-
- Mechanical push-buttons, dials, and levers afford access to virtually all camera functions, including power on/off, main dial, mode dial, shutter lever, live view, video recording, focus/zoom dial, AE lock, FE lock, AF area selection, AF point selection, quick control, ISO, aperture, exposure compensation, display, SET, cross button, info, menu, magnify, reduce, playback, index, and delete
- Easy-to-use shutter lever can be operated by pushing from the top or by pulling from the front
- Half-press function on shutter button lets you adjust auto focus
- Optional tray and ergonomic grips can be added to improve handling and enable the attachment of lighting arms
- Supplied, standard 0.5x optical viewfinder shows you the entire field of view
- Housing is compatible with the optional VF180 1.2x prism finder, which affords an enhanced view
- Included hand strap allows you to maintain a more secure grip on your gear
- Lens Ports
-
- Ships without a required lens port
- Accepts one of several interchangeable ports for various wide-angle, macro, and zoom lenses via RDX Port Base L or RDX Port Base S
- For complete compatibility details, please see the System Chart linked above
- Strobe Connection and Operation
-
- Dual fiber-optic ports enable the attachment of optional external strobes via cables
- Strobes will be triggered by the firing of the camera's built-in flash
UPC: 752221061789 In the Box Sea & Sea RDX-750D Underwater Housing for Canon EOS Rebel T6i Hand Strap O-Ring Set O-Ring Remover Silicone Grease Attachment Tool Body Cap 2 x Fiber-Optic Port Caps Limited 1-Year Warranty System Chart PDF 186.2kbartedyqxryxdreycwv Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea RDX-750D Underwater Housing for Canon EOS Rebel T6i in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea RDX750D Specs | Depth Rating | 200' / 60 m | | Control Type | Mechanical push-buttons, knobs/dials, and levers | | Controls | Provide access to virtually all camera functions: Power on/off
Main dial
Mode dial
Shutter lever
Focus/zoom dial
AF area selection
ISO
Display
Info
Menu
Playback
Delete
SET
Cross button
Quick control
Aperture
Exposure compensation
Live view
Video recording
AF point selection
Magnify
Reduce
AE lock/FE lock
Index | | Material of Construction | Polycarbonate resin | | Lens Port | Ships without a required lens port
Accepts one of several interchangeable ports for various wide-angle, macro, and zoom lenses
Ports are mounted via RDX Port Base L or RDX Port Base S
For complete compatibility details, please see System Chart linked in overview | | Buoyancy | Not specified by manufacturer
May vary based on choice of lens and port | | Internal Flash Usable | Yes, camera's built-in flash triggers strobes via fiber-optic cables | | External Flash Connector | 2x Fiber-optic ports for connecting optional strobes via cables | | Other Connectors | Cold shoe
Tripod mount | | Viewfinder | Standard 0.5x optical viewfinder (included)
Optional VF180 1.2x finder | | Moisture Alarm | None | | Mounting | Camera quick shoe | | Dimensions | 7.9 x 7.5 x 5.5" / 200 x 190 x 140 mm | | Weight | 3.75 lb / 1.7 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 11.0 x 8.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
