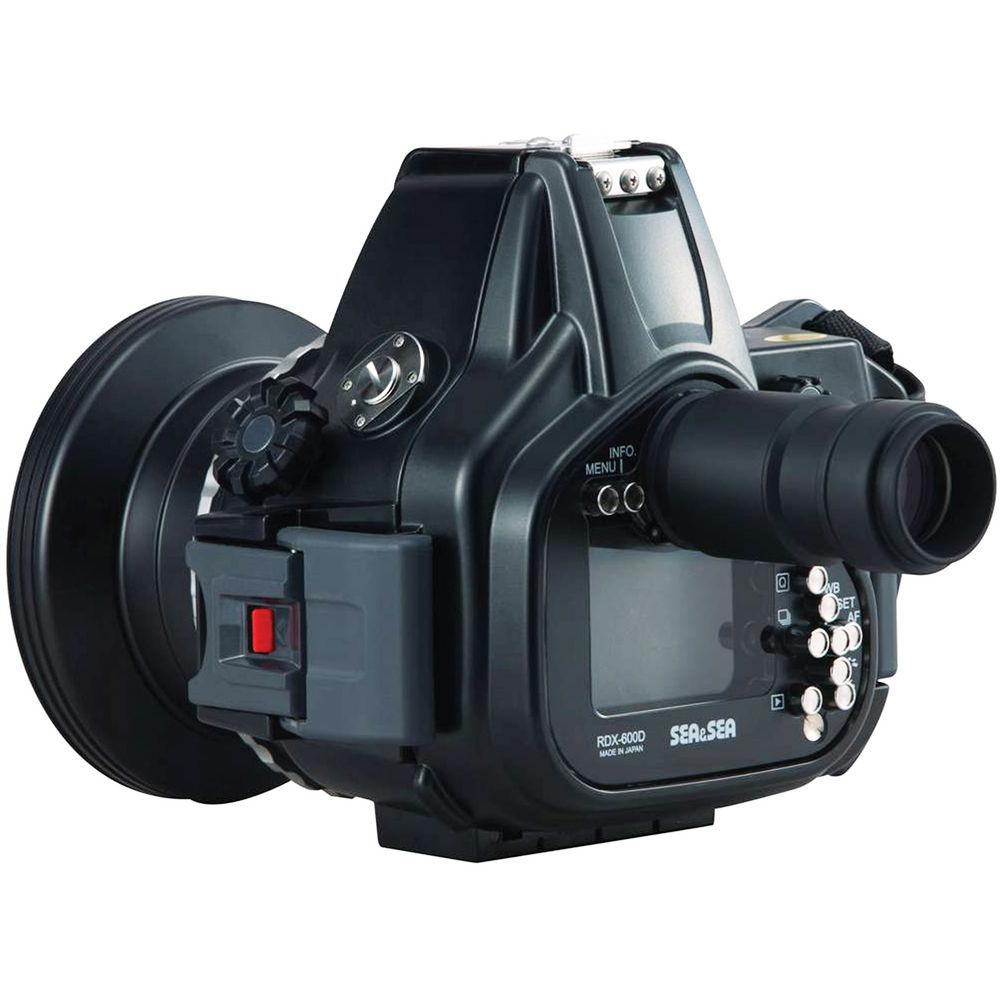

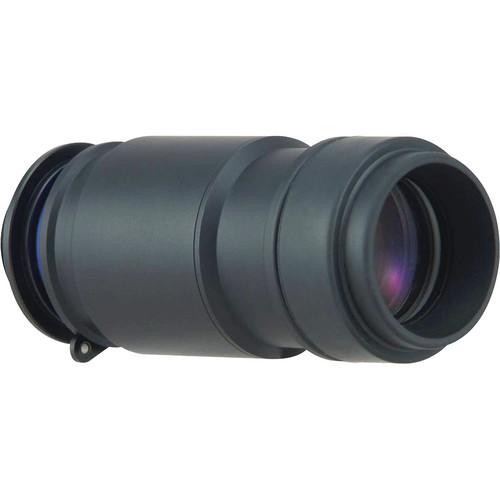

Product description The Sea & Sea VF180 1.2x Straight Prism Viewfinder is a photographic viewing aid compatible with both RDX and MDX series underwater housings. Constructed from a durable, corrosion-resistant aluminum alloy, the finder features an anodized finish. It also boasts an impressive 328' (100 m) depth rating. Attachment to the housing is achieved via removal of the original viewfinder and installation of this one in its place. The VF180 features a magnification of 1.2x--without sacrificing field of view. Thus, your subject appears larger but you can still fit everything in the frame. Because it's a straight finder, the VF180 lets you compose your images as if you were looking directly through the camera's built-in viewfinder.
The optical lens construction of the viewfinder is 8 elements in 6 groups, allowing for beautiful reproduction of natural colors. Filled with nitrogen gas, the VF180 prevents condensation and fogging for clearer visibility. An eyepiece guard keeps light from entering the finder, thus minimizing glare and reflection for improved viewing. You will have to use the included attachment tool in order to attach the viewfinder to your housing. Please note that, for the MDX-PRO 5D Mark II, you will also need to use the included accessory spacer in order to install the viewfinder on your housing. These select housings require factory modification for installation: RDX-550D, MDX-PRO D3, MDX-D300, and MDX-40D. The rest of the compatible housings for this viewfinder are as follows: RDX-600D, MDX-D7000, MDX-7D, MDX-D300s, and MDX-PRO D700. - Compatible with both RDX and MDX series underwater housings
- Constructed from a durable, corrosion-resistant aluminum alloy, and featuring an anodized black finish
- Attachment to the housing is achieved via removal of the original viewfinder and installation of this one in its place
- Magnification of 1.2x--without sacrificing field of view. Thus, your subject appears larger but you can still fit everything in the frame
- Because it's a straight finder, the VF180 lets you compose your images as if you were looking directly through the camera's built-in viewfinder
- Optical lens construction of the viewfinder is 8 elements in 6 groups, allowing for beautiful reproduction of natural colors
- Filled with nitrogen gas to prevent condensation and fogging for clearer visibility
- Eyepiece guard keeps light from entering the finder, thus minimizing glare and reflection for improved viewing
- You will have to use the included attachment tool in order to attach the viewfinder to your housing
- Please note that, for the MDX-PRO 5D Mark II, you will need to use the included accessory spacer in order to install the viewfinder on your housing
- These select housings require factory modification for installation: RDX-550D, MDX-PRO D3, MDX-D300, and MDX-40D
- Rest of the compatible housings: RDX-600D, MDX-D7000, MDX-7D, MDX-D300s, and MDX-PRO D700
- Included accessories: Attachment tool, spacer for MDX-PRO 5D Mark II housing, VF45 retainer (mounted on viewfinder), lens cap (also mounted on viewfinder), and eyepiece cover (also mounted on viewfinder)
UPC: 752221461121 In the Box Sea & Sea VF180 1.2x Straight Prism Viewfinder Attachment Tool Spacer For MDX-PRO 5D Mark II Housing VF45 Retainer (Mounted On Viewfinder) Lens Cap (Mounted On Viewfinder) Eyepiece Cover (Mounted On Viewfinder) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea VF180 1.2x Straight Prism Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea VF180 Specs | Construction | Body: Corrosion-resistant, anodized aluminum alloy
Lens: 8 elements in 6 groups | | Magnification | 1.2x | | Depth Rating | 328' (100 m) | | Dimensions | Diam. x D: 1.8 x 4.4" (4.5 x 11.1 cm) | | Weight | On-land: 0.62 lb (0.28 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.9 x 3.9 x 3.7" |
