User Manual for Sea & Sea YS-03 Universal Lighting System for Underwater Photography Click to enlarge the picture
Contents of the user manual for the Sea & Sea YS-03 Universal Lighting
- Product category: Strobe Lights Sea & Sea
- Brand: Sea & Sea
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sea & Sea Strobe Lights
 |
User manual for the Sea & Sea YS-03 Universal Lighting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sea & Sea product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sea & Sea user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sea & Sea product will considerably shorten its lifespan!
|

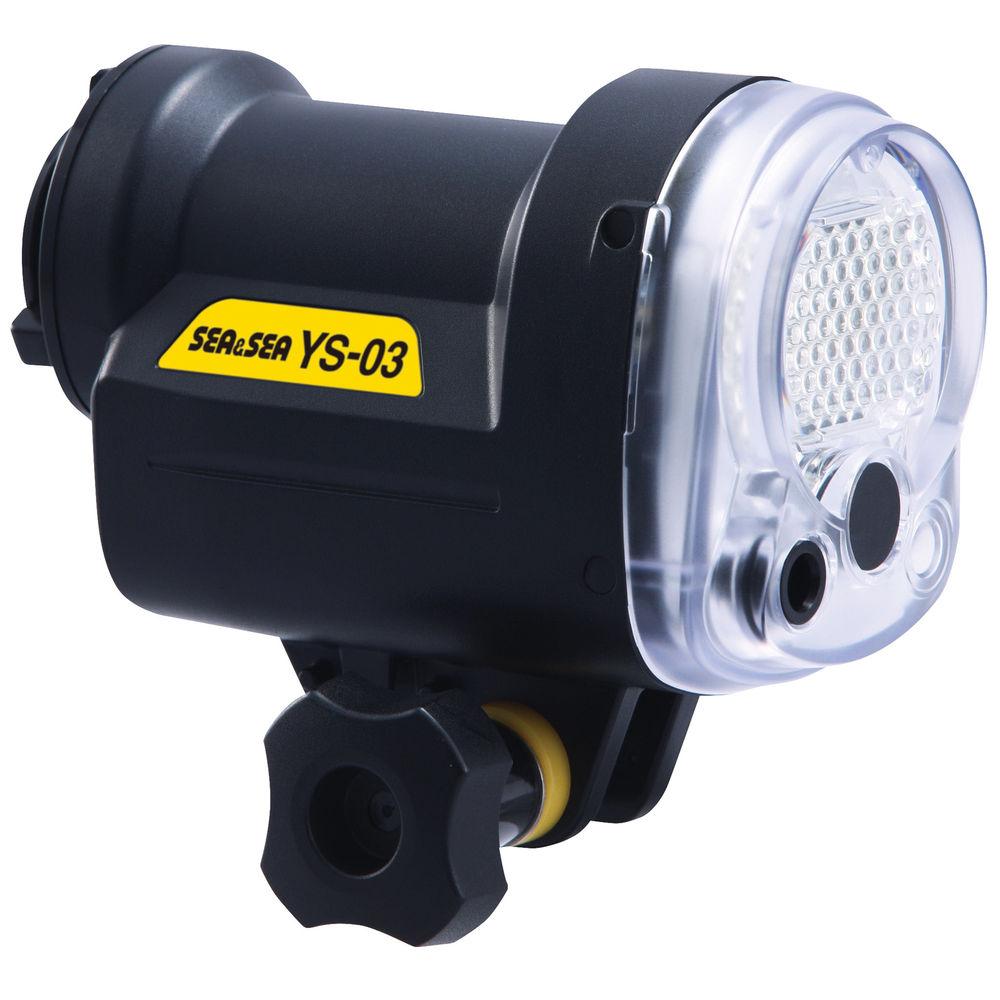

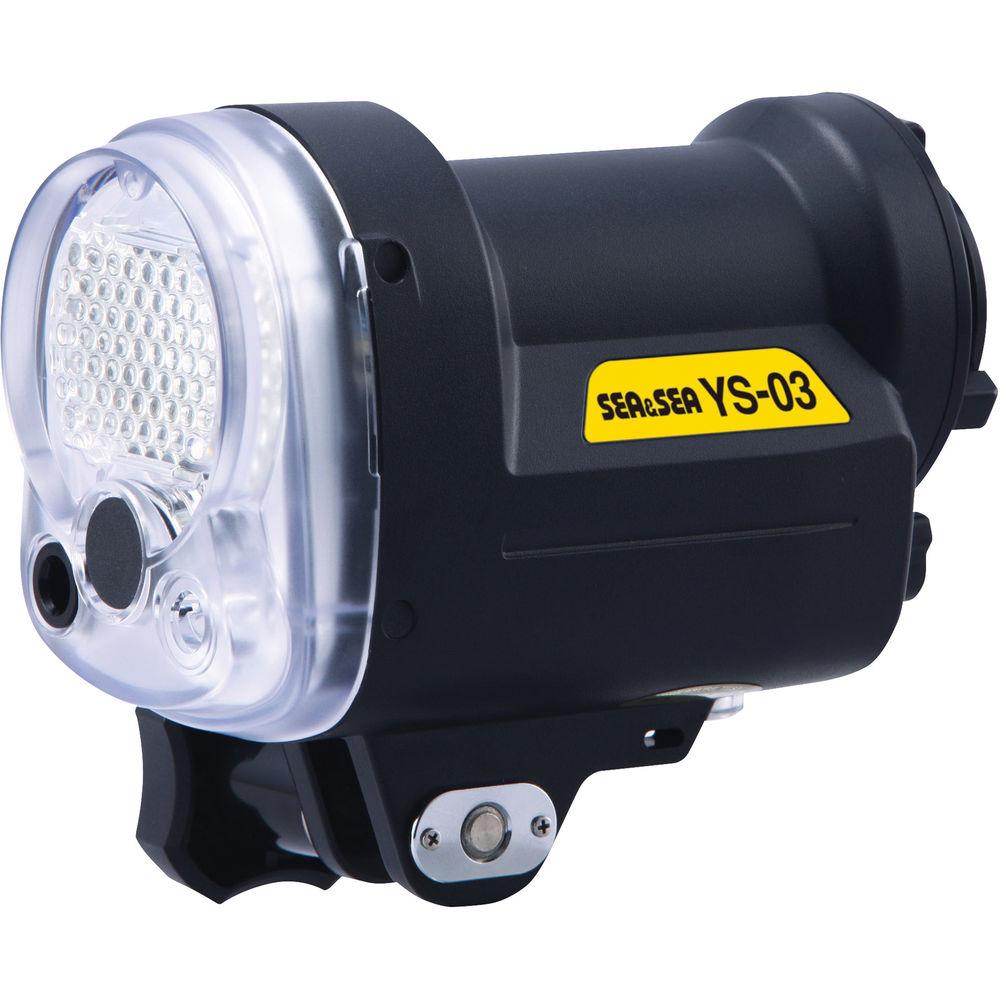

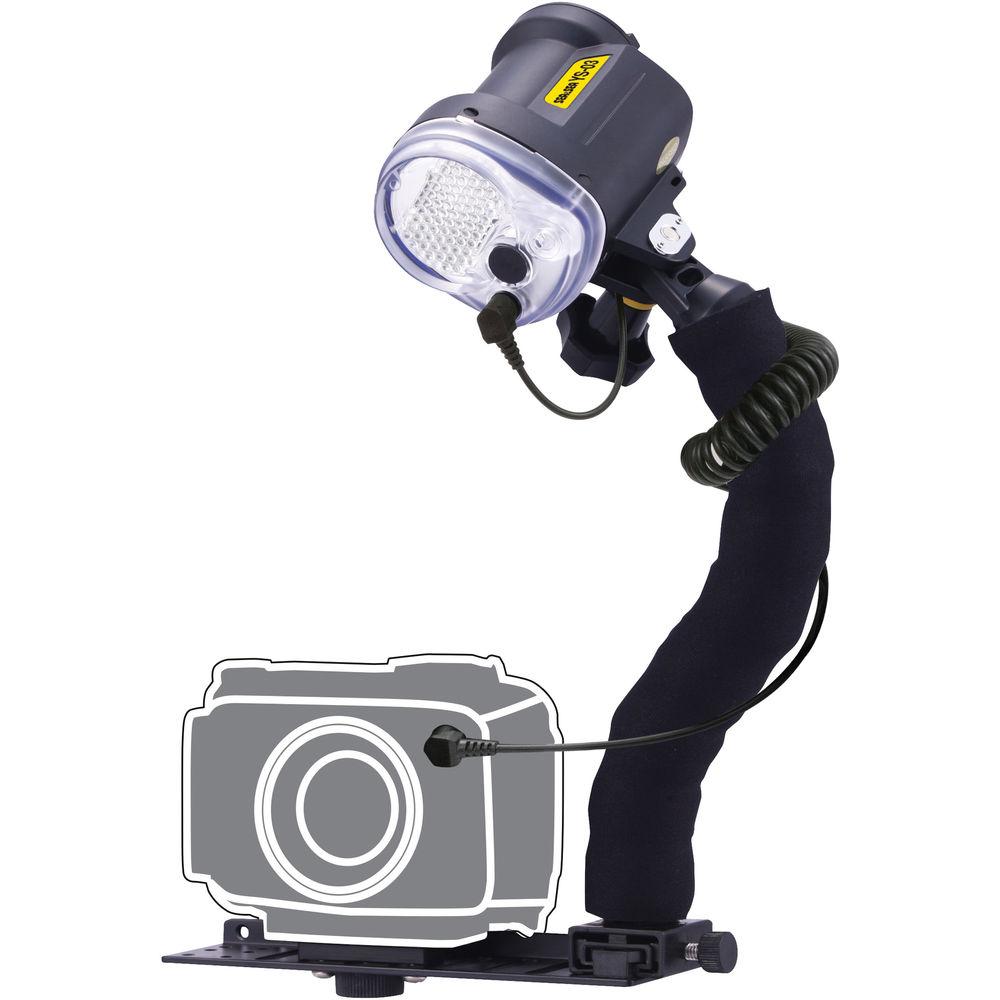

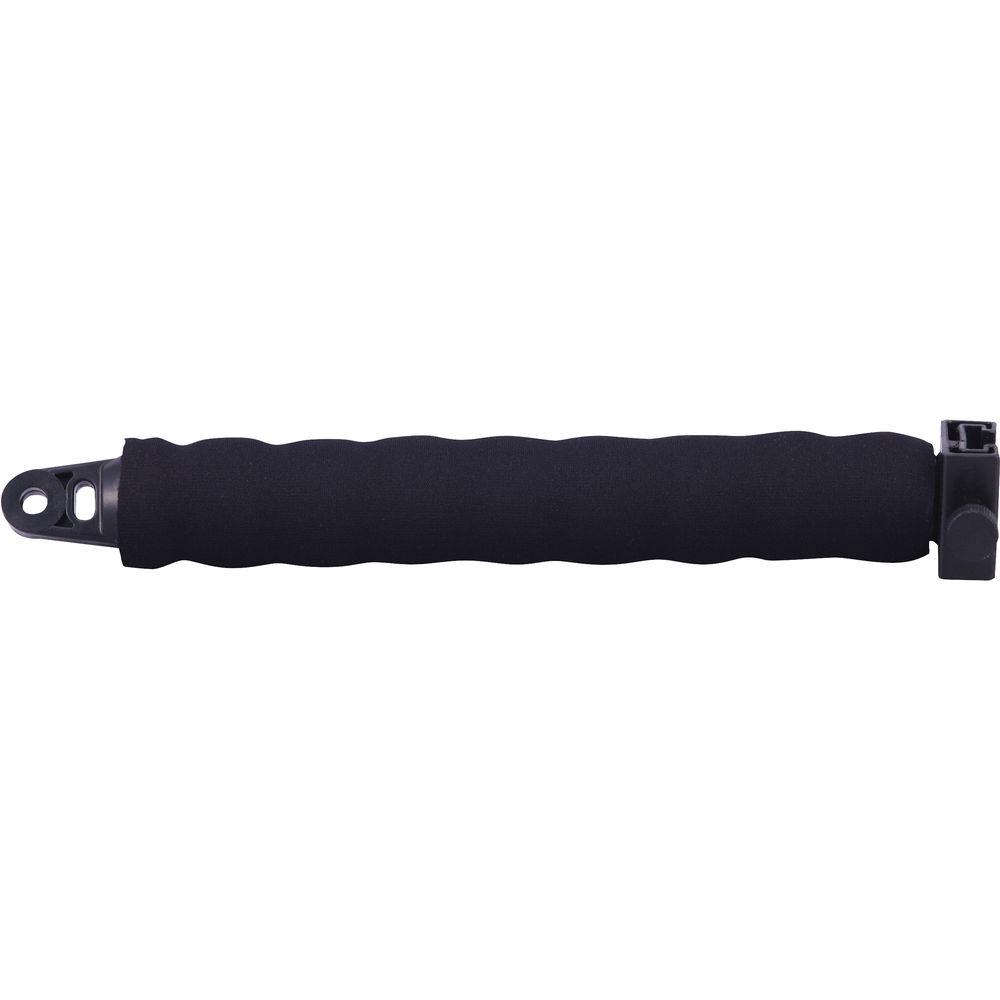

Product description Brighten the underwater world with this Sea & Sea YS-03 Universal Lighting System, which has a depth rating of 250'. Bundling the YS-03 Underwater Strobe, Fiber-Optic Cable II with M/2 Connectors, Flex Arm 30, and Camera Tray 200, this kit provides the equipment needed to pair the flash with most compact cameras in their underwater housings.
The strobe features easy and versatile slave TTL functionality, so it is not necessary to manually adjust output. It is compatible with any camera that has a pre-flash and a TTL flash exposure function. The supplied diffuser softens the YS-03's light to prevent backscatter, glare, and hard shadows, resulting in better illumination and more evenly exposed images. The only control is the rotary power switch, making the flash extremely simple to operate.
The YS-03 features a guide number of 65.6' / 20 m at ISO 100 and a beam angle of 100 x 100°, or 110 x 110° with the diffuser. Its color temperature is a daylight-balanced 5600K, or 5250K when using the diffuser. It's powered by 4 AA alkaline or Ni-MH batteries. - Features a depth rating of 250'.
- Pressure relief valve for safety.
- Bundles YS-03 Underwater Strobe, Flex Arm 30, Camera Tray 200, and Fiber-Optic Cable II with M/2 connectors. Using third-party fiber-optic cables is not recommended, as functions such as TTL auto exposure may not work properly.
- Easy and versatile slave TTL functionality, so it is not necessary to manually adjust output.
- Compatible with any camera that has a pre-flash and a TTL flash exposure function.

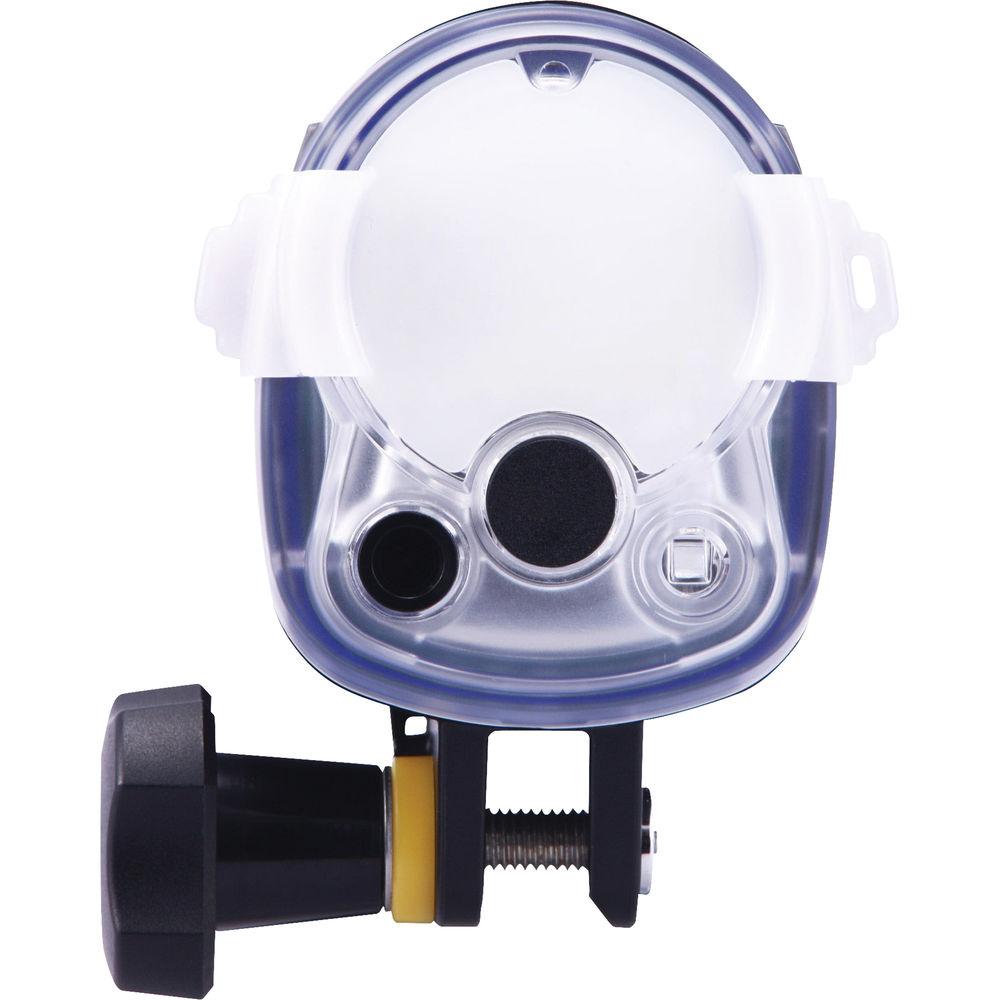

- Supplied diffuser softens the YS-03's light to prevent backscatter, glare, and hard shadows, resulting in better illumination and more evenly exposed images.

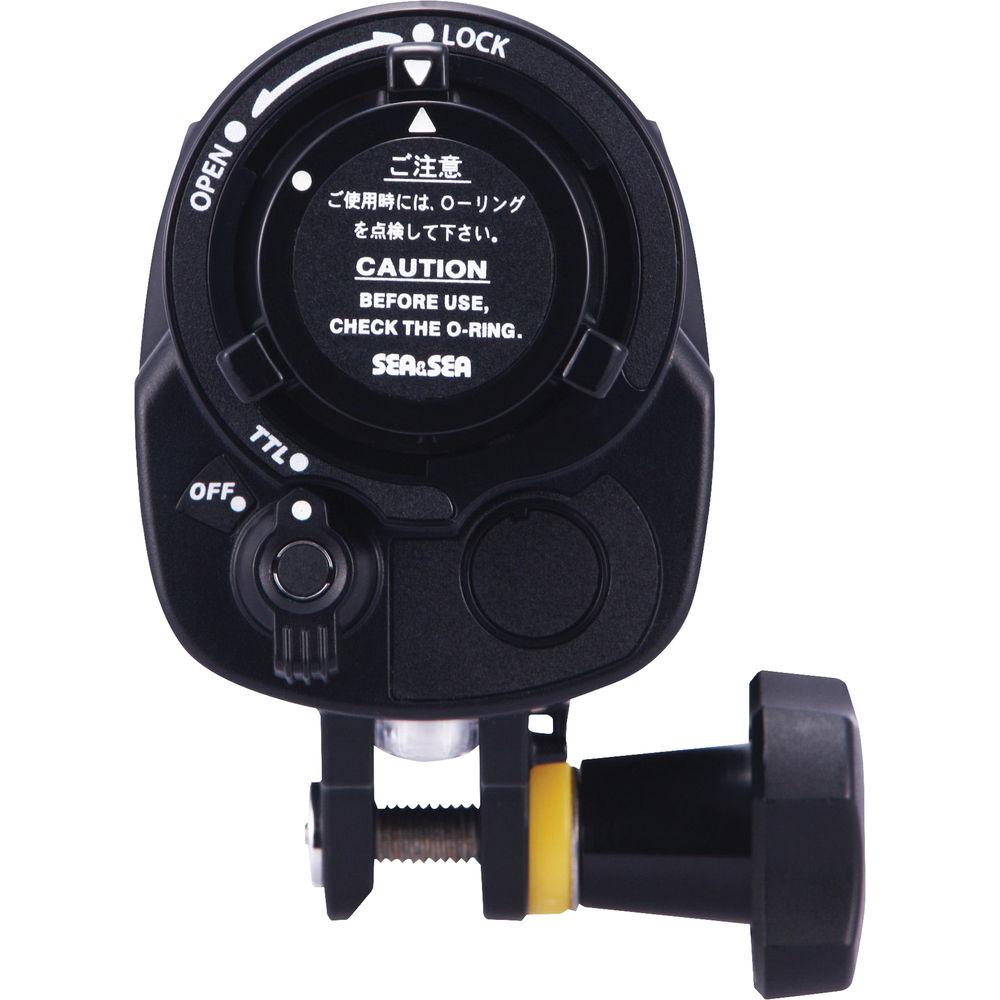

- The only control is the rotary power switch, making the flash extremely simple to operate.
- Guide number of 65.6' / 20 m at ISO 100 on land.
- Beam angle of 100 x 100°, or 110 x 110° with the diffuser.
- Color temperature is a daylight-balanced 5600K, or 5250K when using the diffuser.
- Powered by 4 AA alkaline or Ni-MH batteries. Alkaline cells will give you up to 230 flashes, while NiMH will provide up to 330. Lithium batteries are not compatible, and may cause damage by overheating.
- When the YS-03 is used with a non-Sea & Sea housing, an optional Strobe Mask Set may be required along with the fiber-optic cable, in order to block most of the camera's built-in flash. This way, only the part needed to trigger the strobe will be uncovered, preventing the flash from causing backscatter, glare, hard shadows, or uneven lighting.
- Flex arm features about 8 joints/knuckles, allowing you to position it for various lighting angles and effects.

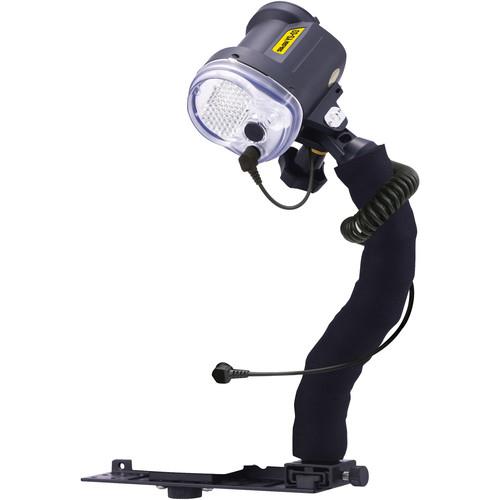

UPC: 752221035414 In the Box Sea & Sea YS-03 Universal Lighting System for Underwater Photography YS-03 Strobe with Fixing Bolt and Diffuser Flex Arm 30 Camera Tray 200 Fiber-Optic Cable II with M/2 Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea YS-03 Universal Lighting System for Underwater Photography in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea YS-03 Specs | Depth Rating | 250' / 75 m | | Guide Number | 65.6' / 20 m at ISO 100 on land | | Effective Flash Range | Not specified by manufacturer | | Angle of Coverage | 100 x 100°
110 x 110° with diffuser | | Color Temperature | 5600 K
5250 K with diffuser | | Connectivity | Fiber-optic port
Includes fiber-optic cable II with M/2 connectors | | Flash Modes | Slave TTL | | Mounting | Flex arm and tray included | | Recycle Time | Alkaline: Approx. 3.1 sec at full power
NiMH: Approx. 2.5 sec at full power | | Power Source | 4x 1.5 V AA alkaline (6.0 V total)
4x 1.2 V NiMH (4.8 V total)
Lithium batteries are not compatible | | Number of Flashes | Alkaline: Approx. 230
NiMH: Approx. 330 | | Dimensions | 2.7 x 4.25 x 5.1" / 68 x 108 x 129 mm | | Weight | Above water: 15.2 oz / 430 g with fixing bolt, without batteries
Underwater: Approx. 0.4 oz / 10 g with batteries | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 8.6 x 8.0 x 4.4" |
