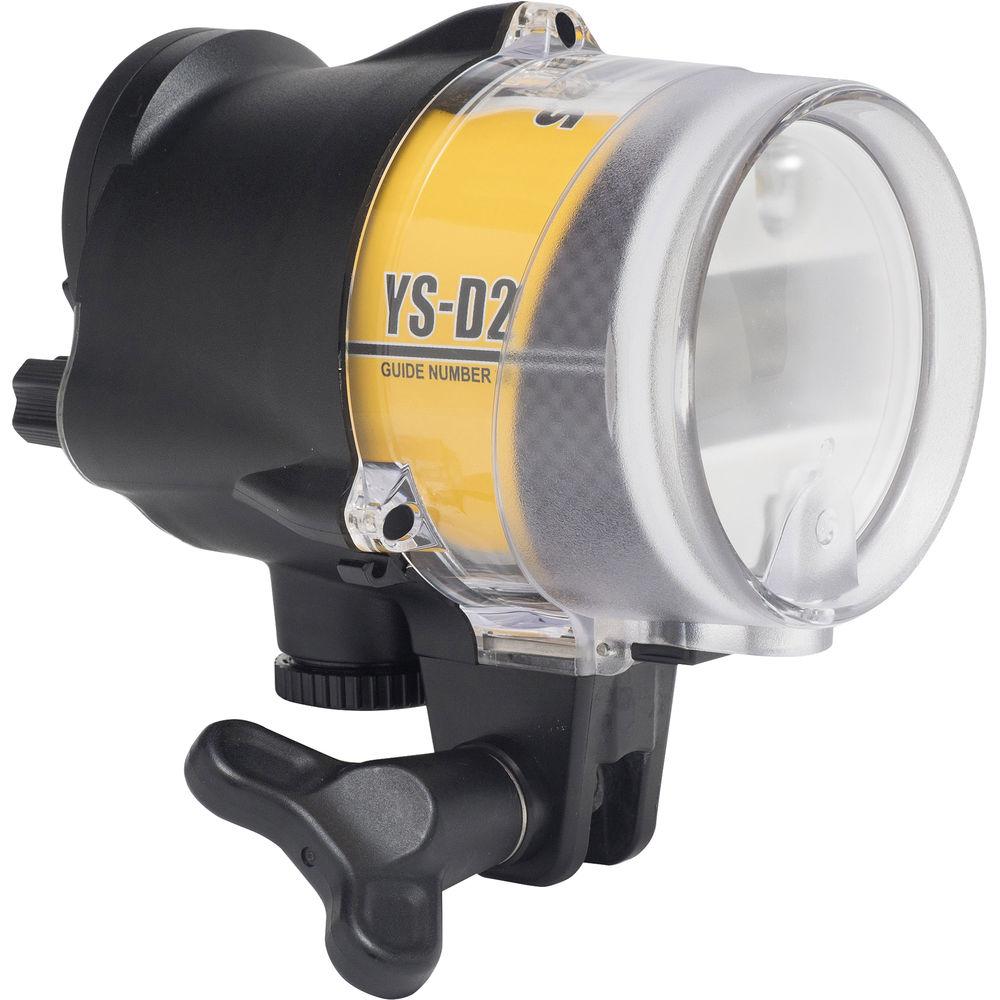

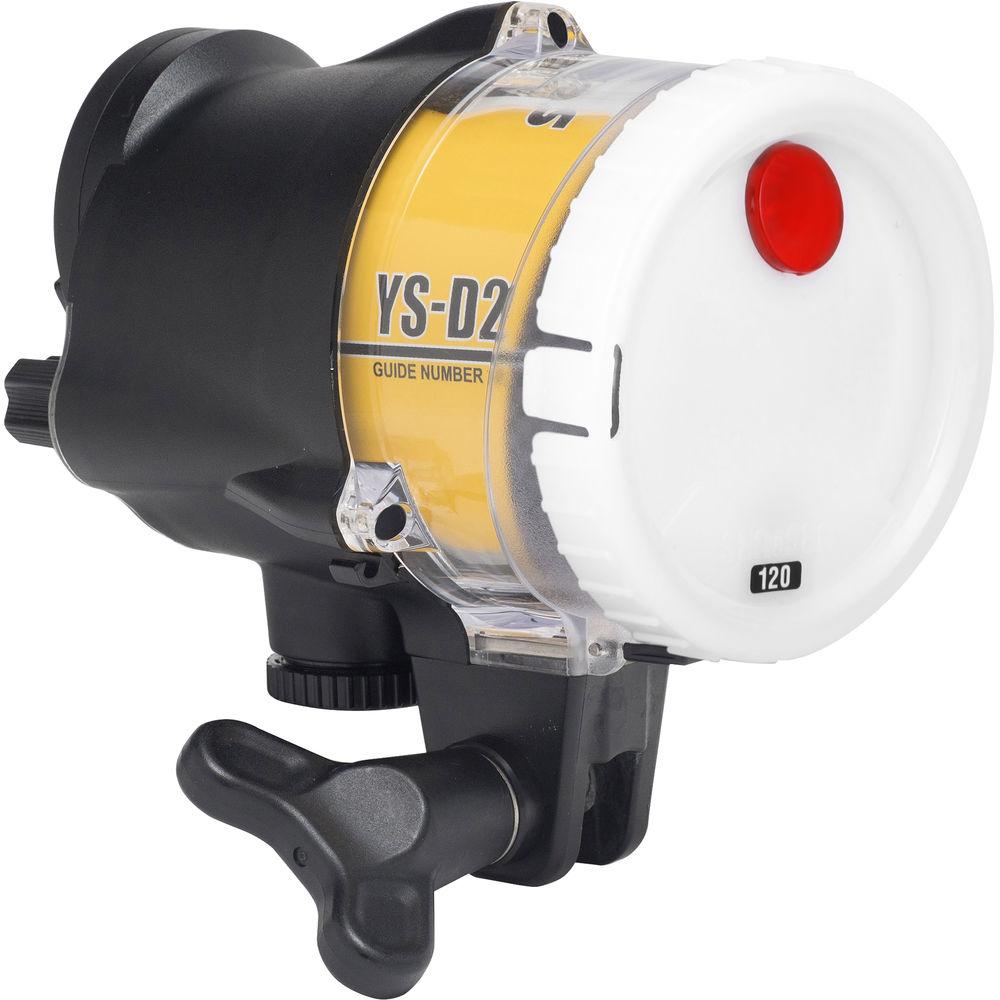

Product description Illuminate the underwater world in rich, natural color at depths up to 328' with the yellow YS-D2J Underwater Strobe from Sea & Sea. It features a guide number of 104' / 32 m on land at ISO 100; this value changes to 65' with the supplied Diffuser-120, or 78' with the supplied Diffuser-100. The flash has a beam angle of 80 x 80°, which is widened to 100 x 100° with the Diffuser-100 and 120 x 120° with the Diffuser-120. A daylight-balanced color temperature of 5600K enables the strobe to restore colors that are absorbed underwater, thus allowing for more vibrant and accurate images.
Both TTL and manual flash exposure modes are available on the YS-D2J. Unlike the previous model, the YS-D1, this strobe features audible and ready-light TTL confirmation. Additionally, the rear side of the unit has a glowing panel with easy-to-read controls, which will be helpful in low-light situations. The YS-D2J is configured with a 5-pin sync cord connector and a fiber-optic port for connection to an underwater camera housing. It is powered by 4 AA Alkaline or NiMH batteries. - Guide Number
-
- 104' / 32 m on land at ISO 100
- Changes to 65' with the supplied Diffuser 120 or 78' with the supplied Diffuser 100
- Coverage
-
- Beam angle of 80 x 80°

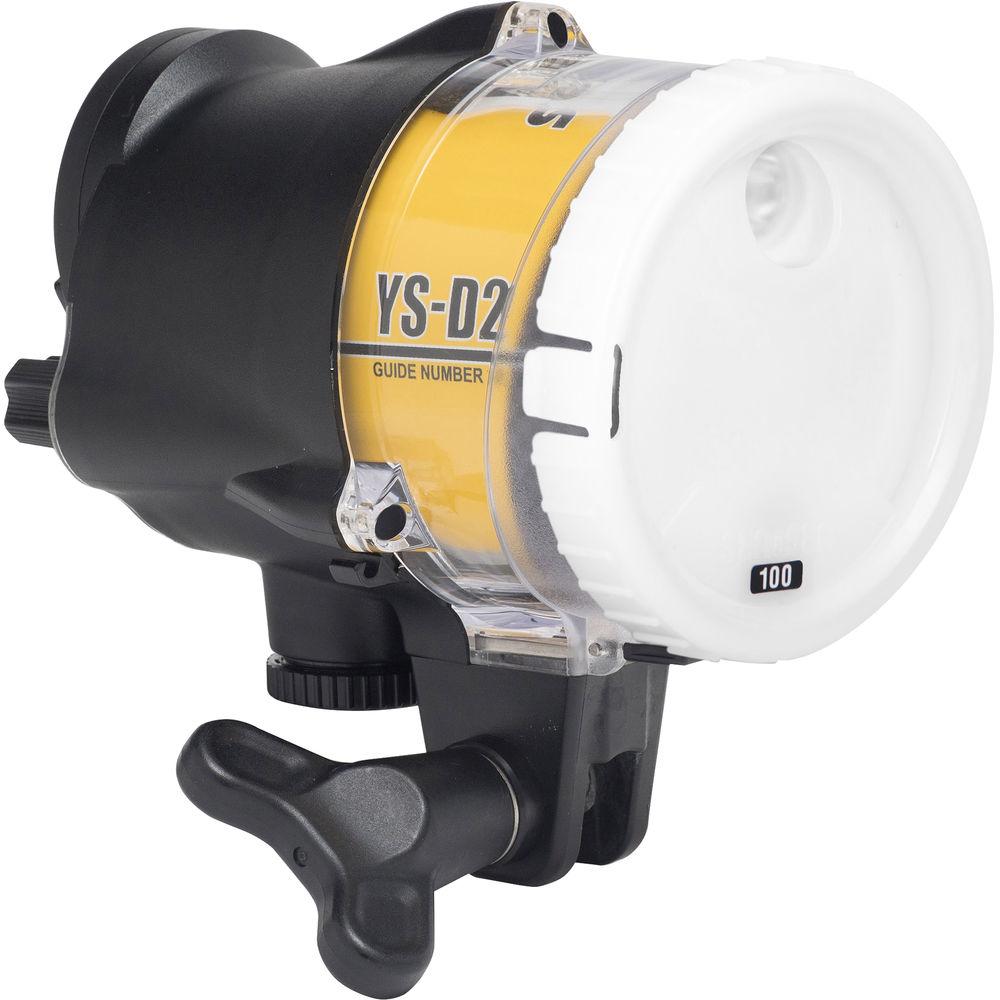

- Widened to 100 x 100° when used with Diffuser-100 and 120 x 120° when used with Diffuser-120
- Diffusers help create soft, even light to reduce glare, backscatter, and hard shadows
- Color Temperature
-
- Daylight-balanced color temperature of 5600K enables the strobe to restore colors absorbed underwater for more vibrant and accurate images
- With diffuser in place, color temperature is reduced to 5250K, which is still close to daylight-balanced
- Target Light
-

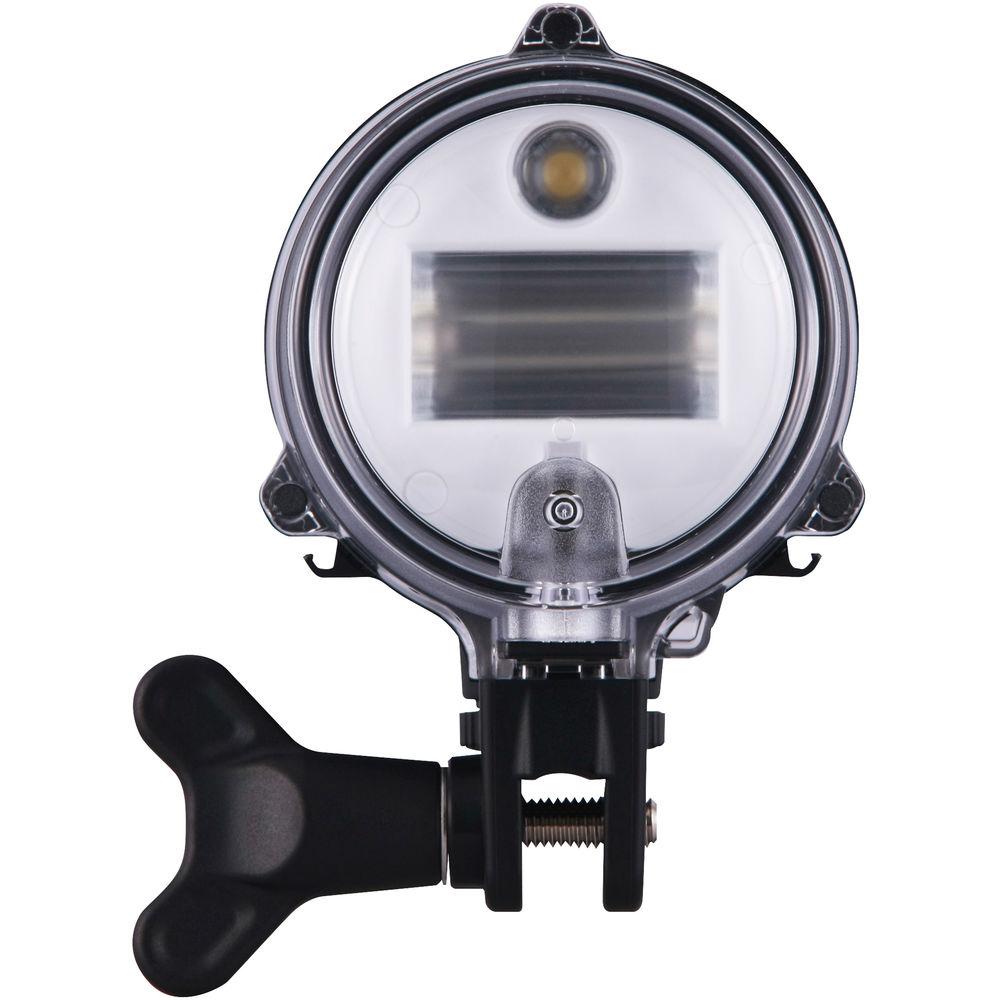

- Included LED target light with red filter helps you avoid disturbing the skittish sea life that is likely to be alarmed by normal light. It is fitted inside the diffusers
- Target light's output is adjustable in 2 steps: 100-300 lumens
- Automatically turns off when strobe fires and turns back on after 0.5 sec
- Depth Rating
-
- Safe for use at depths up to 328'
- Features over-pressure relief valve
- Controls, Modes, and Operation
-
- Both TTL (DS-TTL and slave TTL) and manual flash exposure modes are available
- Sea & Sea's DS-TTL II system has been improved, with an added function that stabilizes light emission by controlling voltage differences--so variability of intensity will not be evident during continuous firing
- Accuracy of TTL exposure has been increased, and images are less likely to be overexposed
- EV control function can fine-tune amount of light emitted. Exposure compensation range has been improved to +/- 2.0 EV: -2.0, -1.5, -1.0, -0.7, -0.3, +0.3, +0.7, +1.0, +1.5, +2.0
- Custom function allows for compatibility with cameras that have non-standard pre-flash in DS-TTL and manual modes

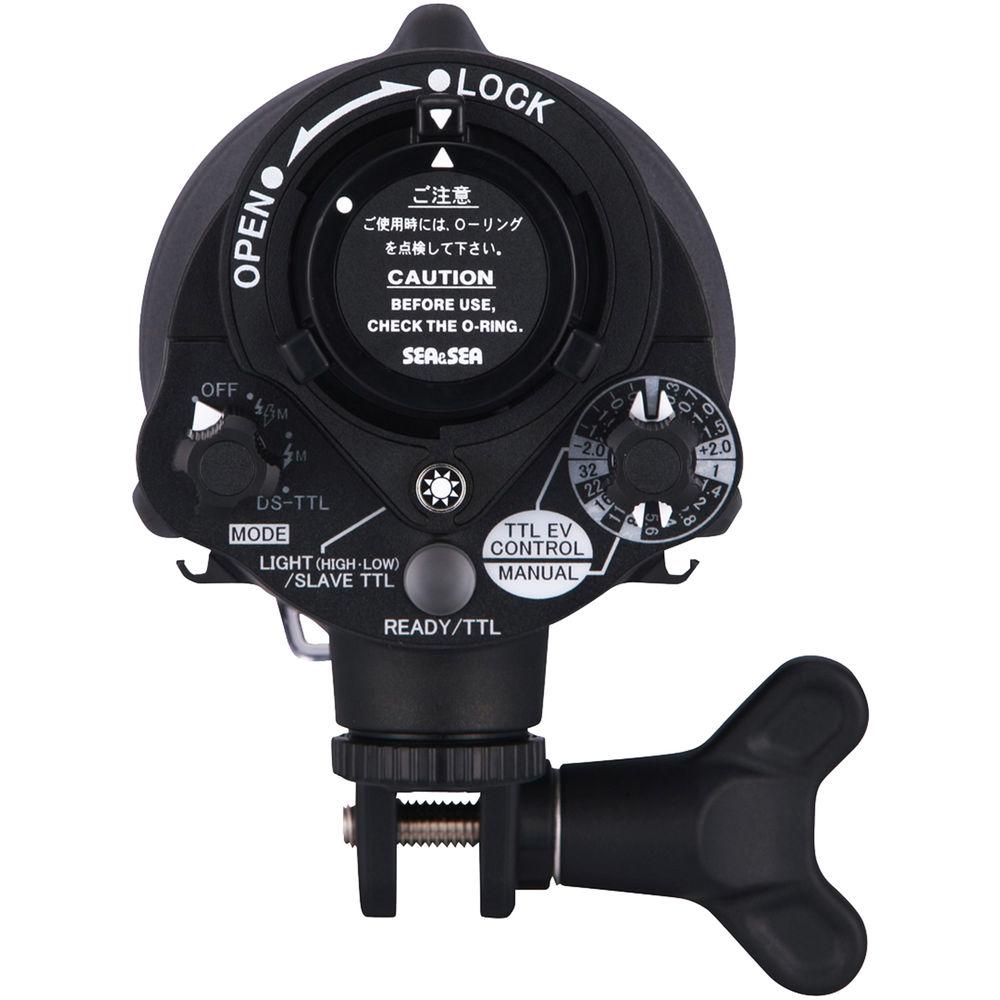

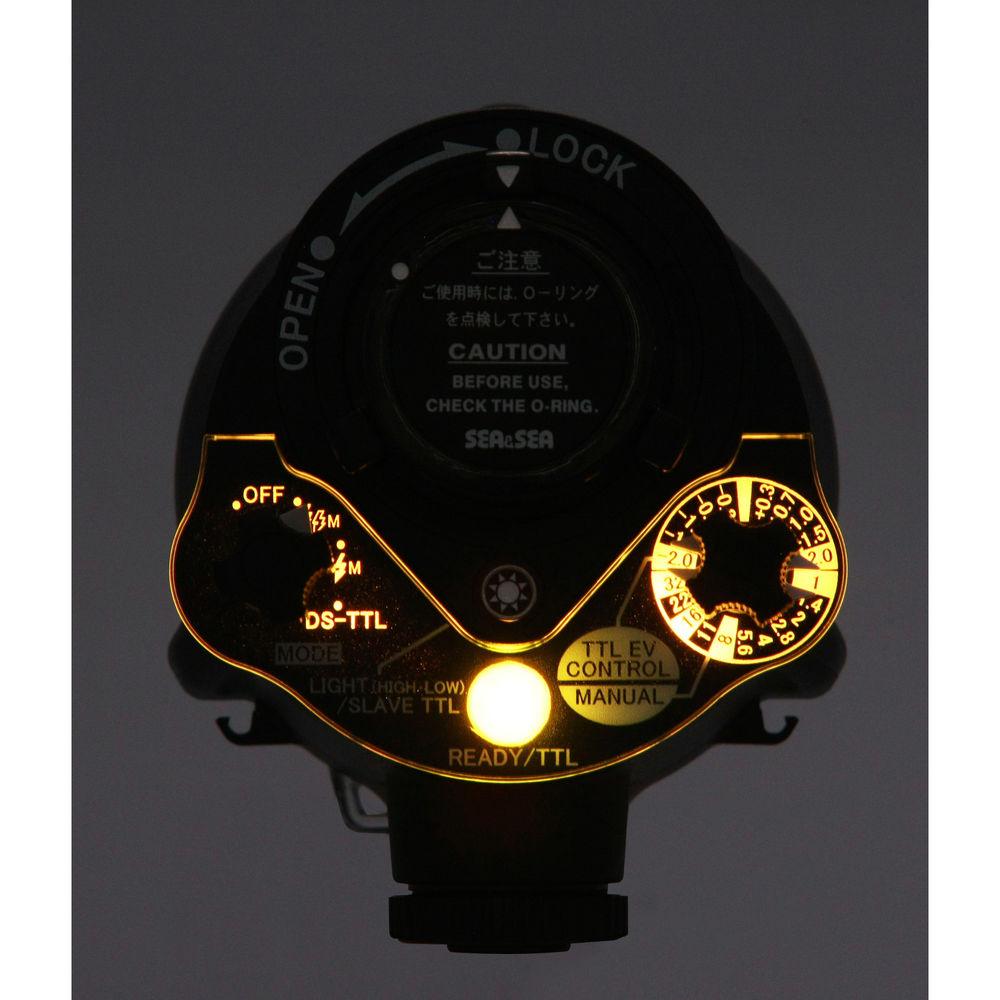

- Illuminated control panel for good visibility in dark conditions

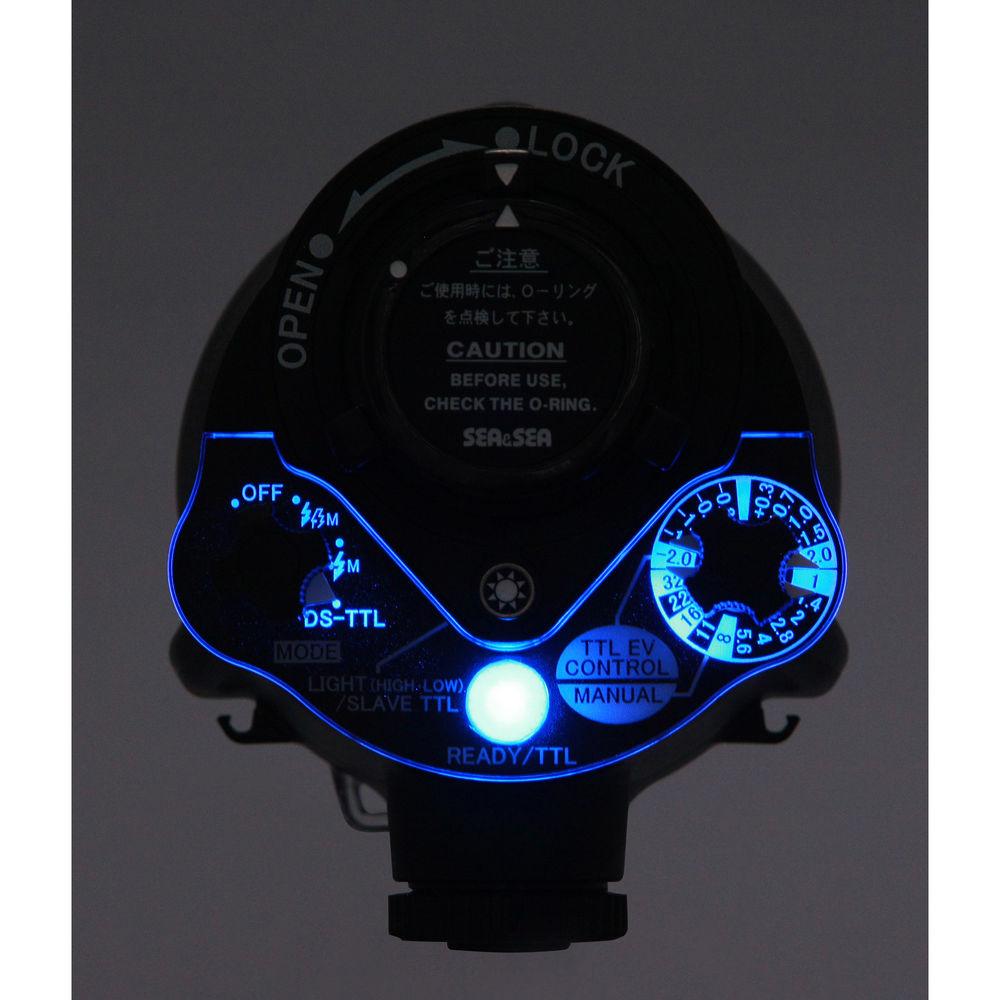

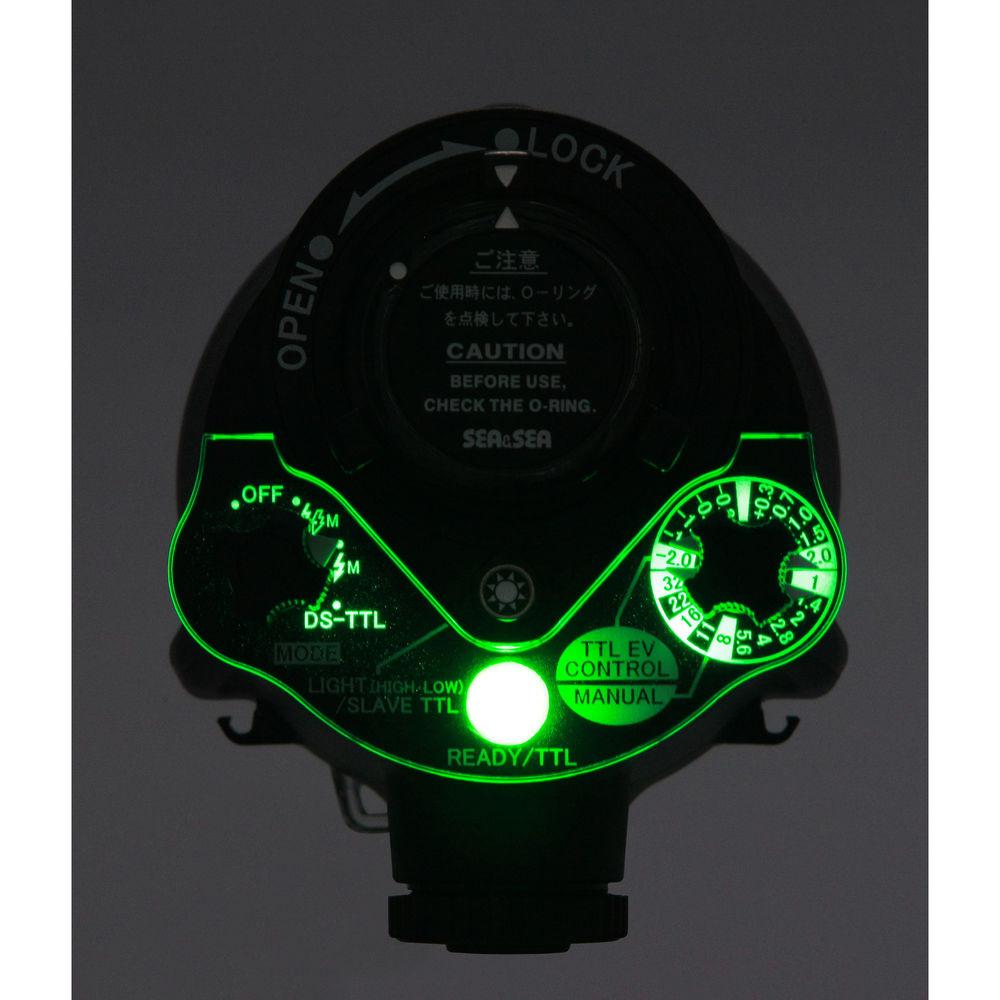

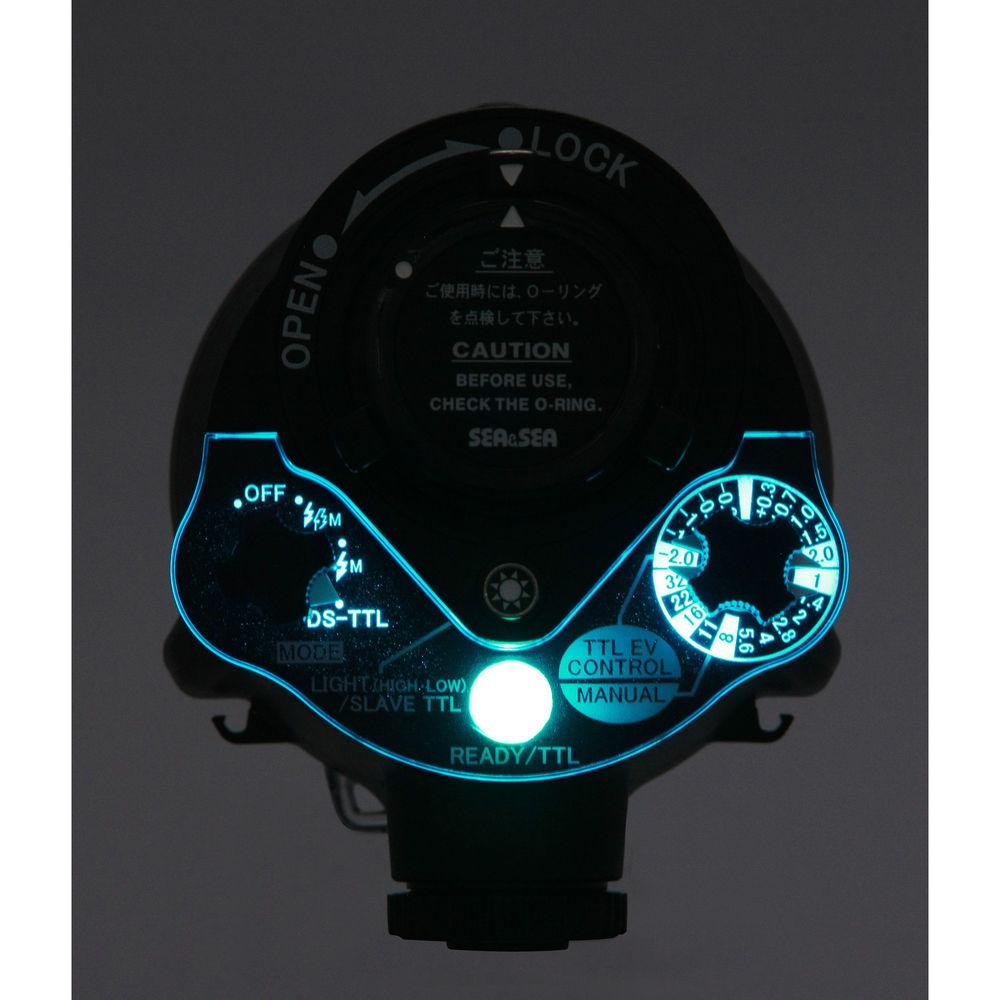

- Color of illumination changes to indicate mode: aqua blue for DS-TTL, blue for slave TTL, orange for manual pre-flash, and green for manual mode without pre-flash
- Large knobs and magnetic rotary switch enable improved handling and fast operation, while helping to prevent accidental activation/deactivation
- Power Source
-
- Recycle time is about 1.5 sec with NiMH batteries
- Flash features audible charge signal
- Connectivity
-
- Configured with a 5-pin sync cord connector and a fiber-optic port for connection to an underwater camera housing using an optional cable
- Fiber-Optic Cable II from Sea & Sea is required to use DS-TTL ll function
- Mounting
-

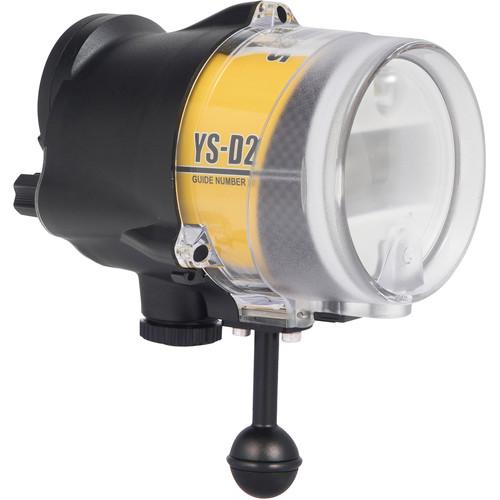

- YS and ball mounts included for attachment to lighting arms
UPC: 752221031218 In the Box Sea & Sea YS-D2J Underwater Strobe (Yellow) Diffuser-100 Diffuser-120 YS Mount Strobe Adapter Ball Mount Strobe Adapter Spare Cap Bolt Silicone Grease M4 Hexagon Wrench Fixing Bolt Silicone Grease 2 x Red Filters 2 x Diffuser Straps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sea & Sea YS-D2J Underwater Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSea & Sea YS-D2J Specs | Configuration | Flash head | | Guide Number | 104' / 32 m on land at ISO 100
With Diffuser 120 (supplied): 65' / 20 m on land at ISO 100
With Diffuser 100 (supplied): 78' / 24 m on land at ISO 100 | | Coverage Angle | 80°
100° (with Diffuser 100)
120° (with Diffuser 120) | | Depth Rating | 328' / 100 m | | Exposure Control | DS-TTL II
Slave TTL
Manual in 11 steps: 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 22 / 32
Pre-flash cancel mode | | Color Temperature | 5600 K
With Diffuser: 5250 K | | Controls | Mode, target light, light level | | Recycle Time | Alkaline: Approx 3.0 sec
Ni-MH: Approx 1.5 sec | | Flashes | With Alkaline Batteries: 150
With NiMH Batteries: 200 | | Indicators | Ready / TTL lamp | | Power | 4x 1.5V AA Alkaline or 1.2V AA Ni-MH batteries
Has auto power off function | | Connectivity | 5-pin sync cord/N connector
Fiber-optic port | | Dimensions | 3.5 x 5.2 x 4.6" / 8.9 x 13.3 x 11.6 cm including YS mount base | | Weight | Without Batteries: Approx 1.3 lb / 0.6 kg including YS mount and bolt
With Batteries Underwater: Approx 1.4 oz / 40 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.5 x 6.0 x 5.8" |
