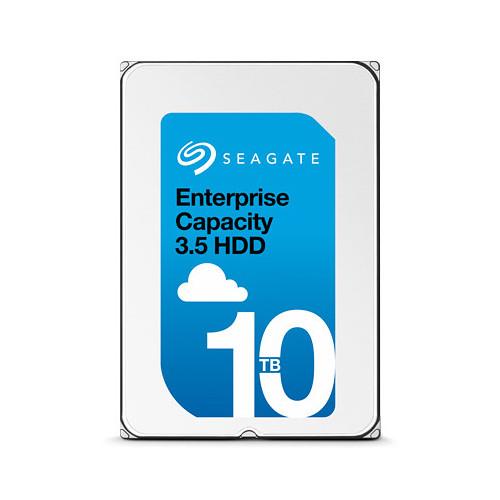

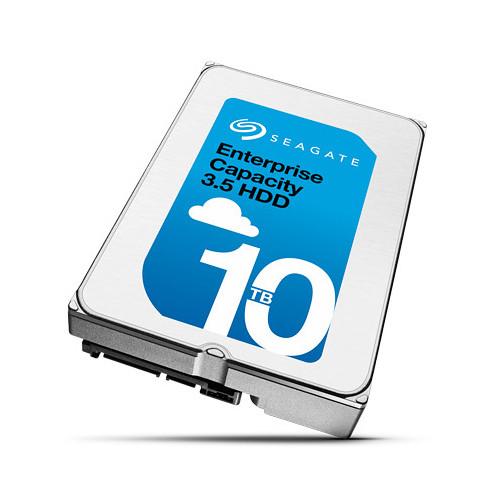

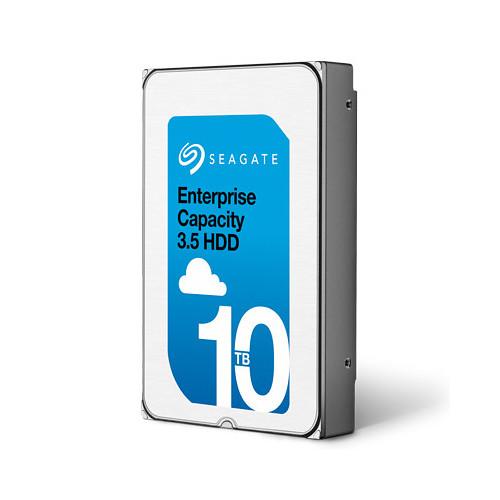

User Manual for Seagate 10TB 7200 rpm SATA 6 Gb s 3.5" Internal Enterprise Hard Drive Click to enlarge the picture
Contents of the user manual for the Seagate 10TB 7200 rpm SATA 6
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
 |
User manual for the Seagate 10TB 7200 rpm SATA 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Designed for use in cloud data centers, scale-out data centers, and other data centric environments, the 10TB 7200 rpm SATA 6 Gb/s 3.5" Internal Enterprise Hard Drive from Seagate has both the capacity and the performance to keep up when demand is at its highest. This helium-filled drive features reduced power consumption along with a hermetically sealed design to protect against helium leaks. The drive even comes equipped with internal environmental sensors to measure humidity, pressure, and temperature. Additionally, this Internal Enterprise HDD supports up to 2.5 million hours MTBF for added peace of mind. - General
-
- 10 TB per drive for 25% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Forged-aluminum base and a sealed helium-filled design with uniform density and no porosity
- Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure reliability, performance and quality
- Hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5-million hour MTBF
- SuperParity
- Low halogen
- PowerChoice idle power technology
- PowerChoice power/performance technology
- RAID rebuild
- Hot-Plug support
- Cache, multi-segmented (MB)
- Organic solderability preservative
- Applications
-
- Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore - D2D, virtual tape
- Centralized surveillance
UPC: 763649071199 In the Box Seagate 10TB 7200 rpm SATA 6 Gb/s 3.5" Internal Enterprise Hard Drive Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 10TB 7200 rpm SATA 6 Gb s 3.5" Internal Enterprise Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate ST10000NM0016 Specs | | | Drive Capacity | 10.00 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 254 MB/s | | Maximum Write Speed | 254 MB/s | | Latency | 4.2 ms | | | | Drive Type | HDD | | Form Factor | 3.5" | | | | Spindle Speed (RPM) | 7200 RPM | | | | Annualized Failure Rate (AFR) | 0.35 % | | Mean Time Between Failures (MTBF) | 2.5 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 4.5 W (Idle)
8.0 W (Active) | | Supported Voltage | 5 VDC, 12 VDC | | | | Operating Shock | 40 G / 2.0 ms | | Storage Shock | 250 G / 1.0 ms | | Operating Vibration | 2.27 G / 10 to 500 Hz | | Operating Temperature | 41 to 140°F / 5 to 60°C | | | | Dimensions (W x H x D) | 1.0 x 4.0 x 5.8" / 26.1 x 102.0 x 147.0 mm | | Weight | 1.4 lb / 0.7 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.8 x 6.1 x 2.9" |
