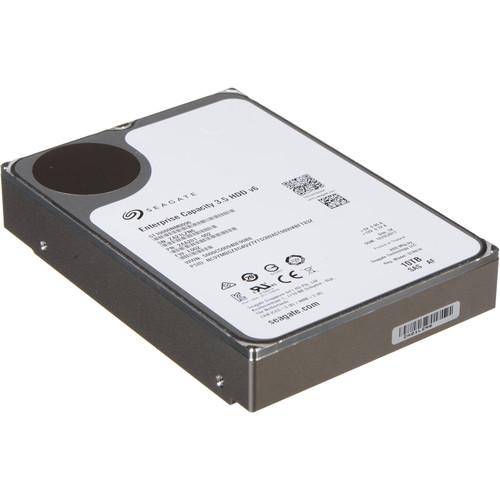

User Manual for Seagate 10TB Enterprise Capacity 7200 rpm SAS III 3.5" Internal HDD Click to enlarge the picture
Contents of the user manual for the Seagate 10TB Enterprise Capacity 7200 rpm
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
|
User manual for the Seagate 10TB Enterprise Capacity 7200 rpm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More dqybvszs The 10TB Enterprise Capacity 7200 rpm SAS III 3.5" Internal HDD from Seagate is a high performance, large capacity drive designed for data storage. It's suitable for engineering workstations, network servers, mainframes, supercomputers, and other demanding tasks that require 24/7 operation. This 7200 rpm drive has a 512e format and utilizes the SAS III 12 Gb/s interface for data transfer rates of up to 254 MB/s. Moreover, as a professional-grade drive, it has a MTBF rating of 2.5 million hours as well as built-in digital sensors to ensure optimal performance. Maximum Storage Capacity for Highest Rack Space Efficiency - Hyperscale SAS model tuned for large data transfers
- PowerBalance feature optimizes IOPS/Watt
- Advanced Write Caching feature enables up to 20% performance improvement in random write performance
- Forged, wrought-aluminum base and a helium sealed-drive design with no porosity and uniform density
- Built-in digital environmental sensors for measuring internal humidity, pressure, and temperature to ensure reliability, performance, and quality
Best-Fit Applications - Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- OLTP and HPC applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore - D2D, virtual tape
UPC: 763649090220 In the Box Seagate 10TB Enterprise Capacity 7200 rpm SAS III 3.5" Internal HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 10TB Enterprise Capacity 7200 rpm SAS III 3.5" Internal HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate 3.5 HDD (Helium) Specs | | | Humidity Sensor | Yes | | Protection Information (T10 DIF) | Yes | | Super Parity | Yes | | Low Halogen | Yes | | PowerChoice Technology | Yes | | PowerBalance Technology | Yes | | Cache, Multisegmented | 256 MB | | | | Mean Time Between Failures (MTBF) | 2.5 million hours | | Reliability Rating at Full 24x7 Operation (AFR) | 0.35% | | Non-Recoverable Read Errors per Bits Read | 1 sector per 1015 | | Power-On Hours per Year | 8,760 (24x7) | | Bytes per Sector | 512, 520, 528 | | | | Capacity | 10 TB | | Spin Speed | 7200 rpm | | Interface Access Speed | 12, 6, and 3 Gb/s | | Format | 512e | | Max Sustainable Transfer Rate | Up to 254 MB/s | | Random Read | 4K QD16 WCD (IOPS): 170 | | Random Write | 4K QD16 WCD (IOPS): 370 | | Average Latency | 4.16 ms | | Interface Ports | Dual | | Rotational Vibration @ 1500 Hz | 12.5 rad/s2 | | | | Idle Average | 5.5 W | | Average Operating Power | 9 W | | Power Supply Requirements | +12 and +5 V | | | | Operating Temperature | 41 to 140°F (5 to 60°C) | | Shock, Operating, 2 ms (Read/Write) | 70/40 Gs | | Shock, Non-Operating, 1 and 2 ms | 250 Gs | | | | Dimensions | 1.028 x 4.01 x 5.787" (26.111 x 101.854 x 146.99 mm) | | Weight | 1.433 lb (0.65 kg) | | | | Package Weight | 1.66 lb | | Box Dimensions (LxWxH) | 8.3 x 6.3 x 4.8" |
