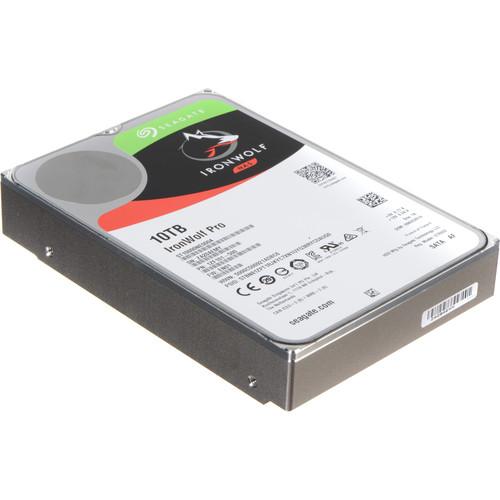

User Manual for Seagate 10TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD Click to enlarge the picture
Contents of the user manual for the Seagate 10TB IronWolf Pro 7200 rpm
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
|
User manual for the Seagate 10TB IronWolf Pro 7200 rpm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Designed for use in 1-24 bay NAS setups within creative professional, SOHO, and SME environments, the 10TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 214 MB/s. The IronWolf Pro also has an MTBF rating of 1.2 million hours, a workload rate of up to 300TB per year, an annualized failure rate (AFR) of 0.73%, and a non-recoverable read error rate of 1 per 1015. Seagate includes a limited 2-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical, accidental, or natural disaster, and overall protection is provided by a limited 5-year warranty. General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Seagate Rescue Data Recovery
- IronWolf Pro comes with extra peace of mind for most mechanical, accidental or natural disasters. With a 90% success rate of in-house recovery, Seagate has your back with an included 2-year Rescue Data Recovery plan
- Rotational Vibration (RV) Mitigation
- IronWolf Pro comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf Pro provides a workload rate of 300TB per year. Multiple users can upload and download data to the NAS server, knowing IronWolf Pro can handle the workload, whether you are a creative professional or a small business
- Cache Memory
- IronWolf Pro provides 256MB of cache memory, allowing your NAS to serve data faster
- 1.2 Million Hours MTBF | Limited 5-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - Commercial and enterprise network-attached storage (NAS)
- 1- to 24-bay network attached storage (NAS)
- Backup, archiving, and disaster recovery
In the Box Seagate 10TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD Limited 2-Year Data Recovery Service (with registration) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 10TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate ST10000NE0004 Specs | | | Drive Capacity | 10.00 TB | | Cache Memory | 256 MB | | Pre-Format | None | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 214 MB/s | | Latency | 4.2 ms | | | | Drive Type | HDD | | Form Factor | 3.5" | | | | Spindle Speed (RPM) | 7200 RPM | | | | Annualized Failure Rate (AFR) | 0.73 % | | Endurance (Total Bytes Written) | 300 TB | | Mean Time Between Failures (MTBF) | 1.2 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 7.8 W (Active)
5.0 W (Idle)
0.8 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Storage Vibration | 2.27 G / 10 to 500 Hz | | Operating Temperature | 41 to 140°F / 5 to 60°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.3 x 6.4 x 4.9" |
