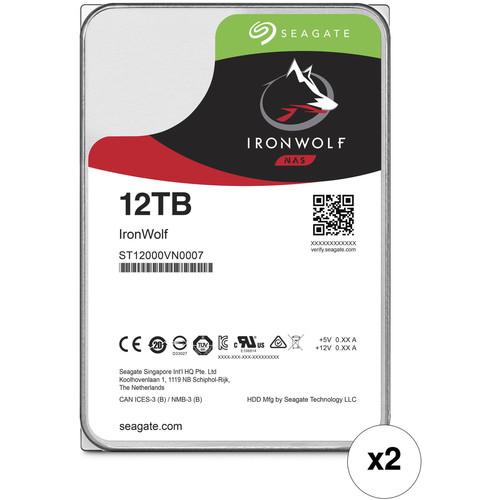

Product description Hard Drives by Application: Which Is Best for You? Read More fwczzatquryerf Increase the storage capacity of your work or home NAS unit with the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Kit from . This kit includes two 12TB IronWolf drives, which are built for 24/7 operation. - 2 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS systems within home, SOHO, and small business environments, the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or up to 180TB per year / 8760 hours per year. This 12TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. The IronWolf also has an MTBF rating of 1.0 million hours, a workload rate of up to 180TB per year, a non-recoverable read error rate of 1 per 1015, and 600,000 load/unload cycles. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray enables dual-plane balancing and RAID optimization in multi-bay environments, with the efficient power management.
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Sensors
- Integrated RV sensors help to maintain high performance in multi-drive NAS enclosures.
- Do More In Multi-User Environments
- IronWolf provides a workload rate of up to 180TB per year. Multiple users can upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professional or a small business.
- Designed for Always-On, 24x7 Performance
- Access data on your NAS either remotely or on site at almost any time.
- 1 Million Hours MTBF / Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.
Best-Fit Applications - 1- to 8-bay network attached storage (NAS)
- Multimedia server storage
UPC: 763649117347 In the Box - 2 x 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD fwczzatquryerf
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 12.00 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 210 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 3.2 dB (Active)
2.8 dB (Idle) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 7.8 W (Active)
5.0 W (Idle)
0.8 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 1.8 A at 12 VDC | | | | Operating Shock | 70 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 1.0 x 4.0 x 5.8" / 25.4 x 101.6 x 147.3 mm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 14.646 x 5.827 x 2.441" |
