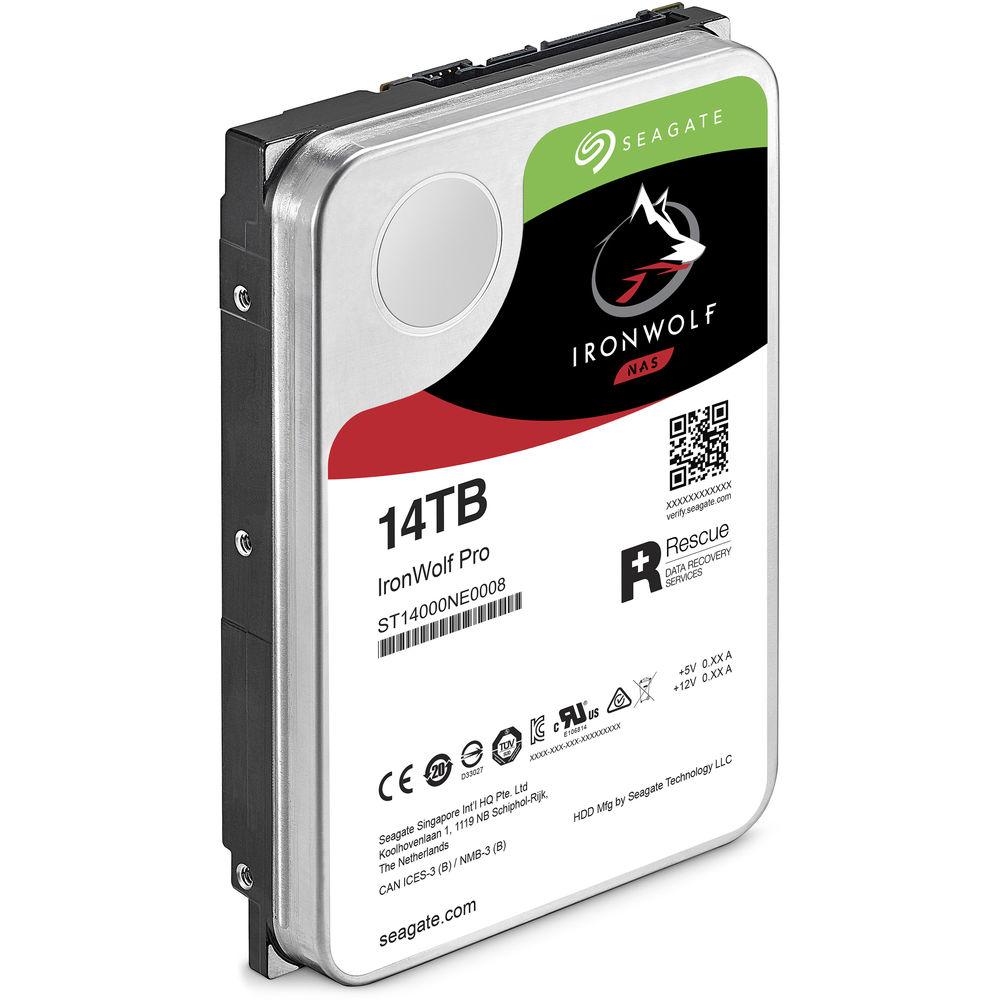

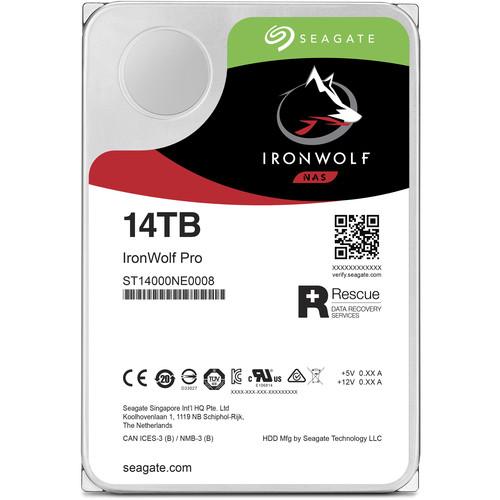

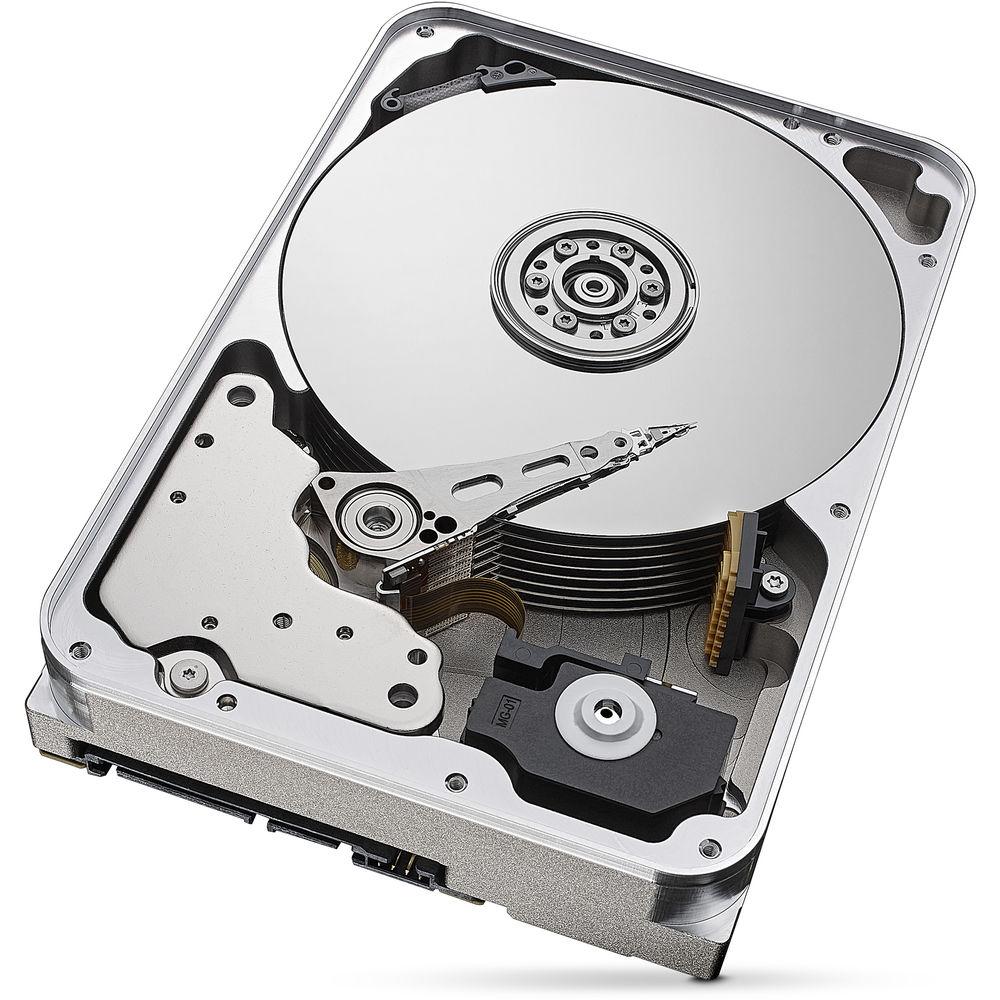

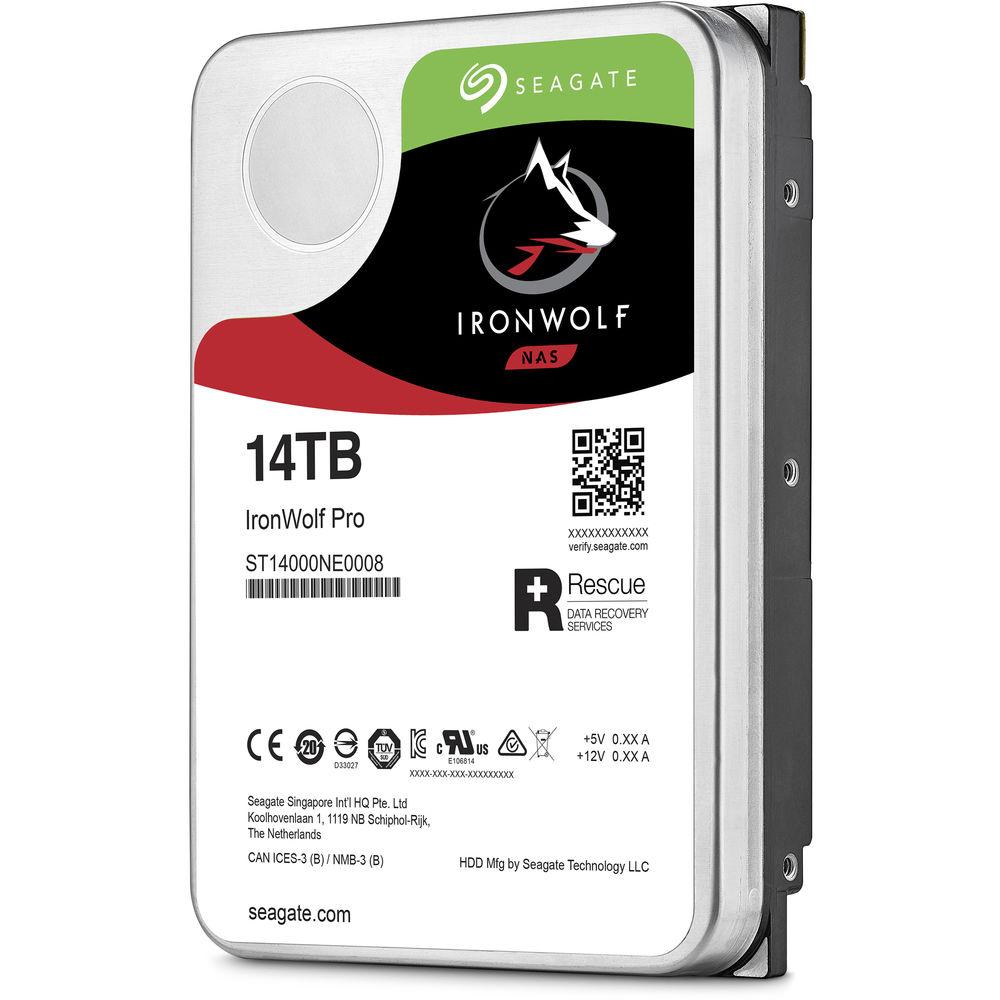

User Manual for Seagate 14TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD Click to enlarge the picture
Contents of the user manual for the Seagate 14TB IronWolf Pro 7200 rpm
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
 |
User manual for the Seagate 14TB IronWolf Pro 7200 rpm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Enjoy a Huge 14TB of Storage with the Seagate IronWolf Hard Drives Read More Designed for use in 1-16 bay NAS environments within commercial and enterprise settings, the 14TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24/7 operation, or 8760 hours per year. This 14TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with ample storage capacity with data transfer speeds of up to 250 MB/s. The IronWolf Pro also has an MTBF rating of 1.2 million hours, a workload rate of up to 300TB per year, and an annualized failure rate (AFR) of 0.73%. Seagate includes a limited 2-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 5-year warranty. General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic times on the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Seagate Rescue Data Recovery
- IronWolf Pro comes with extra peace of mind for most mechanical, accidental, or natural disasters. With a 90% success rate of in-house recovery, Seagate has your back with an included 2-year Rescue Data Recovery plan
- Rotational Vibration (RV) Mitigation
- IronWolf Pro comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf Pro provides a workload rate of 300TB per year. Multiple users can upload and download data to the NAS server, knowing IronWolf Pro can handle the workload, whether you are a creative professional or a small business
- Cache Memory
- IronWolf Pro provides 256MB of cache memory, allowing your NAS to serve data faster
- 1.2 Million Hours MTBF | Limited 5-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access the data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-16 bay business network attached storage (NAS)
- Backup, archiving, and disaster recovery
UPC: 763649130988 In the Box Seagate 14TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD Limited 2-Year Data Recovery Service (with registration) Limited 5-Year Warranty Hard Drives by Application: Which Is Best for You? John-Paul Palescandolo 02/20/2019 uuxdvrtfztxdzryqfstxvfafsevscf Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 14TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate IronWolf Pro Specs | | | Capacity | 14 TB | | Interface | SATA III 6 Gb/s | | | | Drive Bays Supported | Up to 16 | | Multi-User Technology | 300 TB per year | | IronWolf Health Management | Yes | | Rotational Vibration (RV) Sensors | Yes | | Hot-Plug Support | Yes | | Cache | 256 MB | | | | Mean Time Between Failures (MTBF) | 1.2 million hours | | Reliability Rating @ Full 24x7 Operation | 0.73% AFR | | Non-Recoverable Read Errors per Bits Read | 1 per 1015 | | Power-On Hours per Year | 8760 | | Sector Size (Bytes per Logical Sector) | 512E | | Rescue Services | Yes | | | | Spindle Speed | 7200 rpm | | Interface Access Speed | 6.0, 3.0, and 1.5 Gb/s | | Max Sustained Transfer Rate OD | 250 MB/s | | Average Latency | 4.16 ms | | Interface Ports | Single | | Rotational Vibration | 12.5 rad/s2 @ 10-1500 Hz | | | | Startup Current, Typical (12 V) | 2.0 A | | Idle Power, Average | 5.3 W | | Average Operating Power | 7.9 W | | Standby Mode, Typical | 0.6 W | | Sleep Mode, Typical | 0.6 W | | Power Supply Requirements | +12 and +5 V | | | | Temperature | Operating (Ambient Min): 41°F / 5°C
Operating (Drive Case Max): 140°F / 60°C
Non-Operating (Ambient Min): -40°F / -40°C
Non-Operating (Ambient Max): 158°F / 70°C | | Vibration, Non-Operating: 10 to 500 Hz | 2.27 Grms | | Shock, Operating, 2 ms (Read/Write) | 70/40 Gs | | Shock, Non-Operating, 1 and 2 ms | 250 Gs | | | | Dimensions | 1.028 x 4.101 x 5.787" / 26.11 x 104.2 x 147 mm | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 16.2 x 6.9 x 5.65" |
