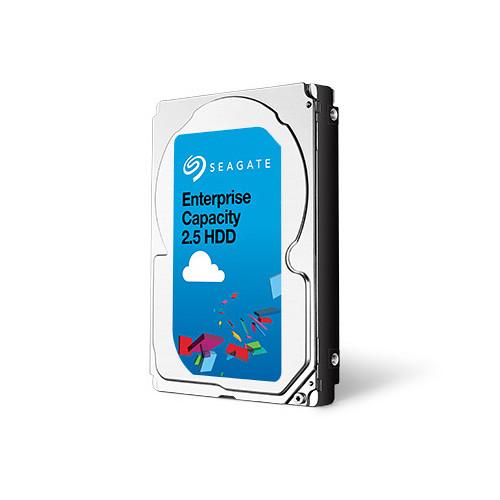

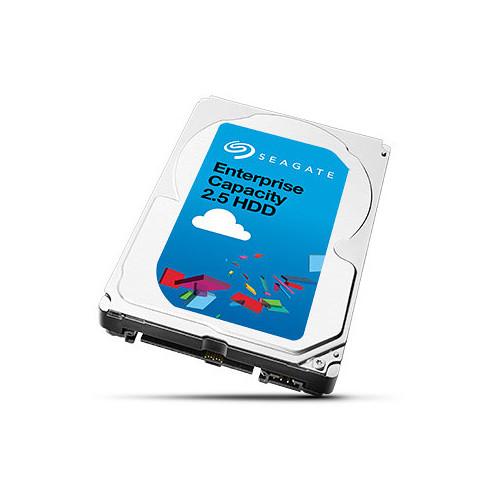

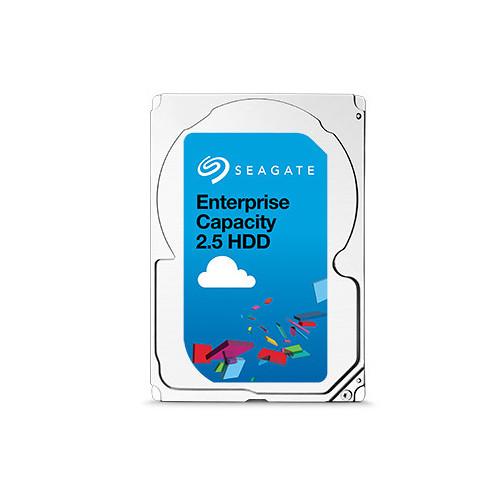

User Manual for Seagate 1TB Enterprise Capacity Series 2.5" HDD Click to enlarge the picture
Contents of the user manual for the Seagate 1TB Enterprise Capacity Series 2.5"
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
 |
User manual for the Seagate 1TB Enterprise Capacity Series 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description The 1TB Enterprise Capacity Series 2.5" HDD from Seagate is designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency. Better rotational vibration tolerance and head micro-actuation maximizes system availability and performance. The HDD is suitable for storage area networks (SAN), network attached storage (NAS), maximum-capacity entry-level servers and blade servers, rich media content storage, enterprise backup and restore, and cloud computing. - Up to 1TB capacity in 15mm z-height, 2.5" form factor for space-constrained data centers
- SATA 6 Gb/s for economical nearline performance
- PowerChoice options for additional power savings during idle periods
UPC: 763649044957 In the Box Seagate 1TB Enterprise Capacity Series 2.5" HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 1TB Enterprise Capacity Series 2.5" HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate ST1000NX0313 Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | 128 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 136 MB/s | | Maximum Write Speed | 136 MB/s | | Latency | 4.2 ms | | | | Drive Type | HDD | | Form Factor | 2.5" | | Noise Level | 32.0 dB (Active)
28.0 dB (Idle) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Annualized Failure Rate (AFR) | 0.63 % | | Mean Time Between Failures (MTBF) | 1.4 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 1.14 W (Standby)
3.51 W (Idle)
4.74 W (Active) | | Supported Voltage | 5 VDC, 12 VDC | | | | Operating Shock | 25 G / 2.0 ms | | Storage Shock | 400 G / 2.0 ms | | Operating Vibration | 0.5 G / 5 to 500 Hz | | Storage Vibration | 3 G / 5 to 500 Hz | | Operating Temperature | 41 to 131°F / 5 to 55°C | | | | Dimensions (W x H x D) | 0.6 x 2.8 x 3.9" / 1.5 x 7.0 x 10.0 cm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 3.0" |
