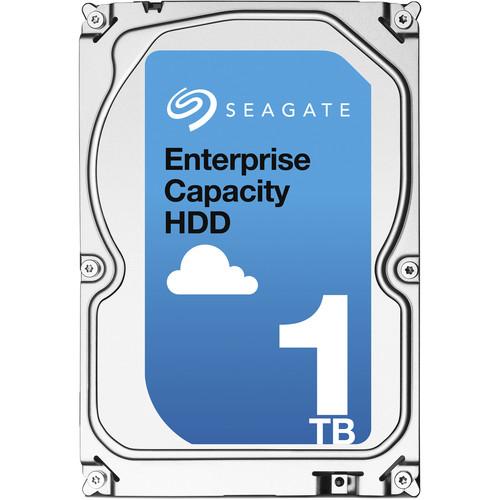

User Manual for Seagate 1TB Exos 7E8 512n SATA 3.5" Internal HDD Click to enlarge the picture
Contents of the user manual for the Seagate 1TB Exos 7E8 512n SATA
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
|
User manual for the Seagate 1TB Exos 7E8 512n SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The 1TB Exos 7E8 512n SATA 3.5" Internal HDD from Seagate is designed for professional applications such centralized surveillance, OLTP, and HPC applications. With durability rated for 24x7 operation, this drive is also ideal for data centers that require constant uptime. Specs-wise, it has 1TB of storage capacity, operates at 7200 rpm, and utilizes a SATA III 6 Gb/s interface. Seagate has also equipped this drive with Advanced Write Cache for improved response time and faster data transfers. - Realiability
- Exos 7E8 drives have a 2 million hour MTBF rating and a 0.44% reliability rating at full 24x7 operation (AFR). They also support workloads of up to 550TB a year and have a 5-year warranty, ensuring they can keep up with the high demands of data centers and professional applications.
- Best-Fit Applications
-
- Hyperscale applications / cloud data centers
- Massive scale-out data centers
- OLTP and HPC applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore - D@D, virtual tape
- Centralized surveillance
In the Box Seagate 1TB Exos 7E8 512n SATA 3.5" Internal HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 1TB Exos 7E8 512n SATA 3.5" Internal HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate Enterprise Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | 128 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Write Speed | 215 MB/s | | Latency | 4.2 ms | | | | Drive Type | HDD | | Form Factor | 3.5" | | | | Spindle Speed (RPM) | 7200 RPM | | Disk Sector Format | 512n | | | | Annualized Failure Rate (AFR) | 0.44 % | | Encryption | None | | Endurance (Total Bytes Written) | 550 TB | | Mean Time Between Failures (MTBF) | 2.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 4.25 W (Idle)
5.91 W (Active) | | Supported Voltage | 5 VDC, 12 VDC | | | | Operating Shock | 70 G / 40.00 ms | | Storage Shock | 150 G / 300.00 ms | | Operating Temperature | 41 to 140°F / 5 to 60°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.9 x 26.1 x 147.0 mm | | Weight | 1.3 lb / 610 g |
