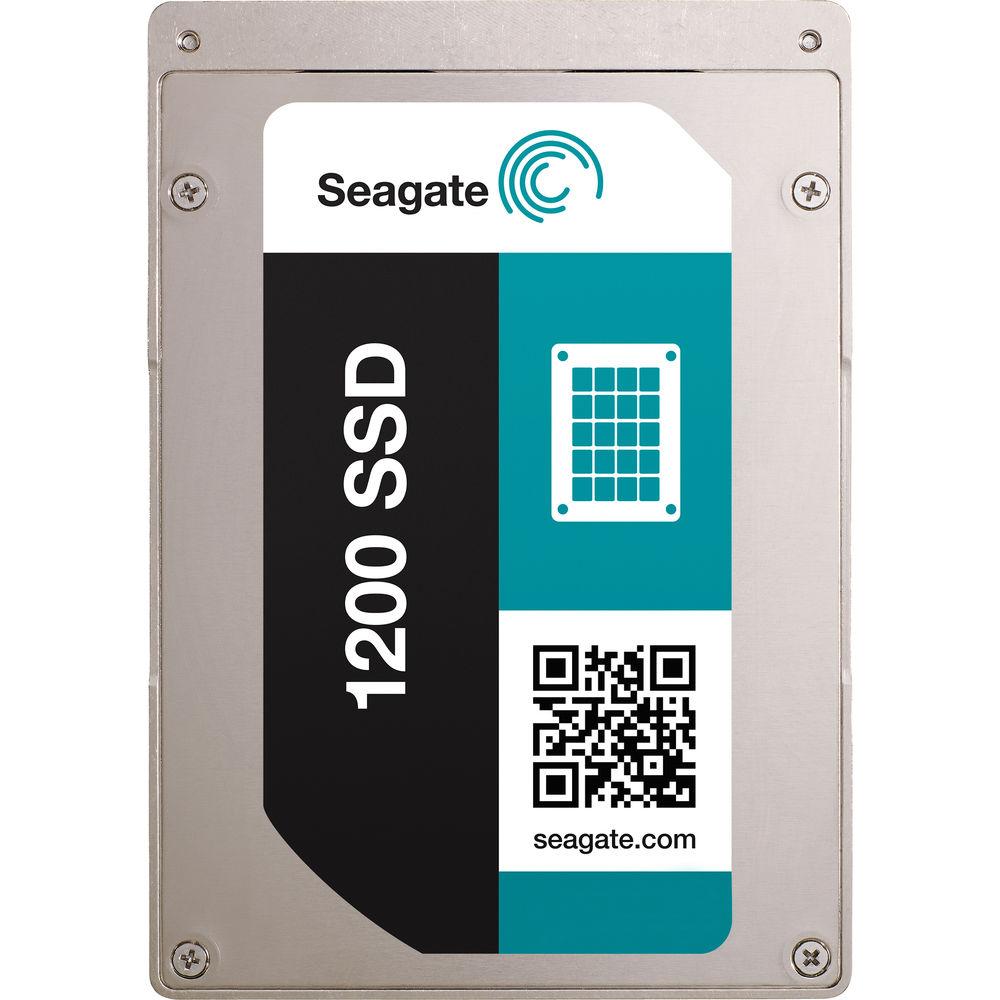

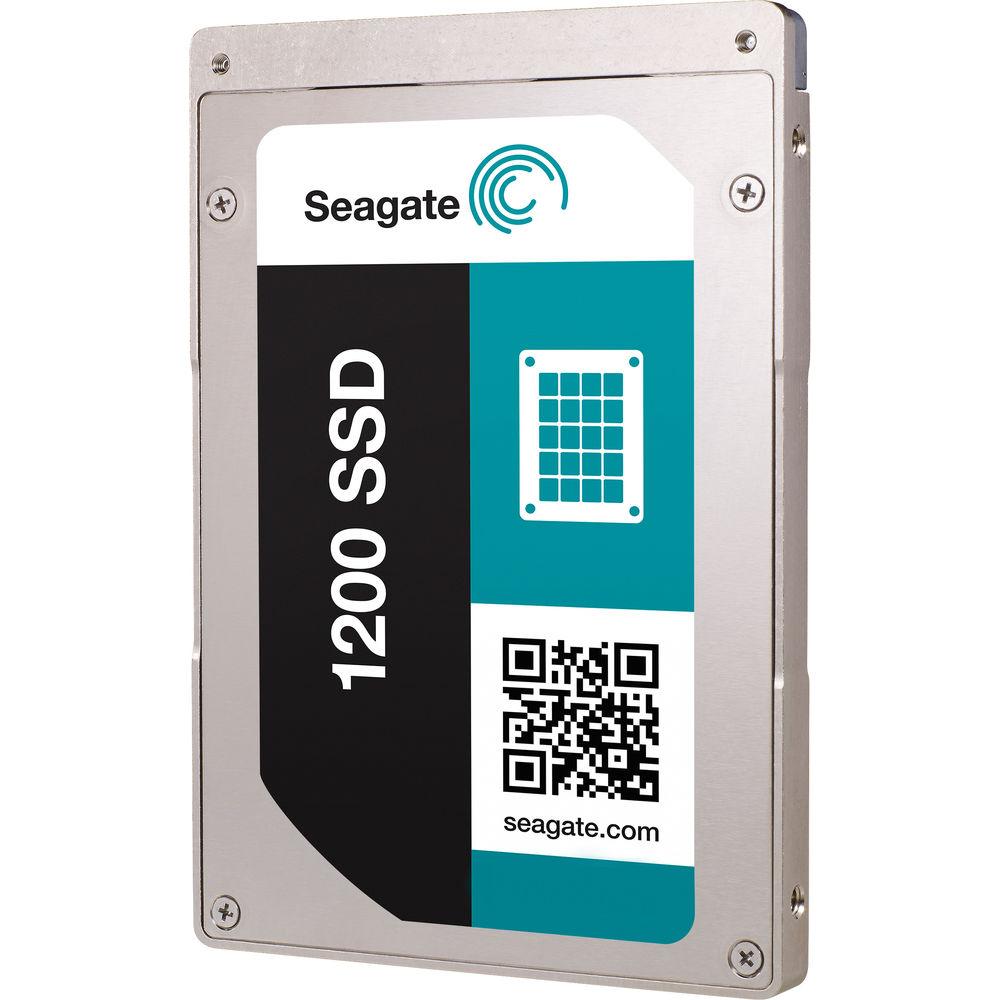

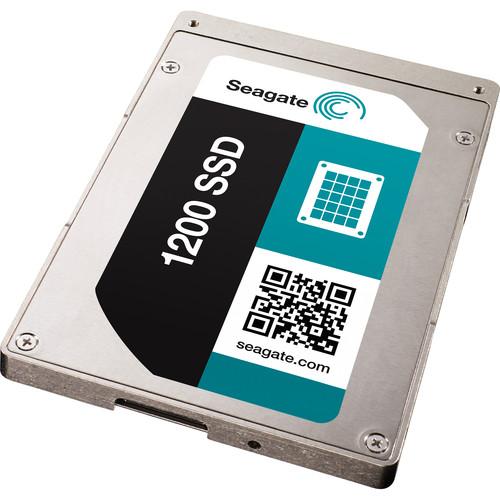

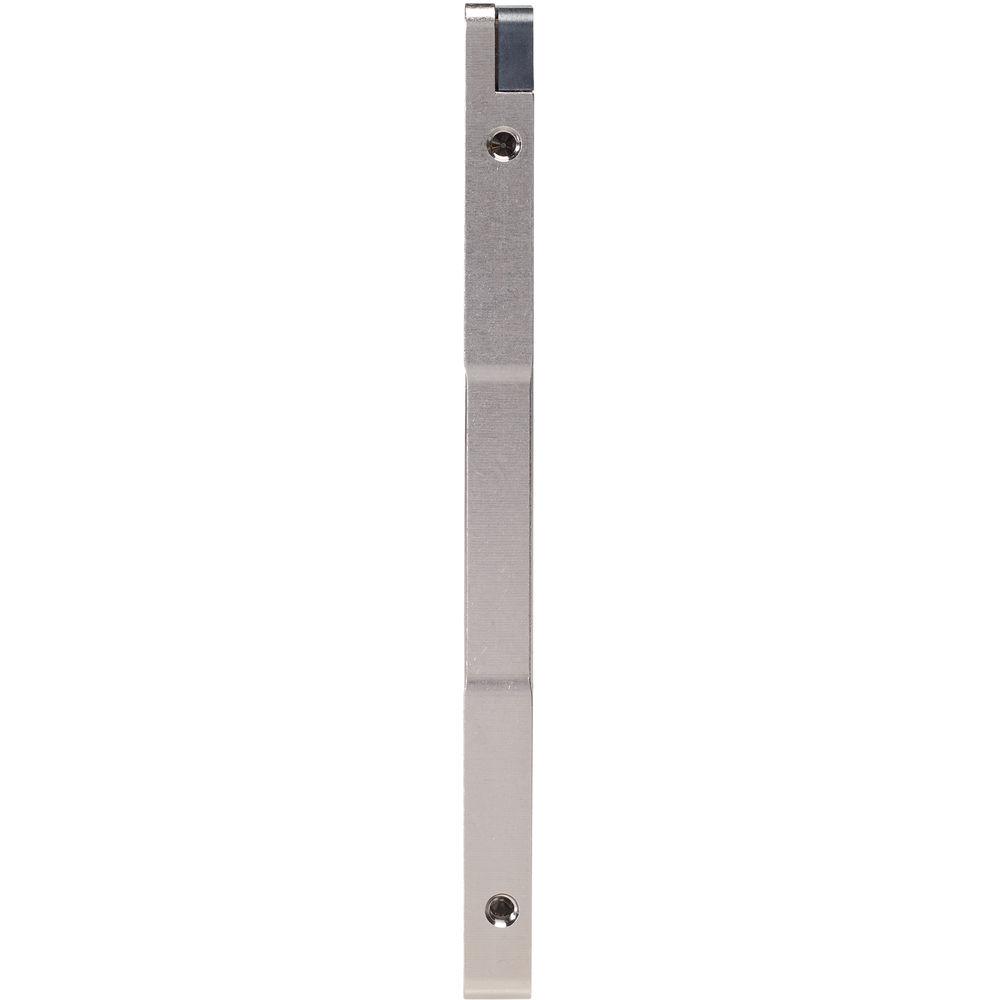

Product description The 400GB 1200 2.5" SAS SSD (OEM) from Seagate features 400GB of storage and offers read speeds of up to 750MB/s as well as write speeds of 500MB/s. This allows it to be used for enterprise applications such as high-performance computing, online transaction processing, heavy data analytics, and more. To keep up the with the performance this drive offers, it is equipped with a custom designed controller with a SAS interface that transfers data at a rate of 12 Gb/s to your system. With reads up to 110,000 IOPS, you will notice the difference accessing data using this drive. Furthermore, this drive ensures data availability with redundant, fail-over I/O communication paths and protects data integrity with multiple layers of I/O error detection and correction. UPC: 763649046821 In the Box Seagate 400GB 1200 2.5" SAS Internal SSD (OEM) Limited 5-Year Warranty Data Sheet PDF 890.8kbttuxxvadwraaxasctbcttxv Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 400GB 1200 2.5" SAS Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate ST400FM0053 Specs | | | Interface | SAS III (12 Gb/s) | | Maximum Read Speed | 1200 MB/s | | Maximum Write Speed | 1200 MB/s | | Random Read Speed | 110,000 IOPS (4 KB Files) | | Random Write Speed | 40,000 IOPS (4 KB Files) | | Sequential Read Speed | 750 MB/s (128 KB Files) | | Sequential Write Speed | 500 MB/s (128 KB Files) | | | | Drive Type | SSD | | Form Factor | 2.5" (7 mm) | | | | Flash Memory Type | Multi-Level Cell (MLC) | | | | Annualized Failure Rate (AFR) | 0.44 % | | Endurance (Total Bytes Written) | 7300 TB | | Non-Recoverable Read Errors per Bits Read | 1 in 1016 | | | | Power Draw | 3.71 W (Active)
2.72 W (Idle)
2.5 W (Standby) | | Current | 0.7 A at 5 VDC
0.4 A at 12 VDC | | | | Operating Shock | 1000 G / 0.5 ms | | Operating Vibration | 11.08 G / 20 to 2000 Hz | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -40 to 167°F / -40 to 75°C | | Operating Humidity | 5 to 95% | | | | Dimensions (W x H x D) | 0.3 x 2.8 x 4.0" / 7.0 x 70.1 x 100.5 mm | | Weight | 3.5 oz / 100 g |
