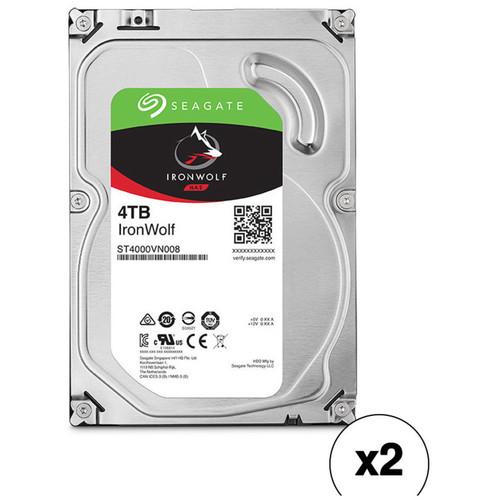

User Manual for Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD Kit Click to enlarge the picture
Contents of the user manual for the Seagate 4TB IronWolf 5900 rpm SATA
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
|
User manual for the Seagate 4TB IronWolf 5900 rpm SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More This Kit combines the Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD with a second 4TB IronWolf NAS hard drive. - 2 x Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 4TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 5900 rpm, a 3.5" form factor, and a 64MB cache, providing users with an ample storage capacity and data transfer speeds of up to 180 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1014 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.
General Features - Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
- Reduced Lag Times
- Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
- IronWolf Health Management
- IronWolf Health Management focuses on prevention, intervention, and recovery
- Rotational Vibration (RV) Mitigation
- IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
- Multi-User Environments
- IronWolf provides a workload rate of 180TB per year
- Cache Memory
- IronWolf provides 64MB of cache memory, allowing your NAS to serve data faster
- 1.0 Million Hours MTBF | Limited 3-Year Warranty
- This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
- Designed for 24x7 Performance
- Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications - 1-8 bay business network attached storage (NAS)
- Desktop RAIDs and servers
- Multimedia server storage
UPC: 763649117538 In the Box - 2 x 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD ztzevbba
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Seagate 4TB IronWolf 5900 rpm SATA III 3.5" Internal NAS HDD
| | | Drive Capacity | 4.0 TB | | Cache Memory | 64 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 180 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 2.3 dB (Idle)
2.5 dB (Active) | | | | Spindle Speed (RPM) | 5900 RPM | | | | Encryption | None | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | 1 in 1015 | | | | Power Draw | 4.8 W (Active)
3.95 W (Idle)
0.5 W (Standby) | | Supported Voltage | 5 VDC, 12 VDC | | Current | 2.0 A at 12 VDC | | | | Operating Shock | 80 G / 2.0 ms | | Storage Shock | 300 G / 2.0 ms | | Operating Temperature | 41 to 158°F / 5 to 70°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm | | Weight | 1.3 lb / 610.1 g | | | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.5" |
