User Manual for Seagate 6TB SkyHawk SATA III 3.5" Internal Surveillance Hard Drive Click to enlarge the picture
Contents of the user manual for the Seagate 6TB SkyHawk SATA III 3.5"
- Product category: Internal Drives Seagate
- Brand: Seagate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Seagate Internal Drives
 |
User manual for the Seagate 6TB SkyHawk SATA III 3.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Seagate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Seagate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Seagate product will considerably shorten its lifespan!
|

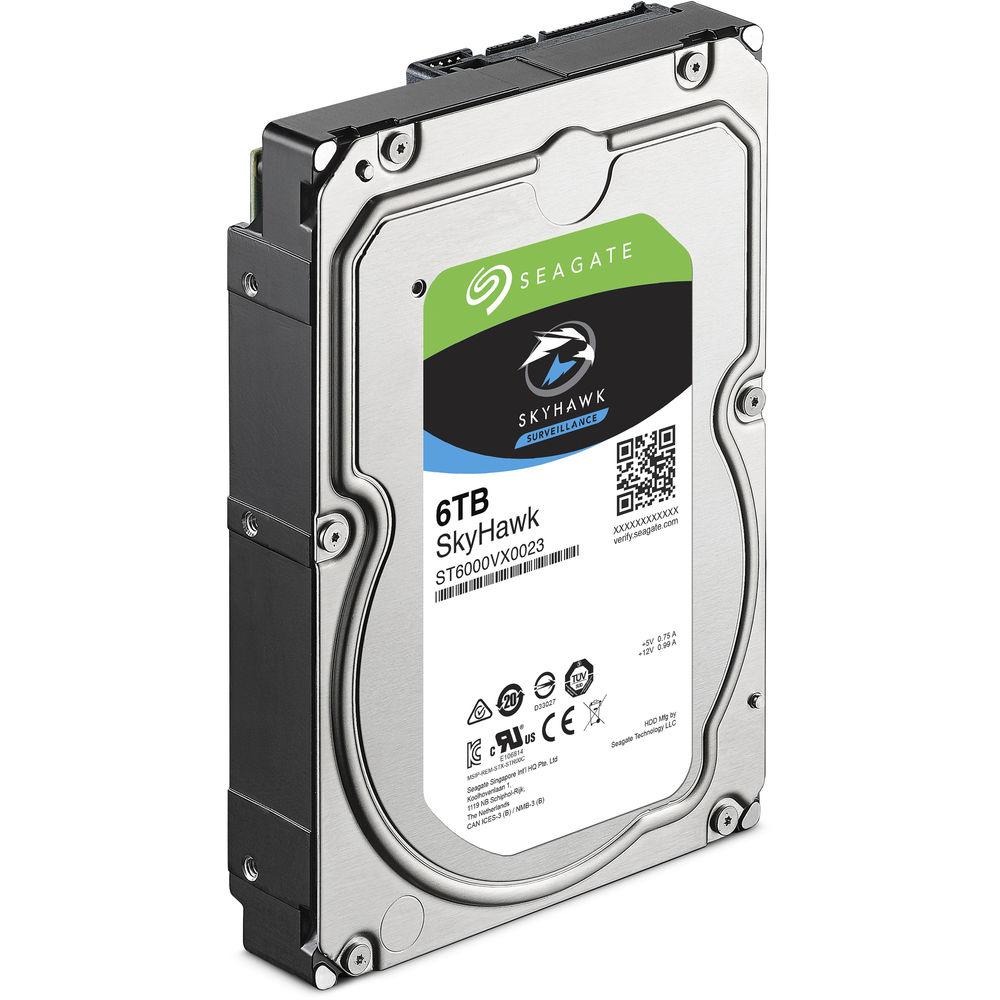

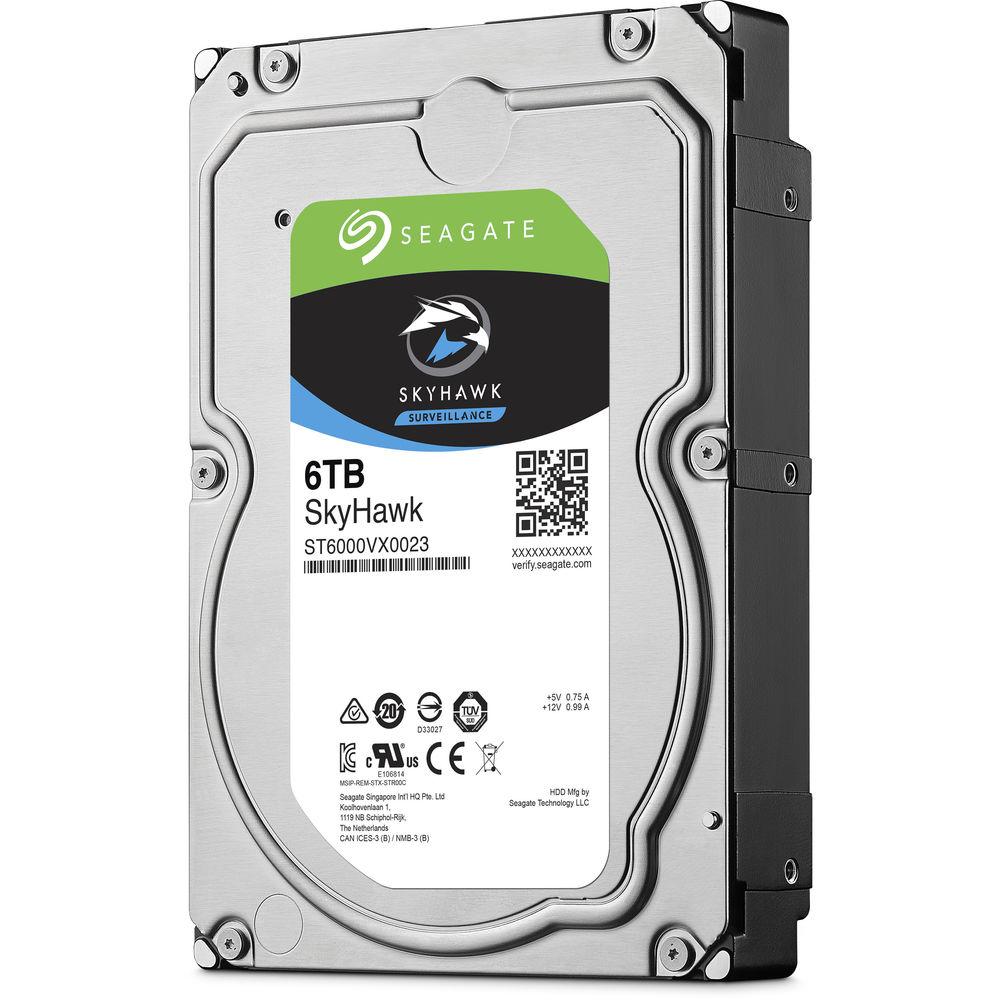

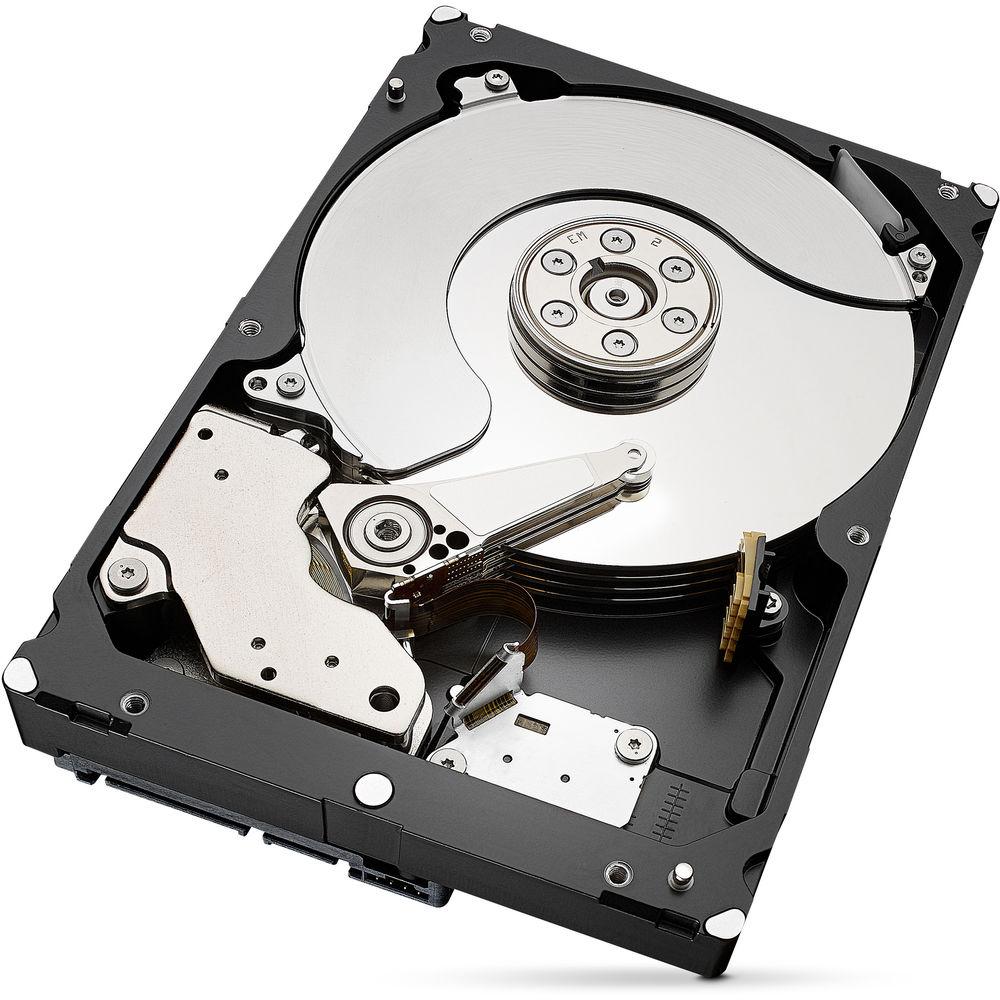

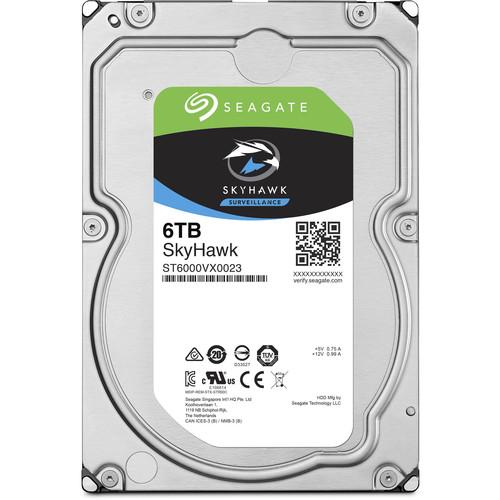

Product description Hard Drives by Application: Which Is Best for You? Read More The 6TB SkyHawk SATA III 3.5" Internal Surveillance Hard Drive from Seagate is designed to withstand the stresses placed on it in a 24/7 surveillance system with 8+ drive bays. With support for up to 64 high-definition surveillance cameras, this 6TB hard drive can hold a large amount of data and gives you the ability to upgrade and expand your security system.
A SATA III 6 Gb/s interface, sustained data transfer speeds of up to 195 MB/s, and a 256MB cache all help to ensure uninterrupted data transfers. Furthermore, the drive's 300,000 load/unload cycles, 1 million hours MTBF and workload rating of 180TB per year, and <1 in 1015 non-recoverable read errors also help to ensure a long operational life. - See More. Store More.
- Optimized for DVRs and NVRs, SkyHawk surveillance drives are tuned for 24x7 workloads. Equipped with enhanced ImagePerfect firmware, SkyHawk helps to minimize dropped frames and downtime with a workload rating of 180TB per year. It can operate with 24/7 surveillance-optimized workloads (8760 hours per year), is ready to record up to 90% of the time, and play back 10% of the time while supporting up to 64 HD cameras.
- Reliability & Durability
- SkyHawk's workload rating, low power consumption, and NVR-ready design can help improve long-term drive reliability. SkyHawk can also perform in operating temperatures from 32 to 158°F, while tarnish-resistant components offer further protection out in the field against environmental elements.
- Multi-Drive Ready
- SkyHawk is built to scale with your needs and performs well in multi-drive systems. Multi-drive surveillance systems can rely on the SkyHawk's RAID-optimized hardware, keeping drives and systems in the field longer by improving vibration tolerance.
- 1 Million Hours MTBF
- A Mean Time Between Failures (MTBF) rating of 1 million hours represents an improved total cost of ownership (TCO) with reduced maintenance costs.
- Lower Power Consumption
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions.
UPC: 763649117439 In the Box Seagate 6TB SkyHawk SATA III 3.5" Internal Surveillance Hard Drive Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Seagate 6TB SkyHawk SATA III 3.5" Internal Surveillance Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeagate ST6000VXA023 Specs | | | Capacity | 6 TB | | Interface | SATA III 6 Gb/s | | | | Drive Bays Supported | 8+ | | Cameras Supported | Up to 64 | | Max Sustained Transfer Rate OD | 195 MB/s | | Cache | 256 MB | | | | Tarnish Resistant | Yes | | Load/Unload Cycles | 300,000 | | Non-Recoverable Read Errors per Bits Read | 1 per 1015 (max) | | Power-On Hours per Year | 8760 | | Workload Rate Limit (WRL) | 180 TB per year | | Mean Time Between Failures (MTBF) | 1 million hours | | | | Startup Current, Typical (12 V) | 2.0 A | | Average Operating Power | 9 W | | Idle Average | 7.2 W | | Standby Mode/Sleep Mode | 0.6/0.6 W | | Voltage Tolerance | 5 V: ±5%
12 V: ±10% | | | | Operating Temperature | Ambient: 41°F / 5°C (min)
Drive Case: 158°F / 70°C (max) | | Non-Operating Temperature | Ambient: -40°F / -40°C (min) | | | | Dimensions | 1.028 x 4.01 x 5.787" / 26.11 x 101.9 x 146.7 mm | | Weight | 1.55 lb / 0.705 kg | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.5" |
