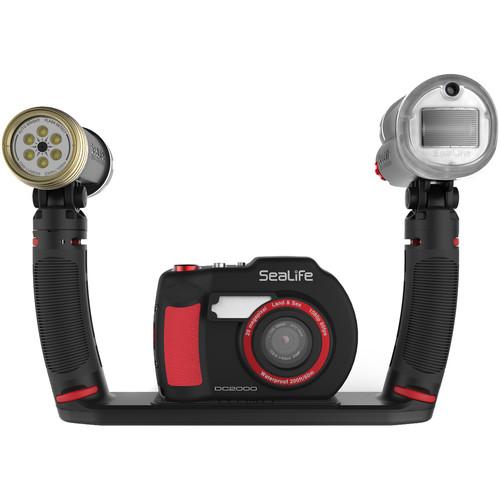

SeaLife DC2000 Camera Pro Duo Set

User Manual for SeaLife DC2000 Camera Pro Duo Set

• Product category: Still Cameras & Housings SeaLife
• Brand: SeaLife
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SeaLife Still Cameras & Housings

Product description

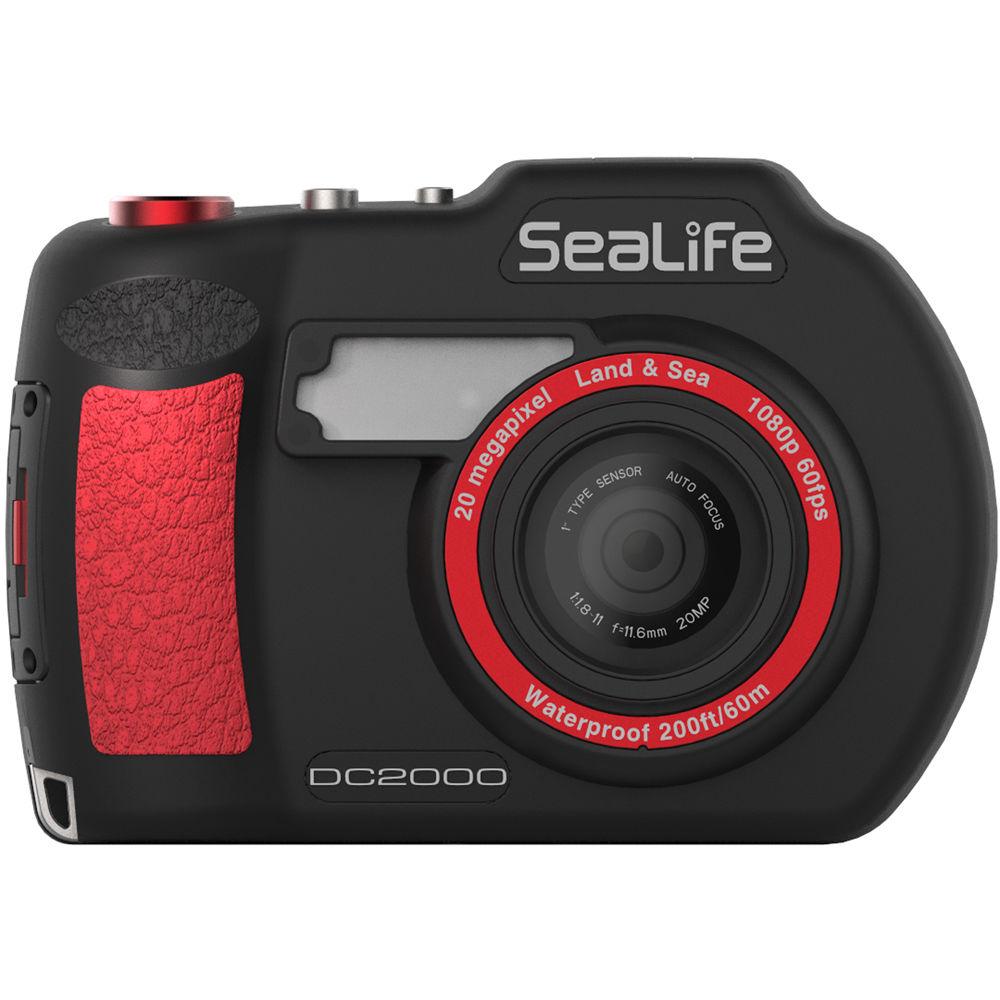

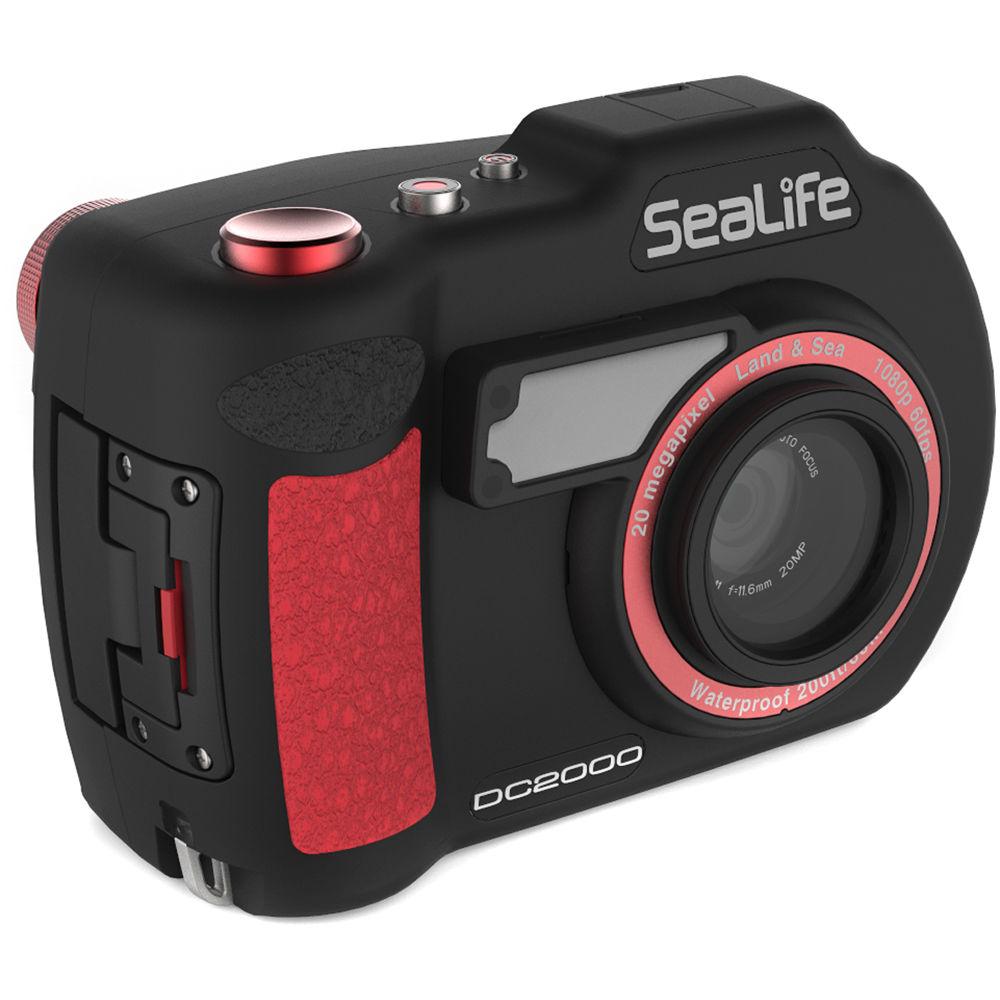

• DC2000 Digital Underwater Camera Capture the beauty of the world beneath the surface at depths as great as 200' with the DC2000 Digital Underwater Camera from SeaLife. This compact, waterproof point-and-shoot is protected by a rubber-armored housing that allows it to withstand rough handling and tough environments. A 20MP, 1" Sony BSI CMOS image sensor produces sharp, detailed photos and Full HD 1080p video at 60 fps.

  The DC2000's fast f/1.8 lens helps you achieve effective low-light shots with shallow depth of field. In addition to JPEG images, the camera can capture RAW photos to give you much more image data to work with in the editing process. As an extra bonus, the picture-in-video feature allows you to capture still images while recording Full HD movies. Available exposure modes on the camera include Programmed Auto (P), Shutter Priority (S), Aperture Priority (A), and Manual (M), as well as 4 underwater scene modes with built-in color correction and 25 land scene modes. Additionally, the DC2000 is capable of continuous burst shooting at 8 fps to help you catch fast action, as well as time-lapse shooting to show change over a given period of time. Enjoy the convenience of Wi-Fi and Bluetooth connectivity for wireless image transfer.
  Waterproofing and Durability
  • • Features a depth rating of 200' when inside housing and 60' when housing is removed
    • Rubber-armored housing designed to withstand rough handling and tough environments
    • When not inside housing, camera is still shockproof against drops up to 5.0'
    • Housing made of corrosion-resistant, rubber-molded polycarbonate with 304/316 type stainless steel hardware
  20MP Photos and Full HD Video
  • • 20MP, 1" Sony BSI CMOS image sensor for sharp, detailed images
    • In addition to JPEG images, camera can capture RAW photos in .dng format to give you uncompressed files with much more image data to work with in editing process
    • These Adobe Digital Negative RAW files can be edited using Adobe Photoshop or Lightroom
    • In addition to maximum of 20MP, following resolutions can be selected: 18, 17, 13, 10, 7.5, 6.5, 5, 4.2, 3.7, and 0.3MP
    • Continuous 10-fps shooting at full resolution to help you catch fast action
    • Full HD 1080p video recording at 60 fps--with stereo sound, thanks to dual microphones
    • Picture-in-video feature allows you to capture still images while recording Full HD movies
    • Camera can also capture 5 or 10 images in 1, 2, or 3-sec time intervals and save them as a .gif file
  Wide, Fast f/1.8 Lens
  • • Wide-angle lens with 11.6mm (35mm equivalent: 31mm) focal length
    • Enables camera to capture low-light shots with shallow depth of field
    • Mechanical 7-leaf shutter for full manual exposure control from f/1.8 to f/11 in 0.3-stop increments
    • Fast auto focus with 0.1-sec shutter response time
    • AF range from 4" to infinity
    • Optical Image Stabilization reduces the effects of camera shake for clear, blur-free images
    • Fully multi-coated, 7-element aspherical lens design
    • Angle of view: 61° diagonal/51° horizontal on land, 46° diagonal/38° horizontal underwater
    • Optional multi-coated SeaLife Fisheye Wide Angle Lens (SL975) can be added on above the water's surface or below it, in order to increase your angle of view to 83° diagonal/63° horizontal--so you can get closer to subjects and fit more in frame
    • Multi-coated Wide Angle Lens (SL970) is another add-on option, increasing your coverage angle substantially but to lesser degree than Fisheye
    • Housing has glass lens port with anti-reflective coating
  Display

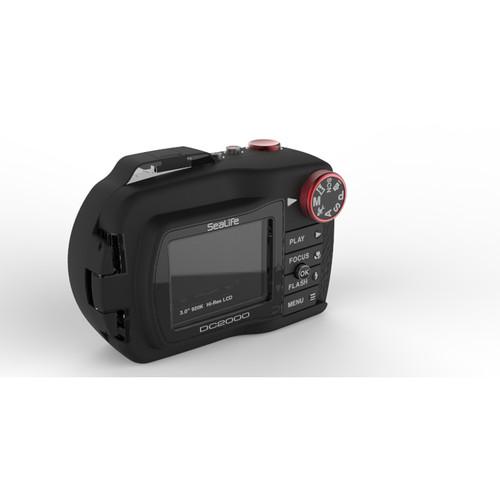

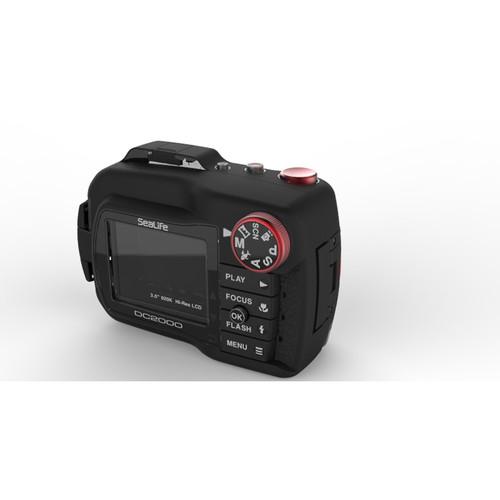

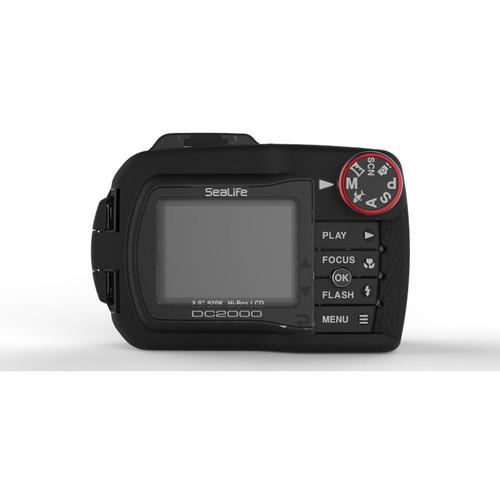

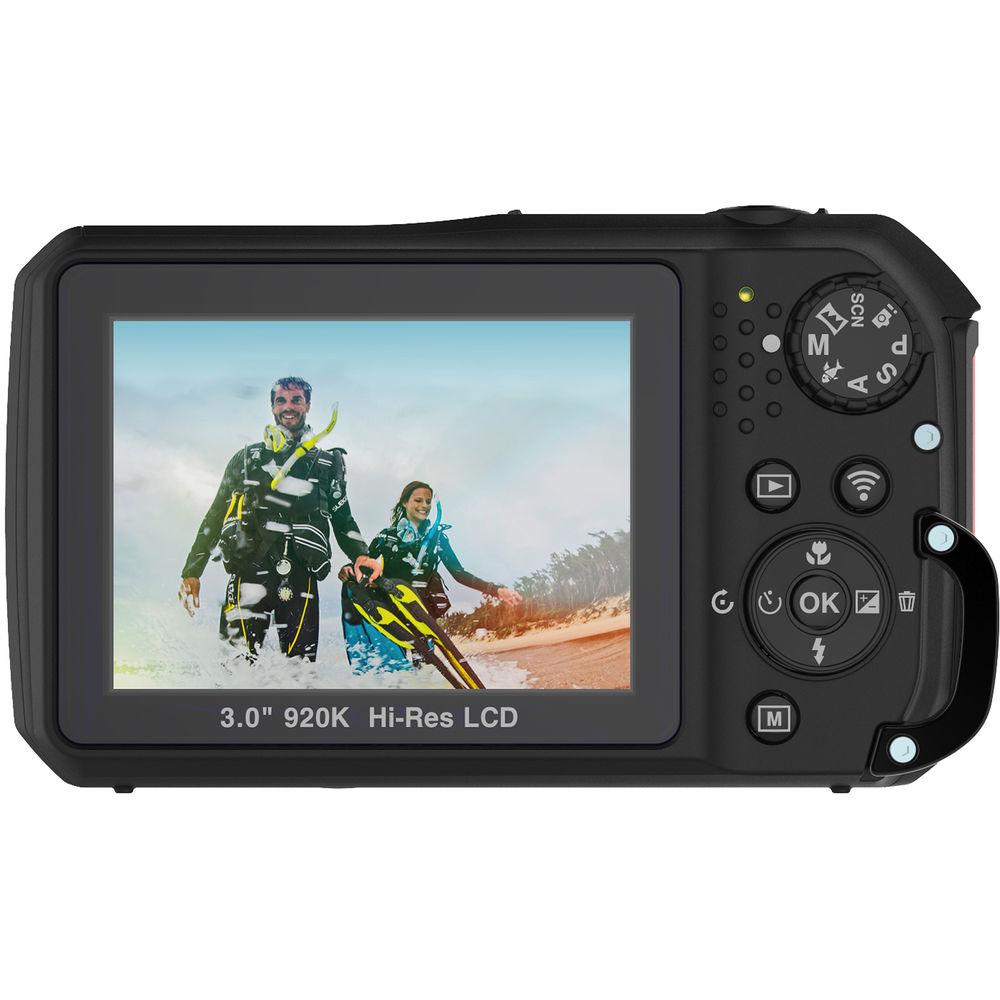

  • • Equipped with a 3", 920k-dot color LCD monitor for image preview and review/playback
    • Screen visible in direct sunlight
  Controls and Handling
  • • Large, piano key-like controls for easy operation with or without diving gloves
    • Push-button and dial controls
    • Short-cut key for quick, easy access to favorite menu setting
  Shooting Modes
  • • Programmed Auto (P), Shutter Priority (S), Aperture Priority (A), and Manual (M)
    • 4 underwater scene modes with built-in color correction: dive, snorkel, external light, and external flash modes
    • Dive mode: Automatic exposure control and color correction in deeper water
    • Snorkel mode: Automatic exposure control and color correction while snorkeling or diving in shallow water
    • External Light mode: White balance and exposure are calibrated to suit a Sea Dragon Photo-Video light
    • Built-in color-correction filters for shallow, deep, and green water
    • Manual White Balance control lets you customize underwater color correction
    • 25 land scene modes for various environments and situations
    • Intelligent Auto mode selects the optimal land scene mode for nearly effortless shooting in various situations
  Time-Lapse Shooting
  • • Captures 2MP, 16:9 images at 5-sec, 10-sec, 30-sec, 1-min, 5-min, 10-min, and 30-min time intervals
    • Combines shots into MPEG-4 video clip for 10-fps playback
  Connectivity
  • • Built-in 802.11b/g/n Wi-Fi and Bluetooth 4.1 connectivity for wireless previewing, downloading, and sharing on smart devices using free SeaLife Link123 Plus app
    • App includes Geotagging and "Auto Send" functionality
  Mounting and Lighting
  • • Standard 1/4"-20 tripod thread for connection to camera tray or tripod/monopod
    • Tray offers attachment points for optional grips and arms that support optional flash units and constant light sources, such as Sea Dragon Flash (SL963) and Sea Dragon 2300 Auto Photo-Video Dive Light
    • Flash link optical cable is supplied, providing a means of connecting flash to camera
  Memory
  • • Accepts microSD and SD/SDHC/SDXC memory cards, including fast UHS-1 cards
  Power
  • • Runs on removable, rechargeable lithium-ion battery
    • 3.7V of output power and a 1130mAh capacity
    • Includes wall charger with North American plug type and international adapter plugs for use in Europe, UK, and Australia
  Supported Languages
  • • English
    • French
    • Spanish
    • German
    • Italian
    • Russian
    • Portuguese
    • Brazilian Portuguese
    • Dutch
    • Turkish
    • Polish
    • Hungarian
    • Romanian
    • Czech
    • Bulgarian
    • Croatian
    • Slovak
    • Slovenian
    • Greek
    • Swedish
    • Norwegian
    • Finnish
    • Danish
    • Arabic
    • Indonesian
    • Malay
    • Thai
    • Japanese
    • Korean
    • S. Chinese
    • T. Chinese
  UPC: 077068417408
• Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray The Sea Dragon Digital Underwater Flash Head from SeaLife is a compact light source that restores colors absorbed underwater for richer, more accurate images. It has a depth rating of 200'. Auto mode automatically adjusts flash brightness for optimal image exposure, while 8-100% variable power adjustment lets you manually fine-tune brightness. Auto Learn mode helps you easily sync pre-flash with any compatible digital camera. The Sea Dragon works with all SeaLife cameras and most other underwater models with built-in flash units.

  The Sea Dragon features a guide number of 4.9-65.6', an angle of coverage of 80° horizontal x 60° vertical, and an included diffuser to widen the beam to 100°. Additionally, it has a color temperature of 5700K. Its effective underwater range is up to 8'. The unit provides about 150 flashes with 4 AA batteries, which are available separately. Fiber-reinforced polycarbonate construction and marine-grade, stainless steel hardware ensure durability.
  Depth Rating
  • Can be safely submerged to a maximum depth of 200'
  Guide Number
  • About 4.9' at low power and 65.6' at full power
  Effective Range
  • Up to 8' underwater
  Variable Power Adjustment
  • 8% to 100% in auto or manual mode. Manual allows you to fine-tune brightness with greater precision and control
  Coverage
  • 80° horizontal x 60° vertical, or 100° with included diffuser
  Color Temperature
  • 5700K
  Power
  • Approximately 150 flashes with 4 AA batteries, which are available separately
  Controls
  • Power on/off, test/program, manual/auto brightness
  Quick-Release
  • A convenient quick-release button enables you to detach the flash and hold it in your hand, in order to illuminate hard-to-reach-places more effectively
  Construction
  • Fiber-reinforced polycarbonate housing with waterproof battery compartment and marine-grade, stainless steel hardware
  Included Accessories
  • Flex-Connect single tray with standard 1/4"-20 mounting screw and Flex-Connect comfort grip supplied. Additionally, an optical flash cable and universal cable adapter are included. To ensure an always-tight waterproof seal with the dual O-rings, the flash is also supplied with spare O-rings and lubricant, as well as an O-ring removal tool for quick and easy replacement. A large, zippered Sea Dragon Case allows you to store and transport the flash easily
  Compatibility
  • For all SeaLife cameras and most other underwater cameras with built-in flash
  UPC: 077068419631
• Sea Dragon 2300 Auto Photo-Video LED Dive Light Illuminate the underwater world at depths up to 330' with the Sea Dragon 2300 Auto Photo-Video LED Dive Light from SeaLife. It features four outputs from 230 to 2300 lumens and offers a run time of 60 to 600 minutes using the supplied lithium-ion battery. The light offers a 75° beam angle underwater and 100° above the surface, making it suitable for use as a main photo/video and primary dive light. Brighten up wide-angle stills and videos and restore rich, natural colors with the daylight-balanced 5000-6000K beam.

  Built for durability, the light features a polycarbonate body and a polycarbonate and anodized aluminum head, both of which are corrosion-resistant. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light and can be connected to the included Flex-Connect Tray. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel.
  Light Performance
  • • Light source: 6 CREE XP-L LEDs
    • Four outputs: Manual mode at 575 (25%), 1150 (50%), or 2300 lumens (100%), and Auto mode from 230 (10%) to 2300 lumens (100%)
    • Auto mode adjusts output automatically based on proximity to subject, in order to conserve battery life and help you maintain your natural low-light vision
    • Run time of 60 minutes on full power at constant brightness with supplied lithium-ion battery, which features capacity of 3400mAh
    • Additional run times: 120 minutes on 50% power, 240 minutes on 25%, and 600 minutes on 10%
    • Built-in photocell light sensor
    • Provides 75° angle of coverage underwater and 100° above the surface, so it's suitable for use as a main photo/video and primary dive light
    • Evenly illuminates subject with no hot spots
    • Daylight-balanced 5000-6000K color temperature and color rendering index 70 allow beam to restore subjects' rich, natural colors for greater vibrancy and accuracy in images
    • Auto Flash Detect Mode turns light off for 2 sec when external flash is detected
  Switching System
  • • Single push button on light head makes it easy to power on/off and cycle through output modes
  Construction Details
  • • Depth rating: 328'
    • Waterproof compartment for removable battery ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
    • Body made of polycarbonate; head made largely of polycarbonate but has anodized aluminum front end. These materials are both corrosion-resistant for durability
    • Aluminum head also helps disperse heat
  Mounting
  • • The included Flex-Connect Grip gives you a mounting point for light and can be connected to included Flex-Connect Tray
    • Tray has standard 1/4"-20 tripod screw for camera/housing
    • Accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
    • Quick-release button detaches light from included grip for aiming in hard-to-reach places
    • Optional, versatile flex arms available
  UPC: 077068416746

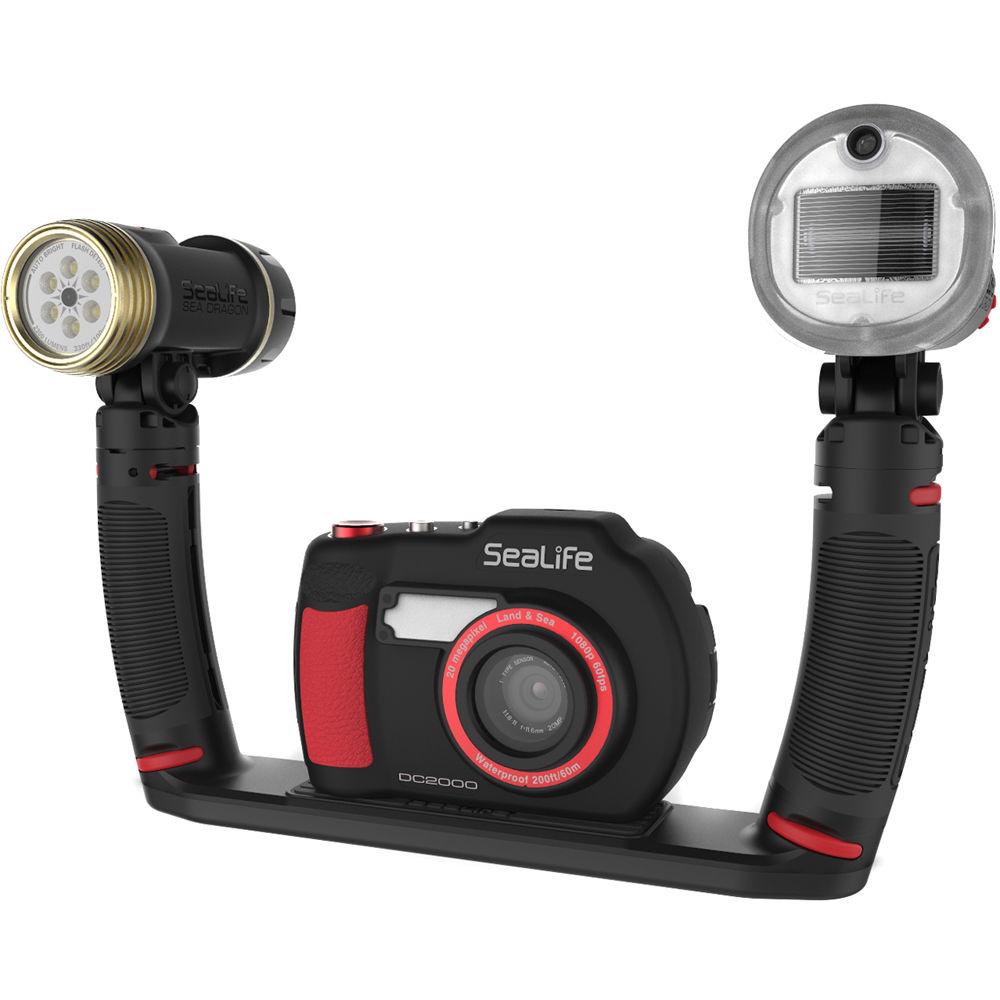

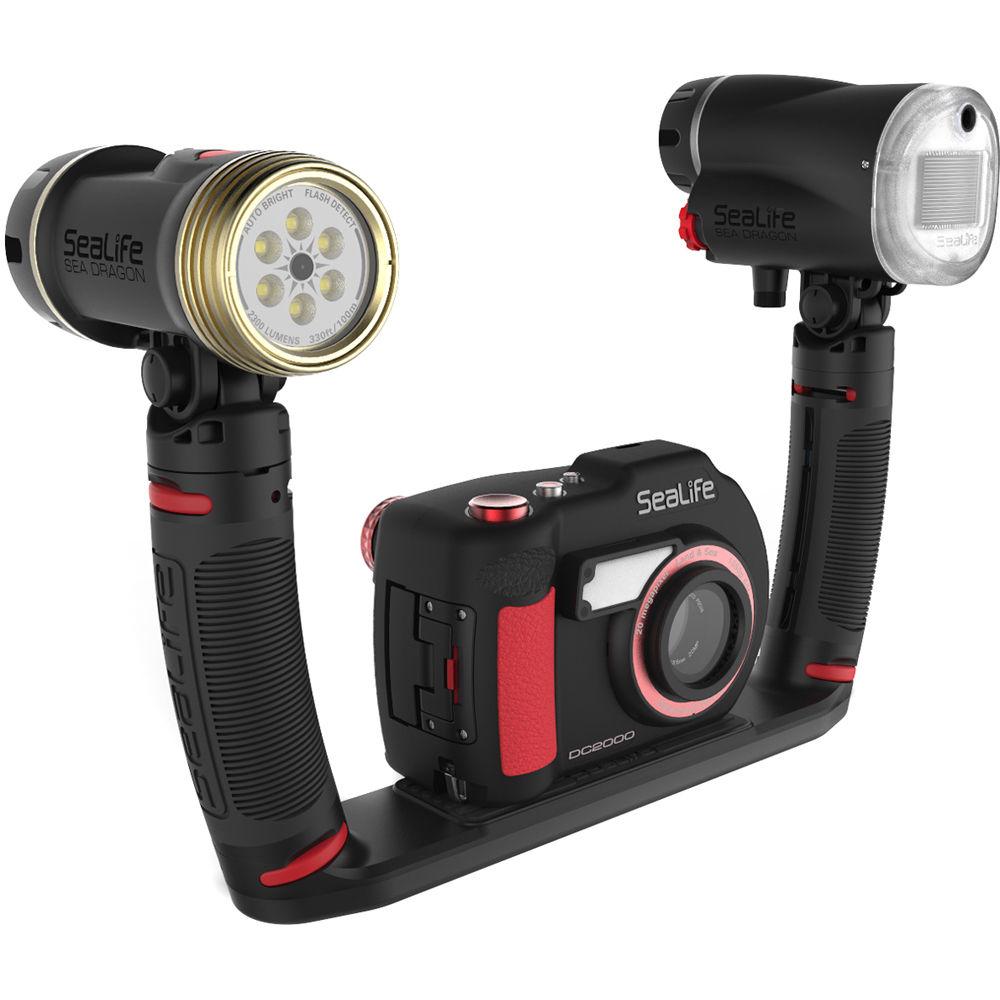

• Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights The Flex-Connect Dual Tray from SeaLife is part of a modular underwater photography system designed for improved handling, customizable setups and easy travel. It features a standard 1/4"-20 mounting screw for a compact camera in its waterproof housing, such as the SeaLife DC1400, as well as 2 mounting points for optional, ergonomic grips and #SL9901 flex arms for flash units or video lights. The Sea Dragon Digital Underwater Flash and Sea Dragon 1200 and 2000-Lumen LED Lights are compatible. Additionally, an optional adapter allows you to use your SL980 light or SL961 strobe. The arm easily clicks into place on top of the optional grip, which clicks into the tray, and the setup is just as easily disassembled with the push of a button. The durable Dual Tray is constructed from fiber-reinforced polycarbonate and marine-grade stainless steel. UPC: 077068499046

• Underwater Housing

• Rechargeable Lithium-Ion Battery

• Wall Charger (5V, 1A)

• Set of International Adapter Plugs: NA/US, EU, UK, AUS)

• USB Cable - 23.6" / 60 cm (Micro B Type)

• Nylon Case

• Wrist Strap for Camera

• Wrist Strap for Housing

• Flash Link Optical Cable Adapter

• Moisture Muncher Desiccant Capsules (2-Pack)

• Limited 1-Year Warranty

• SL9903 Flex-Connect Single Tray with 1/4"-20 Mounting Screw

• SL9905 Flex-Connect Comfort Grip

• SL96201 Optical Cable

• Universal Flash Link Adapter for Sea Dragon Digital Underwater Flash

• Diffuser

• Universal Mount Kit

• SL98303 Spare O-ring Set

• SL9807 O-Ring Lubricant

• SL9808 O-Ring Removal Tool

• SL942 Large Sea Dragon Case (Black)

• Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays

• Flex-Connect Single Tray with Mounting Screw

• Lithium-Ion Rechargeable Battery (7.4V, 3400mAh)

• AC Power Adapter

• Charging Tray

• Set of International Adapter Plugs

• Set of Spare O-Rings

• O-Ring Lubricant

• O-Ring Removal Tool

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DC2000 Digital Underwater Camera

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1.0" CMOS
  File Formats	Still Images: DNG, JPEG, RAW Movies: H.264, MOV Audio: Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	7 elements in 1 groups EFL: 11.6mm (35 mm equivalent: 31mm) Aperture: f/1.8 (W) - 11 (T)
  Zoom	Digital: 3x
  Focus Range	Auto: 4.0" (10.16 cm) to Infinity Macro: 3.54" (9.0 cm) to 19.69" (50 cm)

  ISO Sensitivity	Auto, 125-25600
  Shutter	Type: Electronic Speed: 1 - 1/2000 Second in Auto Mode Type: Electronic Speed: 15 - 1/2000 Second in Manual Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
  Shooting Modes	Art Filters Back Light Background Defocus Beach Candle Continuous Shot Dusk/Dawn Fireworks Food HDR Intelligent Auto Kids Landscape Night Portrait Night Scene Party/Indoor Portrait Self-Portrait Smile Snow Soft Skin Sports Sunset Time-Lapse Movie Underwater
  White Balance Modes	Auto, Cloudy, Daylight, Fluorescent, Manual, Tungsten, Underwater
  Buffer/Continuous Shooting	Up to 10 fps at 20 MP for up to 10 Frames Up to 3 fps at 20 MP for up to 50 Frames Up to 60 fps at 2.0 MP for up to 25 Frames Up to 120 fps at .3 MP for up to 50 Frames
  Self-Timer	2 Sec
  Interval Recording	Yes

  Flash Modes	Auto Forced On Off Red-Eye Reduction Slow Sync
  Built-In Flash	Yes

  Built-In Memory	80 MB
  Memory Card Type	SDHC (up to 32 GB) SDXC microSDHC microSDXC

  Video Recording	Yes
  Resolution	1920 x 1080p: 60 fps 1920 x 1080p: 30 fps 1920 x 1080p: 15 fps 1280 x 720p: 60 fps 1280 x 720p: 30 fps 640 x 480p: 120 fps

  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	None
  Screen	3.0" LCD Rear Screen (920,000 pixels)

  Connectivity	1x USB 2.0 Micro-B
  Wi-Fi	Yes, 802.11b/g/n built-in
  Software System Requirements	Windows: XP, Vista, 7, 8 Mac: OS X 10.4 or later

  Operating/Storage Temperature	Operating 33 to 110°F (0 to 43°C) Operating 0 to 120°F (-17 to 48°C) Storage -20 to 140°F (-28 to 60°C) 33-110 deg F underwater, 0-120 above water
  Waterproofing	200.0' (61.0 m)
  Certifications	CE FCC ROHS

  Battery	1 x Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1130 mAh
  AC Power Adapter	Yes, with international adapter plugs (Included)

  Dimensions (W x H x D)	5.9 x 4.0 x 3.2" / 14.9 x 10.2 x 8.1 cm
  Weight	1.54 lb / .7 kg

  Box Dimensions (LxWxH)	10.9 x 10.5 x 4.0"

• Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray

  Configuration	Flash head
  Guide No.	Low power: 4.9' (1.5 m) Full power: 65.6' (20 m)
  Power Adjustment Range	8-100%
  Coverage Angle	80° horizontal x 60° vertical 100° with included diffuser
  Depth Rating	200' (61 m)
  Exposure Control	Auto, manual
  Color Temperature	5700 K
  Controls	Power on/off, test/program, manual/auto brightness
  Recycle Time	1.0 sec at less than 1/2 power 5.0 sec at full power
  Flashes	150 flashes with 4 AA batteries (sold separately)
  Buoyancy	Negative
  Power	4 AA batteries (sold separately, NiMH recommended)
  Construction	Housing: fiber-reinforced polycarbonate Hardware: marine-grade stainless steel O-rings: nitrile rubber (NBR)
  Dimensions	5.0 x 4.5 x 2.5" (12.7 x 11.4 x 6.4 cm)
  Weight	1.1 lb (0.5 kg) with batteries

  Box Dimensions (LxWxH)	10.8 x 7.3 x 3.9"

• Sea Dragon 2300 Auto Photo-Video LED Dive Light

  Configuration	Light with tray and grip
  Depth Rating	328' / 100 m
  Light Source	6 x CREE XP-L LEDs
  Light Intensity	Manual Mode: 25%: 575 lumens 50%: 1150 lumens 100%: 2300 lumens Auto Mode: 10%-100%: 230-2300 lumens
  Beam Angle	Underwater: 75° Above Water: 100°
  Color Temperature	5000-6000K
  CRI	70
  Run Time	100% Power: 60 minutes 50% Power: 120 minutes 25% Power: 240 minutes 10%: 600 minutes
  Switching System	Single push-button on head
  Material of Construction	Polycarbonate Front end of head is anodized aluminum
  Mounting	Flex-Connect Grip (included) Flex-Connect Tray with standard 1/4"-20 tripod screw (included)
  Power	Lithium-ion battery with 7.4 V output power, 3400 mAh capacity, 25 Wh rating (included)
  Dimensions	Head Only: 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm Head with Grip and Tray: 8.7 x 9.4 x 2.3" / 22 x 24 x 6.0 cm
  Weight	1.5 lb / 0.7 kg

  Box Dimensions (LxWxH)	11.0 x 10.4 x 3.8"

• Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights

  Construction	Fiber-reinforced polycarbonate Marine-grade stainless steel
  Mounting Screw	1/4"-20

  Box Dimensions (LxWxH)	13.9 x 3.4 x 0.5"

Rating

Discussion
