Product description

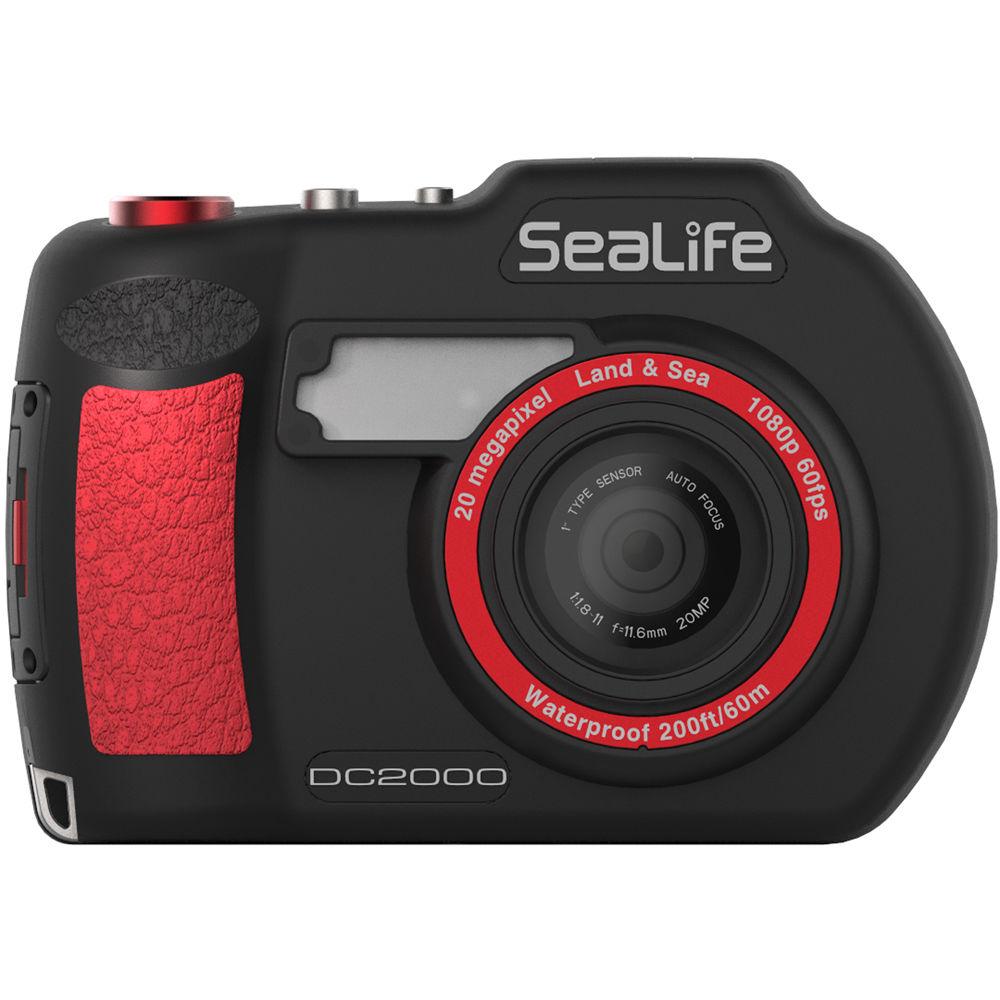

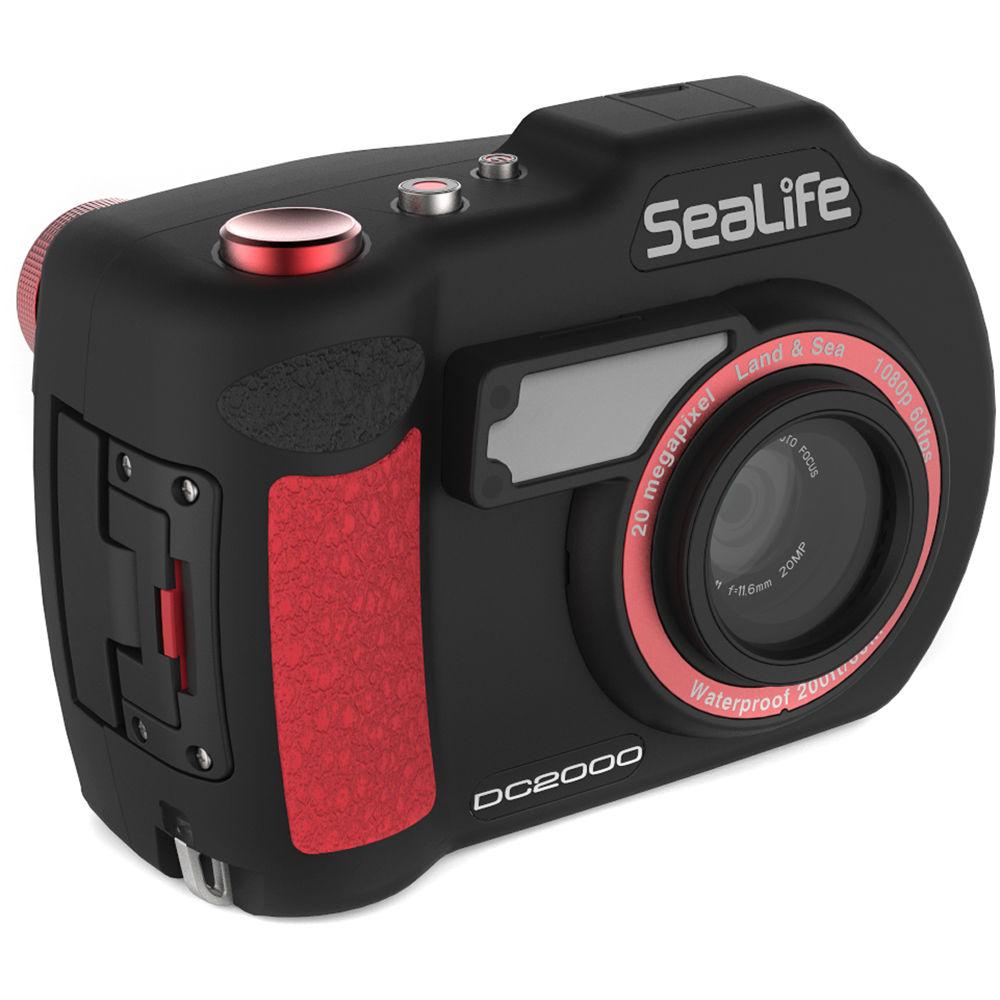

• DC2000 Digital Underwater Camera Capture the beauty of the world beneath the surface at depths as great as 200' with the DC2000 Digital Underwater Camera from SeaLife. This compact, waterproof point-and-shoot is protected by a rubber-armored housing that allows it to withstand rough handling and tough environments. A 20MP, 1" Sony BSI CMOS image sensor produces sharp, detailed photos and Full HD 1080p video at 60 fps.

  The DC2000's fast f/1.8 lens helps you achieve effective low-light shots with shallow depth of field. In addition to JPEG images, the camera can capture RAW photos to give you much more image data to work with in the editing process. As an extra bonus, the picture-in-video feature allows you to capture still images while recording Full HD movies. Available exposure modes on the camera include Programmed Auto (P), Shutter Priority (S), Aperture Priority (A), and Manual (M), as well as 4 underwater scene modes with built-in color correction and 25 land scene modes. Additionally, the DC2000 is capable of continuous burst shooting at 8 fps to help you catch fast action, as well as time-lapse shooting to show change over a given period of time. Enjoy the convenience of Wi-Fi and Bluetooth connectivity for wireless image transfer.
  Waterproofing and Durability
  • • Features a depth rating of 200' when inside housing and 60' when housing is removed
    • Rubber-armored housing designed to withstand rough handling and tough environments
    • When not inside housing, camera is still shockproof against drops up to 5.0'
    • Housing made of corrosion-resistant, rubber-molded polycarbonate with 304/316 type stainless steel hardware
  20MP Photos and Full HD Video
  • • 20MP, 1" Sony BSI CMOS image sensor for sharp, detailed images
    • In addition to JPEG images, camera can capture RAW photos in .dng format to give you uncompressed files with much more image data to work with in editing process
    • These Adobe Digital Negative RAW files can be edited using Adobe Photoshop or Lightroom
    • In addition to maximum of 20MP, following resolutions can be selected: 18, 17, 13, 10, 7.5, 6.5, 5, 4.2, 3.7, and 0.3MP
    • Continuous 10-fps shooting at full resolution to help you catch fast action
    • Full HD 1080p video recording at 60 fps--with stereo sound, thanks to dual microphones
    • Picture-in-video feature allows you to capture still images while recording Full HD movies
    • Camera can also capture 5 or 10 images in 1, 2, or 3-sec time intervals and save them as a .gif file
  Wide, Fast f/1.8 Lens
  • • Wide-angle lens with 11.6mm (35mm equivalent: 31mm) focal length
    • Enables camera to capture low-light shots with shallow depth of field
    • Mechanical 7-leaf shutter for full manual exposure control from f/1.8 to f/11 in 0.3-stop increments
    • Fast auto focus with 0.1-sec shutter response time
    • AF range from 4" to infinity
    • Optical Image Stabilization reduces the effects of camera shake for clear, blur-free images
    • Fully multi-coated, 7-element aspherical lens design
    • Angle of view: 61° diagonal/51° horizontal on land, 46° diagonal/38° horizontal underwater
    • Optional multi-coated SeaLife Fisheye Wide Angle Lens (SL975) can be added on above the water's surface or below it, in order to increase your angle of view to 83° diagonal/63° horizontal--so you can get closer to subjects and fit more in frame
    • Multi-coated Wide Angle Lens (SL970) is another add-on option, increasing your coverage angle substantially but to lesser degree than Fisheye
    • Housing has glass lens port with anti-reflective coating

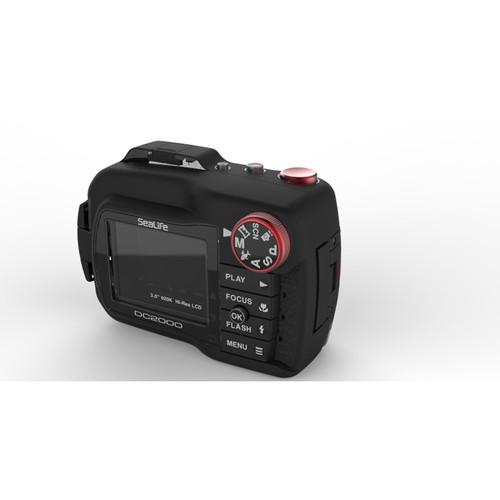

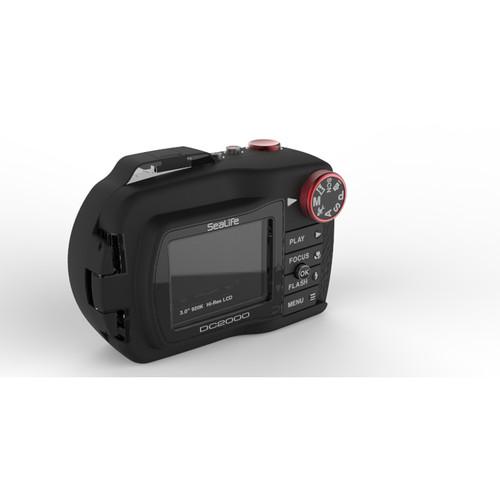

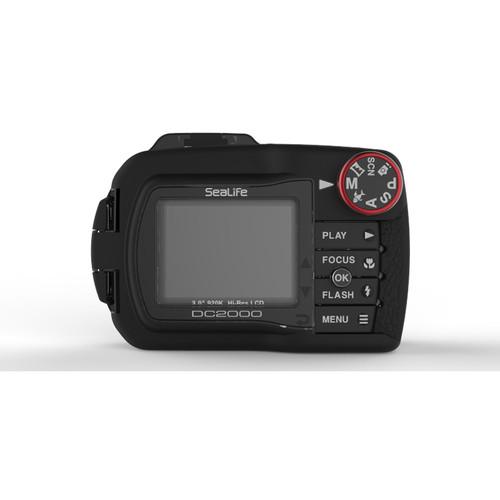

  Display

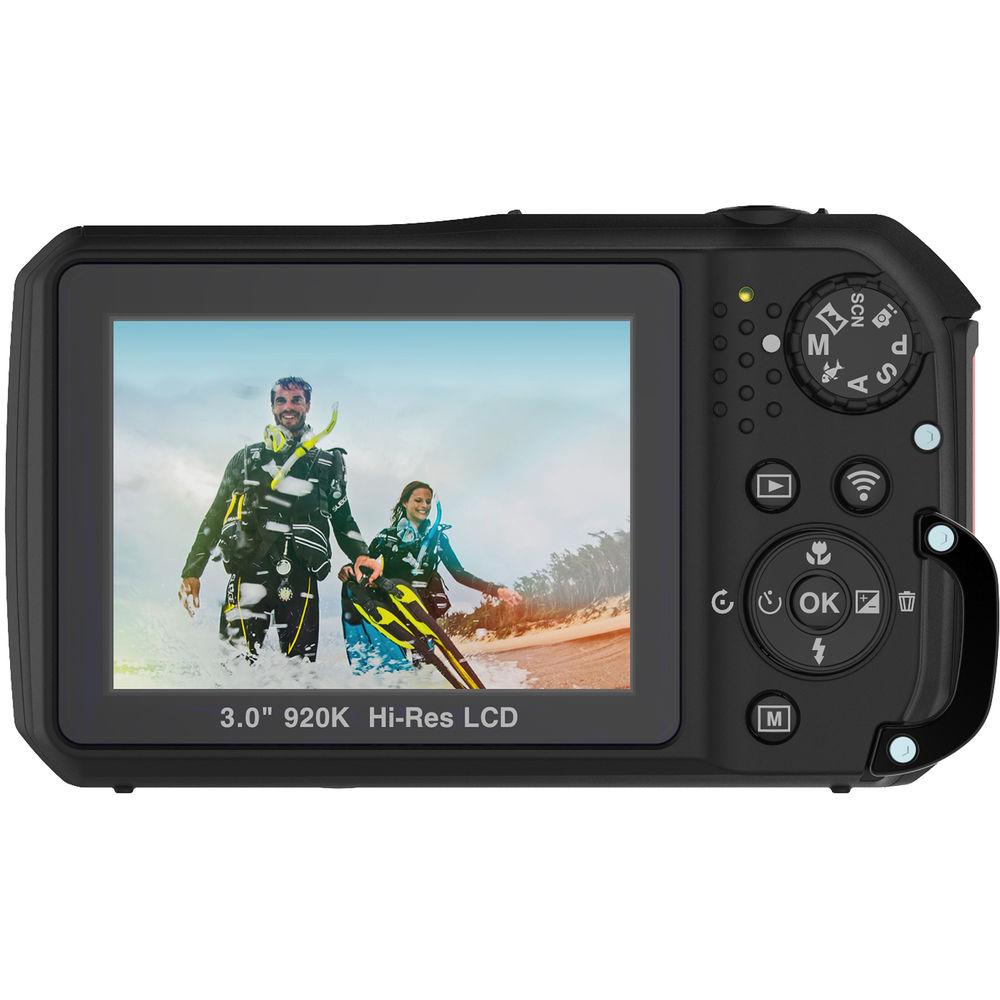

  • • Equipped with a 3", 920k-dot color LCD monitor for image preview and review/playback
    • Screen visible in direct sunlight
  Controls and Handling
  • • Large, piano key-like controls for easy operation with or without diving gloves
    • Push-button and dial controls
    • Short-cut key for quick, easy access to favorite menu setting
  Shooting Modes
  • • Programmed Auto (P), Shutter Priority (S), Aperture Priority (A), and Manual (M)
    • 4 underwater scene modes with built-in color correction: dive, snorkel, external light, and external flash modes
    • Dive mode: Automatic exposure control and color correction in deeper water
    • Snorkel mode: Automatic exposure control and color correction while snorkeling or diving in shallow water
    • External Light mode: White balance and exposure are calibrated to suit a Sea Dragon Photo-Video light
    • Built-in color-correction filters for shallow, deep, and green water
    • Manual White Balance control lets you customize underwater color correction
    • 25 land scene modes for various environments and situations
    • Intelligent Auto mode selects the optimal land scene mode for nearly effortless shooting in various situations
  Time-Lapse Shooting
  • • Captures 2MP, 16:9 images at 5-sec, 10-sec, 30-sec, 1-min, 5-min, 10-min, and 30-min time intervals
    • Combines shots into MPEG-4 video clip for 10-fps playback
  Connectivity
  • • Built-in 802.11b/g/n Wi-Fi and Bluetooth 4.1 connectivity for wireless previewing, downloading, and sharing on smart devices using free SeaLife Link123 Plus app
    • App includes Geotagging and "Auto Send" functionality
  Mounting and Lighting
  • • Standard 1/4"-20 tripod thread for connection to camera tray or tripod/monopod
    • Tray offers attachment points for optional grips and arms that support optional flash units and constant light sources, such as Sea Dragon Flash (SL963) and Sea Dragon 2300 Auto Photo-Video Dive Light
    • Flash link optical cable is supplied, providing a means of connecting flash to camera
  Memory
  • • Accepts microSD and SD/SDHC/SDXC memory cards, including fast UHS-1 cards
  Power
  • • Runs on removable, rechargeable lithium-ion battery
    • 3.7V of output power and a 1130mAh capacity
    • Includes wall charger with North American plug type and international adapter plugs for use in Europe, UK, and Australia
  Supported Languages
  • • English
    • French
    • Spanish
    • German
    • Italian
    • Russian
    • Portuguese
    • Brazilian Portuguese
    • Dutch
    • Turkish
    • Polish
    • Hungarian
    • Romanian
    • Czech
    • Bulgarian
    • Croatian
    • Slovak
    • Slovenian
    • Greek
    • Swedish
    • Norwegian
    • Finnish
    • Danish
    • Arabic
    • Indonesian
    • Malay
    • Thai
    • Japanese
    • Korean
    • S. Chinese
    • T. Chinese
  UPC: 077068417408

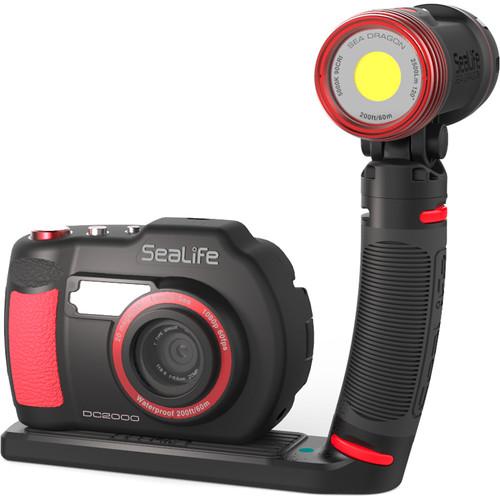

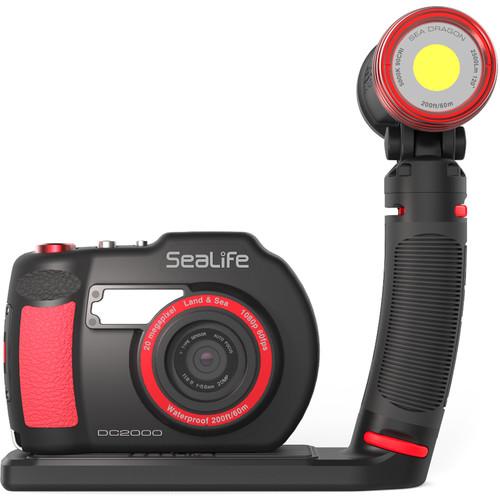

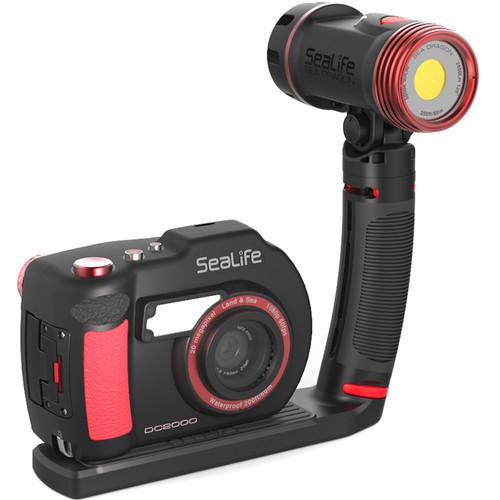

• Sea Dragon 2500 Photo and Video LED Dive Light with Tray and Grip Illuminate the underwater world at depths up to 200' with the Sea Dragon 2500 Photo and Video LED Dive Light with Tray and Grip from SeaLife. It features three outputs from 625-2500 lumens for a run time of 60-240 min with the supplied lithium-ion battery. The light offers a very wide 120° beam angle, which makes it suitable for use as a main photo/video and primary dive light. Brighten up wide-angle stills and videos and restore rich, natural colors with this nearly daylight-balanced 5000K flood beam.

  Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light and can be connected to the supplied Flex-Connect Tray. There is also an adapter for GoPro action cameras bundled with this kit. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel.
  Light Performance
  • • Three outputs from 625-2500 lumens
    • Run time of 60-240 min with the supplied lithium-ion battery
    • Very wide 120° beam angle, which makes it suitable for use as a main photo/video and primary dive light
    • Evenly illuminates subject with no hot spots
    • Restore rich, natural colors thanks to a flat panel COB LED, which offers a nearly daylight-balanced 5000K color temperature and a high color rendering index (CRI) of 90 to mimic natural sunlight closely
    • Hidden SOS emergency signal mode with 1.0-sec blink interval and Morse code
    • Thermal sensor will automatically dim light if internal temperatures reaches 149°F/65°C, in order to prevent overheating
    • For prolonged use, it's recommended that you keep light underwater, as it's not designed to handle extended operation above surface
  Switching System
  • • Single push-button switch for easy power on / off and cycling through output modes
  Construction Details
  • • Depth rating: 200'
    • Dual NBR O-rings provide watertight seal
    • Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
    • Fiber-reinforced polycarbonate body, which is resistant to corrosion
    • Anodized aluminum light head that also resists corrosion
  Mounting
  • • Included Flex-Connect Grip gives you a mounting point for the light, and can be connected to the supplied Flex-Connect Tray
    • Quick-release button to detach light for aiming into crevices and other hard-to-reach areas
    • Tray has universal 1/4"-20 mounting screw for camera/housing
    • Also part of this bundle is an adapter for GoPro action cameras
    • These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
  UPC: 077068416715

• Underwater Housing

• Rechargeable Lithium-Ion Battery

• Wall Charger (5V, 1A)

• Set of International Adapter Plugs: NA/US, EU, UK, AUS)

• USB Cable - 23.6" / 60 cm (Micro B Type)

• Nylon Case

• Wrist Strap for Camera

• Wrist Strap for Housing

• Flash Link Optical Cable Adapter

• Moisture Muncher Desiccant Capsules (2-Pack)

• Limited 1-Year Warranty

• Sea Dragon 2500 Photo and Video LED Dive Light Head

• Flex-Connect Single Tray with Mounting Screw

• Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays

• Lithium-Ion Rechargeable Battery

• AC Power Adapter with Charging Tray

• International Plug Adapters

• Adapter for GoPro cameras with Acorn Nut

• Sea Dragon Case

• Set of Spare O-Rings

• O-Ring Lubricant

• O-Ring Removal Tool

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DC2000 Digital Underwater Camera

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1.0" CMOS
  File Formats	Still Images: DNG, JPEG, RAW Movies: H.264, MOV Audio: Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	7 elements in 1 groups EFL: 11.6mm (35 mm equivalent: 31mm) Aperture: f/1.8 (W) - 11 (T)
  Zoom	Digital: 3x
  Focus Range	Auto: 4.0" (10.16 cm) to Infinity Macro: 3.54" (9.0 cm) to 19.69" (50 cm)

  ISO Sensitivity	Auto, 125-25600
  Shutter	Type: Electronic Speed: 1 - 1/2000 Second in Auto Mode Type: Electronic Speed: 15 - 1/2000 Second in Manual Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
  Shooting Modes	Art Filters Back Light Background Defocus Beach Candle Continuous Shot Dusk/Dawn Fireworks Food HDR Intelligent Auto Kids Landscape Night Portrait Night Scene Party/Indoor Portrait Self-Portrait Smile Snow Soft Skin Sports Sunset Time-Lapse Movie Underwater
  White Balance Modes	Auto, Cloudy, Daylight, Fluorescent, Manual, Tungsten, Underwater
  Buffer/Continuous Shooting	Up to 10 fps at 20 MP for up to 10 Frames Up to 3 fps at 20 MP for up to 50 Frames Up to 60 fps at 2.0 MP for up to 25 Frames Up to 120 fps at .3 MP for up to 50 Frames
  Self-Timer	2 Sec
  Interval Recording	Yes

  Flash Modes	Auto Forced On Off Red-Eye Reduction Slow Sync
  Built-In Flash	Yes

  Built-In Memory	80 MB
  Memory Card Type	SDHC (up to 32 GB) SDXC microSDHC microSDXC

  Video Recording	Yes
  Resolution	1920 x 1080p: 60 fps 1920 x 1080p: 30 fps 1920 x 1080p: 15 fps 1280 x 720p: 60 fps 1280 x 720p: 30 fps 640 x 480p: 120 fps

  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	None
  Screen	3.0" LCD Rear Screen (920,000 pixels)

  Connectivity	1x USB 2.0 Micro-B
  Wi-Fi	Yes, 802.11b/g/n built-in
  Software System Requirements	Windows: XP, Vista, 7, 8 Mac: OS X 10.4 or later

  Operating/Storage Temperature	Operating 33 to 110°F (0 to 43°C) Operating 0 to 120°F (-17 to 48°C) Storage -20 to 140°F (-28 to 60°C) 33-110 deg F underwater, 0-120 above water
  Waterproofing	200.0' (61.0 m)
  Certifications	CE FCC ROHS

  Battery	1 x Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1130 mAh
  AC Power Adapter	Yes, with international adapter plugs (Included)

  Dimensions (W x H x D)	5.9 x 4.0 x 3.2" / 14.9 x 10.2 x 8.1 cm
  Weight	1.54 lb / .7 kg

  Box Dimensions (LxWxH)	10.9 x 10.5 x 4.0"

• Sea Dragon 2500 Photo and Video LED Dive Light with Tray and Grip

  Configuration	Light with tray and grip
  Depth Rating	200' / 60 m
  Light Source	1x Vero 18 COB LED bulb
  Light Intensity	25%: 625 lumens 50%: 1250 lumens 100%: 2500 lumens
  Beam Angle	120°
  Effective Range	Approx. 3.9' / 1.2 m
  Color Temperature	5000 K
  CRI	90
  Run Time	100%: 60 min 50%: 120 min 25%: 240 min
  Switching System	Single push-button for power and mode switching Long push (1.0 sec) to power on/off Short push to cycle through output levels: 100% → 50% → 25% Long push activates emergency signal mode
  Material of Construction	Body: Fiber-reinforced polycarbonate Light Head: Anodized aluminum
  Mounting	Flex-Connect tray and grip (included) Tray has 1/4"-20 mounting screw Adapter for GoPro cameras (included)
  Power	7.4 V, 3400 mAh, 25 Wh lithium-ion rechargeable battery (included) AC adapter, charging tray, and international plug adapters (included)
  Charge Time	Approx. 170 min
  LED Lifetime	35,000 hr
  Buoyancy	Negative
  Dimensions	Light Head Only: 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm
  Weight	Light Head Only: 13.1 oz / 371 g

  Box Dimensions (LxWxH)	11.0 x 10.4 x 4.0"
