User Manual for SeaLife Micro 2.0 Underwater Digital Camera Click to enlarge the picture
Contents of the user manual for the SeaLife Micro 2.0 Underwater Digital Camera
- Product category: Still Cameras & Housings SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Still Cameras & Housings
 |
User manual for the SeaLife Micro 2.0 Underwater Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

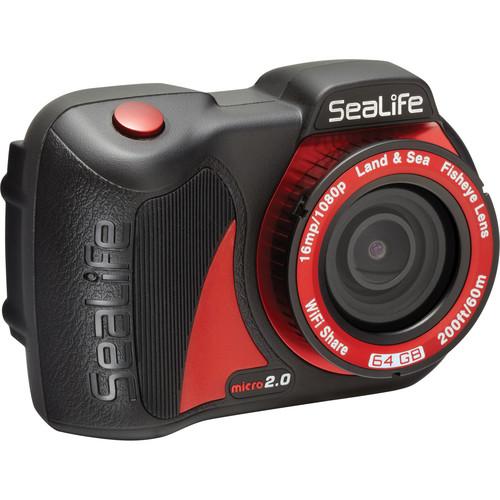

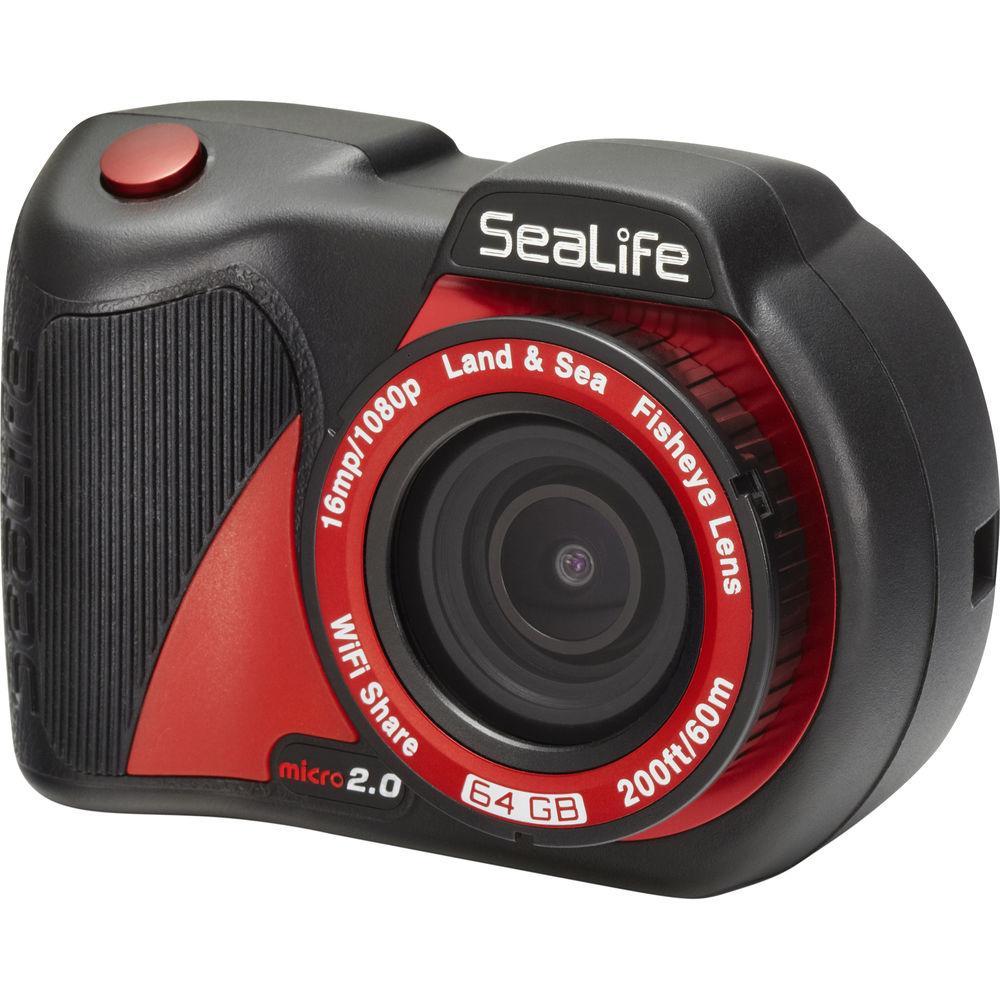

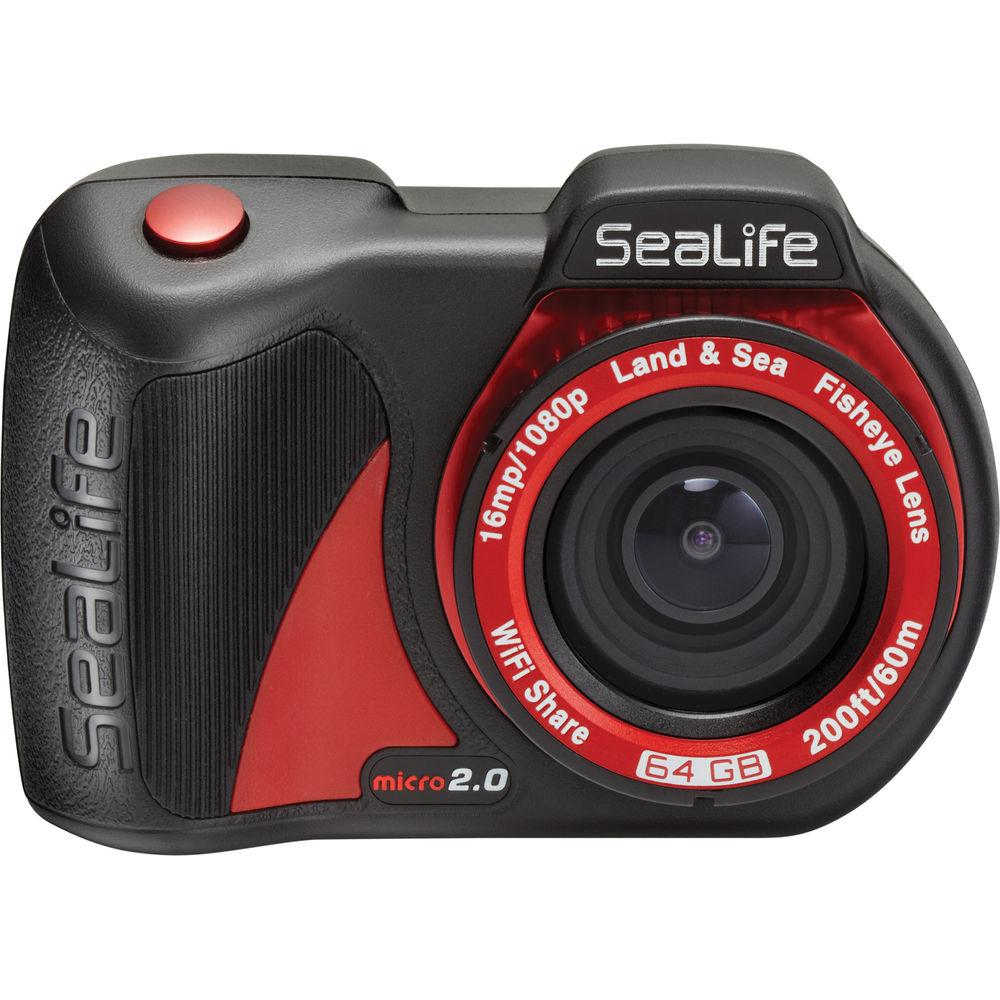

Product description Capture clear images below the surface with the 64GB Micro 2.0 Underwater Digital Camera from SeaLife. This compact, waterproof point-and-shoot has a depth rating of 200'. It is permanently sealed, having no watertight doors and no o-rings to maintain, and is protected by a rubber-armored, shock-resistant body. The camera features a 16MP, 1/2.3" Sony CMOS image sensor for sharp, detailed photos and full HD 1296/30p or 1080/30/60p video.
The Micro 2.0 is also equipped with a wide-angle fisheye lens with a 35mm-equivalent focal length of 20mm, a 130° angle of view, and a fairly fast f/2.8 aperture, enabling you to fit a lot in-frame and capture effective low-light shots with shallow depth of field. Additionally, it is configured with 64GB of internal memory and runs on an internal lithium-ion battery.
Compose your shots on the Micro 2.0's 2.4" TFT color LCD monitor. Benefit from 3 underwater scene modes, as well as a land mode for out-of-water use. The camera is also capable of time-lapse shooting, enabling you to take images at set intervals to see change over a period of time. With the Picture in Video feature, you can capture still images while recording Full HD video. The camera also features Wi-Fi for previewing, downloading, and transferring images to your smart device with the free SeaLife app. - Waterproofing and Durability
- Features a depth rating of 200' and is permanently sealed, so there are no watertight doors and no o-rings to maintain. Additionally, it's protected by a fully rubber-armored, shock-resistant body to safeguard against small drops and bumps.
- 16MP CMOS Image Sensor
- The 1/2.3" Sony CMOS sensor features a resolution of 16MP. Benefit from sharp still image capture and continuous shooting at up to 5 fps in Burst mode, as well as full HD 1080p video at 60 and 30 fps in MPEG-4 / H.264 format. The camera can record video at a maximum resolution of 1296p at 30fps, which is compatible with Apple QuickTime, DivX Plus, YouTube, iPad/iPhone, Android phones/tablets, and select other media players. ISO sensitivity ranges from 100-800.
- Wide-Angle Lens
- A wide-angle fisheye lens with a 35mm-equivalent focal length of 20mm and a 130° angle of view lets you get close to subjects while maintaining broad coverage. Apparent angle of view is reduced underwater to 80-100°, which fortunately still provides ample coverage. Catch that magnificent humpback whale or school of fish swimming by, or capture a wide expanse of a coral reef to show the diversity of colors and types. The fairly fast f/2.8 aperture lets you take effective low-light shots with shallow depth of field, while automatic correction of barrel distortion helps restore proper shape and perspective to images.
- Display
- Frame your shots on the Micro 2.0 camera's 2.4" TFT color LCD monitor, which features a resolution of 480 x 234.
- Controls and Handling
- Compact, lightweight design affords easy handling and travel. Soft, textured rubber grip for a secure hold, even when wearing diving gloves.
- Shooting Modes
- Push and hold menu button to activate Shortcut mode, which lets you quickly access a specified menu setting. The easy set-up mode brings up an on-screen guide with no complicated menus, so you can simply start shooting. Four scene modes are pre-programmed and ready to go at a moment's notice:
- Land mode for out-of-water images
- Dive mode for automatic exposure control and color correction in deeper water
- Snorkel mode for automatic exposure control and color correction while snorkeling or diving in shallow water

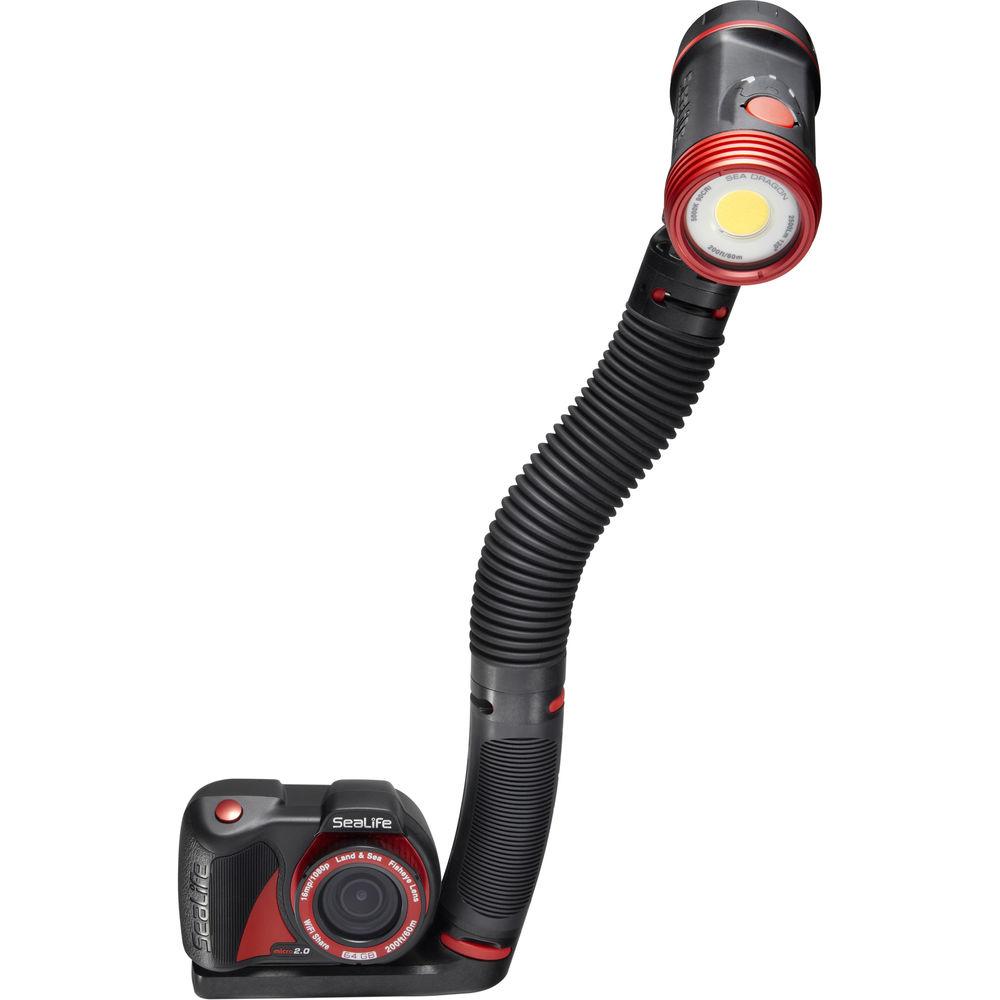

- Light mode for underwater pictures and videos with optional Sea Dragon LED Photo-Video light. In this mode, white balance and exposure are calibrated to suit the Sea Dragon light
Picture in Video mode lets you capture still photos while recording full HD video. Additionally, Upside-down shooting mode saves photos and movies in the proper orientation even when the camera is positioned bottom-up. - Built-in Digital Color-Correction Filters
- Three integrated filters offer optimal color correction in different types, depths, and/or temperatures of water: UW Deep filter is designed for deeper tropical, blue/cyan water, while UW Green is best suited to colder, green/emerald water and UW Shallow is right at home in tropical, blue/cyan water closer to surface.
- Time-Lapse
- Program the camera to capture images at set time intervals within a designated window, so they can be combined into a video to show change over time. The series can be saved as a video file or a progression of still photos.
- Wi-Fi Connectivity
- Wirelessly preview, download, and share pictures and videos to your smartphone or tablet with the free SeaLife app.
- Memory
- Configured with 64GB of internal memory for over 25,000 still images or 12 hours of full HD video--with no card required.
- Power
- Runs on an internal lithium-ion battery with a 2350mAh capacity, 3.7V of output power, and a rating of 8.7Wh. Alternatively, when shooting out of the water, you can hook the camera up to the included external power supply for long-term, uninterrupted shooting. The power cord is equipped with a standard North American plug, and the supplied international adapters enable use in Europe, the UK, and Australia, as well.
- Mounting and Lighting
- Standard 1/4"-20 tripod thread for connection to camera tray or tripod/monopod. Tray offers attachment points for optional grips and arms that support photo-video lights.
- Supported Languages
- On-screen display: English, German, French, Spanish, Italian, Dutch, Turkish, Russian
Printed manual: English
Online manual: German, French, Spanish, Italian, Dutch, Turkish, Russian UPC: 077068415121 In the Box SeaLife Micro 2.0 Underwater Digital Camera (64GB) SL50113 Lens Cap SL50102 Wrist Strap SL50103 USB Adapter SL51004 USB Cable - 3' / 0.9 m SL50105 Wall Charger with North American Plug SL50106 Set of International Wall Charger Adapters: EU, UK, AU SL50107 Camera Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Micro 2.0 Underwater Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL512 Specs | | | Depth Rating | 200' / 61 m | | Sealing | Permanently sealed - no doors or o-rings | | Shock Resistance | Up to 3.3' / 1.0 m | | Material of Construction | Rubber-armored body | | Buoyancy | Negative | | | | Image Sensor | 1/2.3" Sony CMOS | | Effective Pixels | 16 MP | | Image Resolution | 16 MP: 4608 x 3456
14 MP: 4608 x 3072
12 MP: 4608 x 2592
9.0 MP: 3456 x 2592
7.0 MP: 3456 x 1944
4.0 MP: 2304 x 1728
3.0 MP: 2304 x 1296
2.0 MP: 1920 x 1080 | | Aspect Ratio | 4:3, 3:2, 16:9 | | Image File Formats | JPEG | | | | Lens | Focal length: 3.5 mm (35 mm equivalent: 20 mm)
Aperture: f/2.8
Angle of view:
Out of Water: 130°
Underwater: 100° or 80°
Elements: 6, including aspherical
Multi-Coated: Yes | | Optical Zoom | No | | Digital Zoom | No | | Filter Size | Not specified by manufacturer | | | | Focus Type | Instant fixed focus | | Focusing Range | 1.0' / 0.3 m to infinity | | | | ISO Sensitivity | Auto, 100, 200, 400, 800 | | Shutter | 1/25 - 1/2000 sec | | Exposure Modes | Single, Continuous, Auto Exposure Bracketing (AEB) | | Exposure Compensation | -2.0 to +2.0 EV in 1/3 EV increments | | White Balance | Calibrated to Sea Dragon underwater lighting | | Interval Recording | Yes, time-lapse shooting at set intervals
Saved as .mp4 file or as series of individual still images | | Continuous Shooting | Up to 5 fps in Burst mode
1-2 fps in Continuous mode | | | | Built-in Flash | No | | External Flash Connector | No | | | | Video Recording | 1296p at 30fps
1920 x 1080p at 60 fps
1920 x 1080p at 30 fps
1280 x 720p at 120 fps
1280 x 720p at 60 fps
1280 x 720p at 30 fps
480p at 240 fps
480p at 120 fps
480p at 60 fps
480p at 30 fps
1296p compatible with following video players: Apple QuickTime, DivX Plus, YouTube, iPad/iPhone, Android phones/tablets and other software supporting 1296p format. Not compatible with Windows Media Player or Movie Maker | | Video File Format | MPEG-4 / H.264 (MP4) | | Audio Recording | Not specified by manufacturer | | | | Type | TFT color LCD | | Size | 2.4" / 6.1 cm | | Resolution | 480 x 234 | | | | Power Source | Internal rechargeable lithium-ion battery (2350 mAh, 3.7 V, 8.7 Wh)
Supplied external power supply with North American plug and EU, UK, and AU adapter plugs | | | | Interface | USB port | | Wi-Fi | Range: 226.4' / 69 m | | OS Compatibility | PC: Windows XP, Vista, 7, 8, 10 or higher
Mac: OS X or higher | | | | Operating Temperature | Underwater: 33 to 110°F / 0.6 to 43.3°C
Land: 0 to 120°F / -17.8 to 48.9°C | | Storage Temperature | -20 to 140°F / -28.9 to 60°C | | Tripod Mount | Standard 1/4"-20 | | Certifications | CE, ROHS, FCC | | Dimensions | 4.2 x 2.1 x 2.9" / 10.7 x 5.3 x 7.4 cm | | Weight | 9.4 oz / 266.5 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 7.1 x 5.7 x 4.7" |
