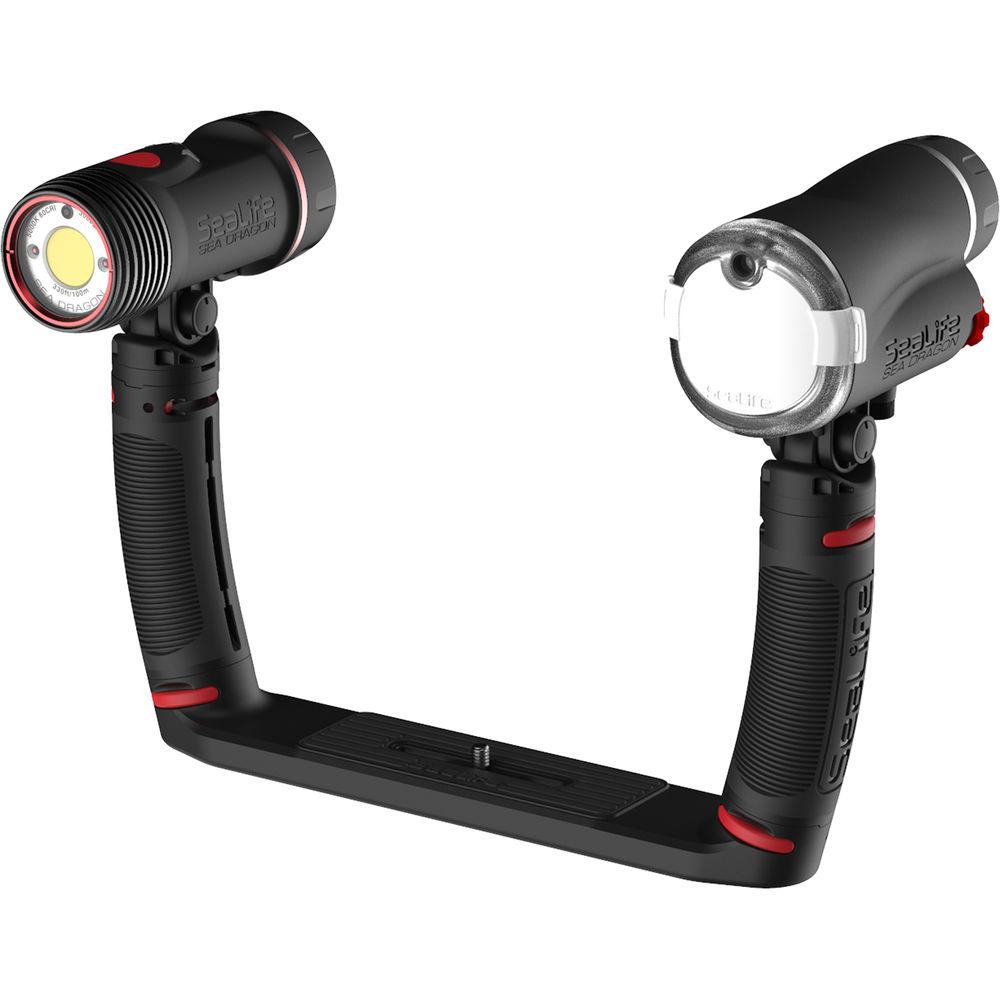

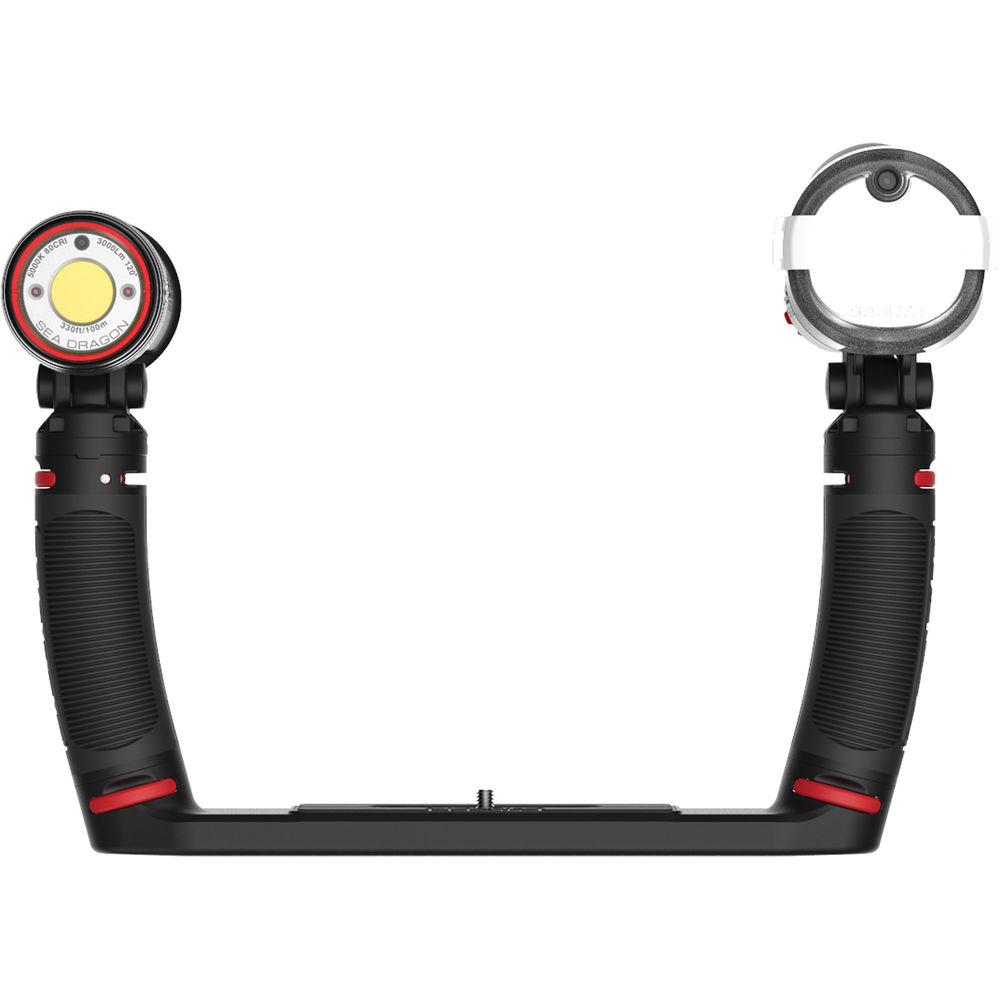

SeaLife Pro Duo 3000F Underwater Light

User Manual for SeaLife Pro Duo 3000F Underwater Light & Flash Set

• Product category: Strobe Lights SeaLife
• Brand: SeaLife
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SeaLife Strobe Lights

Product description

• Sea Dragon 3000F Auto Photo-Video Dive Light Head With its auto brightness technology, the Sea Dragon 3000F Auto Photo-Video Dive Light Head from SeaLife saves you the trouble of choosing the right output level, so you can concentrate on your subject. Aim the light at a close-up object and the output will dim to 300 lumens; aim at far away objects, and the light provides up to 3000 lumens.

  Along with Auto Bright, the Sea Dragon 3000F features flash-detect, which shuts off the light for one second when a strobe fires. You can also control the white-light output manually, with settings for 3000, 1500 and 750 lumens. There's also a 180-lumen red light setting that will protect your night acclimated vision and won't frighten away nighttime sea creatures. Run time on a fully charged battery ranges from 60-240 minutes. The light offers a 120° on land and 90° in water white-light beam angle and an 88-66° angle for the red light. The COB LED delivers a color temperature of 5000k and a color rendering index (CRI) of 80, mimicking daylight for optimal underwater illumination.

  Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes.
  Light Performance
  • • Auto brightness adjusts from 300-3000 lumens
    • Manual output selections: 750/1500/3000 lumens white light
    • 180-lumen red light for night-acclimated vision and light-shy sea creatures
    • Auto flash detect: 1-second shutoff when a strobe fires
    • Run time of 60-240 minutes with supplied lithium-ion battery
    • Beam angle is 120° on land / 90° in water (red light: 88-66°)
    • Flat panel COB LED with 5000K color temperature and CRI of 80 to mimic natural sunlight
    • Hidden SOS emergency signal mode with 1.0-sec blink interval and Morse code
  Switching System
  • • Single push-button switch for easy power on/off and cycling through output modes
  Construction Details
  • • Depth rating: 330'
    • O-rings provide watertight seal
    • Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
    • Fiber-reinforced corrosion-resistant polycarbonate body
    • Corrosion-resistant anodized aluminum light head
    • 7.4 VDC, 25Wh, 3400mAh Li-ion battery
  UPC: 077068467809
• Sea Dragon Digital Underwater Flash Head The Sea Dragon Digital Underwater Flash Head from SeaLife is a compact light source that restores colors absorbed underwater for richer, more accurate images. It has a depth rating of 200'. Auto mode automatically adjusts flash brightness for optimal image exposure, while 8-100% variable power adjustment lets you manually fine-tune brightness. Auto Learn mode helps you easily sync pre-flash with any compatible digital camera. The Sea Dragon works with all SeaLife cameras and most other underwater models with built-in flash units.

  The Sea Dragon features a guide number of 4.9-65.6', an angle of coverage of 80° horizontal x 60° vertical, and an included diffuser to widen the beam to 100°. Additionally, it has a color temperature of 5700K. Its effective underwater range is up to 8'. The unit provides about 150 flashes with four AA batteries, which are available separately. Fiber-reinforced polycarbonate construction and marine-grade, stainless steel hardware ensure durability.
  Depth Rating
  • Can be safely submerged to a maximum depth of 200'
  Guide Number
  • About 5' at low power and 66' at full power
  Variable Power Adjustment
  • 8% to 100% in auto or manual mode
  Coverage
  • 80° horizontal x 60° vertical
  Color Temperature
  • 5700K
  Power
  • Approximately 150 flashes with 4 AA batteries, which are available separately
  Quick Release
  • A convenient quick release button lets you detach the flash and hold it in your hand to illuminate hard-to-reach-places more effectively
  Construction
  • Fiber-reinforced polycarbonate housing with waterproof battery compartment and marine-grade, stainless steel hardware
  Compatibility
  • For all SeaLife cameras and most other underwater cameras with built-in flash
  UPC: 077068996316
• Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights The Flex-Connect Dual Tray from SeaLife is part of a modular underwater photography system designed for improved handling, customizable setups and easy travel. It features a standard 1/4"-20 mounting screw for a compact camera in its waterproof housing, such as the SeaLife DC1400, as well as 2 mounting points for optional, ergonomic grips and #SL9901 flex arms for flash units or video lights. The Sea Dragon Digital Underwater Flash and Sea Dragon 1200 and 2000-Lumen LED Lights are compatible. Additionally, an optional adapter allows you to use your SL980 light or SL961 strobe. The arm easily clicks into place on top of the optional grip, which clicks into the tray, and the setup is just as easily disassembled with the push of a button. The durable Dual Tray is constructed from fiber-reinforced polycarbonate and marine-grade stainless steel. UPC: 077068499046
• Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays This Flex-Connect Grip from SeaLife is a rubber-armored grip that clicks directly into any Flex-Connect underwater camera tray and accepts all Flex-Connect accessories, including lighting arms. It affords comfort and improved handling beneath the water's surface. The ridges down the sides give you a secure hold. UPC: 077068499053

• SL9831 Rechargeable Lithium-Ion Battery (7.4V, 3400mAh)

• AC Power Adapter for SL98311 Battery Charging Tray

• International Plug Adapters

• Limited 1-Year Warranty

• SL96201 Optical Cable

• Universal Flash Link Adapter for Sea Dragon Digital Underwater Flash

• SL96307 Optical Cable Plug for Olympus, Sea&Sea, Other Housings with 7mm Port

• SL96303 Spare O-ring Set

• SL9807 O-Ring Lubricant

• SL9808 O-Ring Removal Tool

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sea Dragon 3000F Auto Photo-Video Dive Light Head

  Depth Rating	330' / 100 m
  Light Source	White: 1 x BridgeLux Gen 7 Vero LED array Red: 2 x Cree XP-E red LED
  Light Intensity	White: 300-3000 lumens (auto), 750/1500/3000 lumens (manual) Red: 180 lumens
  Beam Angle	White: 120° on land, 90° in water Red: 88° on land, 66° in water
  Color Temperature	5000K
  CRI	80
  Run Time	60/120/240 minutes
  Material of Construction	Body: Fiber-reinforced polycarbonate Light Head: Anodized aluminum
  Power	7.4 V, 3400 mAh, 25 Wh lithium-ion rechargeable battery (included)
  Charge Time	170 minutes
  LED Lifetime	35000 h
  Buoyancy	Negative
  Dimensions	5.1 x 2.2 4.1" / 13.0 x 5.6 x 10.4 cm
  Weight	14.4 oz / 408 g

  Box Dimensions (LxWxH)	8.7 x 7.0 x 3.55"

• Sea Dragon Digital Underwater Flash Head

  Configuration	Flash head
  Guide No.	Low Power: 4.9' / 1.5 m Full Power: 65.6' / 20 m
  Power Adjustment Range	8-100%
  Coverage Angle	80° horizontal x 60° vertical
  Depth Rating	200' / 61 m
  Exposure Control	Auto, manual
  Color Temperature	5700K
  Recycle Time	1 sec at less than 1/2 power 5 sec at full power
  Flashes	150 flashes with 4 AA batteries (sold separately)
  Buoyancy	Negative
  Power	4 x AA batteries (sold separately, NiMH recommended)
  Construction	Housing: fiber-reinforced polycarbonate Hardware: marine-grade stainless steel O-rings: nitrile rubber (NBR)
  Dimensions	5.0 x 4.5 x 2.5" / 12.7 x 11.4 x 6.4 cm
  Weight	10 oz / 509 g with batteries

  Box Dimensions (LxWxH)	7.75 x 6.45 x 3.75"

• Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights

  Construction	Fiber-reinforced polycarbonate Marine-grade stainless steel
  Mounting Screw	1/4"-20

  Box Dimensions (LxWxH)	13.9 x 3.4 x 0.5"

• Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays

  Material of Construction	Rubber
  Dimensions	8.1 x 3.0" / 20.7 x 7.5 cm

  Box Dimensions (LxWxH)	9.4 x 3.4 x 0.3"
