User Manual for SeaLife Sea Dragon 1500 Photo-Video Dive Light Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 1500 Photo-Video Dive
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
|
User manual for the SeaLife Sea Dragon 1500 Photo-Video Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

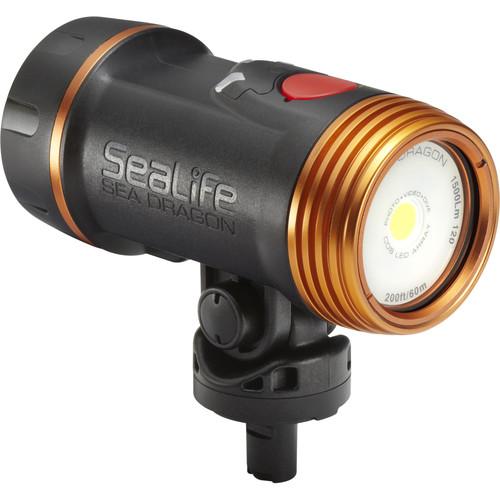

Product description Brighten the underwater world at depths up to 200' with the Sea Dragon 1500 Photo-Video Dive Light from SeaLife. Its single LED outputs 375-1500 lumens in three power settings. The runtime varies from 70-280 min with the included lithium-ion battery, which is recharged using the supplied dual-voltage AC adapter with international plugs for worldwide use. The beam features a very wide angle of coverage of 120°, allowing you to illuminate shipwrecks, schools of fish, broad sections of coral reefs, and other wonders of the sea. A color temperature of 5700K and a color rendering index (CRI) of 80 make the light daylight-balanced.
With an anodized aluminum head and fiber-reinforced polycarbonate body, the Sea Dragon 1500 is corrosion-resistant for durability. The light is compatible with SeaLife's optional Flex-Connect Micro Tray and Grip, as well as their optional GoPro camera adapter. - Light Performance
-
- Source: Chip-on-board (COB) LED array
- Output: 375, 750, and 1500 lumens
- Run Time: 70 min at full power, 140 min at 50% power, and 280 min at 25% power with included 7.4V, 3400mAh lithium-ion battery
- Coverage: Wide 120° beam angle illuminates subjects smoothly and evenly with no hot spots
- Color Temperature: Daylight-balanced at 5700K
- Color Rendering Index (CRI): 80, out of 100, meaning the light's ability to show objects' colors naturally is about 80% as good as daylight's
- Switching
-
- One-button control
- Push and hold for 1 sec to power light on/off
- Push and release quickly to cycle through outputs
- Hidden emergency signal mode with 1-sec blink interval and SOS Morse code activated by pushing and holding for 4 sec
- Construction Details
-
- Depth Rating: 200'
- Isolated, waterproof battery compartment--so even if O-ring seal fails, water cannot reach internal electronics
- Anodized aluminum head and fiber-reinforced polycarbonate body for corrosion resistance
- Aluminum also allows for heat dispersion
- Bundled Accessories
-
- 100-240 VAC power adapter with set of international adapter plugs enables use all over the world
- Optional Accessories
-
- SeaLife's Flex-Connect Micro Tray and Grip for adding the light to your modular underwater camera system
- Quick-release button allows you to detach light from grip with ease for regular handheld use
- Flex-Connect system is easy to expand with other accessories in the line, including arms, YS adapters, and other mounts
- GoPro camera adapter allows you to connect a GoPro action cam to certain Flex-Connect mounts/accessories
UPC: 077068967224 In the Box SeaLife Sea Dragon 1500 Photo-Video Dive Light SL9831 Rechargeable Lithium-Ion Battery (7.4V, 3400mAh) AC Power Adapter for SL98311 Battery Charging Tray Charging Tray for SL9831 Rechargeable Li-Ion Battery for Sea Dragon Lights SL98306 Set of International Plug Adapters SL98303 Set of Spare NBR O-Rings SL9807 Tube of O-Ring Lubricant SL9808 O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 1500 Photo-Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL6722 Specs | Depth Rating | 200' / 60 m | | Light Source | 1x COB LED array | | Light Output | 100%: 1500 lumens
50%: 750 lumens
25%: 375 lumens | | Beam Angle | 120° | | Color Temperature | 5700 K | | CRI | 80 | | Run Time | 100% power: 70 min
50%: 140 min
25%: 280 min | | Switching System | Single push-button for power on/off and changing modes | | Material of Construction | Head: Anodized aluminum
Body: Fiber-reinforced polycarbonate | | Buoyancy | Negative | | Battery | Supplied lithium-ion cell (7.4 V, 3400 mAh, 25 Wh) | | Charge Time | 170 min with supplied charger | | LED Lifetime | 35,000 hr | | Operating Temperature | Not specified by manufacturer | | Dimensions | 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm | | Weight | 13 oz / 371 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.5 x 6.8 x 3.7" |
