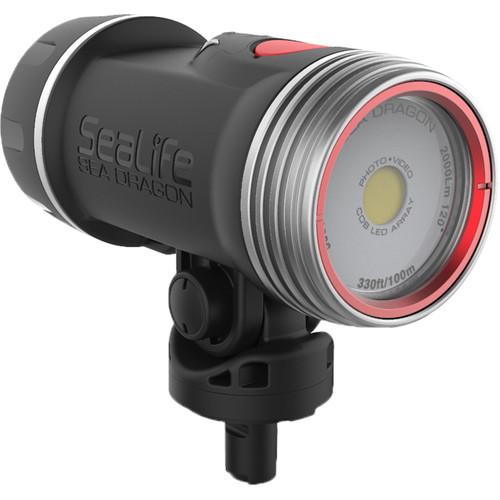

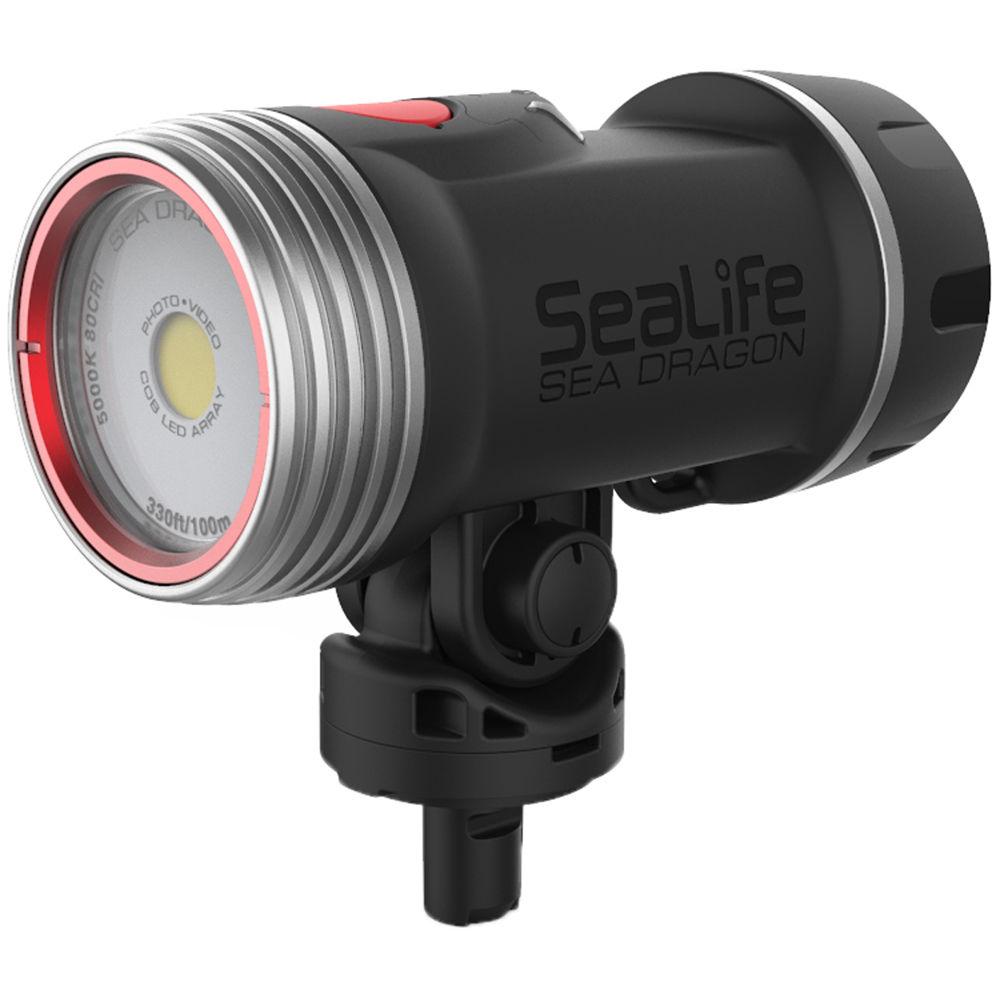

Product description Illuminate the underwater world at depths down to 200' with the Sea Dragon 2000F Photo-Video LED Dive Light with Tray and Grip from SeaLife. It features three outputs from 500-2000 lumens for a run time of 60-240 min with the supplied lithium-ion battery. The light offers a very wide 120° beam angle, which makes it suitable for use as a main photo/video and primary dive light. The COB LED delivers a color rendering index (CRI) of 80, mimicking daylight for optimal underwater illumination.
Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light and can be connected to the supplied Flex-Connect Tray. There is also an adapter for GoPro action cameras bundled with this kit. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel. - Light Performance
-
- Three outputs from 625-2500 lumens
- Run time of 60-240 minutes with supplied lithium-ion battery
- Wide 120° beam angle

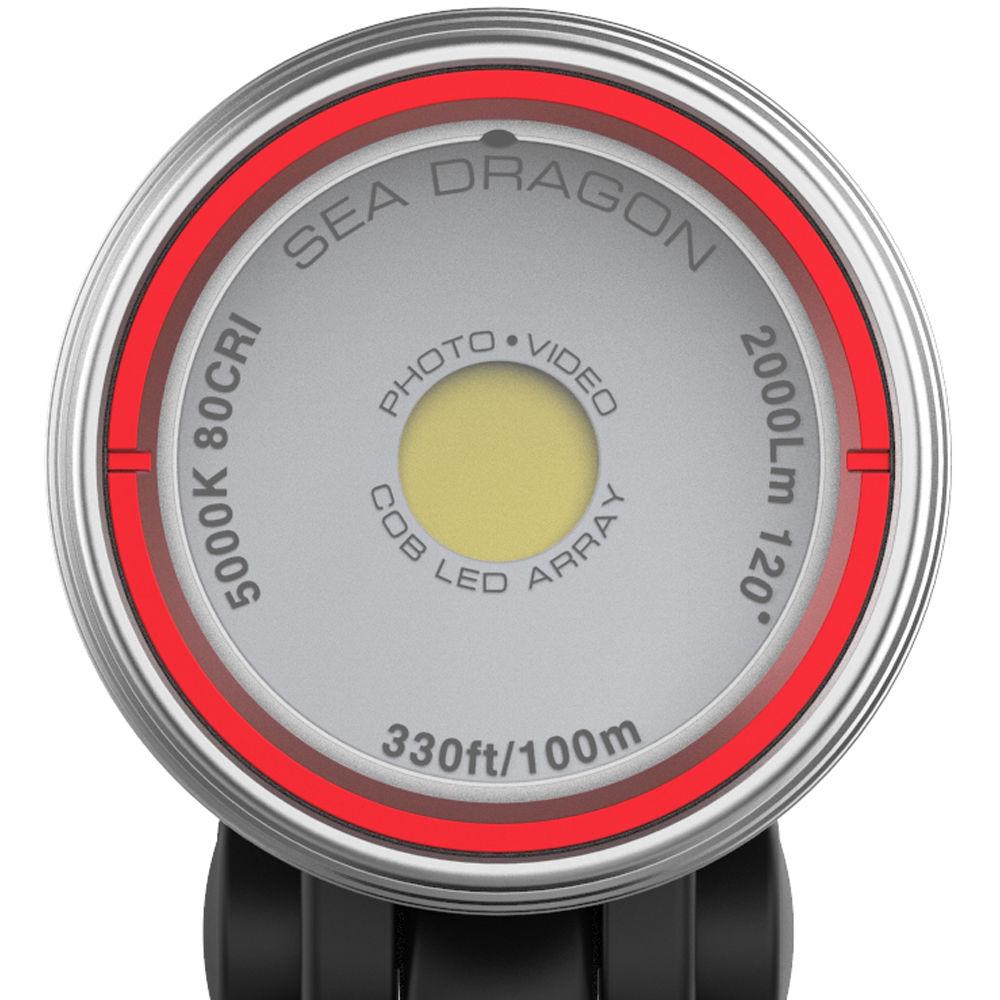

- Flat panel COB LED with 5000K color temperature and CRI of 80 to mimic natural sunlight
- Hidden SOS emergency signal mode with 1.0-sec blink interval and Morse code
- Switching System
-
- Single push-button switch for easy power on/off and cycling through output modes
- Construction Details
-
- Depth rating: 200'
- O-rings provide watertight seal
- Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
- Fiber-reinforced corrosion-resistant polycarbonate body
- Corrosion-resistant anodized aluminum light head
- Mounting
-

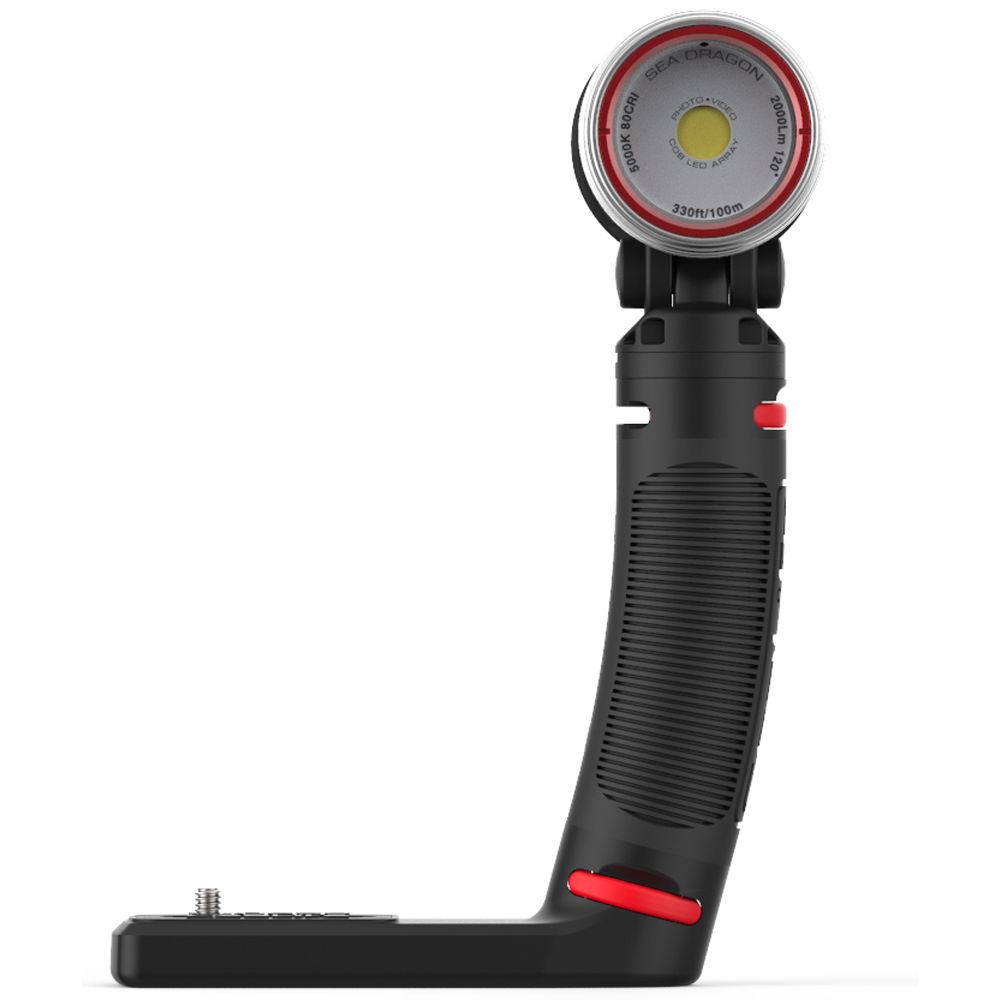

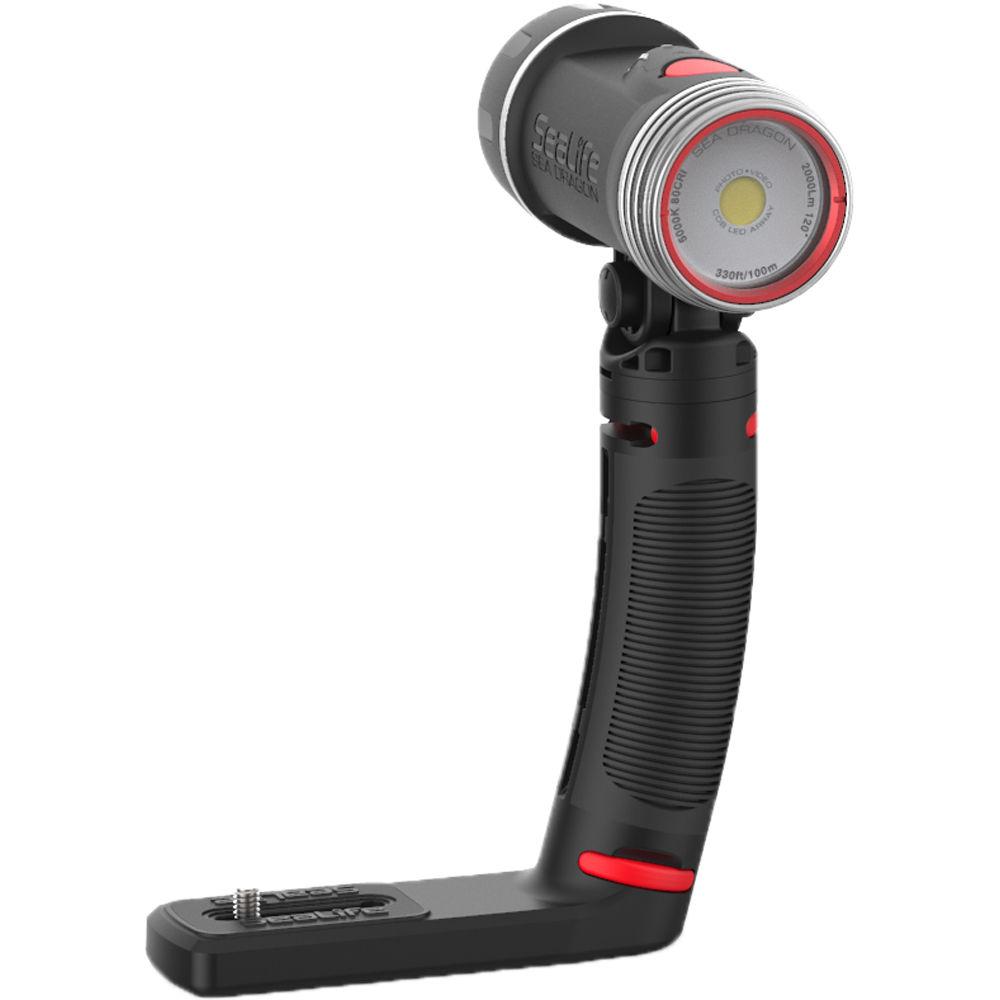

- Flex-Connect Grip and Micro Tray
- Quick release button to detach light for aiming into crevices and other hard-to-reach areas

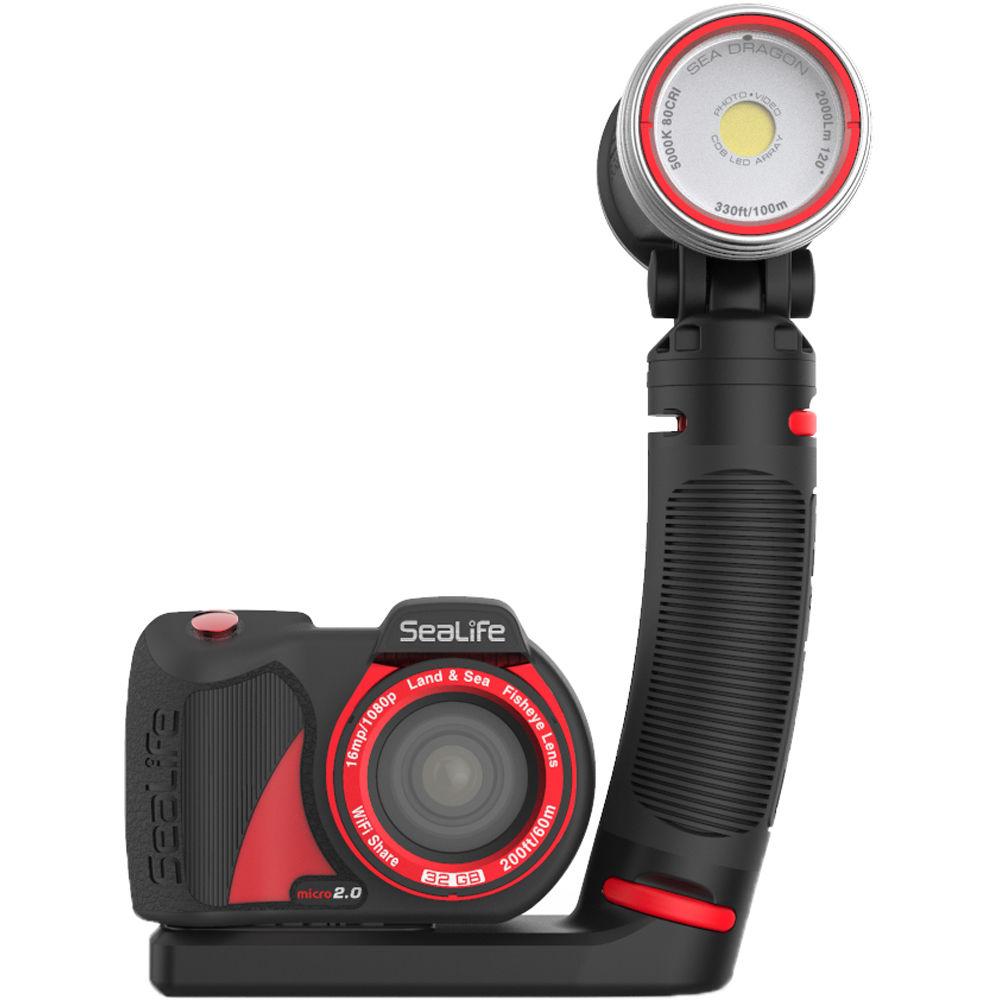

- Tray has universal 1/4"-20 mounting screw for camera/housing
- Adapter for GoPro action cameras
UPC: 077068416777 In the Box SeaLife Sea Dragon 2000F Photo-Video Dive Light Flex-Connect Micro Tray with Mounting Screw for Compact Cameras Flex Connect Grip SL9831 Rechargeable Lithium-Ion Battery (7.4V, 3400mAh) AC Power Adapter for SL98311 Battery Charging Tray cfeeyfzxwdvzxvvzbysecawwzsafb International Plug Adapters Adapter for GoPro cameras with Acorn Nut Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 2000F Photo-Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife Sea Dragon 2000F Specs | Depth Rating | 200' / 60 m | | Light Source | Cree CXA1816 P4 36V COB LED array | | Light Intensity | 2000/1000/500 lumens | | Beam Angle | 120° | | Effective Range | 3' / 1 m, depending on camera model & visibility | | Color Temperature | 5000K | | CRI | 80 | | Run Time | 60/120/240 minutes | | Material of Construction | Body: Fiber-reinforced polycarbonate
Light Head: Anodized aluminum | | Power | 7.4 V, 3400 mAh, 25 Wh lithium-ion rechargeable battery (included)
AC adapter, charging tray, and international plug adapters (included) | | Charge Time | Approx. 170 minutes | | LED Lifetime | 35,000 hours | | Buoyancy | Negative | | Dimensions | Light Head Only: 4.8 x 2.2 x 4.1" / 12.2 x 5.6 x 10.4 cm | | Weight | Light Head Only: 13 oz / 370 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.8 x 8.1 x 3.2" |
