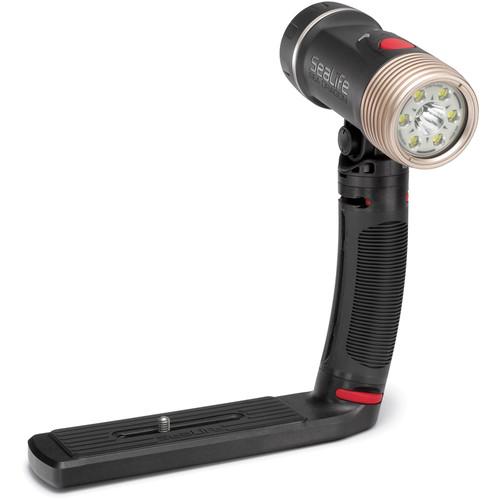

User Manual for SeaLife Sea Dragon 2100 Photo and Video LED Dive Light with Tray and Grip Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 2100 Photo and
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
|
User manual for the SeaLife Sea Dragon 2100 Photo and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths up to 200' with the Sea Dragon 2100 Photo and Video LED Dive Light from SeaLife. It has two beams, the first of which has a wide 100° angle for flood coverage and the second of which offers a 15° angle for concentrated spot coverage. These dual beams let you use the 2100 as a main photo/video, focus, primary dive, or backup dive light. Brighten up wide-angle stills and videos with the flood, and utilize the spot for pinpoint accuracy and increased range. At 5300-5700K, the color temperature is daylight-balanced to bring out the natural colors of subjects. Seven LEDs offer 3 flood outputs from 525-2100 lumens and a spot output of 800 lumens, for a 60-240 min run time using the supplied li-ion battery.
Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light, and can be connected to the supplied Flex-Connect tray. There is also an adapter for GoPro action cameras in this package. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel. - Light Performance
-
- Three Outputs for Flood: 525, 1050, and 2100 lumens
- One Output for Spot: 800 lumens
- Run time of 60-240 min using supplied li-ion battery
- Dual Beams: Wide flood with 100° coverage angle and tight, concentrated spot with 15° angle
- Use as a main photo/video, focus, primary dive, or backup dive light
- Light up wide-angle still shots and videos with flood beam, and utilize spot for pinpoint accuracy and increased range
- 5300-5700K color temperature is approximately daylight-balanced to help bring out natural colors of subjects
- Seven 3.0 W CREE XML2 LEDs
- Features SOS emergency signal mode with 1-sec blink interval and Morse code
- Switching System
-
- Single push-button switching system makes it easy to power on/off and cycle through output modes
- Construction Details
-
- Depth Rating: 200'
- Sealed via dual NBR O-rings
- Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, water cannot reach internal electronics
- Features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion
- Mounting
-
- Included Flex-Connect Grip gives you a mounting point for light, and can be connected to supplied Flex-Connect tray
- Quick-release button to detach light from grip so you can aim it into crevices and other areas that are hard to reach
- Universal 1/4"-20 mounting screw on tray for attaching camera/housing
- Adapter for GoPro cameras with acorn nut
- These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
UPC: 077068416708 In the Box SeaLife Sea Dragon 2100 Photo and Video LED Dive Light with Tray and Grip Flex-Connect Single Tray with Mounting Screw Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays Lithium-Ion Rechargeable Battery (7.4V, 3400mAh, 25Wh) AC Power Adapter with Charging Tray International Plug Adapters for Worldwide Use Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 2100 Photo and Video LED Dive Light with Tray and Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL670 Specs | Configuration | Light head with tray and grip handle | | Depth Rating | 200' / 60 m | | Light Source | 7x 3.0 W CREE XML2 LEDs | | Light Intensity | 25% Flood: 525 lumens
50% Flood: 1050 lumens
100% Flood: 2100 lumens
Spot: 800 lumens | | Beam Angle | Flood: 100°
Spot: 15° | | Effective Range | Approx. 4' / 1.2 m | | Color Temperature | 5300-5700 K | | Run Time | 100%: 60 min
50%: 120 min
25%: 240 min | | Switching System | Push-button for power, mode selection, beam switching
Long push (1.0 sec) to power on/off
Short push to cycle through modes: 100% Flood → 50% Flood → 25% Flood → 100% spot
Long push to access emergency signal mode | | Material of Construction | Light Head: Anodized aluminum
Body: Fiber-reinforced polycarbonate | | Mounting | Flex-Connect tray and grip (included)
Adapter for GoPro cameras (included) | | Power | 7.4 V, 3400 mAh, 25 Wh lithium-ion battery (included)
AC Power Adapter, charging tray, and international plug adapters (included) | | Charge Time | 170 min | | LED Lifetime | 35,000 hr | | Operating Temperature | Not specified by manufacturer | | Buoyancy | Negative | | Dimensions | 5.1 x 2.2 x 3.8" / 13 x 5.6 x 9.7 cm | | Weight | 1.0 lb / 0.45 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.0 x 10.3 x 3.9" |
