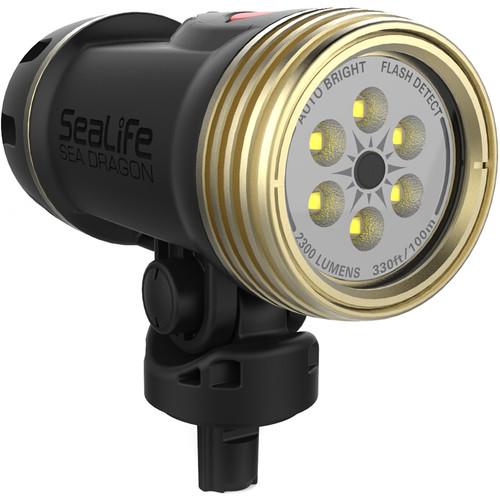

User Manual for SeaLife Sea Dragon 2300 Auto Photo-Video LED Dive Light Head Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 2300 Auto Photo-Video
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
|
User manual for the SeaLife Sea Dragon 2300 Auto Photo-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths up to 330' with the Sea Dragon 2300 Auto Photo-Video LED Dive Light Head from SeaLife. It features four outputs from 230 to 2300 lumens and offers a run time of 60 to 600 minutes using the supplied lithium-ion battery. The light offers a 75° beam angle underwater and 100° above the surface, making it suitable for use as a main photo/video and primary dive light. Brighten up wide-angle stills and videos and restore rich, natural colors with the daylight-balanced 5000-6000K beam.
Built for durability, the light head is made largely of polycarbonate and features an anodized aluminum front end. Both of these materials are corrosion-resistant. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The optional Flex-Connect Grip gives you a mounting point for the light and can be connected to the optional Flex-Connect Tray. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel. - Light Performance
-
- Light source: 6 CREE XP-L LEDs
- Four outputs: Manual mode at 575 (25%), 1150 (50%), or 2300 lumens (100%), and Auto mode from 230 (10%) to 2300 lumens (100%)
- Auto mode adjusts output automatically based on proximity to subject, in order to conserve battery life and help you maintain your natural low-light vision
- Run time of 60 minutes on full power at constant brightness with supplied lithium-ion battery, which features capacity of 3400mAh
- Additional run times: 120 minutes on 50% power, 240 minutes on 25%, and 600 minutes on 10%
- Built-in photocell light sensor
- Provides 75° angle of coverage underwater and 100° above the surface, so it's suitable for use as a main photo/video and primary dive light
- Evenly illuminates subject with no hot spots
- Daylight-balanced 5000-6000K color temperature and color rendering index 70 allow beam to restore subjects' rich, natural colors for greater vibrancy and accuracy in images
- Auto Flash Detect Mode turns light off for 2 sec when external flash is detected
- Switching System
-
- Single push button on light head makes it easy to power on/off and cycle through output modes
- Construction Details
-
- Depth rating: 328'
- Waterproof compartment for removable battery ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
- Made largely of polycarbonate but has anodized aluminum front end. These materials are both corrosion-resistant for durability
- Aluminum head also helps disperse heat
- Mounting
-
- The optional Flex-Connect Grip gives you a mounting point for light and can be connected to optional Flex-Connect Tray
- Tray has standard 1/4"-20 tripod screw for camera/housing
- Accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
- Quick-release button detaches light from optional grip for aiming in hard-to-reach places
- Optional, versatile flex arms available
UPC: 077068967408 In the Box SeaLife Sea Dragon 2300 Auto Photo-Video LED Dive Light Head Lithium-Ion Rechargeable Battery (7.4V, 3400mAh) AC Power Adapter Charging Tray Set of International Adapter Plugs Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 2300 Auto Photo-Video LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL6740 Specs | Configuration | Light head | | Depth Rating | 328' / 100 m | | Light Source | 6 x CREE XP-L LEDs | | Light Intensity | Manual Mode:
25%: 575 lumens
50%: 1150 lumens
100%: 2300 lumens
Auto Mode:
10%-100%: 230-2300 lumens | | Beam Angle | Underwater: 75°
Above Water: 100° | | Color Temperature | 5000-6000K | | CRI | 70 | | Run Time | 100% Power: 60 minutes
50% Power: 120 minutes
25% Power: 240 minutes
10%: 600 minutes | | Switching System | Single push-button on head | | Material of Construction | Polycarbonate
Front end of head is anodized aluminum | | Mounting | Flex-Connect Grip (optional)
Flex-Connect Tray with standard 1/4"-20 tripod screw (optional) | | Power | Lithium-ion battery with 7.4 V output power, 3400 mAh capacity, 25 Wh rating (included) | | Dimensions | 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.5 x 6.8 x 3.7" |
