User Manual for SeaLife Sea Dragon 2500 Photo and Video LED Dive Light Head Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 2500 Photo and
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon 2500 Photo and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

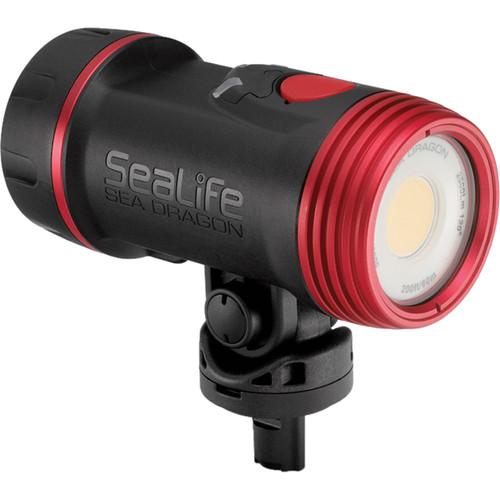

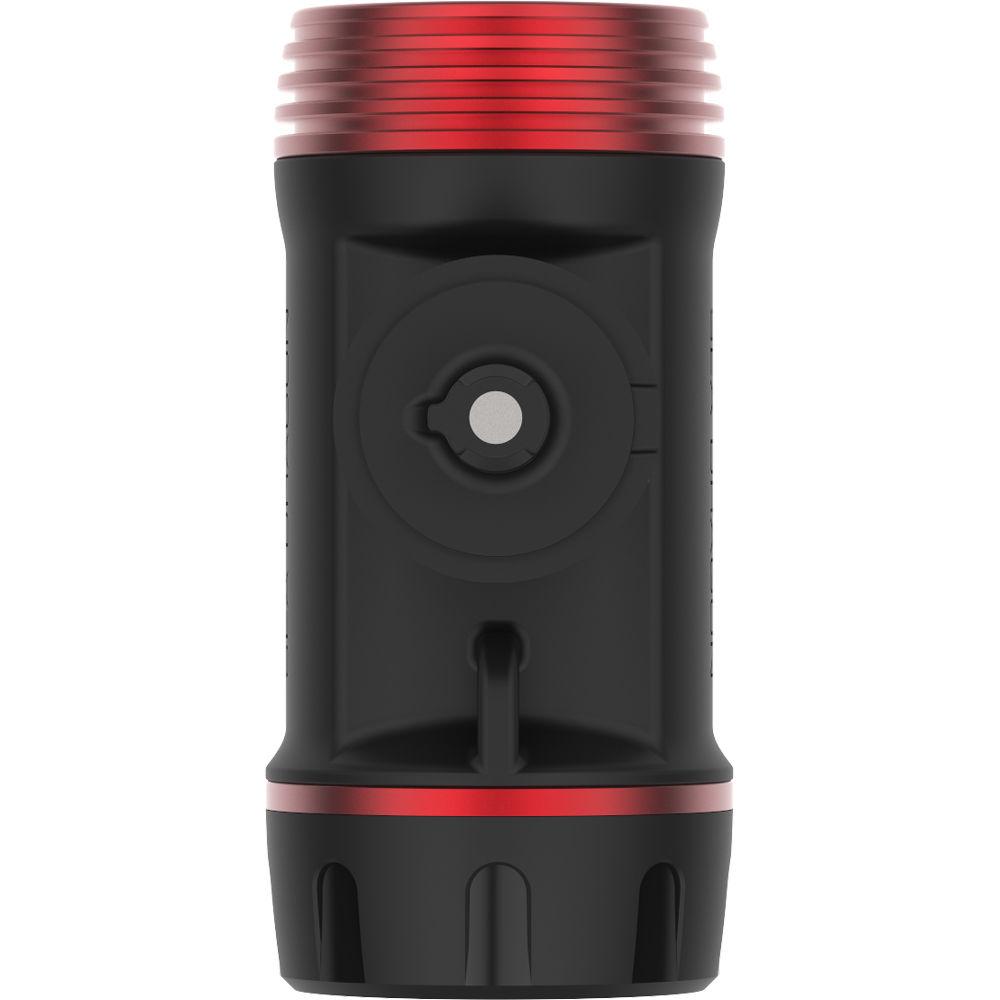

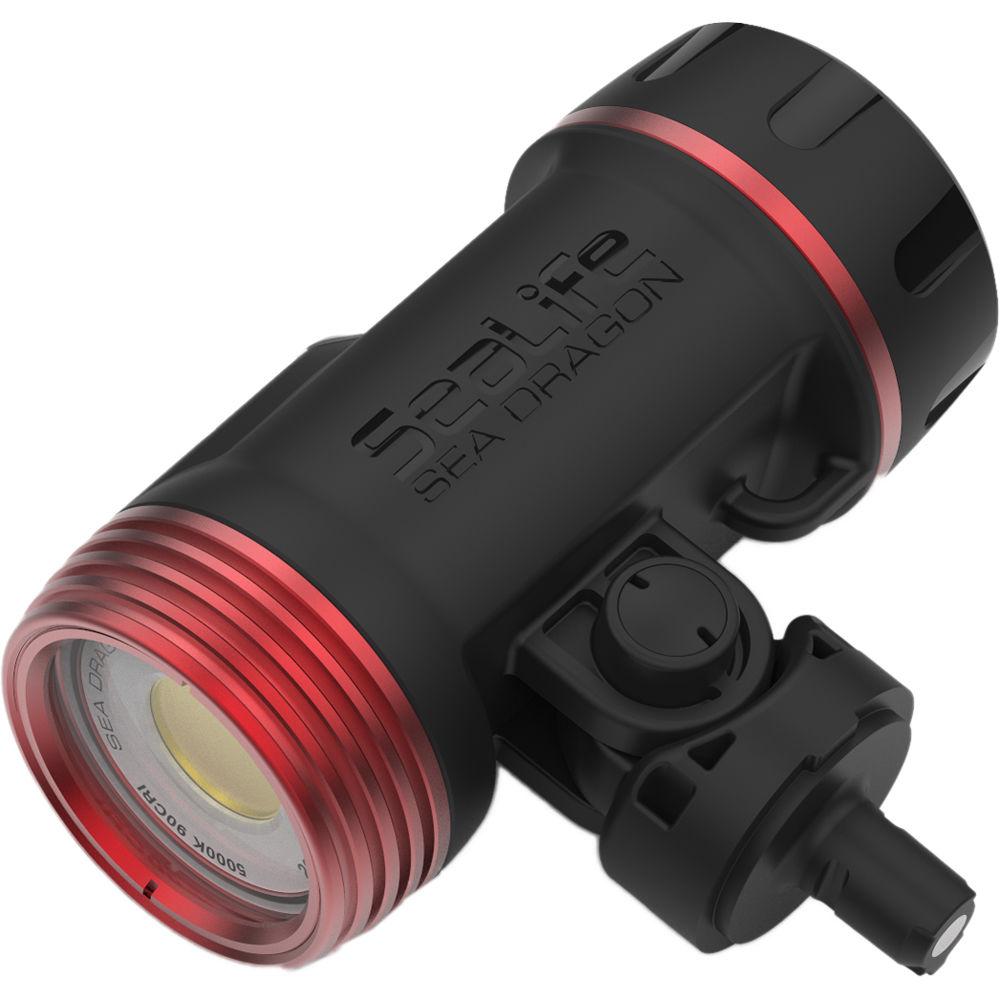

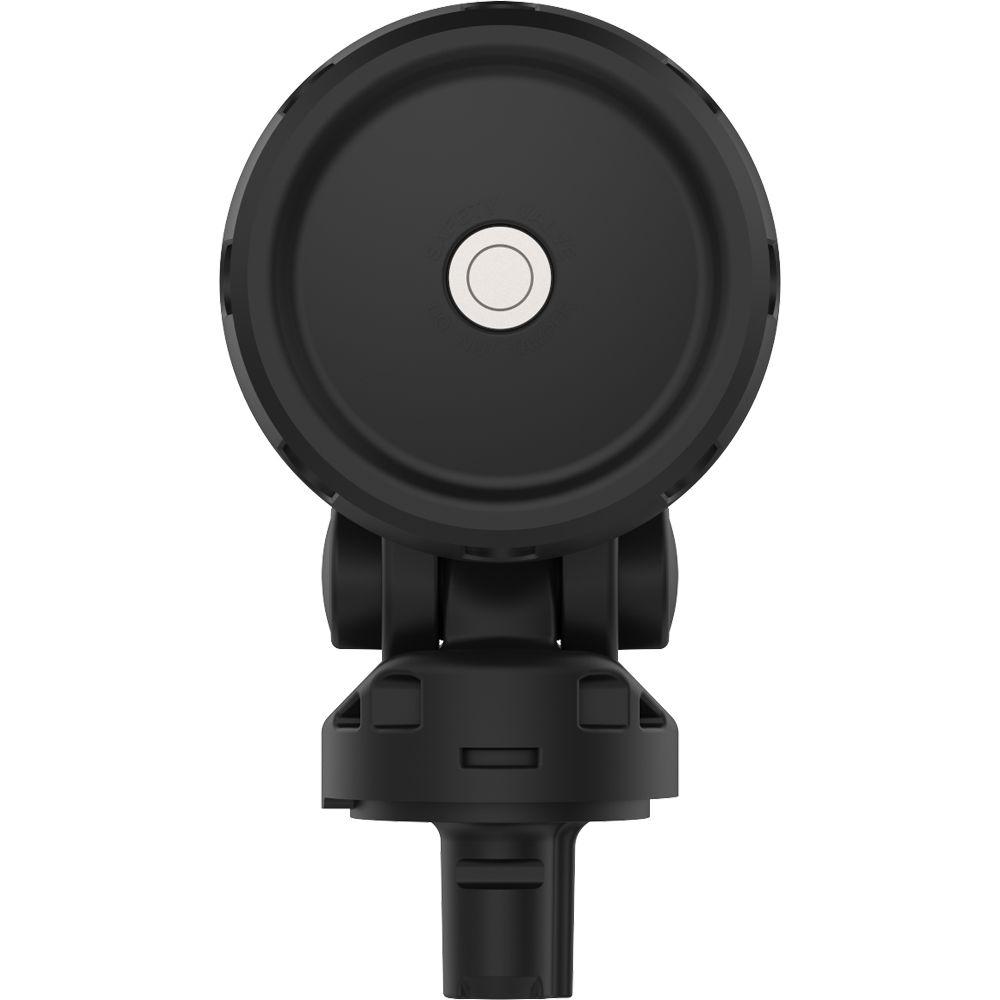

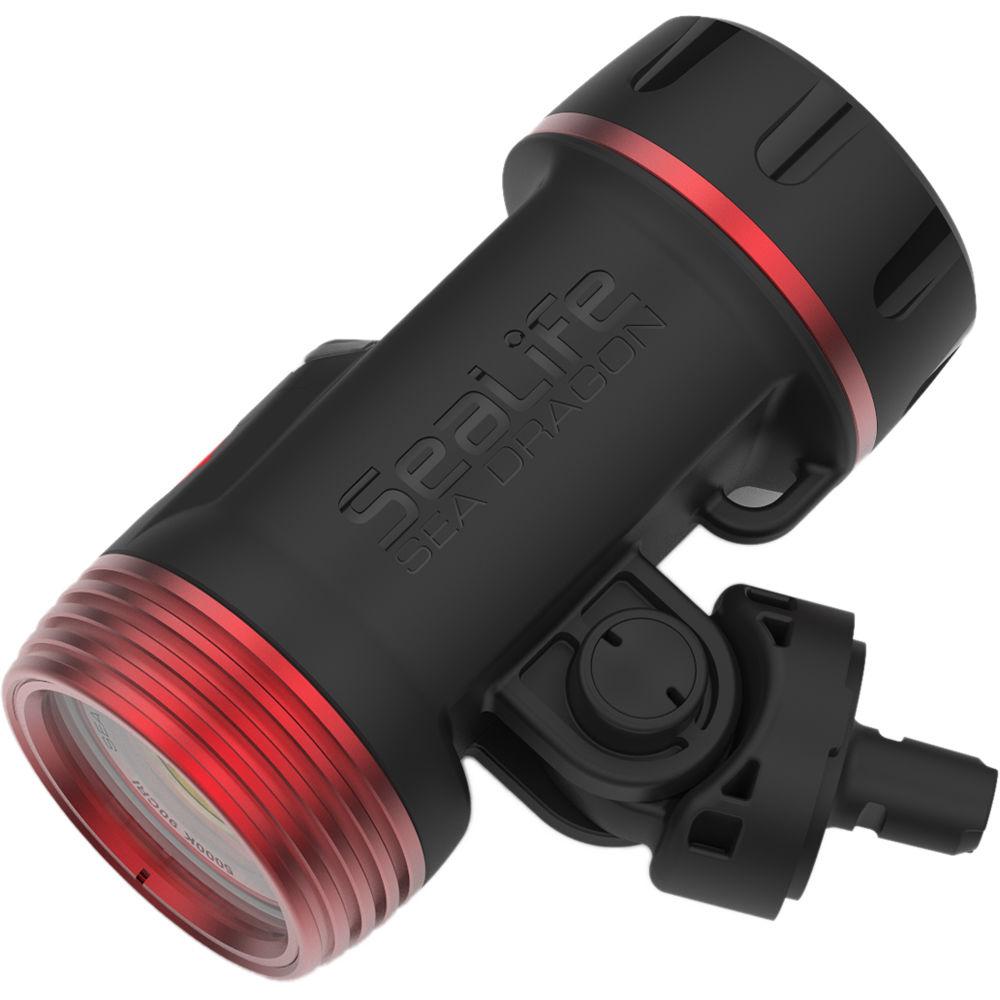

Product description Illuminate the underwater world at depths up to 200' with the Sea Dragon 2500 Photo and Video LED Dive Light Head from SeaLife. It features three outputs from 625-2500 lumens for a run time of 60-240 min with the supplied lithium-ion battery. The light offers a very wide 120° beam angle, which makes it suitable for use as a main photo/video and primary dive light. Brighten up wide-angle stills and videos and restore rich, natural colors with this nearly daylight-balanced 5000K flood beam.
Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The optional Flex-Connect Grip gives you a mounting point for the light and can be connected to the optional Flex-Connect Tray. There is also an available adapter for GoPro action cameras. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel. - Light Performance
-
- Three outputs from 625-2500 lumens
- Run time of 60-240 min with the supplied lithium-ion battery
- Very wide 120° beam angle, which makes it suitable for use as a main photo/video and primary dive light
- Evenly illuminates subject with no hot spots
- Restore rich, natural colors thanks to a flat panel COB LED, which offers a nearly daylight-balanced 5000K color temperature and a high color rendering index (CRI) of 90 to mimic natural sunlight closely
- Hidden SOS emergency signal mode with 1.0-sec blink interval and Morse code
- Thermal sensor will automatically dim light if internal temperatures reaches 149°F/65°C, in order to prevent overheating
- For prolonged use, it's recommended that you keep light underwater, as it's not designed to handle extended operation above surface
- Switching System
-
- Single push-button switch for easy power on / off and cycling through output modes
- Construction Details
-
- Depth rating: 200'
- Dual NBR O-rings provide watertight seal
- Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
- Fiber-reinforced polycarbonate body, which is resistant to corrosion
- Anodized aluminum light head that also resists corrosion
- Mounting
-
- Optional Flex-Connect Grip gives you a mounting point for the light and can be connected to the optional Flex-Connect Tray
- Quick-release button to detach light for aiming into crevices and other hard-to-reach areas
- Tray has universal 1/4"-20 mounting screw for camera/housing
- Available adapter for GoPro action cameras is also recommended
- These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
UPC: 077068967125 In the Box SeaLife Sea Dragon 2500 Photo and Video LED Dive Light Head Lithium-Ion Rechargeable Battery AC Power Adapter with Charging Tray International Plug Adapters Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 2500 Photo and Video LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL6712 Specs | Configuration | Light head only | | Depth Rating | 200' / 60 m | | Light Source | 1x Vero 18 COB LED bulb | | Light Intensity | 25%: 625 lumens
50%: 1250 lumens
100%: 2500 lumens | | Beam Angle | 120° | | Effective Range | Approx. 3.9' / 1.2 m | | Color Temperature | 5000 K | | CRI | 90 | | Run Time | 100%: 60 min
50%: 120 min
25%: 240 min | | Switching System | Single push-button for power and mode switching
Long push (1.0 sec) to power on/off
Short push to cycle through output levels: 100% → 50% → 25%
Long push activates emergency signal mode | | Material of Construction | Body: Fiber-reinforced polycarbonate
Light Head: Anodized aluminum | | Mounting | Flex-Connect tray and grip (not included)
Adapter for GoPro cameras (not included) | | Power | 7.4 V, 3400 mAh, 25 Wh lithium-ion rechargeable battery (included)
AC adapter, charging tray, and international plug adapters (included) | | Charge Time | Approx. 170 min | | LED Lifetime | 35,000 hr | | Buoyancy | Negative | | Dimensions | 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm | | Weight | 13.1 oz / 371 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.5 x 6.9 x 3.7" |
