User Manual for SeaLife Sea Dragon 3000F Auto Photo-Video Dive Light Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 3000F Auto Photo-Video
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon 3000F Auto Photo-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

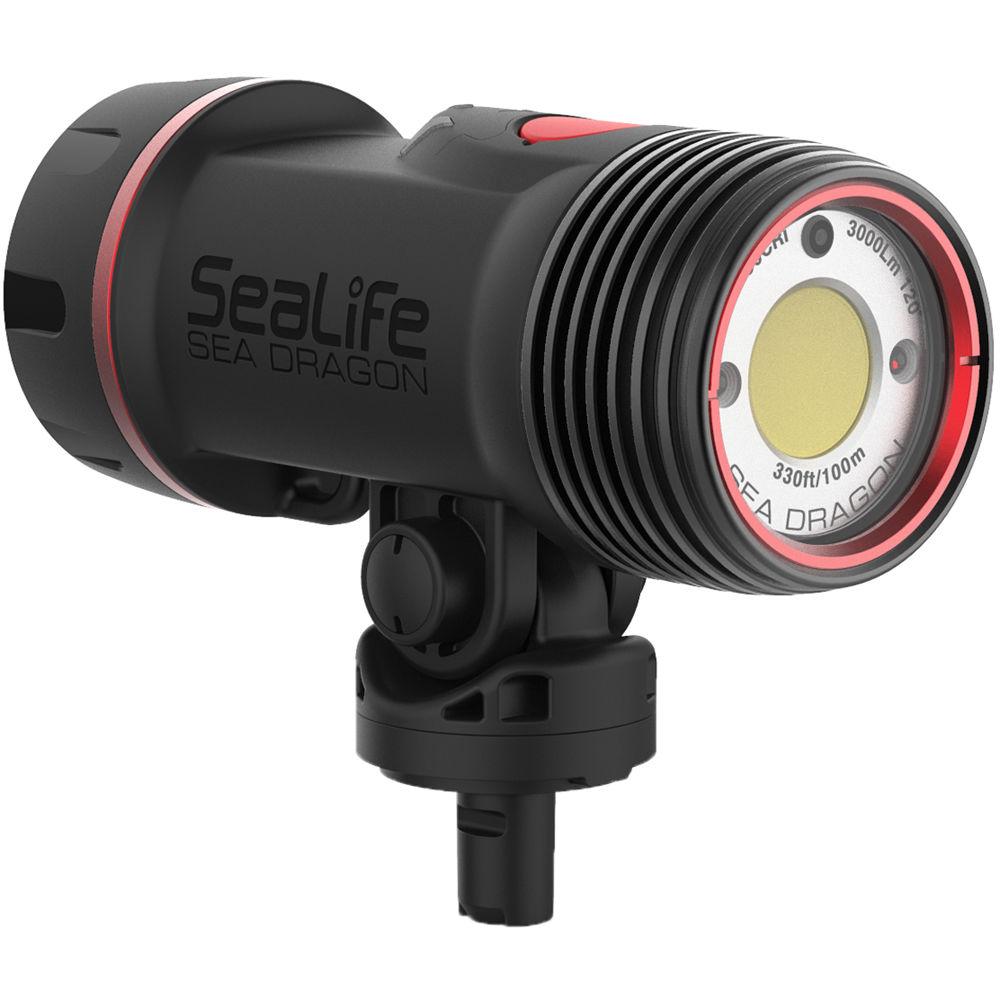

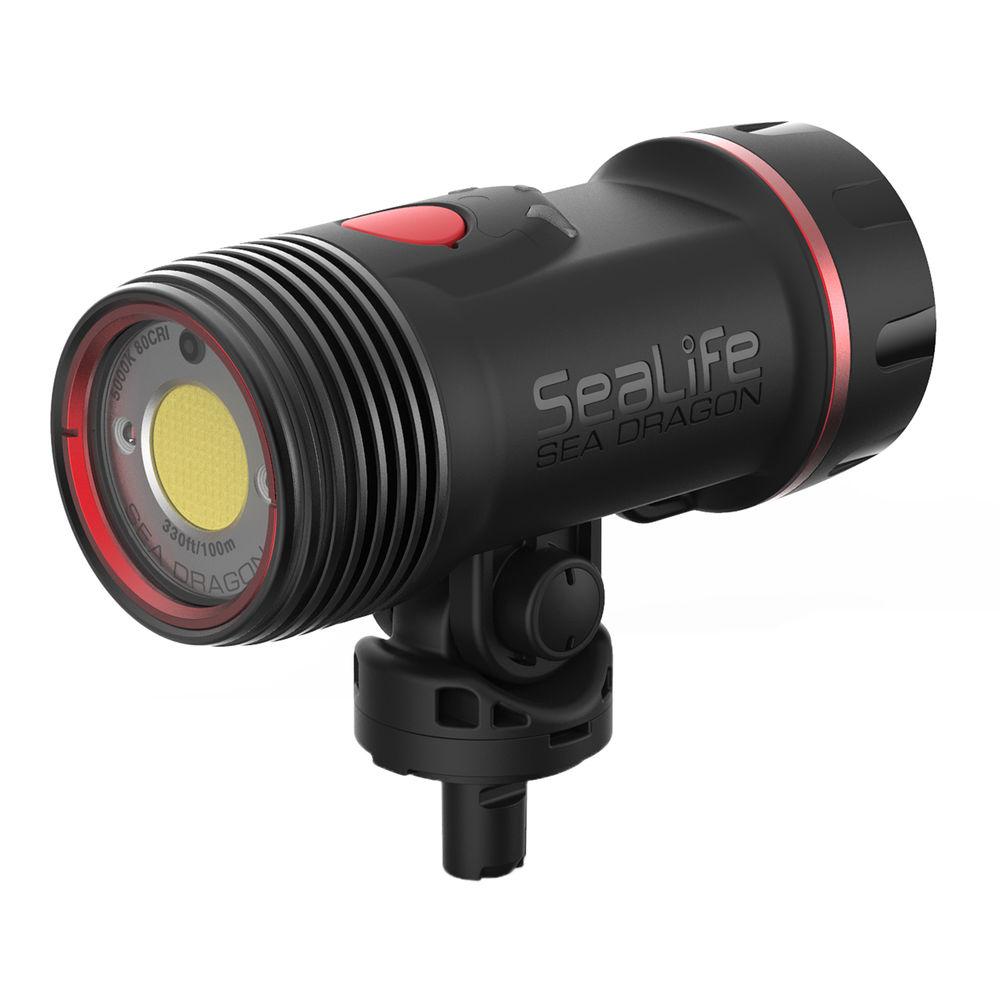

Product description With its auto brightness technology, the Sea Dragon 3000F Auto Photo-Video Dive Light from SeaLife saves you the trouble of choosing the right output level, so you can concentrate on your subject. Aim the light at a close-up object and the output will dim to 300 lumens; aim at far away objects, and the light provides up to 3000 lumens.
Along with Auto Bright, the Sea Dragon 3000F features flash-detect, which shuts off the light for one second when a strobe fires. You can also control the white-light output manually, with settings for 3000, 1500 and 750 lumens. There's also a 180-lumen red light setting that will protect your night acclimated vision and won't frighten away nighttime sea creatures. Run time on a fully charged battery ranges from 60-240 minutes. The light offers a 120° on land/90° in water white-light beam angle and an 88-66° angle for the red light. The COB LED delivers a color temperature of 5000k and a color rendering index (CRI) of 80, mimicking daylight for optimal underwater illumination.

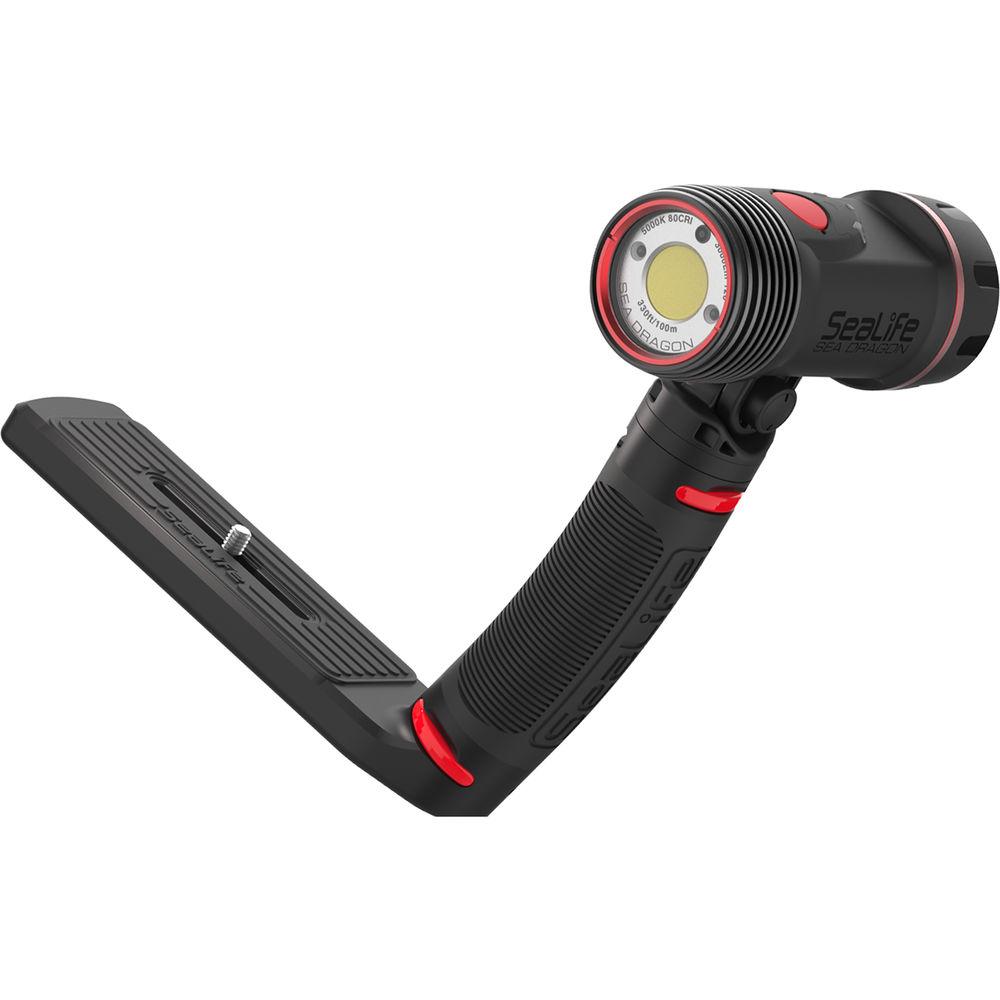

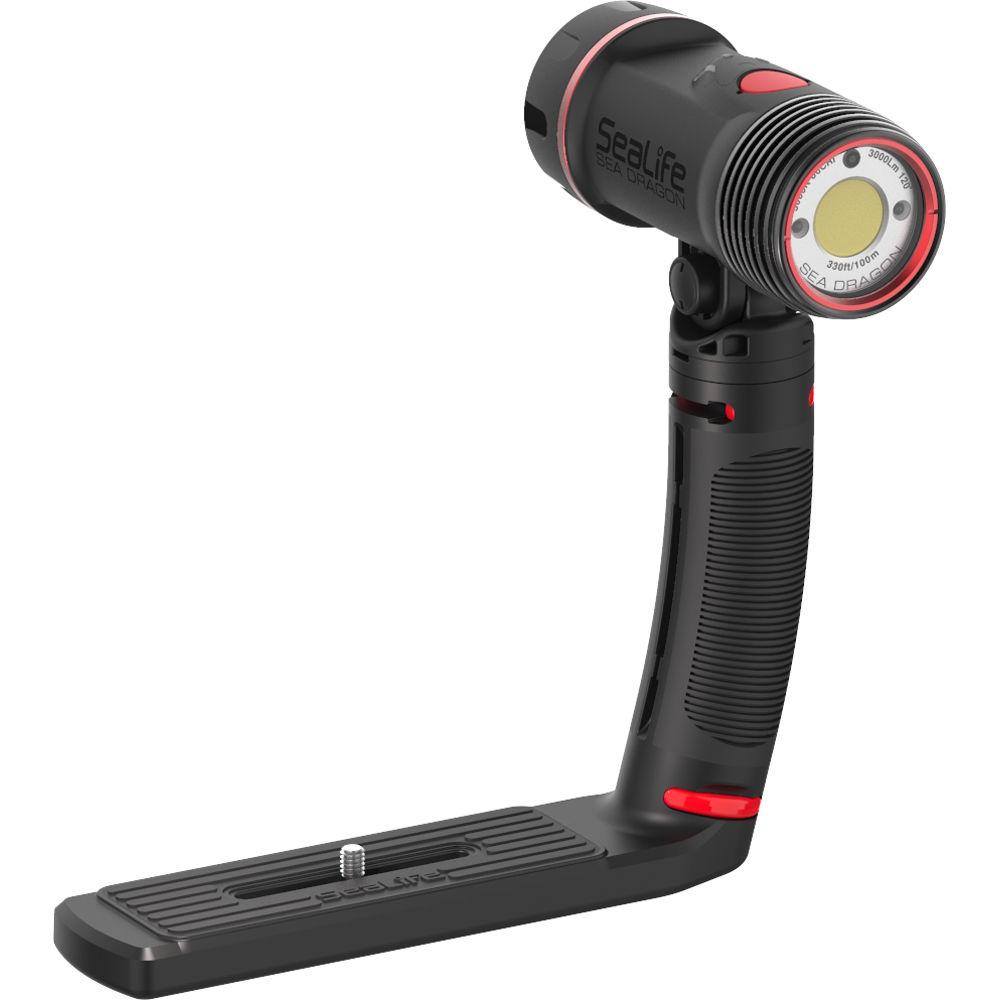

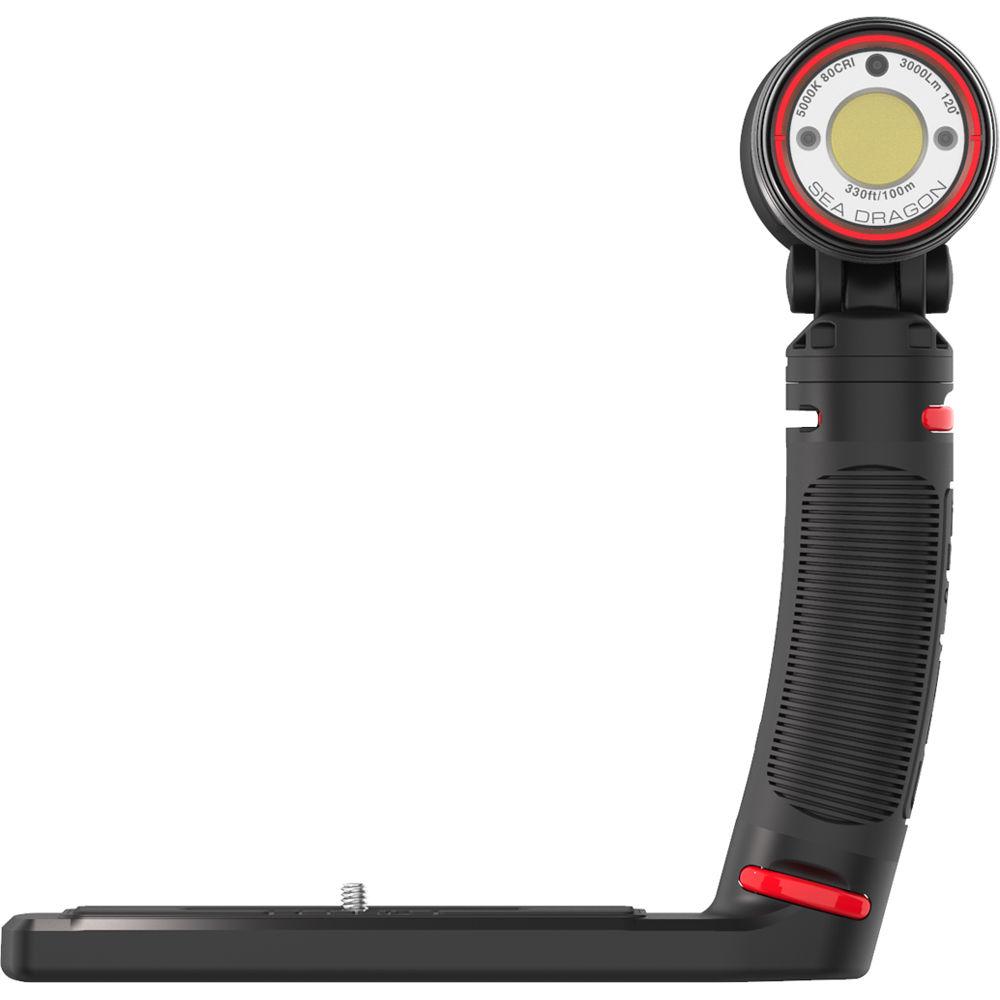

Built for durability, the light features a fiber-reinforced polycarbonate body and an anodized aluminum light head, both of which are resistant to corrosion. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light and can be connected to the supplied Flex-Connect Tray. There is also an adapter for GoPro action cameras bundled with this kit. - Light Performance
-
- Auto brightness adjusts from 300-3000 lumens
- Manual output selections: 750/1500/3000 lumens white light
- 180-lumen red light for night-acclimated vision and light-shy sea creatures
- Auto flash detect: 1-second shutoff when a strobe fires
- Run time of 60-240 minutes with supplied lithium-ion battery
- Beam angle is 120° on land / 90° in water (red light: 88-66°)
- Flat panel COB LED with 5000K color temperature and CRI of 80 to mimic natural sunlight
- Hidden SOS emergency signal mode with 1.0-sec blink interval and Morse code
- Switching System
-
- Single push-button switch for easy power on/off and cycling through output modes
- Construction Details
-
- Depth rating: 330'
- O-rings provide watertight seal
- Waterproof battery compartment ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
- Fiber-reinforced corrosion-resistant polycarbonate body
- Corrosion-resistant anodized aluminum light head
- 7.4 VDC, 25Wh, 3400mAh Li-ion battery
- Mounting
-
- Flex-Connect Grip and Micro Tray
- Quick release button to detach light for aiming into crevices and other hard-to-reach areas
- Adapter for GoPro action cameras
UPC: 077068416784 In the Box SeaLife Sea Dragon 3000F Auto Photo-Video Dive Light Flex-Connect Single Tray Flex Connect Grip SL9831 Rechargeable Lithium-Ion Battery (7.4V, 3400mAh) vdtqeqquqfwuvcbfawyrrxqbcbueudvzq AC Power Adapter for SL98311 Battery Charging Tray International Plug Adapters Adapter for GoPro cameras with Acorn Nut Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Large Sea Dragon Case for DC1400 Underwater Camera and Sea Dragon Flash Pro Set (Black, Red Zipper) vdtqeqquqfwuvcbfawyrrxqbcbueudvzq Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 3000F Auto Photo-Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SEA DRAGON 3000F Specs | Depth Rating | 330' / 100 m | | Light Source | White: 1 x BridgeLux Gen 7 Vero LED array
Red: 2 x Cree XP-E red LED | | Light Intensity | White: 300-3000 lumens (auto), 750/1500/3000 lumens (manual)
Red: 180 lumens | | Beam Angle | White: 120° on land, 90° in water
Red: 88° on land, 66° in water | | Color Temperature | 5000K | | CRI | 80 | | Run Time | 60/120/240 minutes | | Material of Construction | Body: Fiber-reinforced polycarbonate
Light Head: Anodized aluminum | | Power | 7.4 V, 3400 mAh, 25 Wh lithium-ion rechargeable battery (included) | | Charge Time | 170 minutes | | LED Lifetime | 35000 h | | Buoyancy | Negative | | Dimensions | Light, Grip & Tray: 8.5 x 9.5 x 2.3" / 22 x 24 x 6 cm
Light Head Only: 5.1 x 2.2 4.1" / 13.0 x 5.6 x 10.4 cm | | Weight | Light Head Only: 14.4 oz / 408 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.7 x 10.5 x 3.9" |
