User Manual for SeaLife Sea Dragon 4500 Pro Photo Video LED Dive Light Head Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon 4500 Pro Photo
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon 4500 Pro Photo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

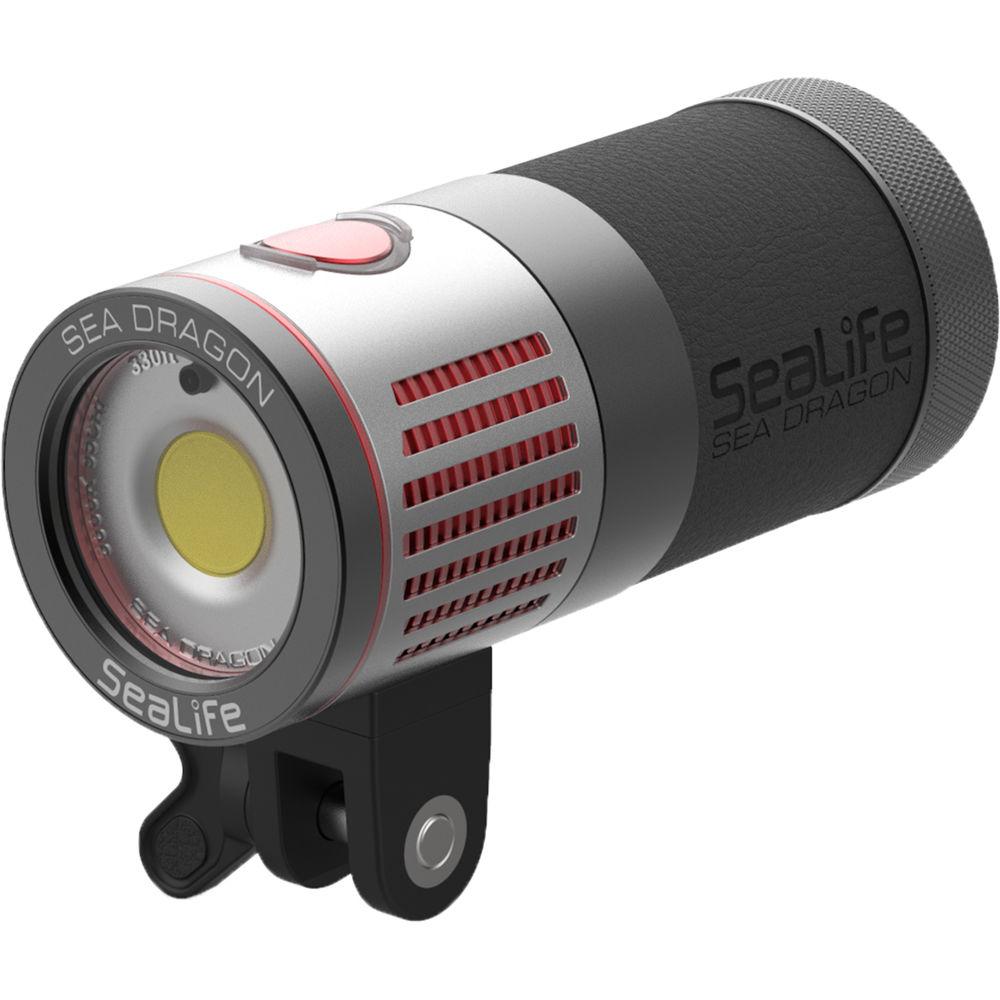

Product description Illuminate the beauty of the aquatic world at depths as great as 328' with the compact SeaLife Sea Dragon 4500 Pro Photo/Video LED Dive Light Head. It outputs 1125-4500 lumens in four levels, running for 1.0-4.0 h depending on which of these brightness settings is selected. In auto mode, the light turns off if your flash fires, in order to prevent hot spots from appearing in your images.
SeaLife's 4500 Pro offers a 90° beam angle underwater and 120° coverage on land. Such a broad beam works very well when illuminating wide-angle shots of coral reefs, humpback whales, shipwrecks, and other large subjects. Additionally, the light has a daylight-balanced color temperature of 5600 K and CRI and TLCI values of 96 and 97, respectively, indicating that it is nearly as good as sunlight when it comes to rendering a subject's colors naturally.

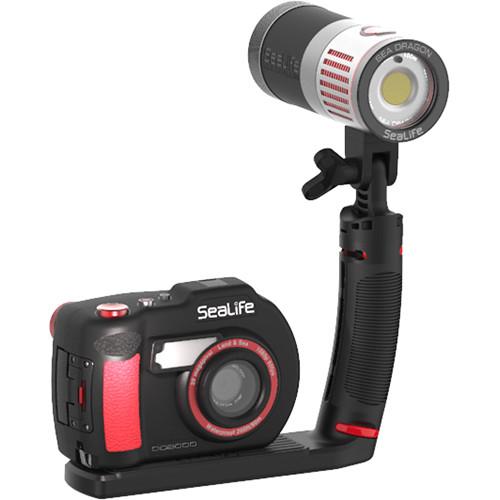

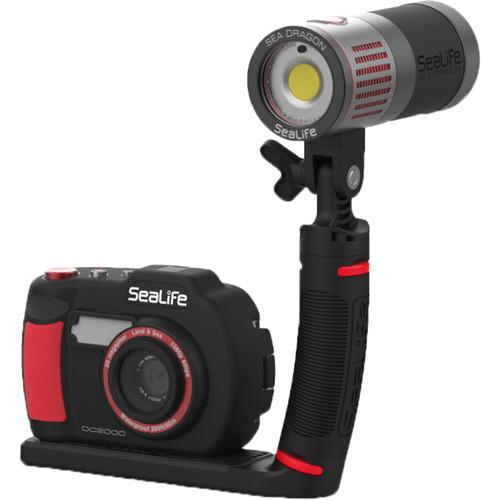

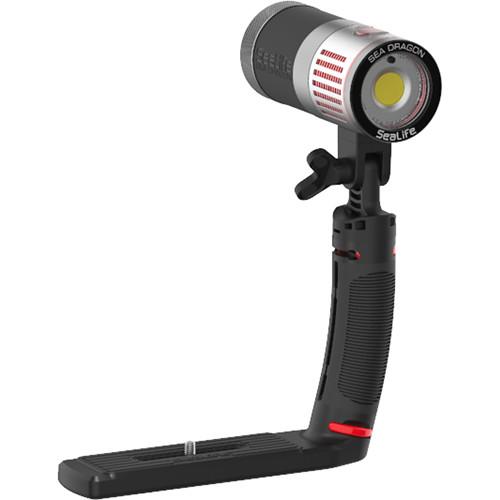

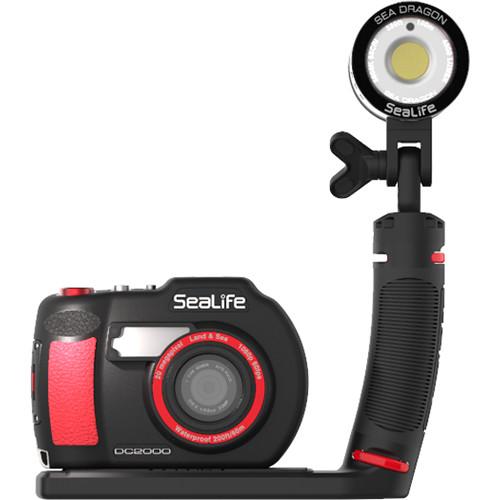

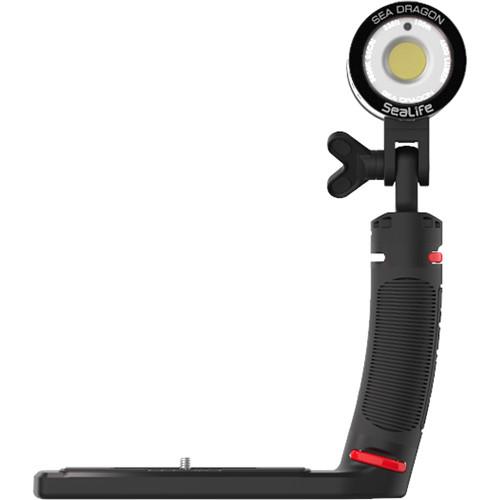

The supplied YS and Flex-Connect adapters allow you to attach the light to arms or grips with standard YS connectors and proprietary SeaLife Flex-Connect mounts. This versatility gives you a range of options for creative lighting in your photo and video work. - Light Performance
-
- COB Luminus XNOVA Studio LED array outputs 1125, 2250, 3375, or 4500 lumens
- Runs for 60 minutes at 100% output, 80 minutes at 75%, 120 minutes at 50%, or 240 minutes at 25% with the supplied lithium-ion battery
- When auto mode is selected, the light will turn off any time your flash fires, thus preventing hot spots from appearing in your captured images
- Auto mode also adjusts brightness based on the distance between you and your subject
- Daylight-balanced color temperature of 5600K and CRI and TLCI values of 96 and 97, respectively, indicate that the light is nearly as good as sunlight when it comes to rendering a subject's colors naturally
- Switching System
-
- Push-button on the head enables you to power the light on/off and cycle through output levels easily
- Mounting
-
- Standard YS adapter and proprietary SeaLife Flex-Connect adapter are included, allowing for attachment to arms or grip handles with YS connectors or Flex-Connect mounts
UPC: 077068416753 In the Box SeaLife Sea Dragon 4500 Pro Photo/Video LED Dive Light Head Rechargeable Lithium-Ion Battery (14.8V, 3400mAh, 50Wh) Battery Charger YS Adapter Flex-Connect Adapter Sea Dragon Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon 4500 Pro Photo Video LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife Sea Dragon Specs | Depth Rating | 328' / 100 m | | Light Source | COB Luminus XNOVA Studio LED array | | Light Intensity | 25%: 1125 Lumens
50%: 2250 Lumens
75%: 3375 Lumens
100%: 4500 Lumens | | Beam Angle | Underwater: 90°
On Land: 120° | | Color Temperature | 5600K | | CRI | 96 | | TLCI | 97 | | Run Time | 100%: 60 minutes
75%: 80 minutes
50%: 120 minutes
25%: 240 minutes | | Switching System | Push-button on light head | | Material of Construction | Not specified by manufacturer | | Power | Rechargeable lithium-ion battery (14.8 V, 3400 mAh, 50 Wh) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.0 x 10.6 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
