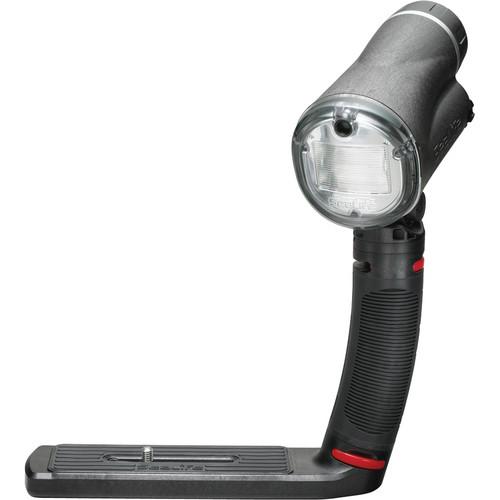

User Manual for SeaLife Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Digital Underwater Flash
- Product category: Strobe Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Strobe Lights
|
User manual for the SeaLife Sea Dragon Digital Underwater Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|
Product description The Sea Dragon Digital Underwater Flash Head from SeaLife is a compact light source that restores colors absorbed underwater for richer, more accurate images. It has a depth rating of 200'. Auto mode automatically adjusts flash brightness for optimal image exposure, while 8-100% variable power adjustment lets you manually fine-tune brightness. Auto Learn mode helps you easily sync pre-flash with any compatible digital camera. The Sea Dragon works with all SeaLife cameras and most other underwater models with built-in flash units.
The Sea Dragon features a guide number of 4.9-65.6', an angle of coverage of 80° horizontal x 60° vertical, and an included diffuser to widen the beam to 100°. Additionally, it has a color temperature of 5700K. Its effective underwater range is up to 8'. The unit provides about 150 flashes with 4 AA batteries, which are available separately. Fiber-reinforced polycarbonate construction and marine-grade, stainless steel hardware ensure durability. - Depth Rating
- Can be safely submerged to a maximum depth of 200'
- Guide Number
- About 4.9' at low power and 65.6' at full power
- Effective Range
- Up to 8' underwater
- Variable Power Adjustment
- 8% to 100% in auto or manual mode. Manual allows you to fine-tune brightness with greater precision and control
- Coverage
- 80° horizontal x 60° vertical, or 100° with included diffuser
- Power
- Approximately 150 flashes with 4 AA batteries, which are available separately
- Controls
- Power on/off, test/program, manual/auto brightness
- Quick-Release
- A convenient quick-release button enables you to detach the flash and hold it in your hand, in order to illuminate hard-to-reach-places more effectively
- Construction
- Fiber-reinforced polycarbonate housing with waterproof battery compartment and marine-grade, stainless steel hardware
- Included Accessories
- Flex-Connect single tray with standard 1/4"-20 mounting screw and Flex-Connect comfort grip supplied. Additionally, an optical flash cable and universal cable adapter are included. To ensure an always-tight waterproof seal with the dual O-rings, the flash is also supplied with spare O-rings and lubricant, as well as an O-ring removal tool for quick and easy replacement. A large, zippered Sea Dragon Case allows you to store and transport the flash easily
- Compatibility
- For all SeaLife cameras and most other underwater cameras with built-in flash
UPC: 077068419631 In the Box SeaLife Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray SL9903 Flex-Connect Single Tray with 1/4"-20 Mounting Screw SL9905 Flex-Connect Comfort Grip SL96201 Optical Cable Universal Flash Link Adapter for Sea Dragon Digital Underwater Flash urqadscrfwewzuueufzzcd Diffuser Universal Mount Kit SL98303 Spare O-ring Set SL9807 O-Ring Lubricant SL9808 O-Ring Removal Tool SL942 Large Sea Dragon Case (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL963 Specs | Configuration | Flash head | | Guide No. | Low power: 4.9' (1.5 m)
Full power: 65.6' (20 m) | | Power Adjustment Range | 8-100% | | Coverage Angle | 80° horizontal x 60° vertical
100° with included diffuser | | Depth Rating | 200' (61 m) | | Exposure Control | Auto, manual | | Color Temperature | 5700 K | | Controls | Power on/off, test/program, manual/auto brightness | | Recycle Time | 1.0 sec at less than 1/2 power
5.0 sec at full power | | Flashes | 150 flashes with 4 AA batteries (sold separately) | | Buoyancy | Negative | | Power | 4 AA batteries (sold separately, NiMH recommended) | | Construction | Housing: fiber-reinforced polycarbonate
Hardware: marine-grade stainless steel
O-rings: nitrile rubber (NBR) | | Dimensions | 5.0 x 4.5 x 2.5" (12.7 x 11.4 x 6.4 cm) | | Weight | 1.1 lb (0.5 kg) with batteries | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 3.9" |
