User Manual for SeaLife Sea Dragon Duo 2300 Flash Set Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Duo 2300 Flash
- Product category: Strobe Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Strobe Lights
|
User manual for the SeaLife Sea Dragon Duo 2300 Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

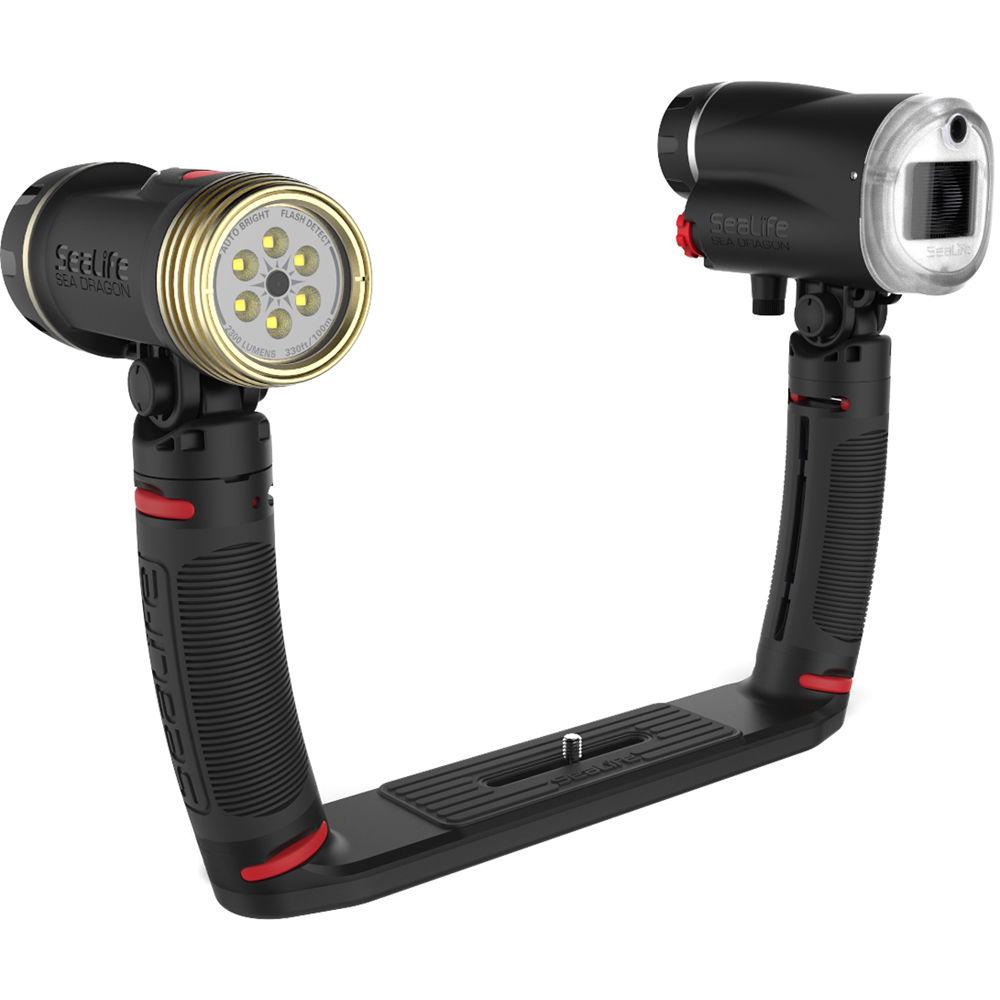

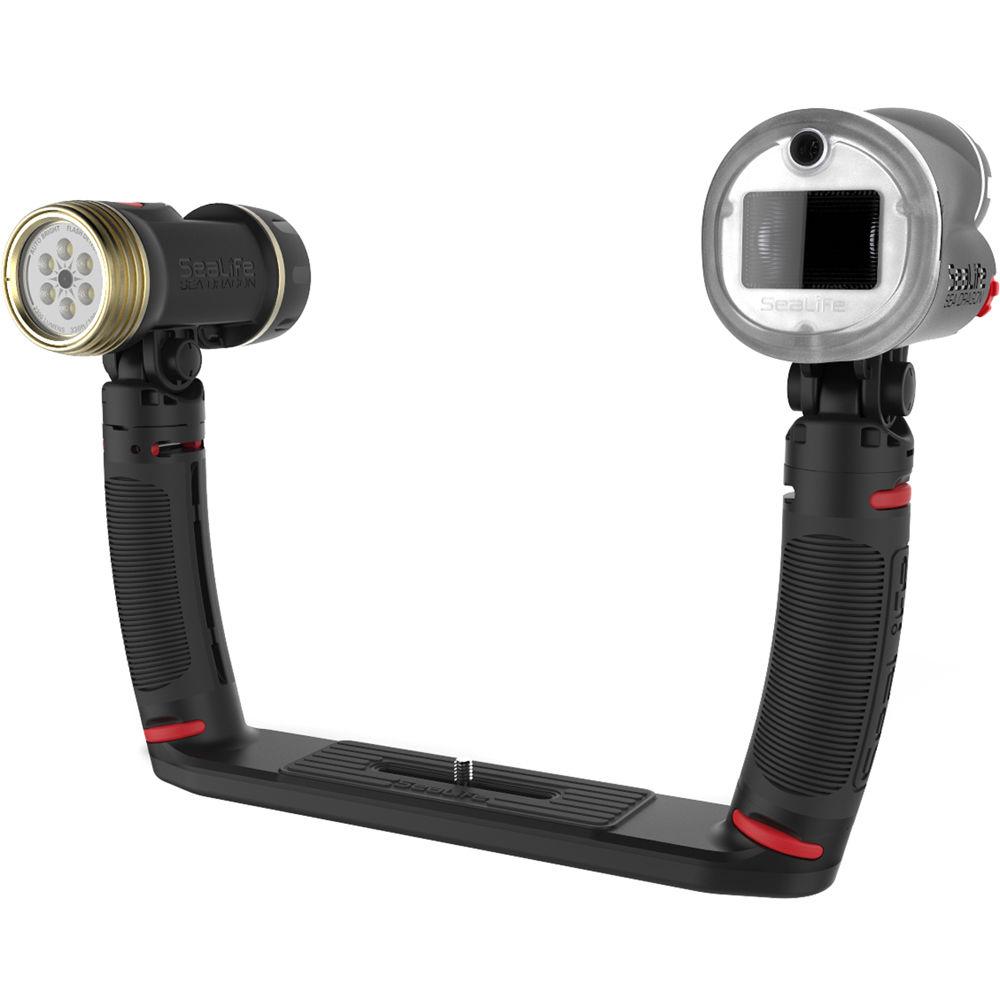

Product description Benefit from a complete underwater lighting kit with the SeaLife Sea Dragon Duo 2300 Flash Set, which bundles their Sea Dragon 2300 Auto Photo-Video LED Dive Light, Digital Underwater Flash, 2 Flex-Connect Grips, and a Flex-Connect Dual Tray for mounting everything. The 2300 Auto features a depth rating of 330', while the flash can be submerged safely to a maximum depth of 200'. Four output levels ranging from 230 to 2300 lumens are available on the photo-video light, and variable power from 8 to 100% lets you manually fine-tune the brightness of the flash. - Sea Dragon 2300 Auto Photo-Video LED Dive Light Illuminate the underwater world at depths up to 330' with the Sea Dragon 2300 Auto Photo-Video LED Dive Light from SeaLife. It features four outputs from 230 to 2300 lumens and offers a run time of 60 to 600 minutes using the supplied lithium-ion battery. The light offers a 75° beam angle underwater and 100° above the surface, making it suitable for use as a main photo/video and primary dive light. Brighten up wide-angle stills and videos and restore rich, natural colors with the daylight-balanced 5000-6000K beam.
Built for durability, the light features a polycarbonate body and a polycarbonate and anodized aluminum head, both of which are corrosion-resistant. A push-button switching system makes it easy to turn the power on or off and cycle through output modes. The included Flex-Connect Grip gives you a mounting point for the light and can be connected to the included Flex-Connect Tray. These accessories are part of a modular system designed for improved handling, customizable setups, and easy travel. - Light Performance
-
- Light source: 6 CREE XP-L LEDs
- Four outputs: Manual mode at 575 (25%), 1150 (50%), or 2300 lumens (100%), and Auto mode from 230 (10%) to 2300 lumens (100%)
- Auto mode adjusts output automatically based on proximity to subject, in order to conserve battery life and help you maintain your natural low-light vision
- Run time of 60 minutes on full power at constant brightness with supplied lithium-ion battery, which features capacity of 3400mAh
- Additional run times: 120 minutes on 50% power, 240 minutes on 25%, and 600 minutes on 10%
- Built-in photocell light sensor
- Provides 75° angle of coverage underwater and 100° above the surface, so it's suitable for use as a main photo/video and primary dive light
- Evenly illuminates subject with no hot spots
- Daylight-balanced 5000-6000K color temperature and color rendering index 70 allow beam to restore subjects' rich, natural colors for greater vibrancy and accuracy in images
- Auto Flash Detect Mode turns light off for 2 sec when external flash is detected
- Switching System
-
- Single push button on light head makes it easy to power on/off and cycle through output modes
- Construction Details
-
- Depth rating: 328'
- Waterproof compartment for removable battery ensures that even in unlikely event of O-ring seal failure, leak cannot reach internal electronics
- Body made of polycarbonate; head made largely of polycarbonate but has anodized aluminum front end. These materials are both corrosion-resistant for durability
- Aluminum head also helps disperse heat
- Mounting
-
- The included Flex-Connect Grip gives you a mounting point for light and can be connected to included Flex-Connect Tray
- Tray has standard 1/4"-20 tripod screw for camera/housing
- Accessories are part of a modular system designed for improved handling, customizable setups, and easy travel
- Quick-release button detaches light from included grip for aiming in hard-to-reach places
- Optional, versatile flex arms available
UPC: 077068416746 - Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray The Sea Dragon Digital Underwater Flash Head from SeaLife is a compact light source that restores colors absorbed underwater for richer, more accurate images. It has a depth rating of 200'. Auto mode automatically adjusts flash brightness for optimal image exposure, while 8-100% variable power adjustment lets you manually fine-tune brightness. Auto Learn mode helps you easily sync pre-flash with any compatible digital camera. The Sea Dragon works with all SeaLife cameras and most other underwater models with built-in flash units.
The Sea Dragon features a guide number of 4.9-65.6', an angle of coverage of 80° horizontal x 60° vertical, and an included diffuser to widen the beam to 100°. Additionally, it has a color temperature of 5700K. Its effective underwater range is up to 8'. The unit provides about 150 flashes with 4 AA batteries, which are available separately. Fiber-reinforced polycarbonate construction and marine-grade, stainless steel hardware ensure durability. - Depth Rating
- Can be safely submerged to a maximum depth of 200'
- Guide Number
- About 4.9' at low power and 65.6' at full power
- Effective Range
- Up to 8' underwater
- Variable Power Adjustment
- 8% to 100% in auto or manual mode. Manual allows you to fine-tune brightness with greater precision and control
- Coverage
- 80° horizontal x 60° vertical, or 100° with included diffuser
- Power
- Approximately 150 flashes with 4 AA batteries, which are available separately
- Controls
- Power on/off, test/program, manual/auto brightness
- Quick-Release
- A convenient quick-release button enables you to detach the flash and hold it in your hand, in order to illuminate hard-to-reach-places more effectively
- Construction
- Fiber-reinforced polycarbonate housing with waterproof battery compartment and marine-grade, stainless steel hardware
- Included Accessories
- Flex-Connect single tray with standard 1/4"-20 mounting screw and Flex-Connect comfort grip supplied. Additionally, an optical flash cable and universal cable adapter are included. To ensure an always-tight waterproof seal with the dual O-rings, the flash is also supplied with spare O-rings and lubricant, as well as an O-ring removal tool for quick and easy replacement. A large, zippered Sea Dragon Case allows you to store and transport the flash easily
- Compatibility
- For all SeaLife cameras and most other underwater cameras with built-in flash
UPC: 077068419631 - Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights The Flex-Connect Dual Tray from SeaLife is part of a modular underwater photography system designed for improved handling, customizable setups and easy travel. It features a standard 1/4"-20 mounting screw for a compact camera in its waterproof housing, such as the SeaLife DC1400, as well as 2 mounting points for optional, ergonomic grips and #SL9901 flex arms for flash units or video lights. The Sea Dragon Digital Underwater Flash and Sea Dragon 1200 and 2000-Lumen LED Lights are compatible. Additionally, an optional adapter allows you to use your SL980 light or SL961 strobe. The arm easily clicks into place on top of the optional grip, which clicks into the tray, and the setup is just as easily disassembled with the push of a button. The durable Dual Tray is constructed from fiber-reinforced polycarbonate and marine-grade stainless steel. UPC: 077068499046
In the Box Bundle Items Sea Dragon 2300 Auto Photo-Video LED Dive Light xeybzydbwxwsyy - Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays
- Flex-Connect Single Tray with Mounting Screw
- Lithium-Ion Rechargeable Battery (7.4V, 3400mAh)
- Set of International Adapter Plugs
Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray xeybzydbwxwsyy - SL9903 Flex-Connect Single Tray with 1/4"-20 Mounting Screw
- SL9905 Flex-Connect Comfort Grip
- Universal Flash Link Adapter for Sea Dragon Digital Underwater Flash
- SL9808 O-Ring Removal Tool
- SL942 Large Sea Dragon Case (Black)
Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Duo 2300 Flash Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sea Dragon 2300 Auto Photo-Video LED Dive Light
Configuration | Light with tray and grip | Depth Rating | 328' / 100 m | Light Source | 6 x CREE XP-L LEDs | Light Intensity | Manual Mode: 25%: 575 lumens 50%: 1150 lumens 100%: 2300 lumens
Auto Mode: 10%-100%: 230-2300 lumens | Beam Angle | Underwater: 75° Above Water: 100° | Color Temperature | 5000-6000K | CRI | 70 | Run Time | 100% Power: 60 minutes 50% Power: 120 minutes 25% Power: 240 minutes 10%: 600 minutes | Switching System | Single push-button on head | Material of Construction | Polycarbonate Front end of head is anodized aluminum | Mounting | Flex-Connect Grip (included) Flex-Connect Tray with standard 1/4"-20 tripod screw (included) | Power | Lithium-ion battery with 7.4 V output power, 3400 mAh capacity, 25 Wh rating (included) | Dimensions | Head Only: 4.8 x 2.2 x 3.8" / 12.2 x 5.6 x 9.7 cm Head with Grip and Tray: 8.7 x 9.4 x 2.3" / 22 x 24 x 6.0 cm | Weight | 1.5 lb / 0.7 kg | | Box Dimensions (LxWxH) | 11.0 x 10.4 x 3.8" | - Sea Dragon Digital Underwater Flash Head with Flex-Connect Grip and Tray
Configuration | Flash head | Guide No. | Low power: 4.9' (1.5 m) Full power: 65.6' (20 m) | Power Adjustment Range | 8-100% | Coverage Angle | 80° horizontal x 60° vertical 100° with included diffuser | Depth Rating | 200' (61 m) | Exposure Control | Auto, manual | Color Temperature | 5700 K | Controls | Power on/off, test/program, manual/auto brightness | Recycle Time | 1.0 sec at less than 1/2 power 5.0 sec at full power | Flashes | 150 flashes with 4 AA batteries (sold separately) | Buoyancy | Negative | Power | 4 AA batteries (sold separately, NiMH recommended) | Construction | Housing: fiber-reinforced polycarbonate Hardware: marine-grade stainless steel O-rings: nitrile rubber (NBR) | Dimensions | 5.0 x 4.5 x 2.5" (12.7 x 11.4 x 6.4 cm) | Weight | 1.1 lb (0.5 kg) with batteries | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 3.9" | - Flex-Connect Dual Tray with Mounting Screw for Underwater Camera and 2 Lights
Construction | Fiber-reinforced polycarbonate Marine-grade stainless steel | Mounting Screw | 1/4"-20 | | Box Dimensions (LxWxH) | 13.9 x 3.4 x 0.5" |
