User Manual for SeaLife Sea Dragon Fluoro Dual Beam LED Dive Light Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Fluoro Dual Beam
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
|
User manual for the SeaLife Sea Dragon Fluoro Dual Beam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

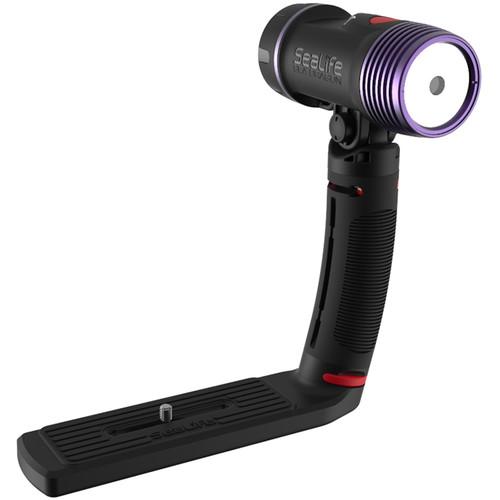

Product description With the versatile Sea Dragon Fluoro Dual Beam LED Dive Light from SeaLife, you can excite coral and other underwater organisms to make them emit a brilliant fluorescent glow, and you can also illuminate the underwater world and bring out its natural colors. The light outputs 26W/m2 in a flood beam with a wavelength of 450-460nm, for a deep, dark blue color close to the edge of the visible spectrum. It also features a white spot beam with a brightness of 800 lumens for use as a normal diving or photo/video light. The spot provides a daylight-balanced color temperature of 5000-7000K for restoring your subjects' rich, natural colors underwater. - Light Performance
-
- Fluorescence:
- Produces deep, dark blue light designed for illuminating certain coral, fish, and other organisms that emit a fluorescent glow in response to stimulation by specific wavelengths
- Six CREE XT-E Royal Blue LEDs emit appropriate 450-460nm light
- Integrated dichroic filter increases accuracy even further, ensuring that optimal 455nm wavelength makes its way to organisms
- Output: 26W/m2
- 100% and 50% brightness settings available
- Run Time: 120 min at full power
- Beam Angle: 65° (flood)
- Normal Illumination:
- Second beam produces regular white light for illumination or photo/video exposure
- Single CREE XP-L LED
- Output: 800 lumens
- Daylight-balanced color temperature of 5000-7000K for restoring your subjects' rich, natural colors underwater
- Beam Angle: 15° (spot)
- Emergency Signaling Mode: Flashing at 1-sec intervals and SOS
- Switching System
-
- Single push-button control for power on/off and selecting beam type and output mode
- Construction Details
-
- Depth Rating: 328'
- Waterproof battery compartment
- Corrosion-resistant metal head for durability and heat dispersion
- Barrier Filters
-
- Two included yellow barrier filters block blue light emitted by Sea Dragon Fluoro while allowing resulting fluorescent glow to be observed or recorded
- One filter fits over your dive mask to allow you to see fluorescence
- Other filter fits over camera lenses or lens ports with a diameter of less than 47mm, enabling you to capture fluorescence in photos or videos
- Mounting
-
- Supplied Flex-Connect Grip and 1" ball joint adapter give you a mounting point for light and can be connected to included Flex-Connect Tray
- Add on other optional Flex-Connect accessories, such as a flex arm
- Quick release button lets you detach light for aiming into tight spaces
UPC: 077068416739 In the Box SeaLife Sea Dragon Fluoro Dual Beam LED Dive Light Flex-Connect Single Tray with Mounting Screw Flex-Connect Grip for Flex-Connect Arms and Underwater Camera Trays 1" Ball Joint Adapter Lithium-Ion Rechargeable Battery AC Power Adapter Charging Tray Set of International Adapter Plugs 47mm Yellow Barrier Camera Filter Yellow Barrier Mask Filter Protective Cover for Barrier Filters Set of Spare O-Rings O-Ring Lubricant O-Ring Removal Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Fluoro Dual Beam LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL673 Specs | Depth Rating | 328' / 100 m | | Light Source | 6 x CREE XT-E royal blue LEDs
1 x CREE XP-L white LED | | Light Intensity | Blue LEDs: 26 W/m2
White LED: 800 lumens | | Beam Angle | Blue LEDs: 65° (flood)
White LED: 15° (spot) | | Color Temperature | Blue LEDs: Not applicable
White LED: 5000-7000K | | Run Time | Blue LEDs: 120 min at full power | | Switching System | Single push-button | | Material of Construction | Corrosion-resistant metal head | | Mounting | Flex-Connect single tray
Flex-Connect Grip
1.0" / 2.5 cm ball joint adapter | | Power | Removable lithium-ion battery (included): 7.4 V, 3400 mAh, 25 Wh | | Charging Time | 170 min | | Dimensions | Head Only: 5.1 x 2.2 x 3.8" / 13 x 5.6 x 9.7 cm | | Weight | Head Only: 15.9 oz / 450 g | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 10.8 x 10.4 x 3.8" |
