User Manual for SeaLife Sea Dragon Mini 650 Flood LED Dive Light Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Mini 650 Flood
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon Mini 650 Flood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

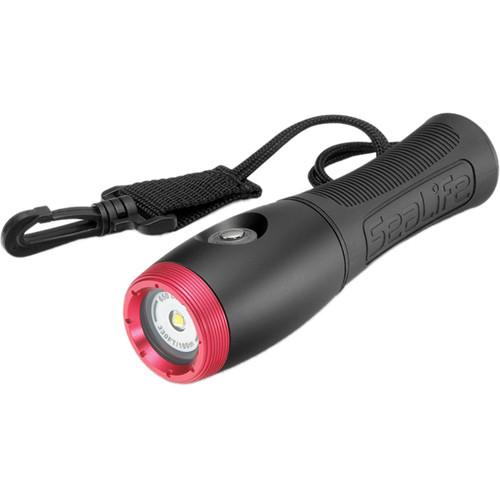

Product description Illuminate the beauty of the world beneath the surface at depths up to 328' with the Sea Dragon Mini 650 Flood LED Dive Light from SeaLife. It offers a very wide 120° beam angle for broad coverage that is suitable for wide-angle photography and video recording as well as general diving. The light's CREE XM-L2 LED outputs 325 and 650 lumens for a run time of 60-120 min with the two supplied, single-use CR123 lithium batteries, or 100-200 min with one optional 18650 li-ion rechargeable cell. A daylight-balanced color temperature of 6200-7000K enables the light to bring out the natural colors of your subjects in a rich, vibrant way.
Built for durability, the light has a rubber-armored polycarbonate body and an anodized aluminum head, both of which are resistant to corrosion. The push-button switching system makes it easy to power on/off and cycle through the output modes. Compact enough to fit comfortably in your hand, the light can also be connected to your camera via the included GoPro, cold shoe, AquaPod, and universal YS adapter mounts. - Light Performance
-
- Very wide 120° beam angle for broad coverage that is suitable for wide-angle photography and video recording as well as general diving
- CREE XM-L2 LED outputs 325 and 650 lumens
- Run time of 60-120 min with the two supplied, single-use CR123 lithium batteries, or 100-200 min with one optional 18650 li-ion rechargeable cell
- Daylight-balanced color temperature of 6200-7000K enables the light to bring out the natural colors of your subjects in a rich, vibrant way
- Emergency signal mode: blinks once per sec
- Switching System
-
- Push-button switch for easy on/off and cycling through output modes
-
- Construction Details
-
- Depth Rating: 328'
- Rubber-armored polycarbonate body for resistance to corrosion
- Anodized aluminum head, which is also corrosion-resistant

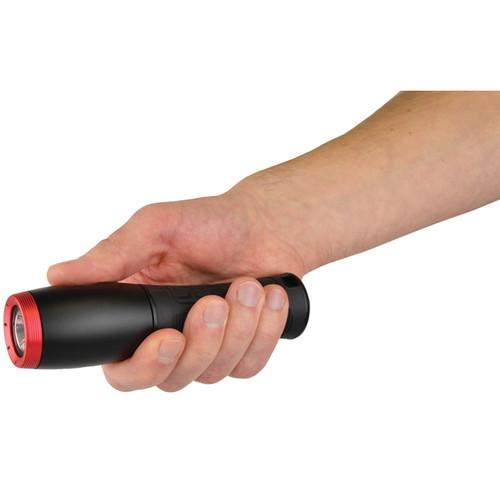

- Compact enough to fit comfortably in your hand
- Release valve relieves internal pressure build-up
- Mounting
-
- Can be connected to your camera via the included GoPro, cold shoe, AquaPod, and universal YS adapter mounts
- Attaches to bottom of GoPro action cam or top of cameras with cold shoe mounts
- Optional AquaPod underwater monopod is extendable from 18-53" in length, allowing you to play with different angles, positions, and distances from your subjects
- YS adapter lets you attach light to standard YS arms/mounting bases
UPC: 077068416500 In the Box SeaLife Sea Dragon Mini 650 Flood LED Dive Light - 2 x CR123 Batteries
- YS Adapter
- GoPro Camera Mount
- Cold Shoe Mount
- SeaLife AquaPod Mount
- Universal YS Adapter
- Lanyard with Clip
- 2 x Spare O-Rings
- O-Ring Lubricant
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Mini 650 Flood LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife SL650 Specs | Depth Rating | 328' / 100 m | | Light Source | CREE XM-L2 LED bulb | | Light Intensity | 50%: 325 lumens
100%: 650 lumens | | Beam Angle | 120° | | Color Temperature | 6200-7000 K | | Run Time | With CR123 Batteries: 60 min at 100% power, 120 min at 50% power
With Tenergy 18650 Li-Ion Battery: 100 min at 100%, 200 min at 50% | | Switching System | Single push-button
Long push (1.0 sec) to power on/off
Short push to cycle through 3 light modes: 100% full brightness → 50% half brightness → Emergency (blinks once every sec at full power) | | Material of Construction | Head: Anodized aluminum
Body: Rubber-armored polycarbonate | | Mounting | GoPro, cold shoe, AquaPod, and universal YS adapter mounts included | | Power | 2x single-use CR123 lithium batteries (included)
1x 3.7 V, 2600 mAh, 18650 lithium-ion rechargeable battery (not included) | | Battery Indicator | Yes, power level indicator in color | | LED Lifetime | 30,000 hr | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 1.6 x 6.25" / 41 x 159 mm | | Weight | 6.7 oz / 189 g without battery | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.5 x 3.6 x 2.0" |
