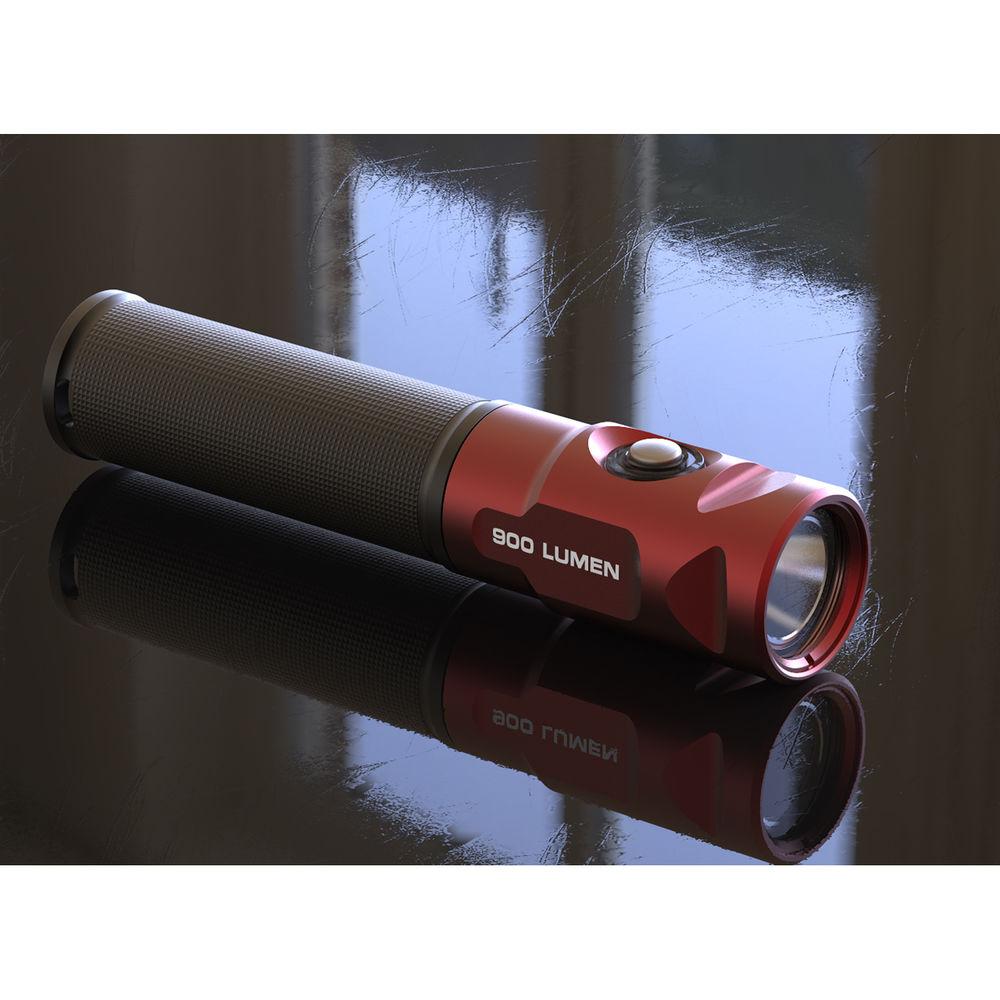

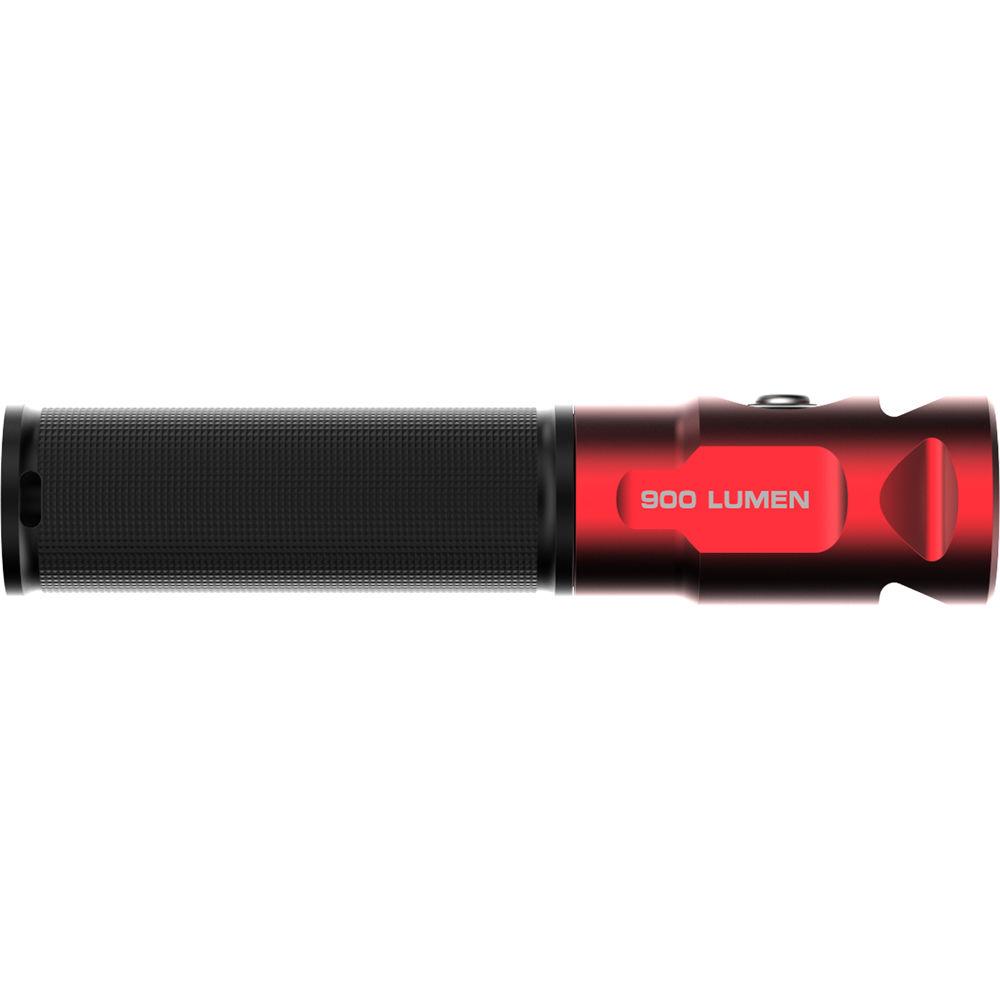

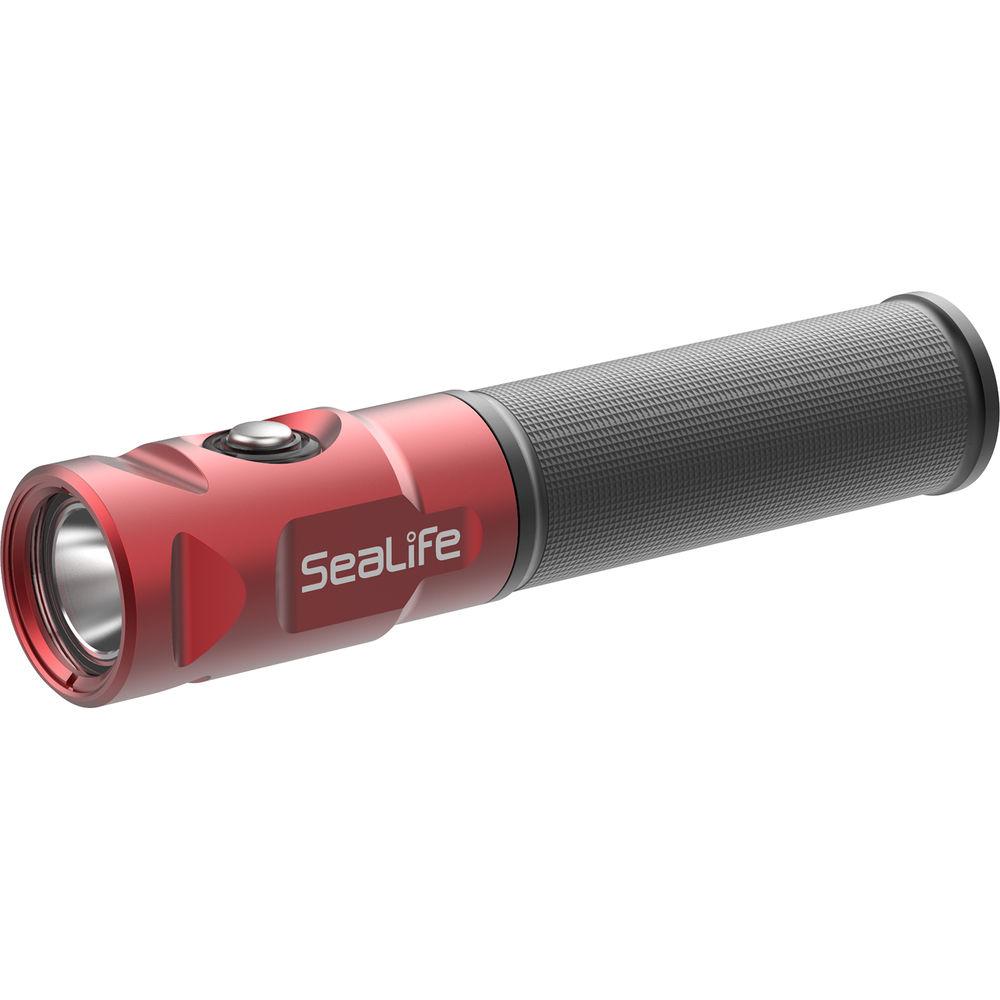

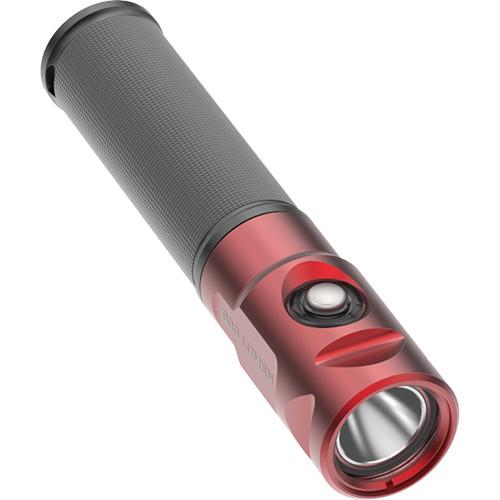

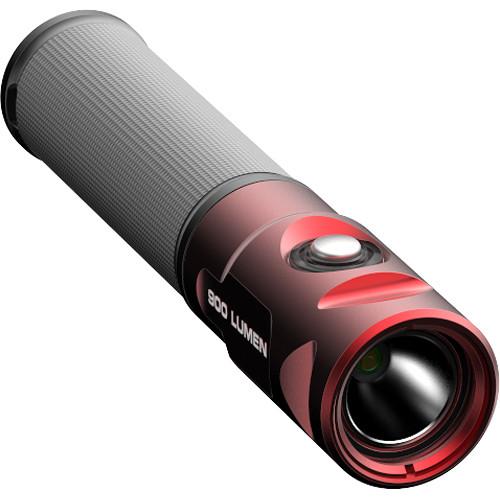

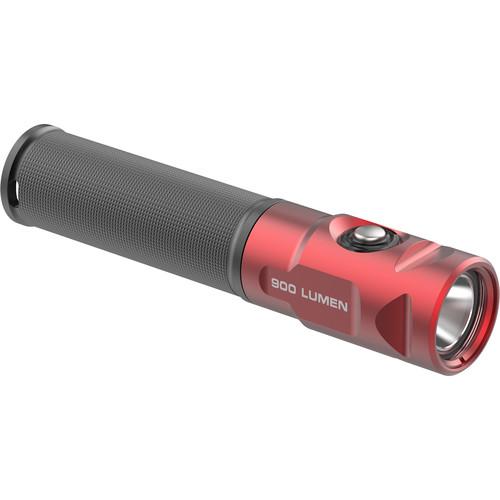

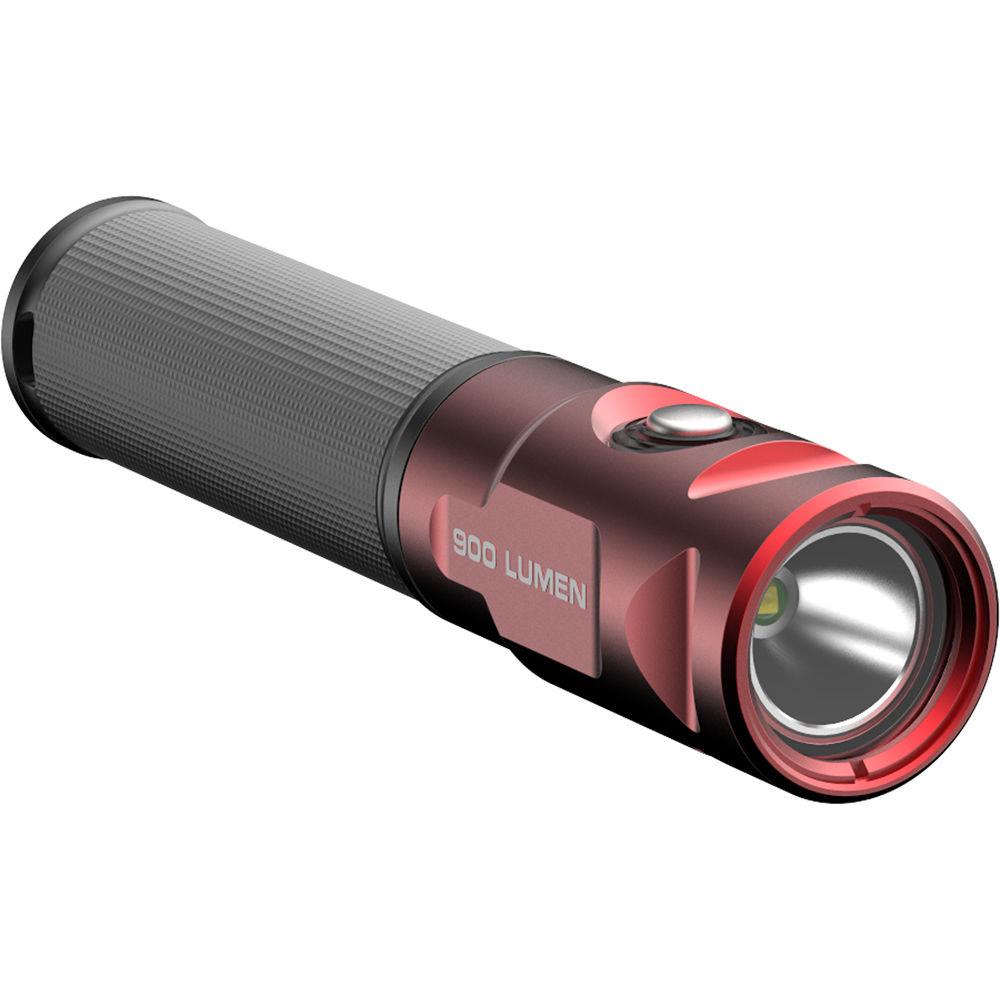

User Manual for SeaLife Sea Dragon Mini 900 LED Dive Light Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Mini 900 LED
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon Mini 900 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|
Product description Illuminate the beauty of the aquatic world at depths as great as 328' with the compact SeaLife Sea Dragon Mini 900 LED Dive Light. It outputs 225-900 lumens in three levels, running for 2-8 hours per battery charge depending on the brightness selected. The light also features a one-second strobe mode and an SOS function for emergency signaling. SeaLife's Mini 900 ships without batteries, and can be powered by a single 18650 lithium-ion cell or a pair of CR123 lithium cells.
The light offers a 10.5° beam angle underwater and 14° coverage on land. Such a narrow beam works very well when focusing or exploring tight spaces, e.g., the nooks and crannies in a coral reef or cave. Additionally, the built-in release valve on the Sea Dragon relieves the buildup of internal pressure in the light. As a bonus, the Mini 900 includes a convenient wrist lanyard with a clip for your buoyancy control device (BCD). - Light Performance
-

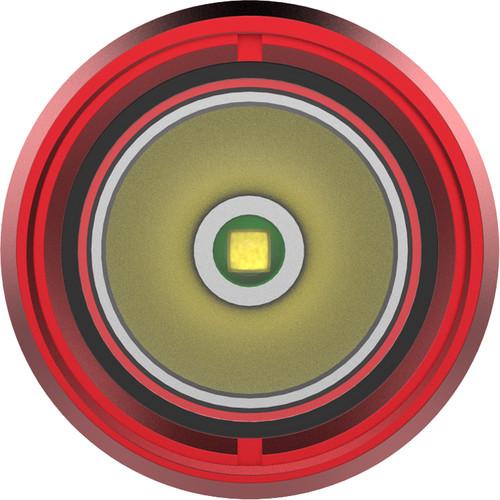

- CREE XM-L2 T6 LED.
- Three outputs: 900 lumens at 100% power, 450 lumens at 50%, and 225 lumens at 25%.
- One-second strobe and emergency SOS modes, both of which operate at full power.
- Run time: 2 h at 100%, 4 h at 50%, and 8 h at 25% with a single 3400mAh 18650 lithium-ion battery.
- Ships without required battery. Can be powered by the 18650 cell or by 2 CR123s, which will provide half the run time of the 18650.
- Tight beam angle of 10.5° underwater, or 14° on land, is helpful when focusing or exploring nooks and crannies in coral reefs and caves.
- Switching System
-
- Push-button on light head for turning the power on/off and cycling through output modes.
- Construction Details
-
- Depth rating: 328'.
- Made of an aluminum alloy that has been anodized for extreme corrosion resistance.
- Release valve relieves internal pressure buildup.
UPC: 077068416531 In the Box SeaLife Sea Dragon Mini 900 LED Dive Light Lanyard with BCD Clip 2 x Spare O-Rings Container of O-Ring Lubricant Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Mini 900 LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife Sea Dragon Specs | Depth Rating | 328' / 100 m | | Light Source | CREE XM-L2 T6 LED | | Light Intensity | 25%: 225 Lumens
50%: 450 Lumens
100%: 900 Lumens | | Beam Angle | Underwater: 10.5°
On Land: 14° | | Color Temperature | Not specified by manufacturer | | Run Time | 25%: 8 h
50%: 4 h
100%: 2 h | | Switching System | Push-button on light head | | Material of Construction | Anodized aluminum alloy | | Power | 1x 3.6 V / 3400 mAh or 3.7 V / 2600 mAh 18650 rechargeable lithium-ion battery (not included)
2x CR123 lithium batteries (not included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Not specified by manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.8 x 1.8 x 1.7" |
