User Manual for SeaLife Sea Dragon Mini Fluoro LED Dive Light with Mask Filter Click to enlarge the picture
Contents of the user manual for the SeaLife Sea Dragon Mini Fluoro LED
- Product category: Continuous Lights SeaLife
- Brand: SeaLife
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaLife Continuous Lights
 |
User manual for the SeaLife Sea Dragon Mini Fluoro LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaLife product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaLife user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaLife product will considerably shorten its lifespan!
|

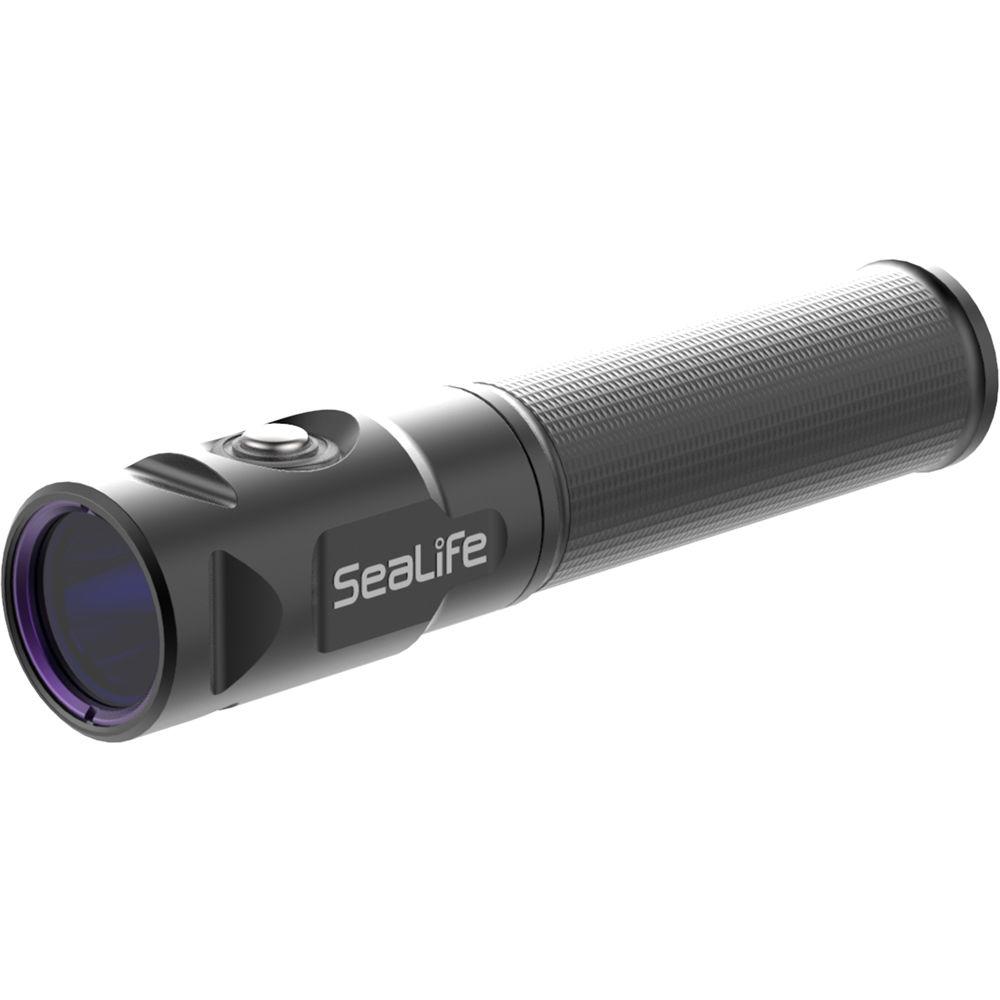

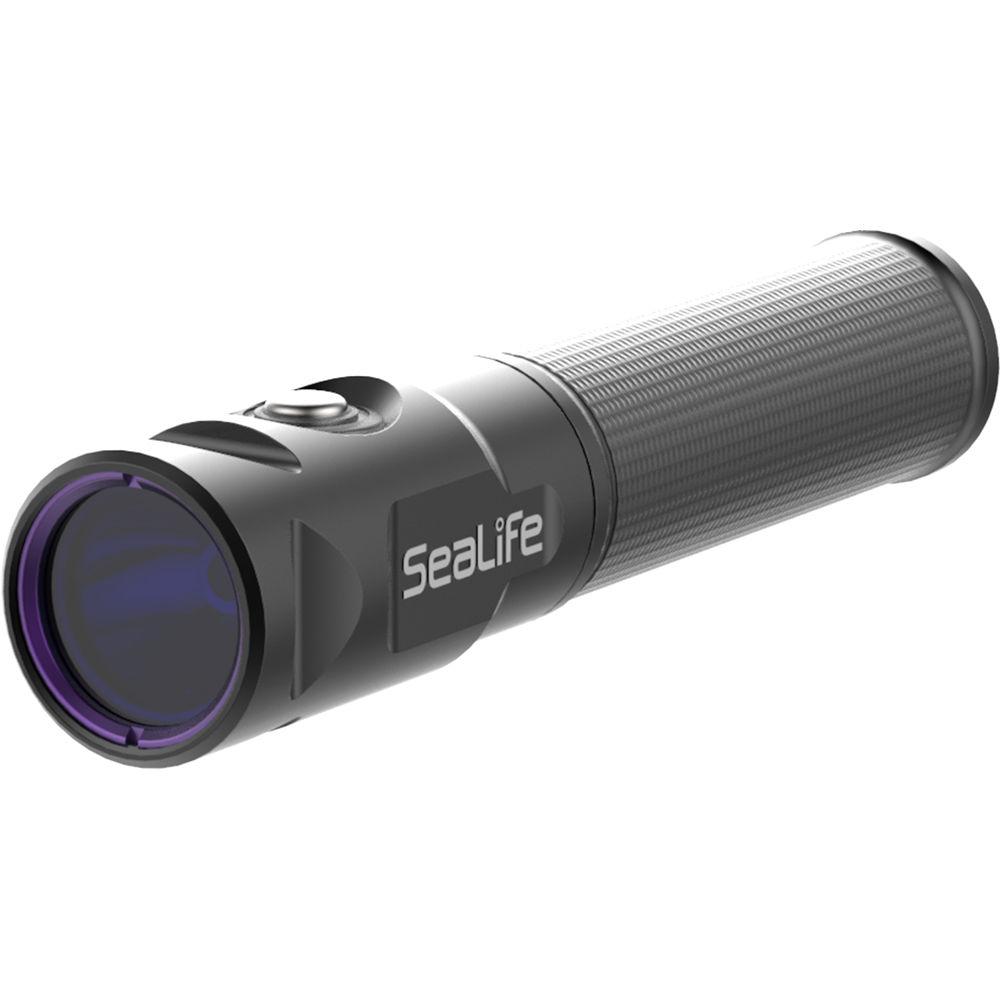

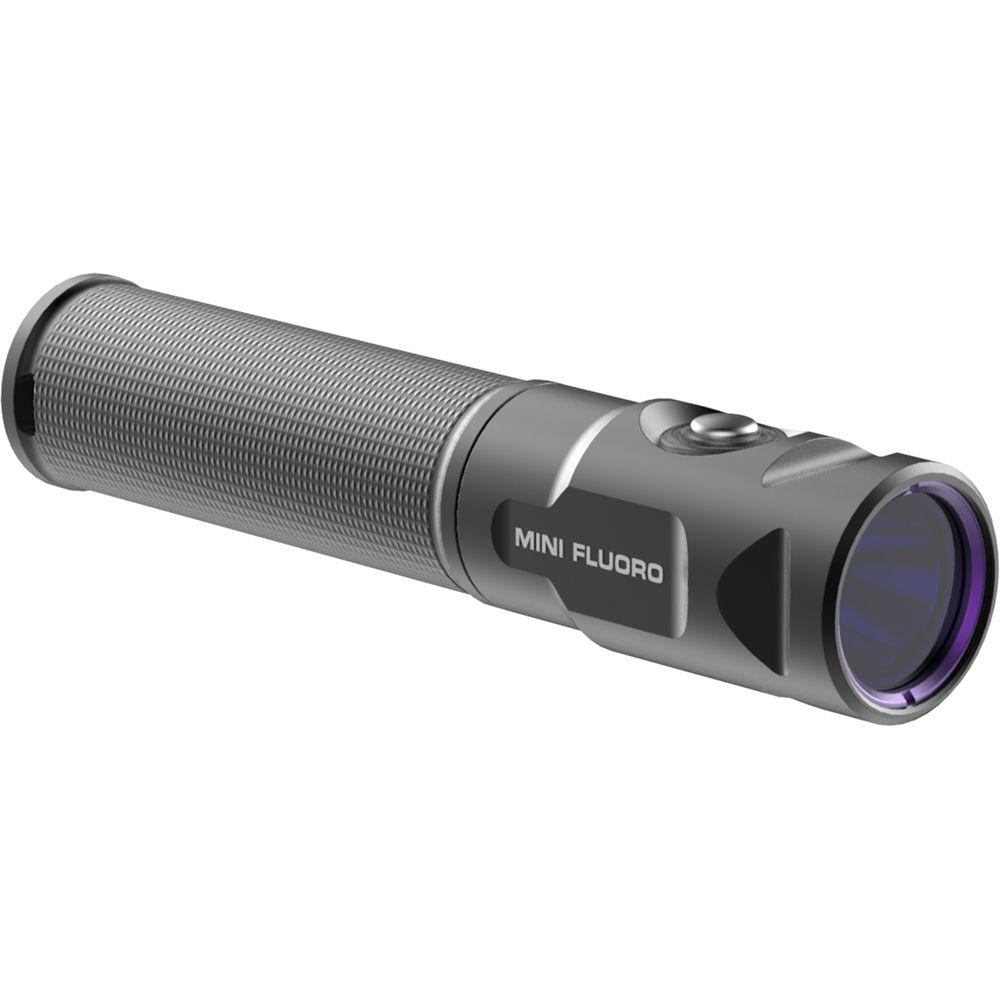

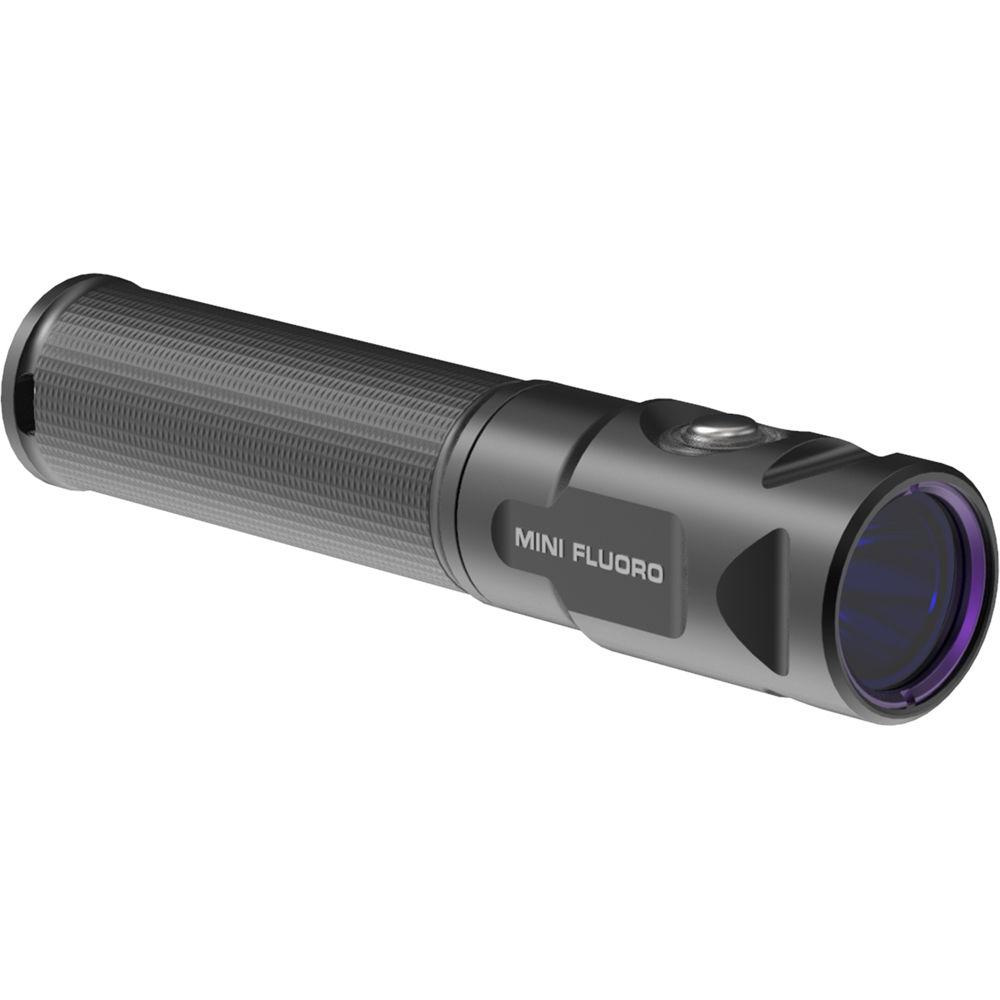

Product description Shine this Sea Dragon Mini Fluoro LED Dive Light from SeaLife on certain coral, fish, and other aquatic life forms to make them emit a brilliant fluorescent glow. The Mini Fluoro features a CREE XT-E LED with a dark blue beam, which is close to the edge of the visible spectrum and matches the 450-460nm wavelength that stimulates organisms to fluoresce. The light is submersible to 328', giving you plenty of room to explore the ocean's mysterious depths and enjoy the radiant beauty of its fascinating inhabitants.
The Mini Fluoro outputs 2.1, 4.3, or 7.0 W/m2 of power, and runs for 2.0-8.0 h on one 18650 or two CR123 lithium batteries, depending on the setting selected. Its single push-button, located on the head, enables you to turn the power on and off and cycle through output levels easily with one hand. Additionally, the light's tight coverage angle of 10.5° underwater is helpful when focusing on individual sea critters and exploring nooks and crannies in reefs or caves.
The included yellow barrier filter fits over your dive mask, blocking the blue light emitted by the Sea Dragon while allowing the glow of the sea life to be observed in stunning colors. If you're capturing images or video with your camera, put another barrier filter over your lens or lens port, too. - Light Performance
-
- CREE XT-E LED produces deep, dark blue light that's close to the edge of the visible spectrum
- Designed to illuminate proteins in certain coral, fish, other organisms, and minerals, which emit a fluorescent glow in response to stimulation by specific wavelengths, e.g., 450-460nm in this case

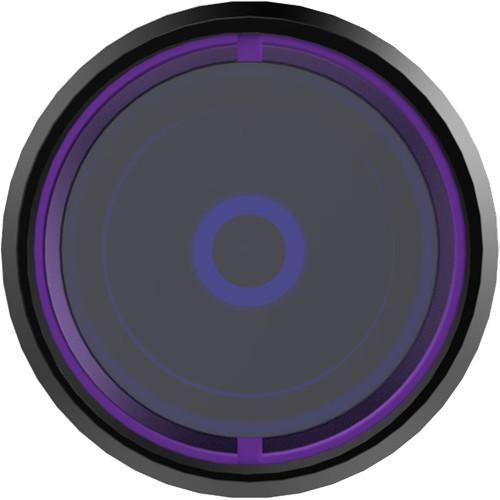

- Integrated dichroic filter increases the light beam's precision, ensuring that the wavelength is 455nm in order to bring out optimal fluorescence
- Barrier Filters
-

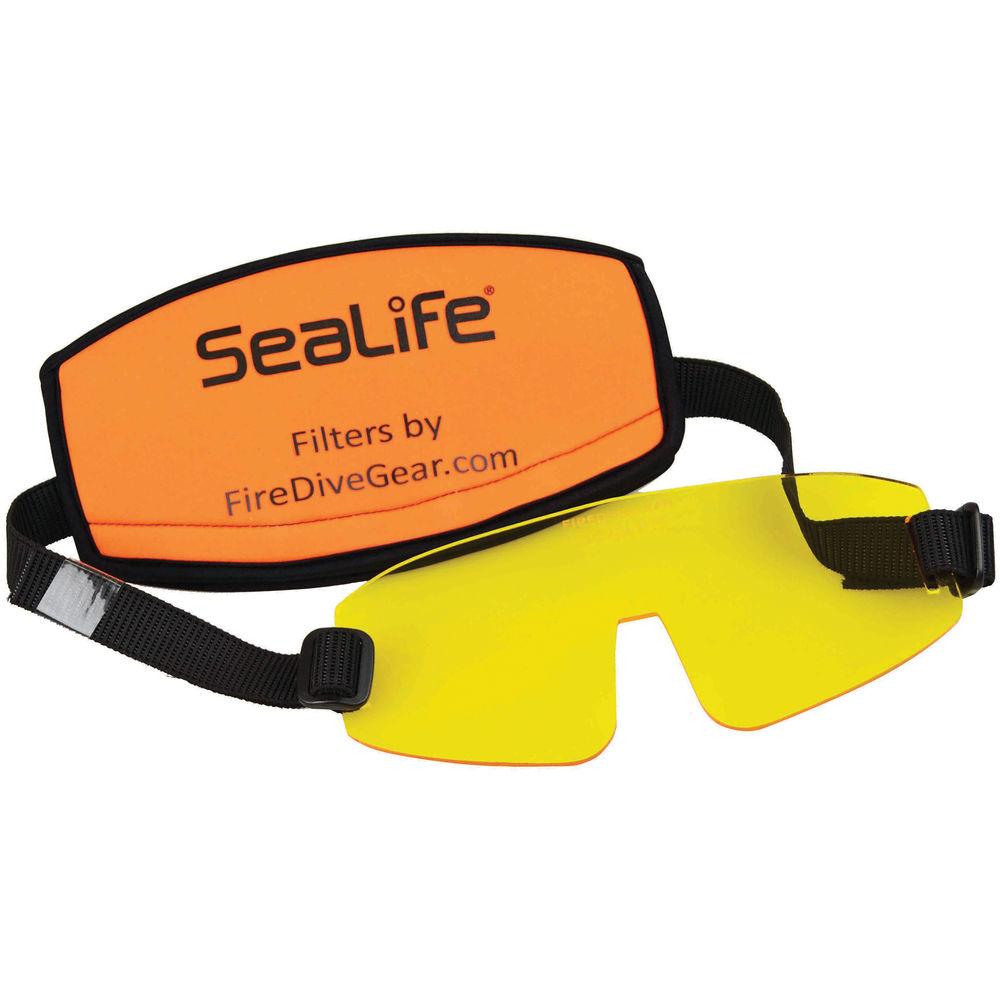

- Included yellow barrier filter fits over your dive mask
- Blocks the blue light emitted by the Sea Dragon while allowing the glow of sea life to be observed in stunning colors
- Before capturing images or video with your camera, put an optional barrier filter over your lens or lens port, too, so that you can capture the fluorescence in the shots
- Switching System
-
- Single push-button on the head provides an easy way to power the light on/off and cycle through output levels with one hand

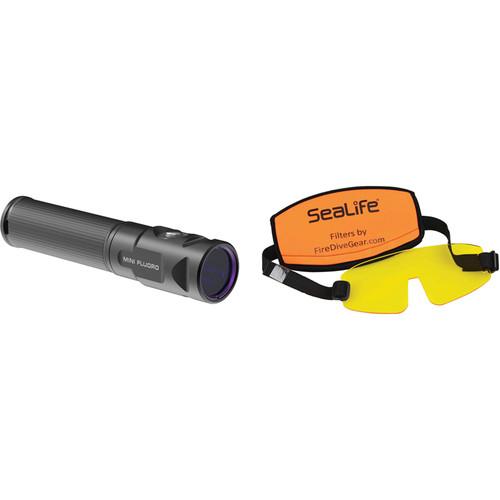

UPC: 077068416555 In the Box SeaLife Sea Dragon Mini Fluoro LED Dive Light with Mask Filter Yellow Barrier Mask Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaLife Sea Dragon Mini Fluoro LED Dive Light with Mask Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaLife Sea Dragon Specs | Depth Rating | 328' / 100 m | | Light Source | Dark blue CREE XT-E LED | | Light Output | Low: 2.1 W/m2
Medium: 4.3 W/m2
High: 7.0 W/m2 | | Beam Angle | Underwater: 10.5°
On Land: 14° | | Run Time | Low: 8.0 h
Medium: 4.0 h
High: 2.0 h | | Switching System | Push-button on light head | | Material of Construction | Not specified by manufacturer | | Power | 2x CR123 lithium batteries (not included)
1x rechargeable 3.6 V / 3400 mAh 18650 lithium-ion battery (not included) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.7 x 4.4 x 2.3" |
