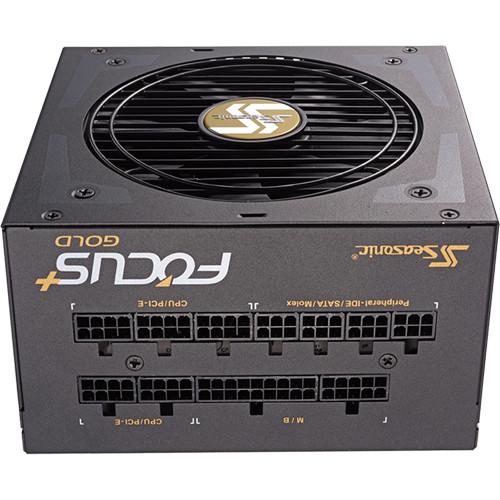

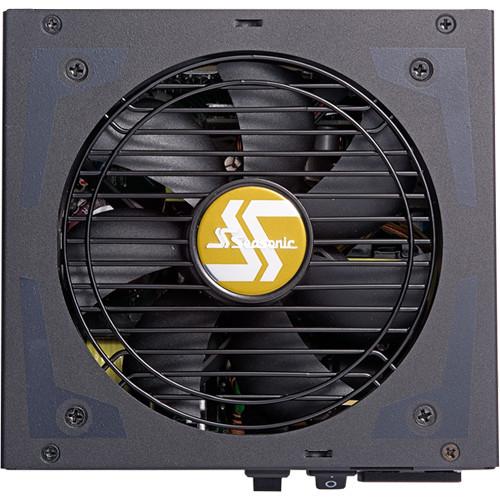

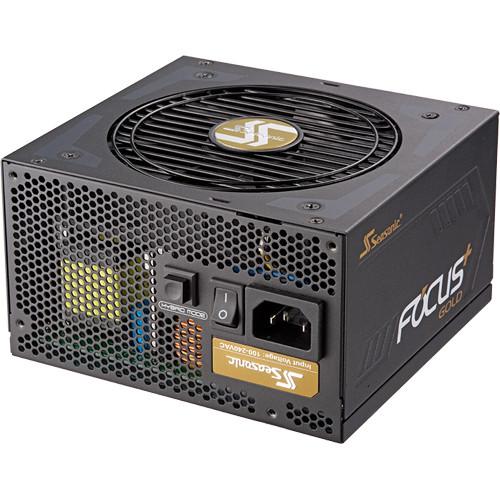

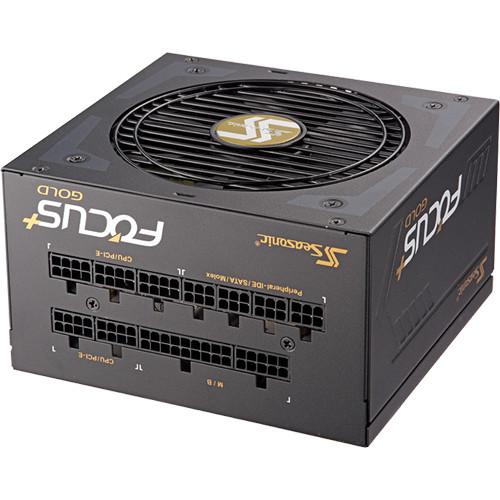

Product description Designed to deliver up to 550W of total output power to your PC, the FOCUS 550W 80 PLUS Gold ATX 12V Power Supply comes with 2 PCI-E connectors, 6 SATA connectors, 3 four-pin peripheral connectors, and a single floppy connector, in addition to its standard motherboard and CPU connectors. Certified 80 Plus Gold with 90% efficiency at 50% system load, the FOCUS 550W 80 PLUS Gold ATX 12V Power Supply boasts a multi-GPU setup and tight voltage regulation. An embedded 120mm fan with fluid dynamic bearings is designed for quiet operation, optimized heat dissipation, and a longer life span compared to ball bearing fans. The fan's Fanless, Silent, and Cooling modes can be customized with a rear switch that disables the Fanless setting. The 140mm-deep FOCUS 550W 80 PLUS Gold power supply has a fully modular design, meaning each its cables can be attached or removed depending on your PC's power needs. In addition, a cable-free connection between the PSU's back panel and printed circuit board (PCB) is designed to boost output power quality while also lowering the possibility of production errors. - 80 Plus Gold Certification
- The Focus Plus Gold Series achieves 80 Plus Gold certification with its 90% efficiency at 50% system load.
- Cable-Free Connection Design
- Instead of cables, the PSU's back panel and the PCB (Printed Circuit Board) are connected by a copper plate, a design that's intended to lower the chance of production errors during manual insertion as well as help to improve output power quality.
- Hybrid Silent Fan Control
- This three-phased (Fanless Mode, Silent Mode, and Cooling Mode) thermal control is designed to achieve optimal between silence and cooling. The intended benefits of Hybrid Silent Fan Control include reduced noise without increase in temperature, extended fan life due to the reduced number of fan rotations, optimized heat dissipation, and silent performance in Fanless Mode.
- Fan Control Button

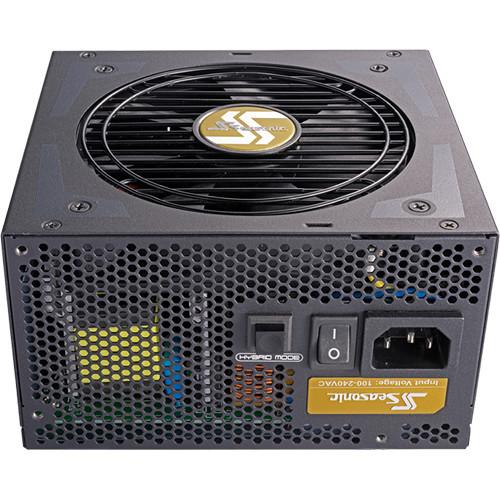

- A button at the back of the power supply allows users to customize their cooling needs. Selecting the S2FC setting enables fan control without Fanless Mode, meaning the fan spins even during light loads, while the S3FC setting activates fan control including Fanless Mode, during which the fan does not spin during loads under 30%.
- Fluid Dynamic Fan Bearing
- High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage. The lubrication of the bearing surface is intended to reduce friction and vibration, thereby lowering overall power consumption. FDB fans are designed for reliability and longevity, as well as to run cooler and more quietly than ball bearing fans.
In the Box SeaSonic Electronics FOCUS 550W 80 PLUS Gold ATX 12V Power Supply Motherboard Cable 1 x CPU Cables 1 x PCI-E Cables 2 x SATA Cables 4-Pin Peripheral Cable 4-Pin Floppy Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics FOCUS 550W 80 PLUS Gold ATX 12V Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SSR-550FX Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
6 x (Unspecified Pin Count) SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat, Modular | | PCIe Connector Distances | 29.5" / 750 mm | | SATA Connector Distances | 31.9" / 810 mm
22.4" / 570 mm | | Peripheral Connector Distances | 27.2" / 690 mm | | Floppy Connector Distances | 4.0" / 101 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 540 W | | Max Load for +12 V | 45 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% at 50% Load | | | | Fan Size | 120 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Compliance | ATX 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, EAC, ENERGY STAR, ErP Lot 6, REACH, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 5.9 x 3.4" / 140.0 x 150.0 x 86.0 mm | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 12.5 x 7.4 x 4.6" |
