User Manual for SeaSonic Electronics Focus Gold Series 550W 80 Plus Gold Modular ATX Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics Focus Gold Series 550W
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics Focus Gold Series 550W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|

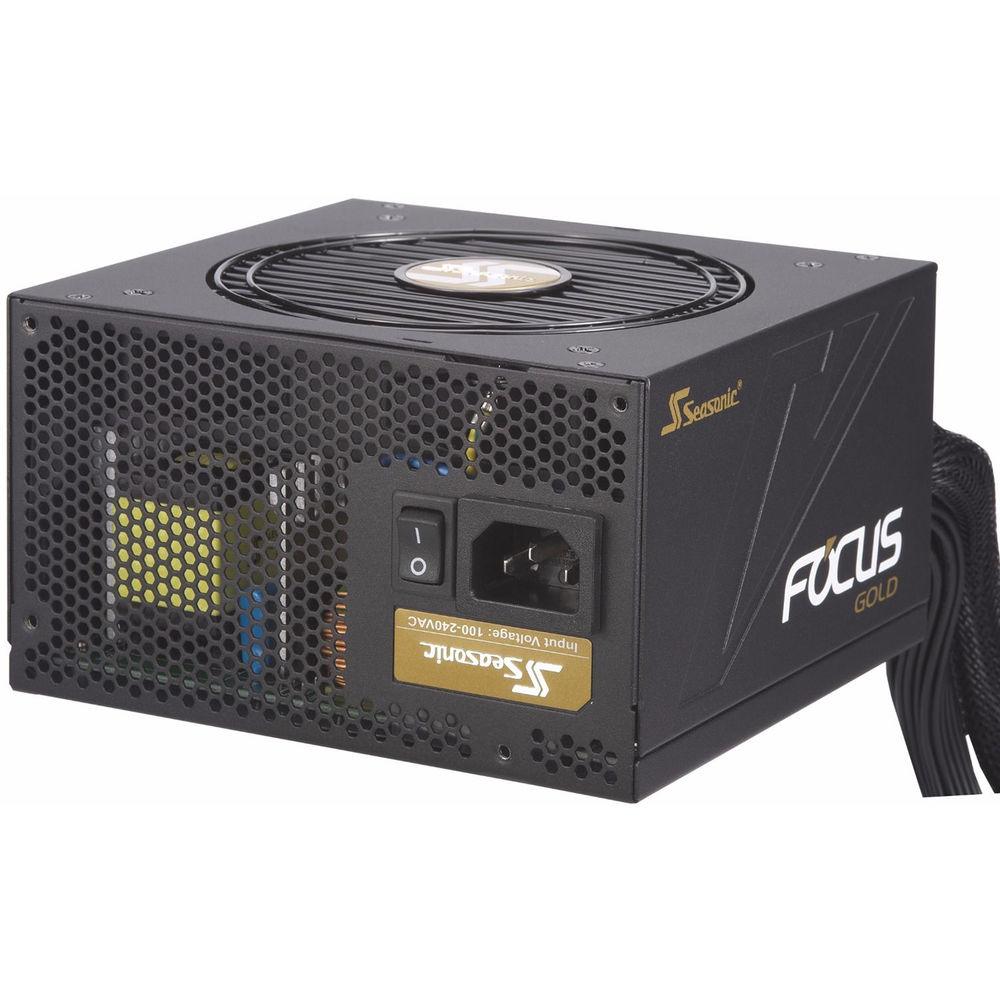

Product description The Focus Gold Series 550W 80 Plus Gold Modular ATX Power Supply from Seasonic is designed to provide high-end systems with clean, continuous power. The semi-modular design allows you to connect the cables you need and store the rest for less cable clutter and improved airflow. It's built with a 120mm cooling fan and utilizes Seasonic's Smart and Silent Fan Control to keep it operating quietly and efficiently. - 80 Plus Gold
- The Focus Gold series has an 80 Plus Gold rating, ensuring greater than 87%, 90%, and 87% efficiency at 20%, 50%, and 100% operating loads, respectively.
- Semi-Modular Cables
- With semi-modular cables, only the 24-pin and 8-pin ATX power cables are permanently attached. The rest of the cables can be connected as needed.

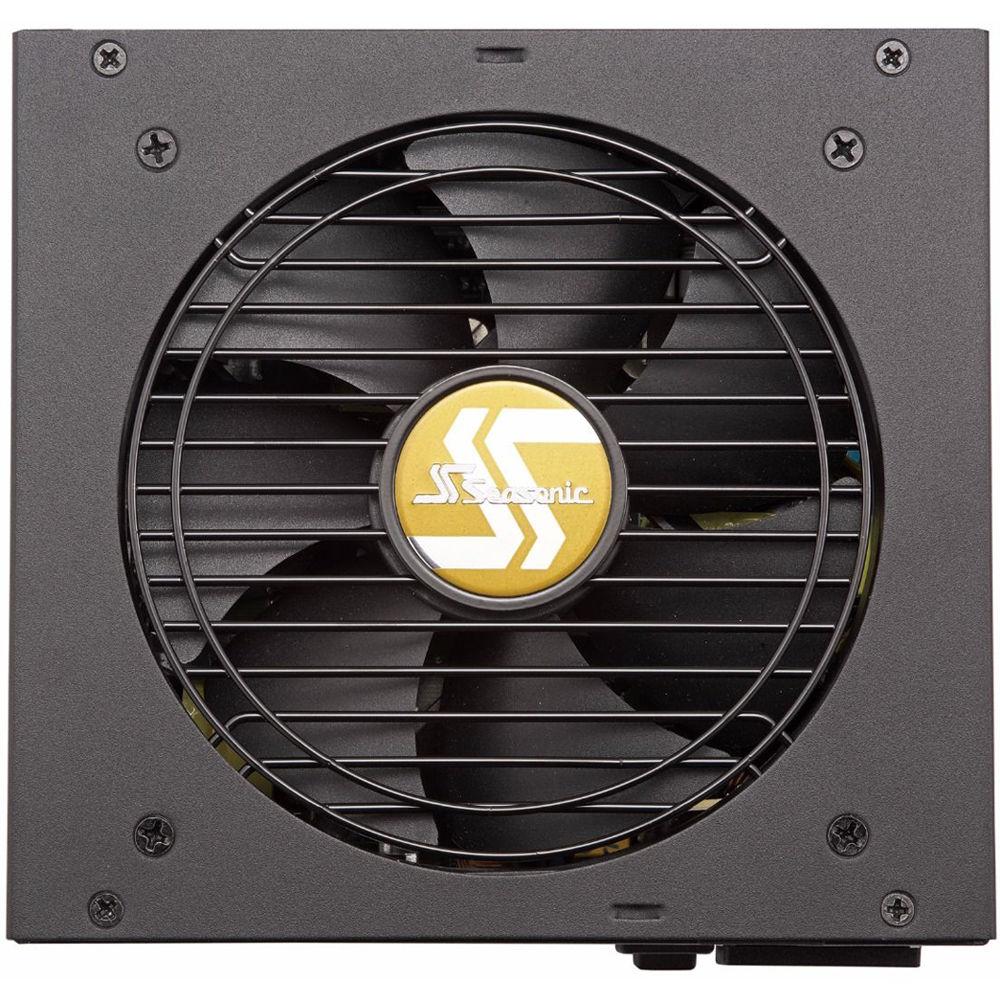

- S2FC - Smart and Silent Fan Control
- Seasonic's Smart and Silent Fan Control provides you with an optimal balance between cooling efficiency, power draw, and noise.

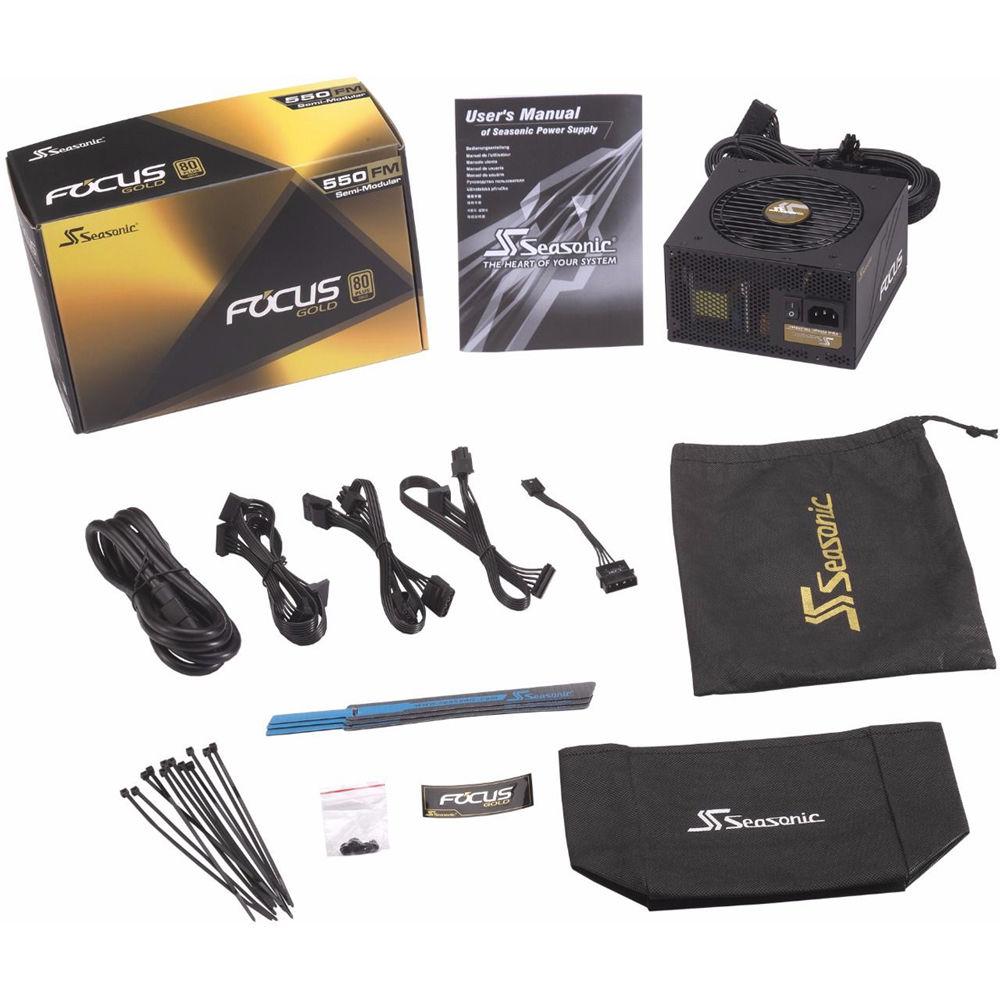

In the Box SeaSonic Electronics Focus Gold Series 550W 80 Plus Gold Modular ATX Power Supply 24/20-Pin ATX Cable 8/4-Pins CPU Cables 8/6-Pin PCIe Cables 2 x SATA Cables Peripheral Cables Floppy Cable Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics Focus Gold Series 550W 80 Plus Gold Modular ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics Focus Series SSR-550F Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Semi-Modular | | PCIe Connector Distances | 26.6" / 675 mm
29.5" / 750 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm
31.9" / 810 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Floppy Connector Distances | 4" / 101 mm (Adapter) | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 540 W | | Max Load for +12 V | 45 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Efficiency Rating | 80 PLUS Gold | | | | Fan Size | 120 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Form Factor | ATX | | Compliance | ATX 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, EAC, ENERGY STAR, ErP Lot 6, REACH, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 3.4 x 5.9" / 140.0 x 86.0 x 150.0 mm | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 10.9 x 7.2 x 4.6" |
