User Manual for SeaSonic Electronics G-Series 650W 80 Plus Gold Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics G-Series 650W 80 Plus
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics G-Series 650W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|

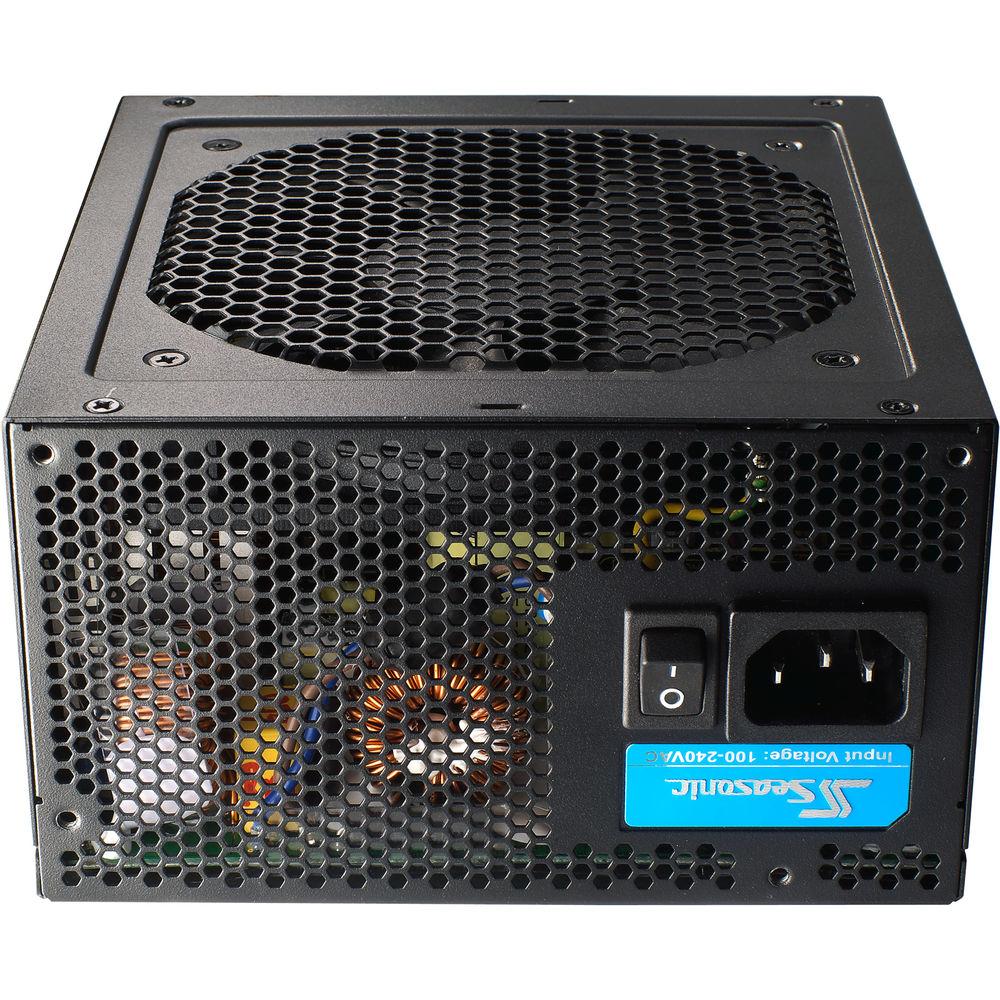

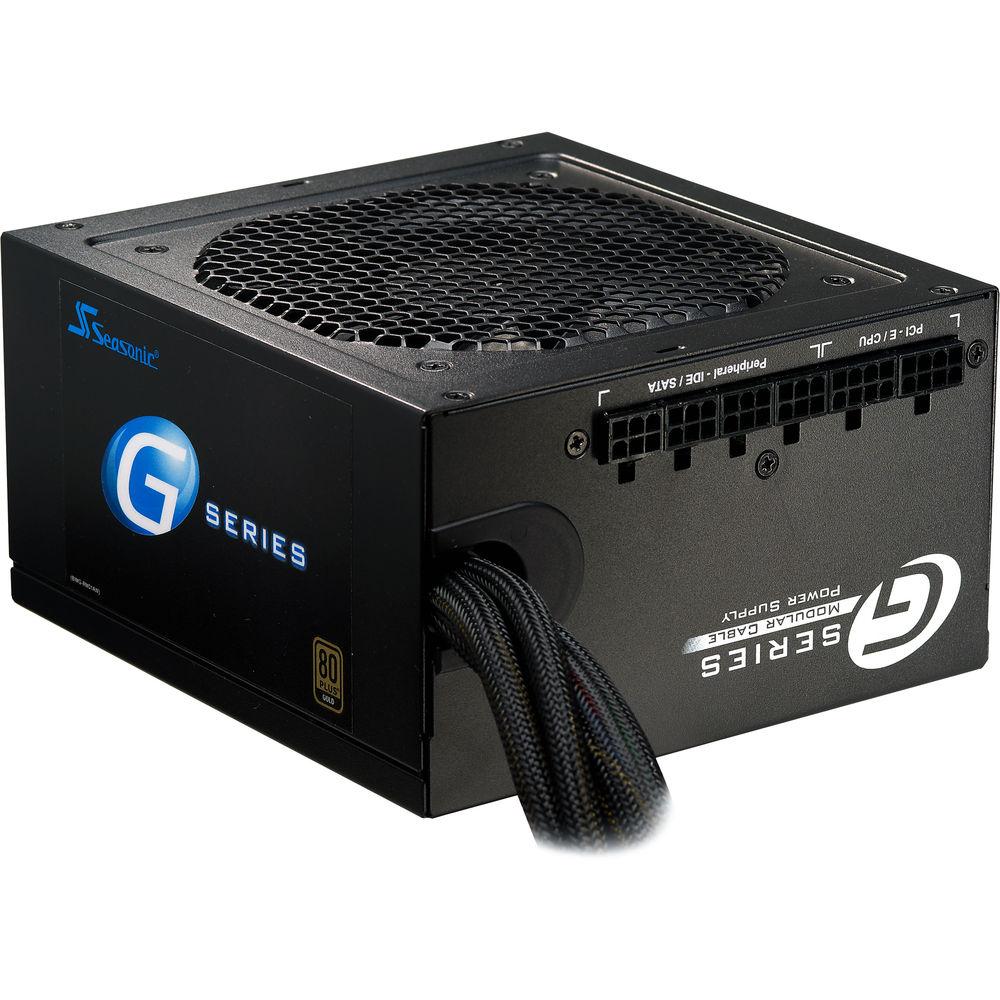

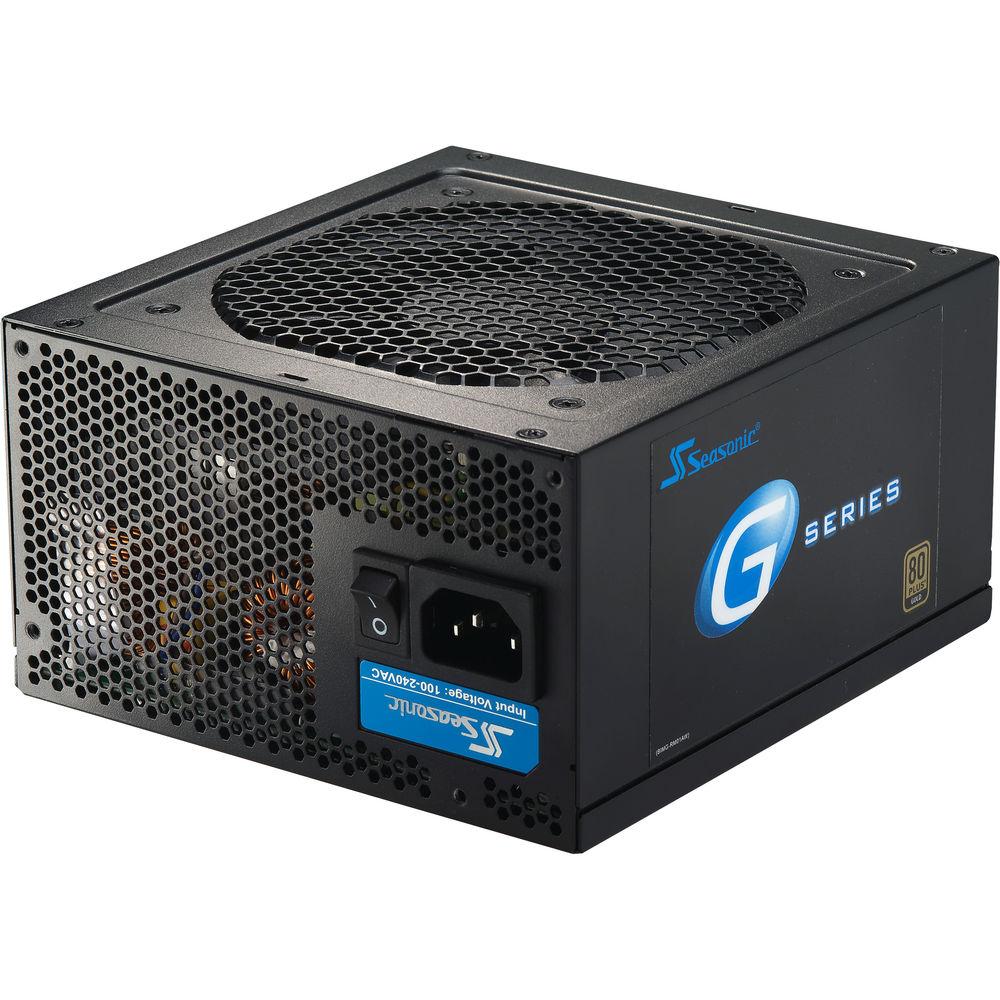

Product description The G-Series 650W 80 Plus Gold Modular Power Supply from SeaSonic is crafted with high quality components for stable performance and power efficiency. It has all the cables you need, even for a multi-gpu setup, and a single +12V rail with active power factor correction, reducing line loss and power distortion. The 120mm ball bearing cooling fan operates at low noise and dissipates heat from the unit. Gold plated current terminals reduces current transmission resistance to increase efficiency. With a modular design, the G-Series power supply helps to reduce cable clutter and simplifies cable management. - 80 Plus Gold Certified eco-friendly power supply unit
- DC to DC converter design provides dynamic response, system stability, and maximizes the 12 VDC rail output
- Tight voltage regulation improves load regulation to reduce voltage variations to provide smooth and stable operations
- Smart and silent fan offers intelligent thermal control for balance between noise and cooling
- Reliable aluminum electrolytic capacitors help extend the product life
- Conducive polymer aluminum solid capacitors ensures operation stability in extreme conditions
- Detachable modular cables are a flexible solution to reduce clutter
- High current gold plated terminals reduce current transmission resistance for increased efficiency
- Honeycomb design maximizes airflow resistance for enhanced cooling
- 6-pin and 8-pin PCI-E connectors support multi-GPU platforms
- Universal AC input (full range) lets you plug and run the unit anywhere

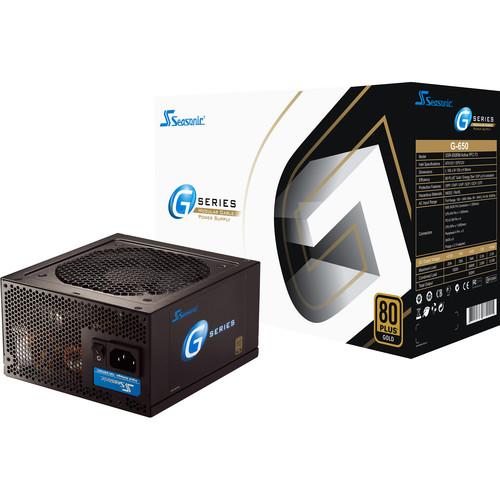

In the Box SeaSonic Electronics G-Series 650W 80 Plus Gold Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics G-Series 650W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SSR-650RM Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 8-Pin EPS
4 x 6+2-Pin PCIe
8 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 21.7" / 550 mm
25.6" / 650 mm | | | | Total Wattage | 650 W | | Combined Power for +12 V | 648 W | | Max Load for +12 V | 54 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 9 A | | | | Efficiency Rating | 80 PLUS Gold | | | | Compliance | ATX 12 V, EPS 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | ENERGY STAR, ErP Lot 6, RoHS, as per Manufacturer | | Dimensions | 6.3 x 5.9 x 3.4" / 16.0 x 15.0 x 8.6 cm | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 12.6 x 7.5 x 4.8" |
