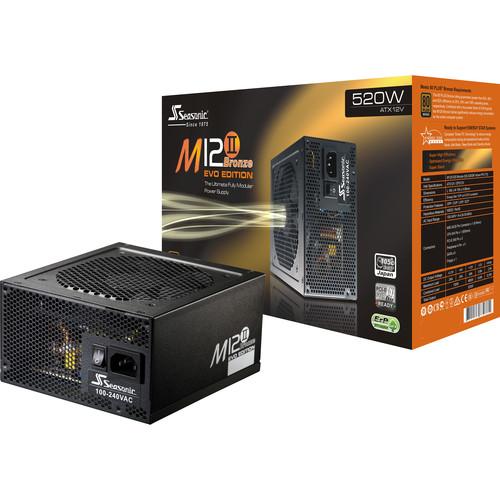

User Manual for SeaSonic Electronics M12II Bronze Evo Edition SS-520GM2 520W Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics M12II Bronze Evo Edition
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics M12II Bronze Evo Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|

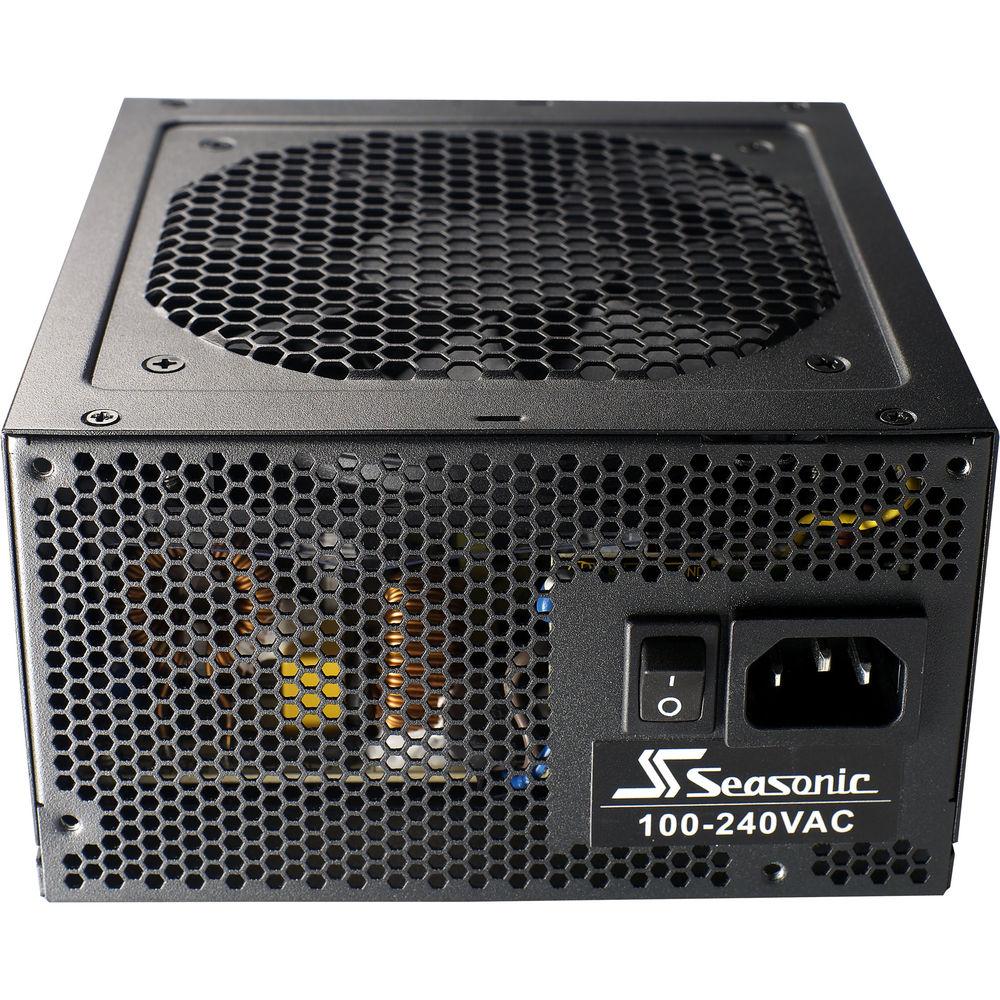

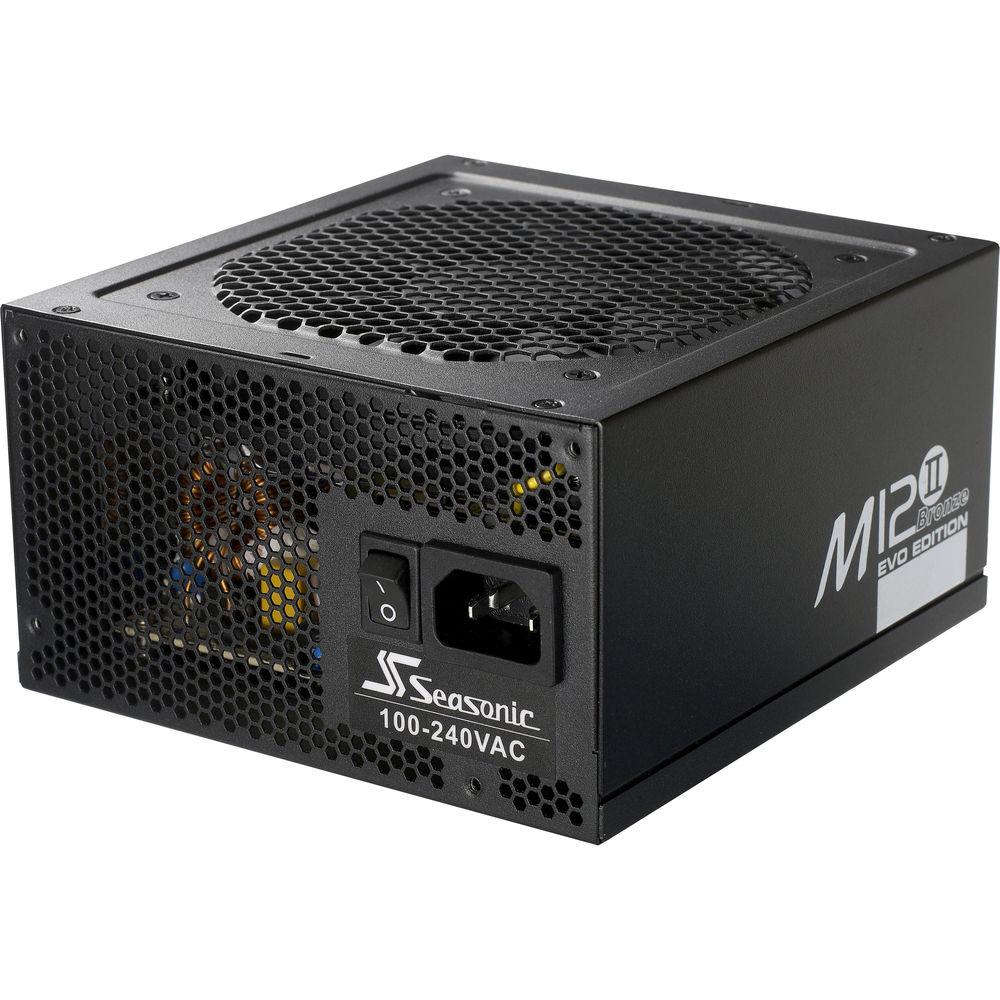

Product description The M12II Bronze Evo Edition SS-520GM2 520W Modular Power Supply from SeaSonic is crafted with high quality components for stable performance and power efficiency. It has all the cables you need, even for a multi-gpu setup, and a single +12V rail with active power factor correction, reducing line loss and power distortion. The 120mm ball bearing cooling fan dissipates heat and spins at a slow speed for quiet operation. Gold plated current terminals reduce current transmission resistance to increase efficiency. With a modular design, the M12II Bronze Evo Edition power supply helps to reduce cable clutter and simplifies cable management. - Active power factor correction reduces line loss and power distortion, up to 99%.
- Smart and silent fan control ensures an optimal balance between silence and cooling.
- 120mm ball bearing cooling fan increases airflow and product lifetime while reducing noise and fan rotation speed.
- Multi-GPU support with 6-oin and 8-pin PCI-E connectors to support all GPU platforms.

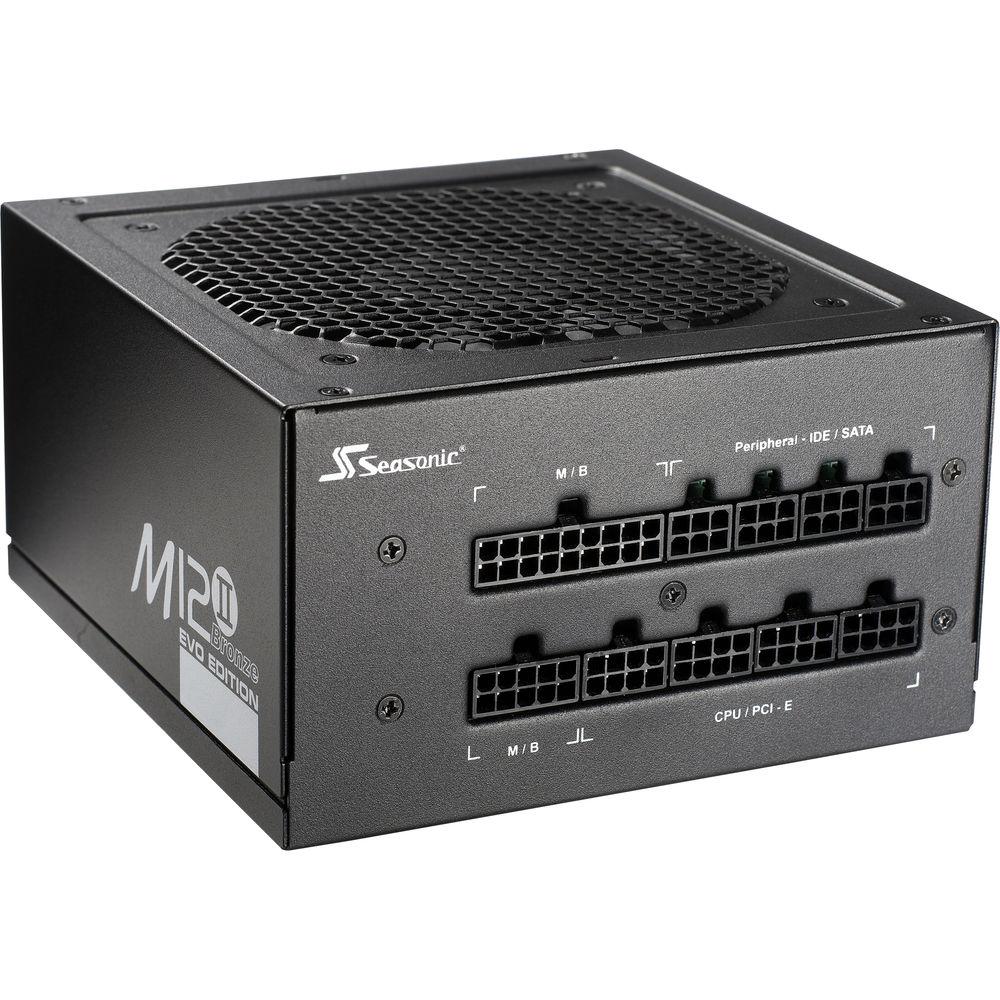

- Fully modular cables reduce clutter and optimize cable management.
- Gold plated high current terminals reduces current transmission resistance to increase efficiency.
UPC: 882016000805 In the Box SeaSonic Electronics M12II Bronze Evo Edition SS-520GM2 520W Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics M12II Bronze Evo Edition SS-520GM2 520W Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SS-520GM2 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
6 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat, Modular | | PCIe Connector Distances | 23.6" / 600 mm | | SATA Connector Distances | 11.8" / 300 mm
15.7" / 400 mm
16.5" / 420 mm
20.5" / 520 mm
25.2" / 640 mm
29.9" / 760 mm | | Peripheral Connector Distances | 11.8" / 300 mm
15.7" / 400 mm
16.5" / 420 mm
20.5" / 520 mm
25.2" / 640 mm | | Floppy Connector Distances | 4" / 101 mm (Adapter) | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 520 W | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 40 A | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 24 A | | Max Load for +5 V | 24 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9 A | | | | Efficiency Rating | 80 PLUS Bronze | | | | Fan Size | 120 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 104°F / 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V | | Protection | Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, EAC, ENERGY STAR, ErP Lot 6, REACH, RoHS, TUV, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 6.3 x 6.0 x 3.4" / 160.0 x 150.0 x 86.0 mm | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 12.52 x 7.48 x 4.803" |
