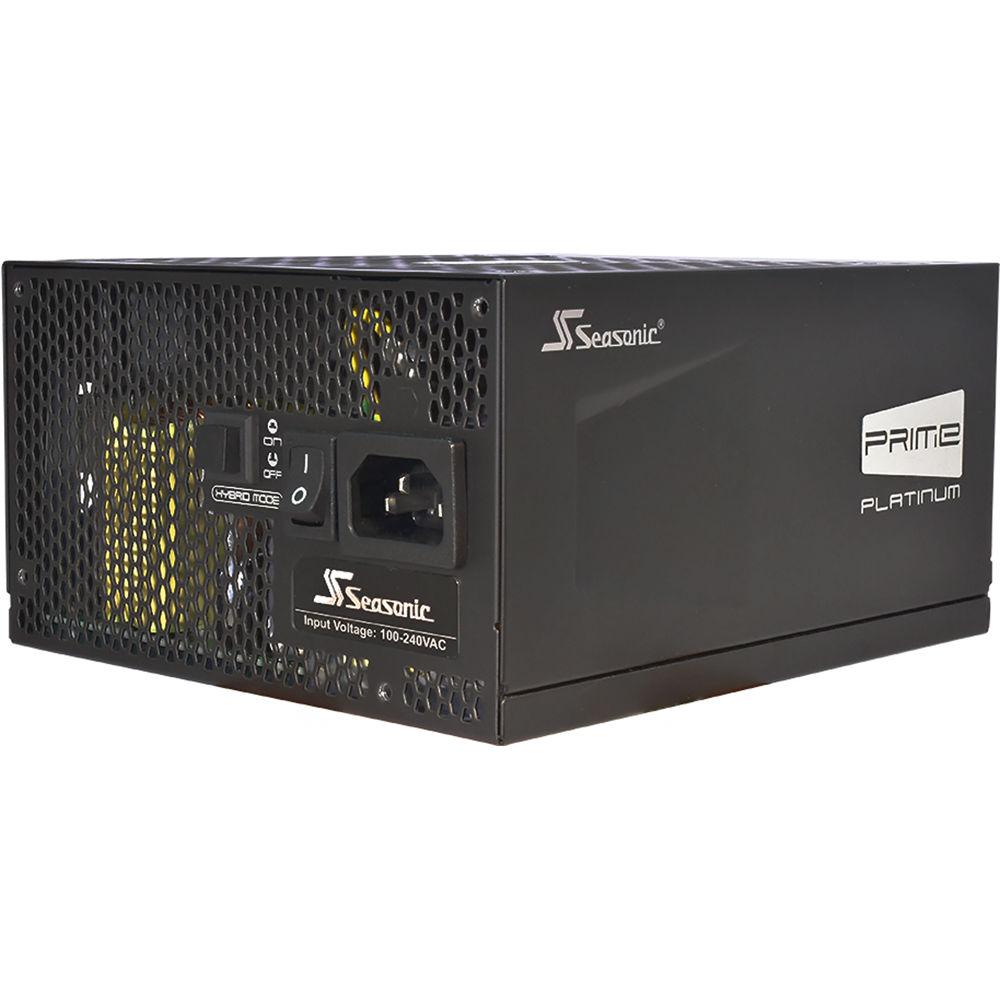

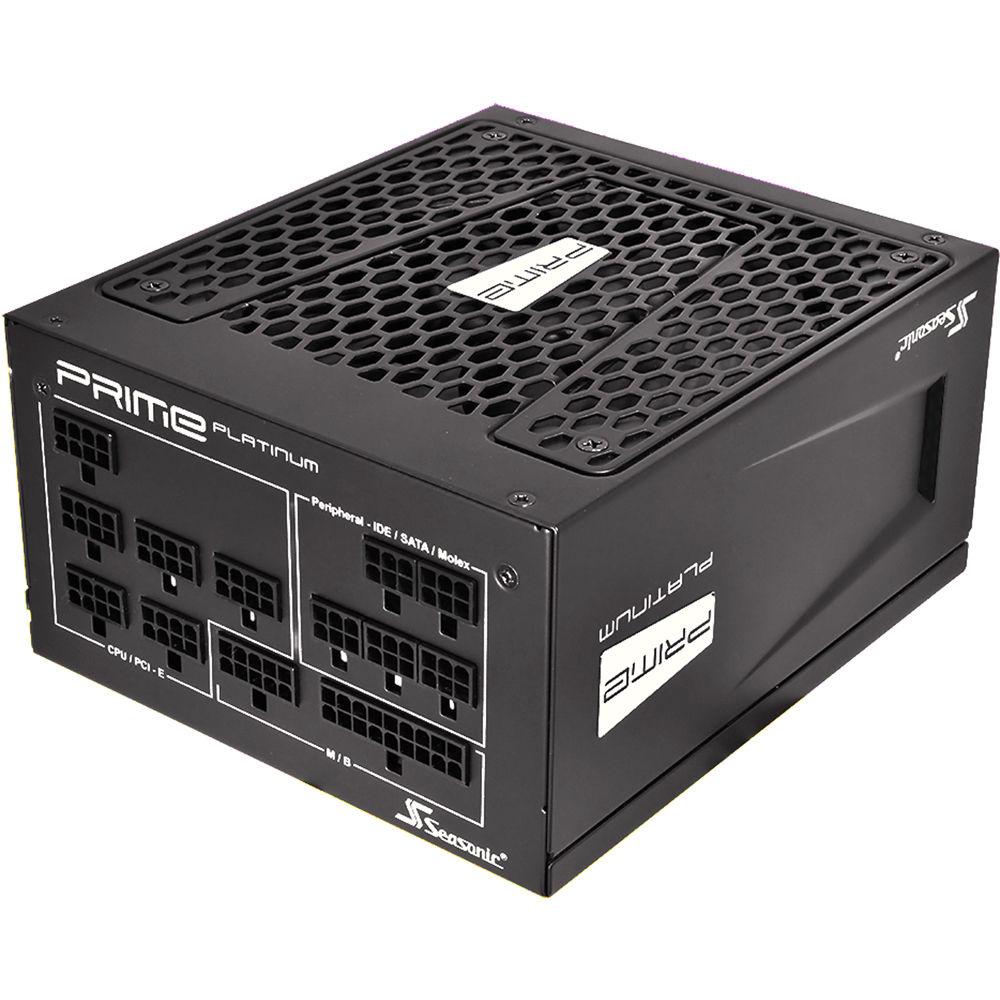

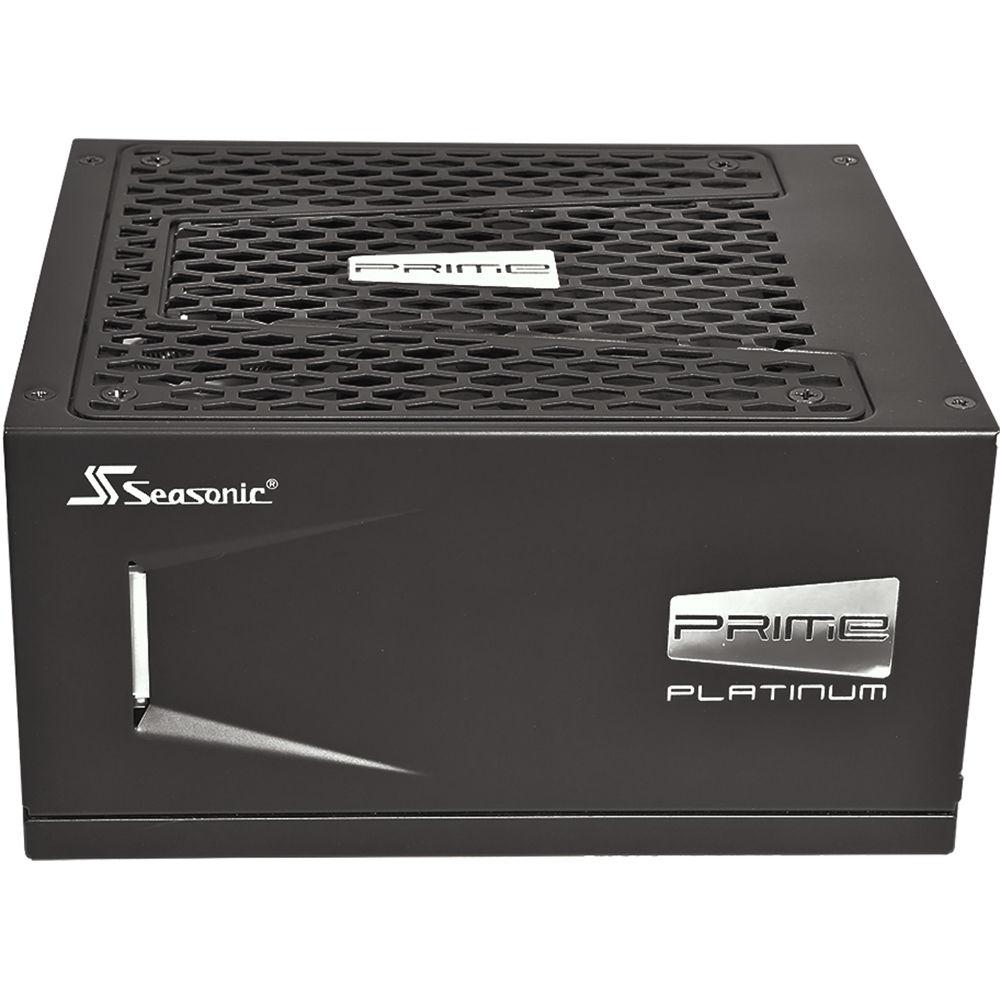

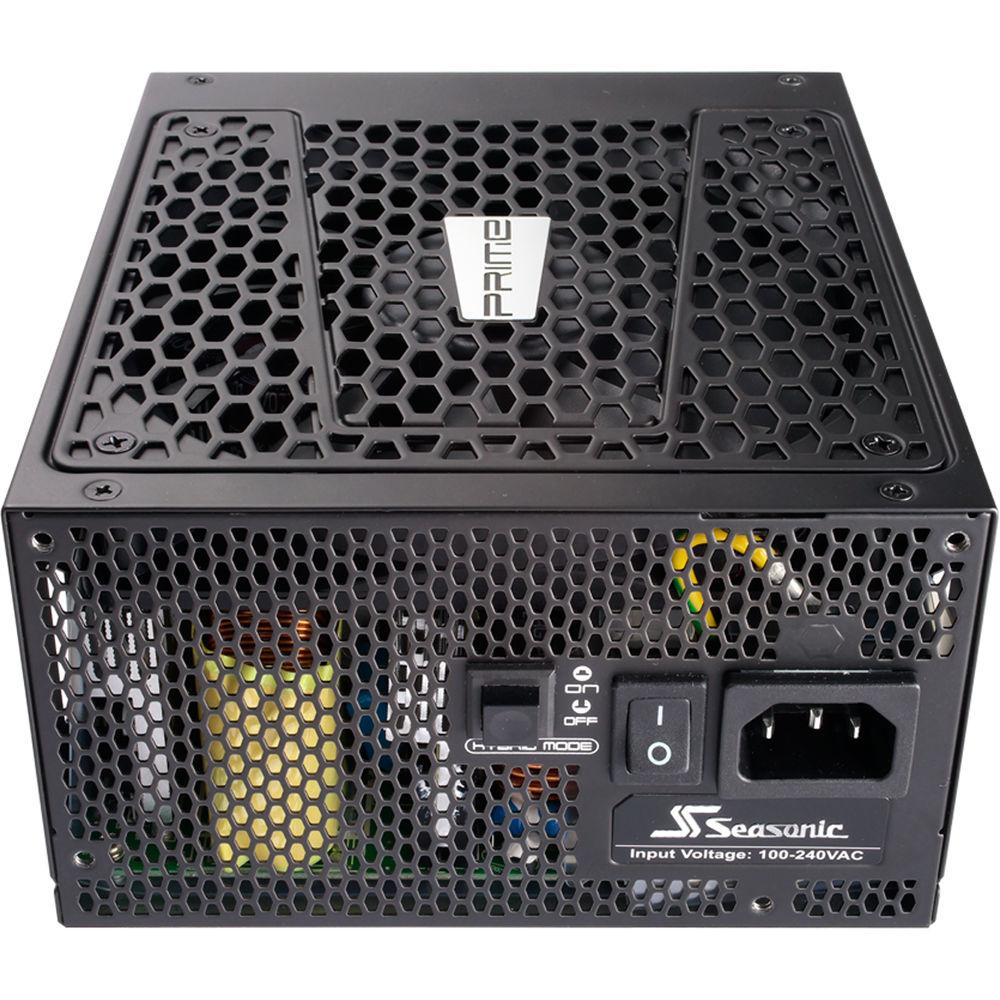

Product description The Prime 1200W 80 Plus Platinum Modular ATX Power Supply from SeaSonic Electronics sports a single rail that delivers up to 1200W of power for all the internal components inside a desktop system. The power supply comes with modular cables that connect to eight PCIe cards, twelve SATA drives, five molex-compatible devices, and other essential equipment. Aside from delivering power, the modular cables help maximize the internal space in a compact chassis by letting you remove unused cables. With an 80-PLUS Platinum rating, the PSU efficiently converts power coming from the source to offer you lower operating costs. There's also an onboard variable speed 135mm fan for quietly cooling the PSU. - 80 PLUS Platinum
- The high-efficient 80 PLUS Platinum certification offers greater than 90 %, 92 %, and 89 % efficiency at 20 %, 50 %, and 100 % operating loads, respectively. With an 80 PLUS Platinum rating, this power supply will waste less energy during power conversion, lowering operating costs for the user.
- Fluid Dynamic Fan Bearing
- The Fluid Dynamic Bearing (FDB) fan is designed to take advantage of the impact absorbance effects of oil. It is reliable and generates less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. This type of fan technology also increases the lifespan of the fan.

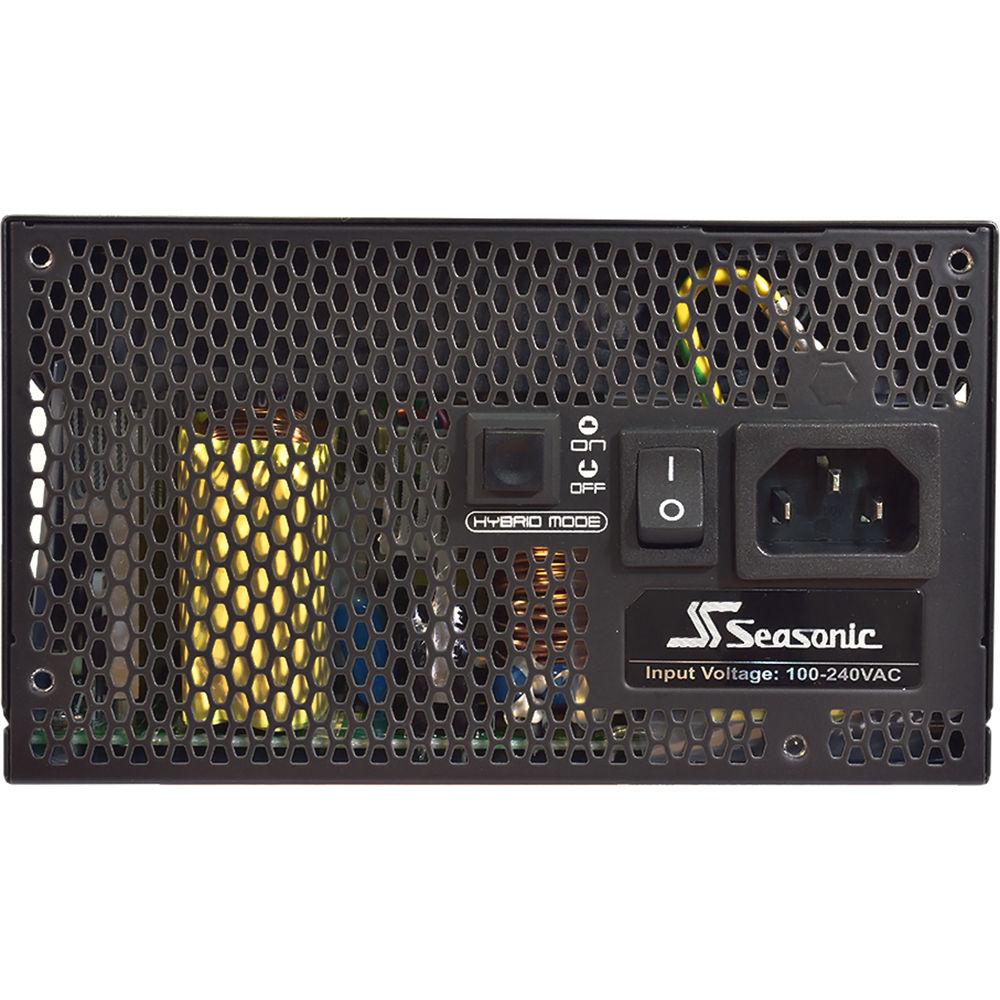

- Power Supply Sound
- With Seasonic's Hybrid mode, the onboard fan can operate at various spin speeds to help eliminate noise.
- Micro Tolerance Load Regulation
- Seasonic's design keeps the output voltage within a very tight range, achieving under 1 % load regulation.

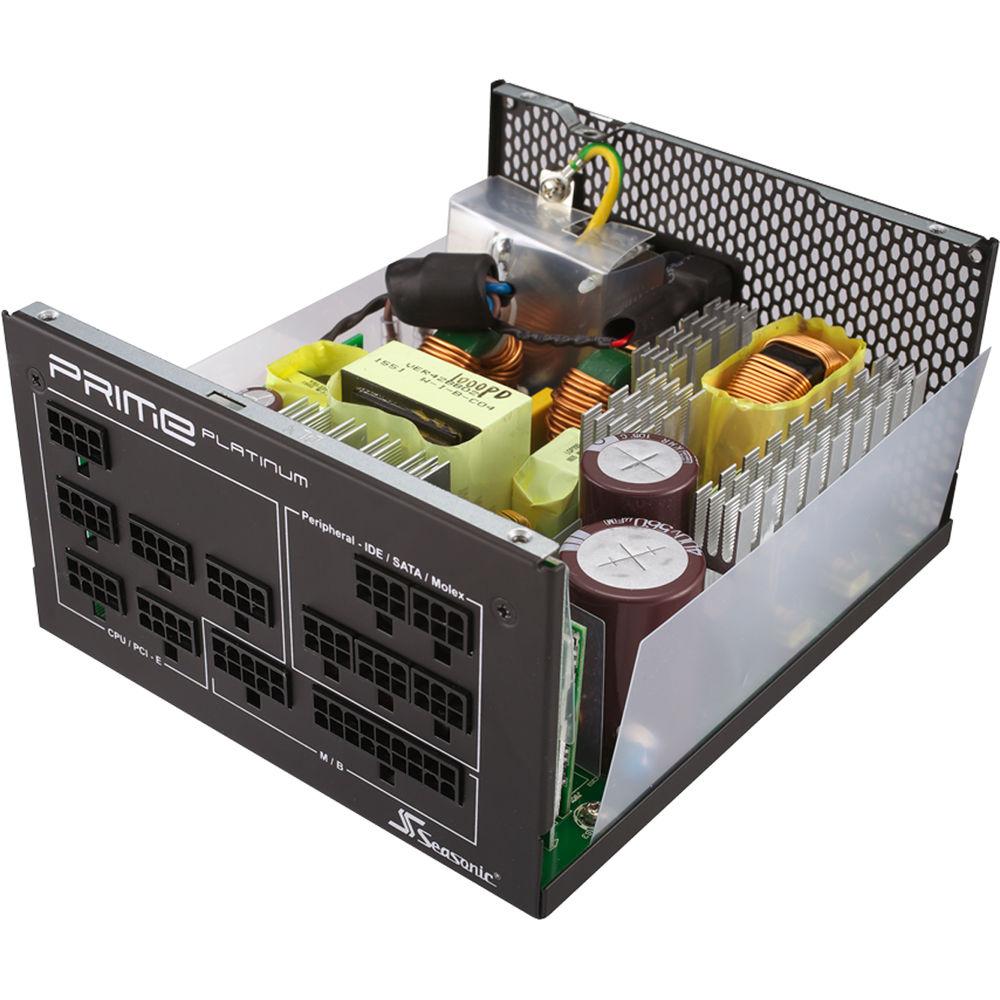

- Cable-Free Connection Design

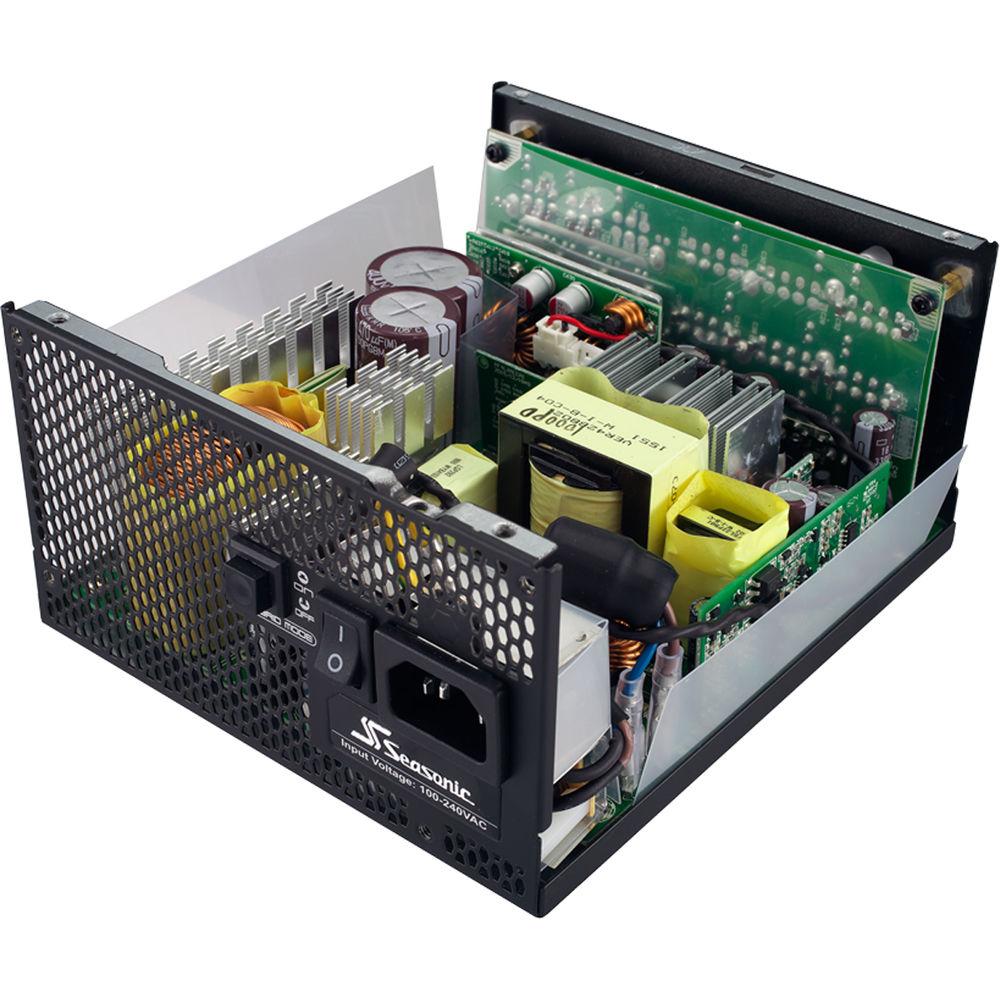

- With a special design feature, the back panel and PCB (Printed Circuit Board) are connected by a copper plate. This solution lowers the chance of production errors during manual insertion and improves output power quality.
- Multi-GPU Setup
- 8 PCIe (6+2-pin) connections are available to support multi-GPU setups.
- Gold-Plated Connectors
- Gold plating critical connector pins (motherboard, CPU and PCIe cables) extends the lifetime of the connectors and increases the efficiency of current transmission.
In the Box SeaSonic Electronics PRIME 1200W 80 Plus Platinum Modular ATX Power Supply Package of Modular Cables Power Cord Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics PRIME 1200W 80 Plus Platinum Modular ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics SSR-1200PD Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin EPS
8 x 6+2-Pin PCIe
12 x 15-Pin SATA
5 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat, Modular | | PCIe Connector Distances | 26.6" / 675 mm
29.5" / 750 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm
31.9" / 810 mm | | Peripheral Connector Distances | 15.7" / 400 mm
20.5" / 520 mm
25.2" / 640 mm | | Floppy Connector Distances | 4" / 101 mm | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Combined Power for +12 V | 1200 W | | Max Load for +12 V | 100 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 25 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7.5 to 15 A | | | | Efficiency Rating | 80 PLUS Platinum | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Fan Life Expectancy | 50,000 Hours | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Compliance | ATX 12 V | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | ENERGY STAR, REACH, RoHS, WEEE, as per Manufacturer | | Mean Time Between Failures (MTBF) | 150,000 Hours | | Dimensions | 5.9 x 6.7 x 3.4" / 150.0 x 170.0 x 86.0 mm | | | | Package Weight | 8.85 lb | | Box Dimensions (LxWxH) | 13.2 x 7.9 x 5.5" |
