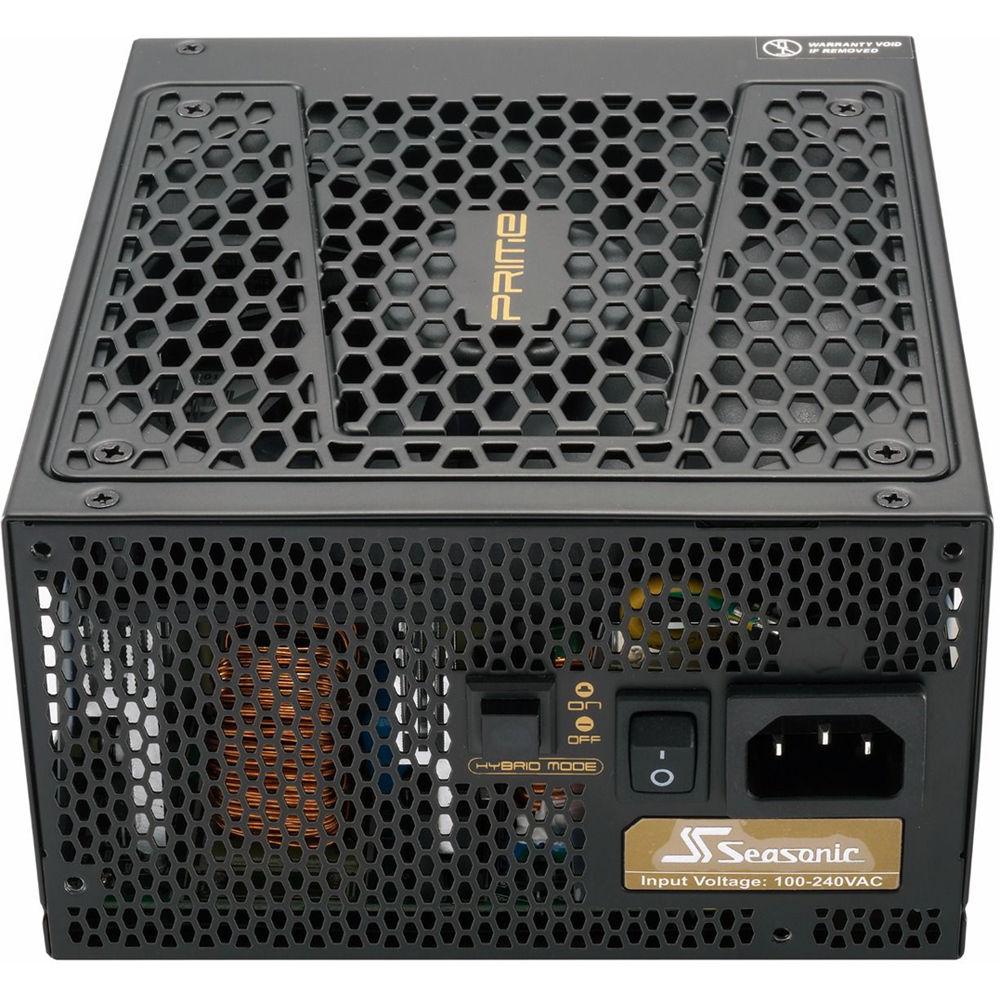

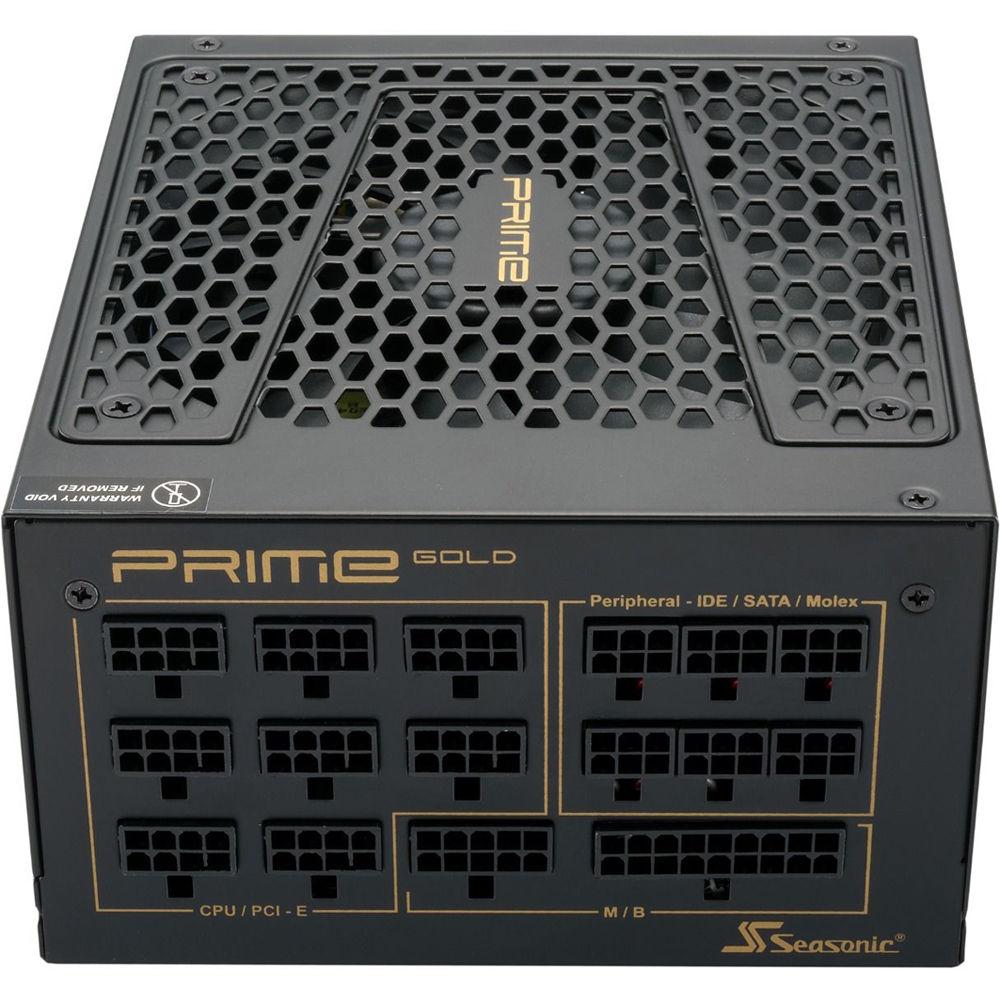

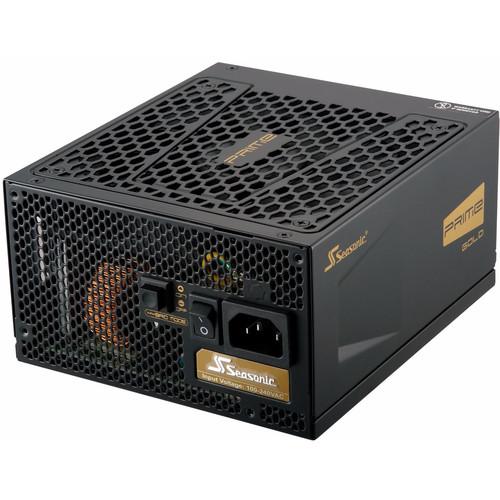

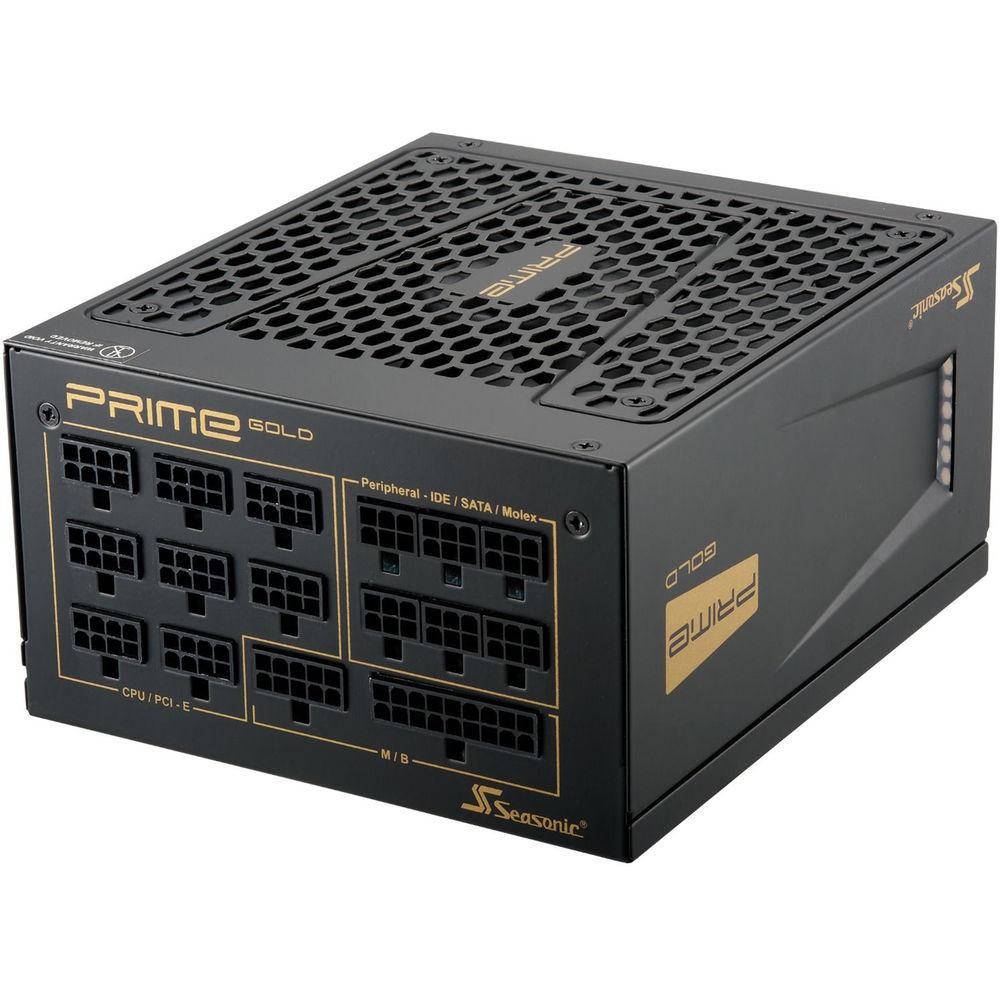

User Manual for SeaSonic Electronics PRIME 1300W 80 Plus Gold ATX Modular Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics PRIME 1300W 80 Plus
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics PRIME 1300W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|
Product description The PRIME 1300W 80 Plus Gold ATX Modular Power Supply from Seasonic Electronics helps users achieve a good balance of efficiency, performance, and power, while its wattage range makes it suitable for heavy gaming and overclocking. This power supply features a single +12V rail that delivers up to 1300W of power to 12 PCIe, 12 SATA, 5 molex, and other essential connectors. It is certified with an 80-PLUS Gold rating for efficient use of energy, while cooling is accomplished using an onboard 135mm fan with a fluid dynamic bearing. Other features include a modular, flat cable design, which helps improve airflow within the system by reducing the amount of unnecessary cables. General Features - 80 PLUS Gold
- The PRIME Gold Series achieves 80 PLUS Gold certification with its 90% efficiency at 50% system load.
- Micro Tolerance Load Regulation
- Seasonic's design keeps the output voltage within a very tight range, achieving under 0.5% load regulation, making this power supply a suitable choice for high-performance systems.
- Hybrid Fan Control
- Seasonic's experience in designing silent and efficient power supplies on the market has translated into the development of Hybrid Mode, which helps enable users to keep the overall fan noise at a low level.
- Fluid Dynamic Fan Bearing
- High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are reliable and generate less operating noise and heat than ball bearing fans. The lubrication of the bearing surface helps reduce friction and vibration and therefore lowers the overall power consumption. Due to the quieter rotations and its robust construction, this reliable fan technology also helps increase the lifespan of the fan.
- How It Works
- When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- Cable-free Connection Design

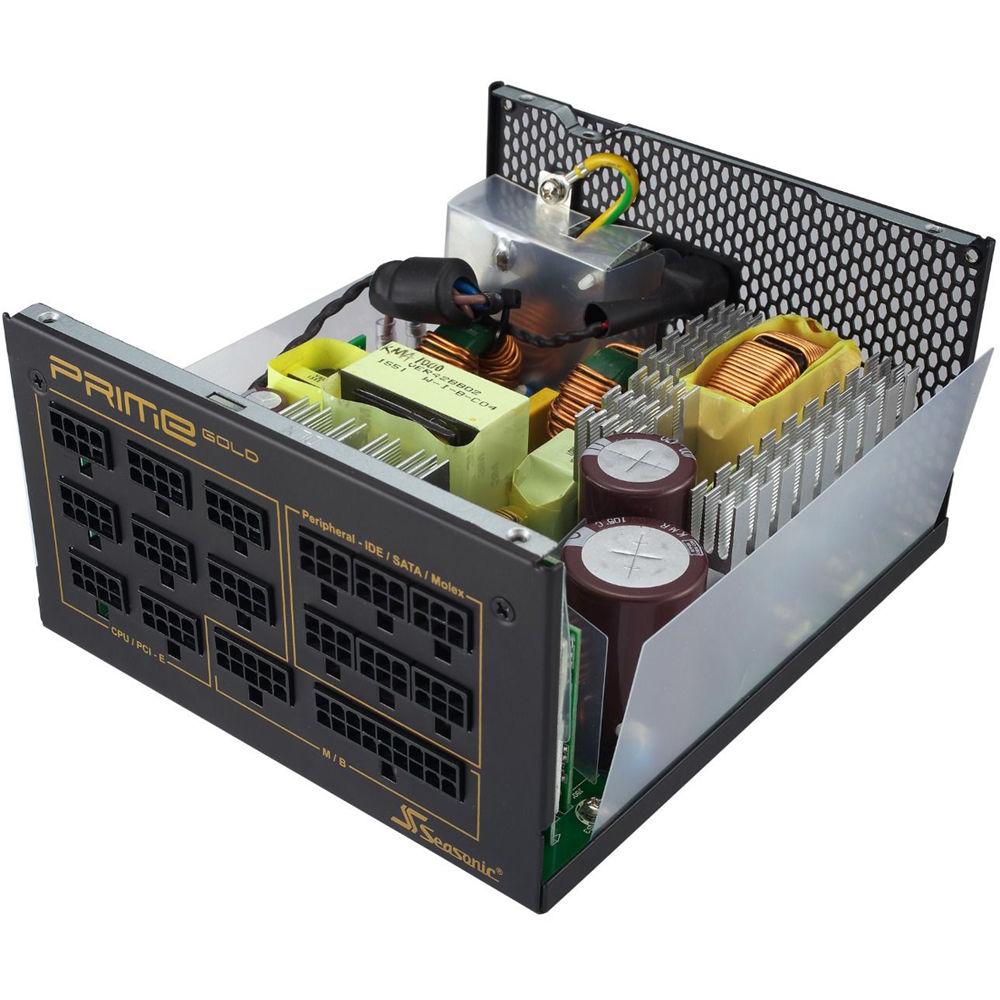

- Seasonic's engineers have implemented a design feature where instead of cables, the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
In the Box SeaSonic Electronics PRIME 1300W 80 Plus Gold ATX Modular Power Supply AC Power Cord Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics PRIME 1300W 80 Plus Gold ATX Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics PRIME 1300 W GOLD Specs | Connectors | Main Power
Connector Count: 1 (24/20-pin)
One 24" / 610 mm cable
CPU
Connector Count: 2 (8/4-pin)
Two 25.6" / 650 mm cables
PCIe
Connector Count: 12 (8/6-pin)
Two connectors on each of the six 26.6 + 3" / 675 + 75 mm cables
SATA
Connector Count: 12
Four connectors on each of the three 17.7 + 4.7 + 4.7 + 4.7" / 450 + 120 + 120 + 120 mm cables
Peripheral
Connector Count: 5
Three connectors on one 17.7 + 4.7 + 4.7" / 450 + 120 + 120 mm cable and two connectors on one 13.8 + 4.7" / 350 + 120 mm cable
FDD
Connector Count: 1
One 4" / 101 mm cable | | 80 PLUS Certification | Gold | | Form Factor | Intel ATX 12 V | | Fan Information | Fan Size: 135 mm
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 104°F / 40°C, 15 to 65% RH | | Cable Information | Modularity: Fully Modular
Cable Type: Flat black Cables (webbed for MB, CPU, and PCIe) | | Electrical Features | Operating Temperature: 32 to 122°F / 0 to 50°C
MTBF @ 77°F / 25°C (excluding fan): 150,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP | | Safety and Environmental | Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH | | AC Input | 100 to 240 VAC, 50/60 Hz, 7.5 to 15 A | | DC Output | 1300 W total continuous power
Rail: +3.3 V: Maximum Power: 25 A / 125 W
Rail: +5 V: Maximum Power: 25 A / 125 W
Rail: +12 V: Maximum Power: 108 A / 1296 W
Rail: -12 V: Maximum Power: 0.3 A / 3.6 W
Rail: +5 VSB: Maximum Power: 3 A / 15 W | | Dimensions | 5.9 x 6.7 x 3.4" / 150.0 x 170.0 x 86.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 13.4 x 8.0 x 5.4" |
