User Manual for SeaSonic Electronics PRIME 1300W 80 Plus Platinum Modular ATX Power Supply Click to enlarge the picture
Contents of the user manual for the SeaSonic Electronics PRIME 1300W 80 Plus
- Product category: Power Supplies SeaSonic Electronics
- Brand: SeaSonic Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SeaSonic Electronics Power Supplies
 |
User manual for the SeaSonic Electronics PRIME 1300W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SeaSonic Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SeaSonic Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SeaSonic Electronics product will considerably shorten its lifespan!
|

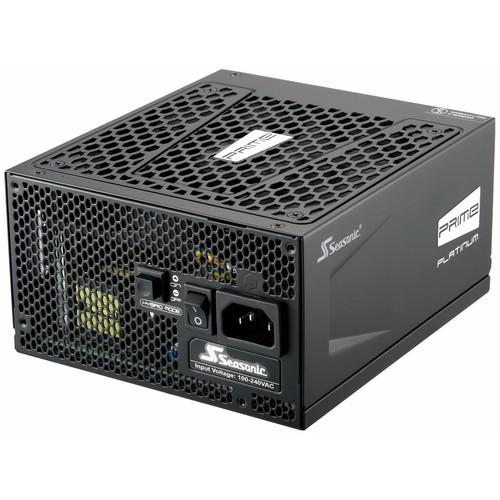

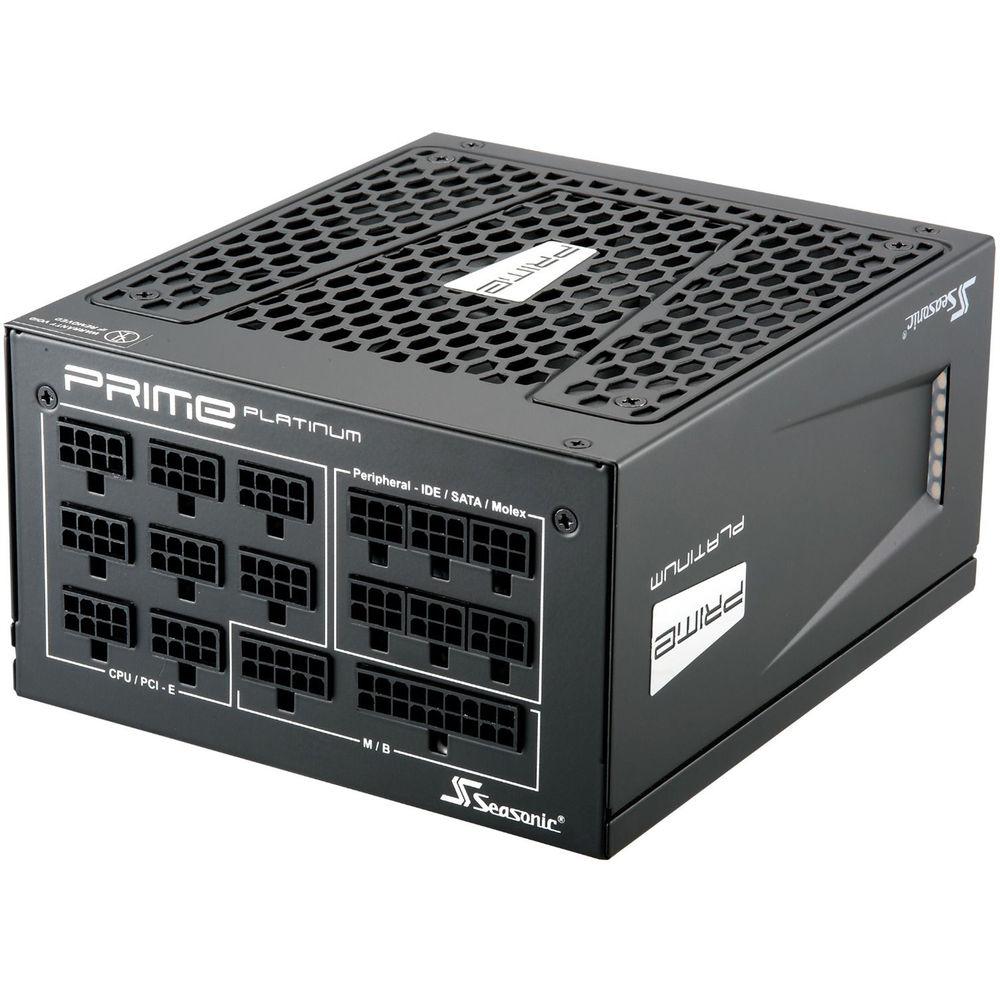

Product description The Prime 1300W 80 Plus Platinum Modular ATX Power Supply from Seasonic Electronics sports a single rail that delivers up to 1296-watts of power for all the internal components inside a desktop system. The power supply comes with modular cables that connect to PCIe cards, SATA drives, 4-Pin Molex-compatible devices, and other essential equipment. Aside from delivering power, the modular cables help maximize the internal space in a compact chassis by letting you remove unused cables. With an 80-Plus Platinum rating, the PSU efficiently converts power to offer you lower operating costs. There's also a built-in variable speed 135mm fan that quietly cools the PSU. - 80 Plus Platinum
- The 80 Plus Platinum certification offers greater than 90%, 92%, and 89% efficiency at 20%, 50%, and 100% operating loads, respectively. With an 80 Plus Platinum rating, this power supply will waste less energy during power conversion, lowering operating costs for the user.

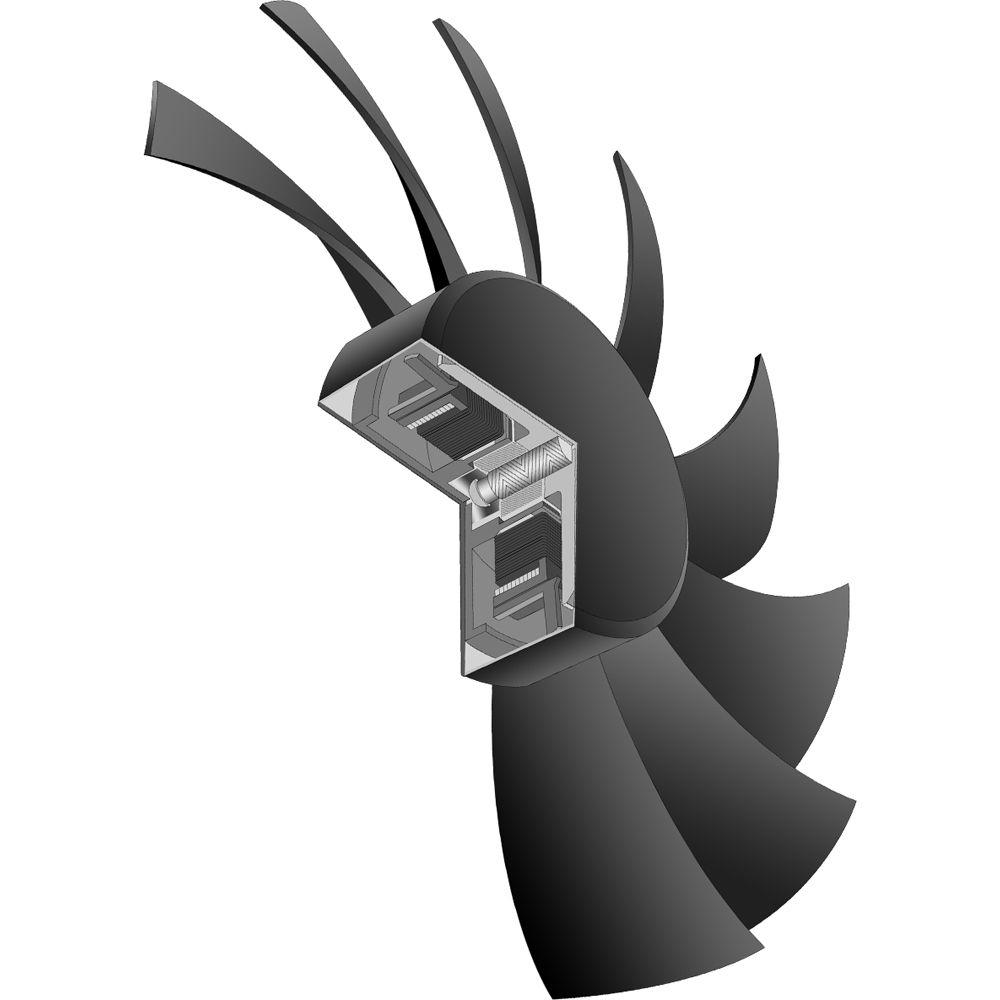

- Fluid Dynamic Fan Bearing
- The Fluid Dynamic Bearing (FDB) fan is designed to take advantage of the impact absorbance effects of oil. It is reliable and generates less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. This type of fan technology also increases the lifespan of the fan.
- Power Supply Sound
- With Seasonic's Hybrid mode, the onboard fan can operate at various spin speeds to help eliminate noise.

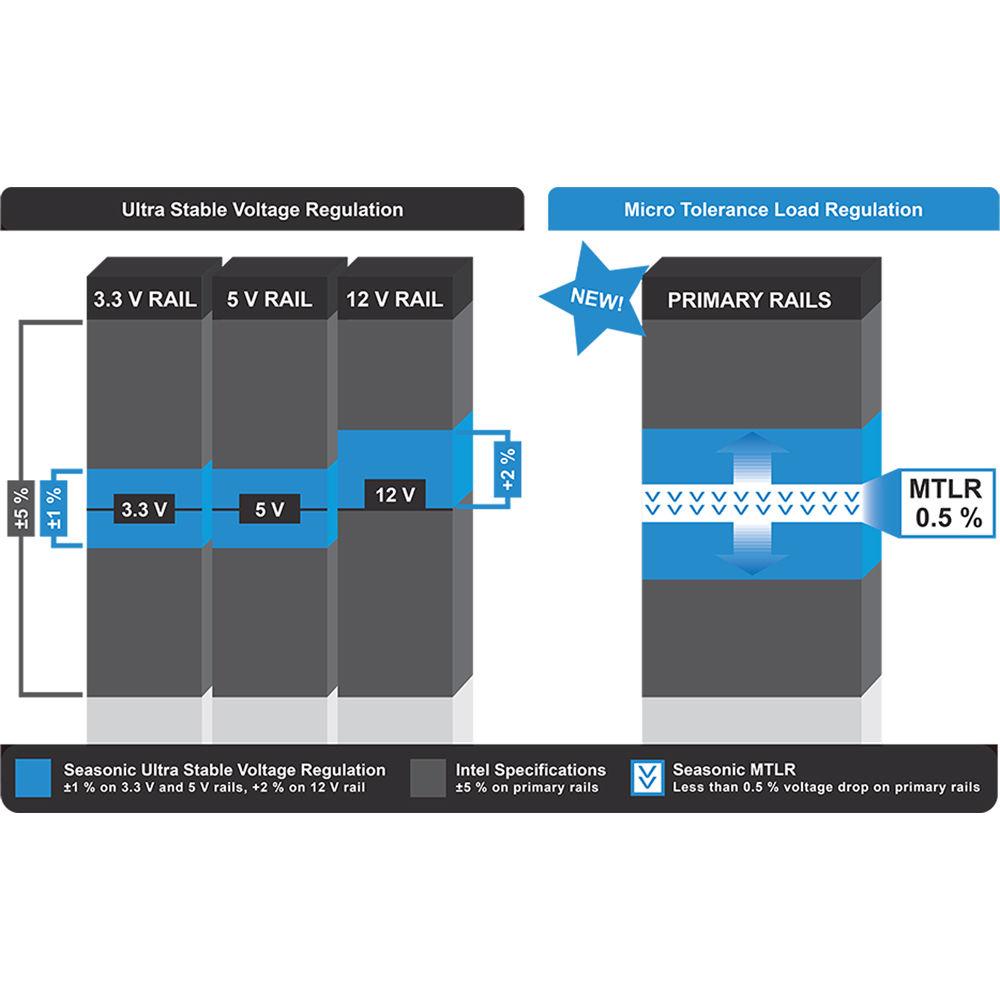

- Micro Tolerance Load Regulation
- Seasonic's design keeps the output voltage within a very tight range, achieving under 1 % load regulation.

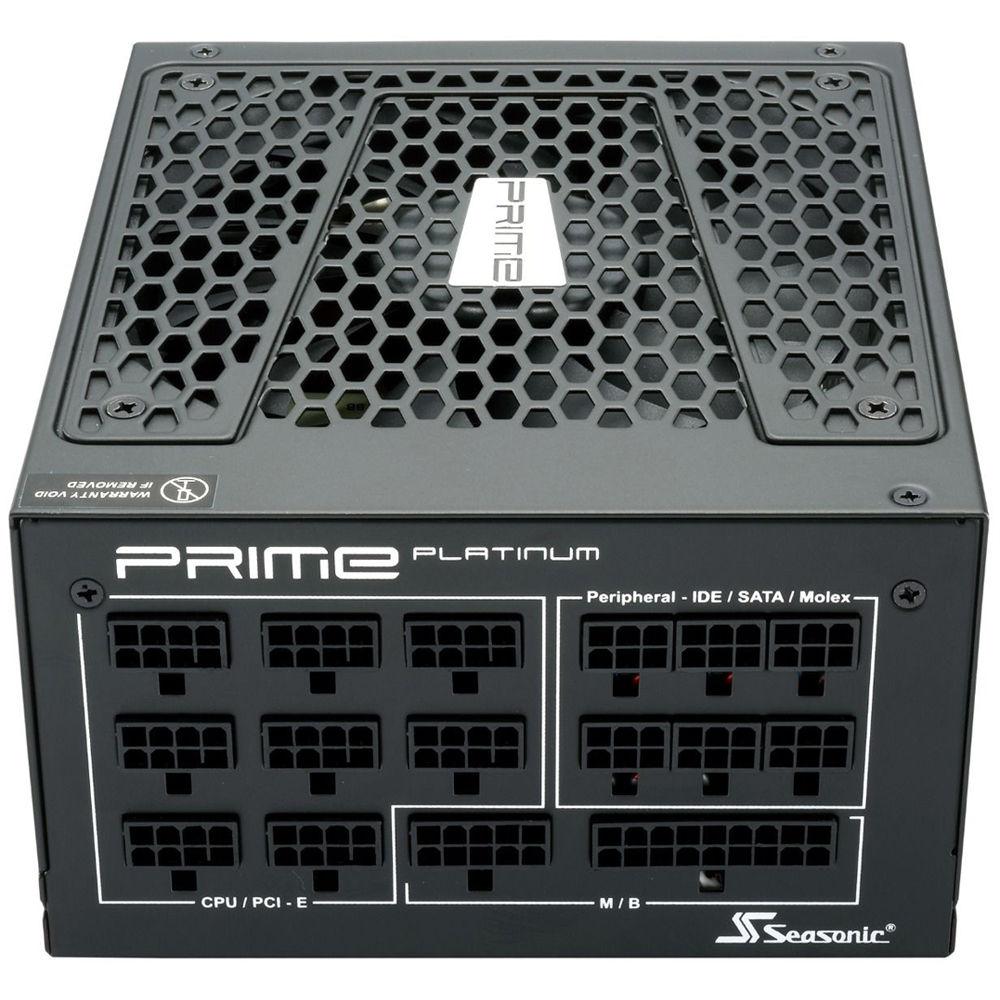

- Cable-Free Connection Design

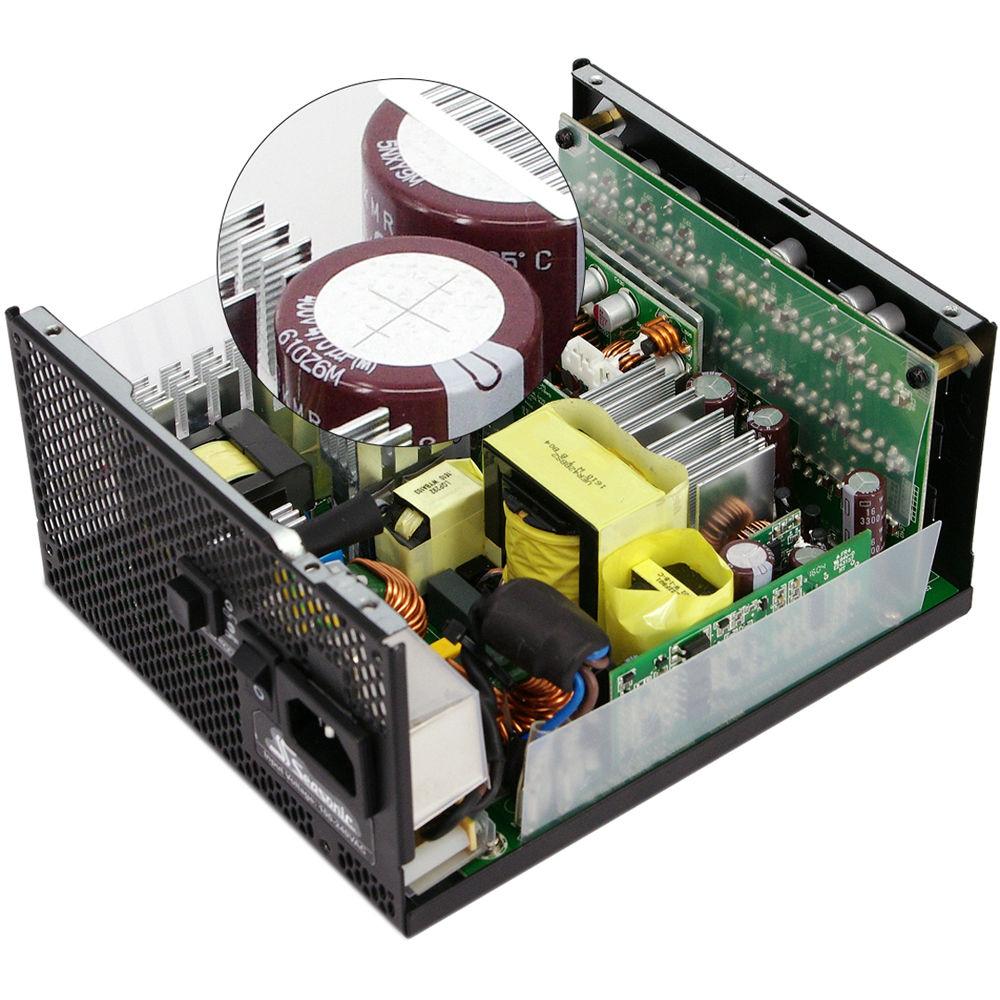

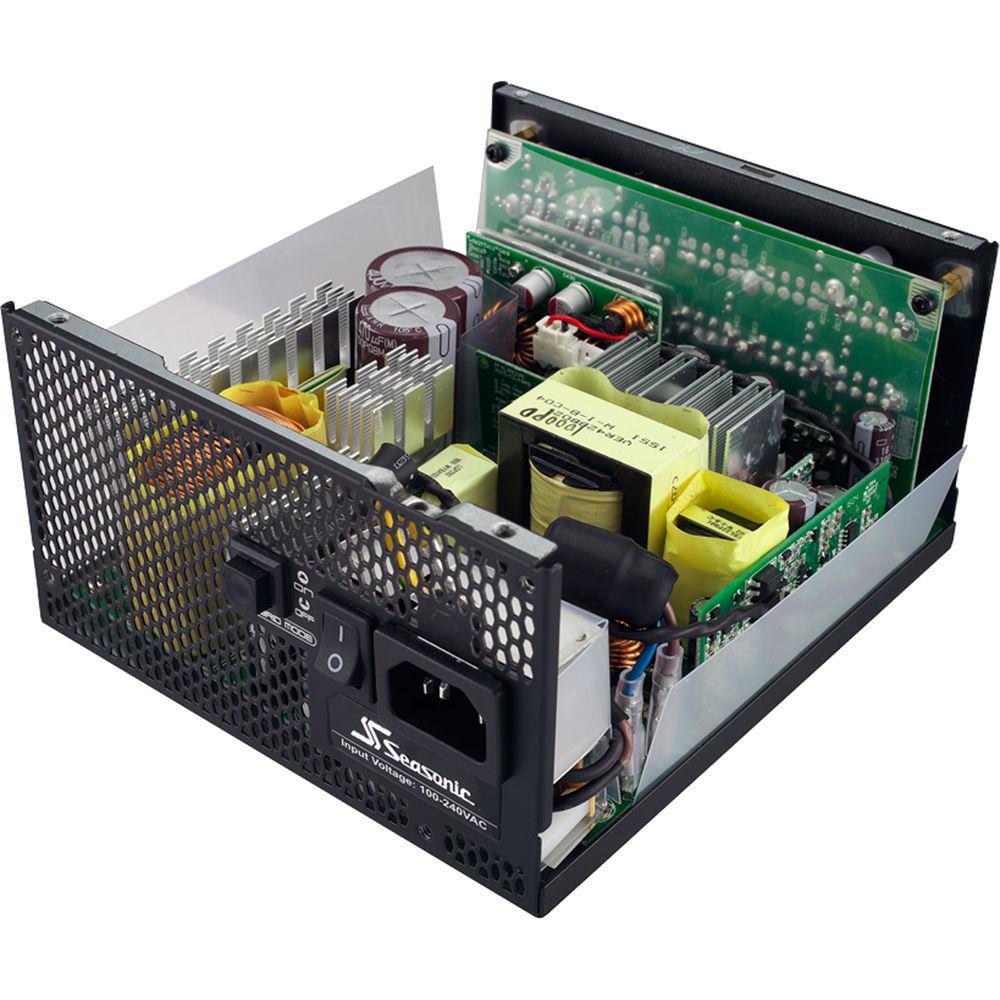

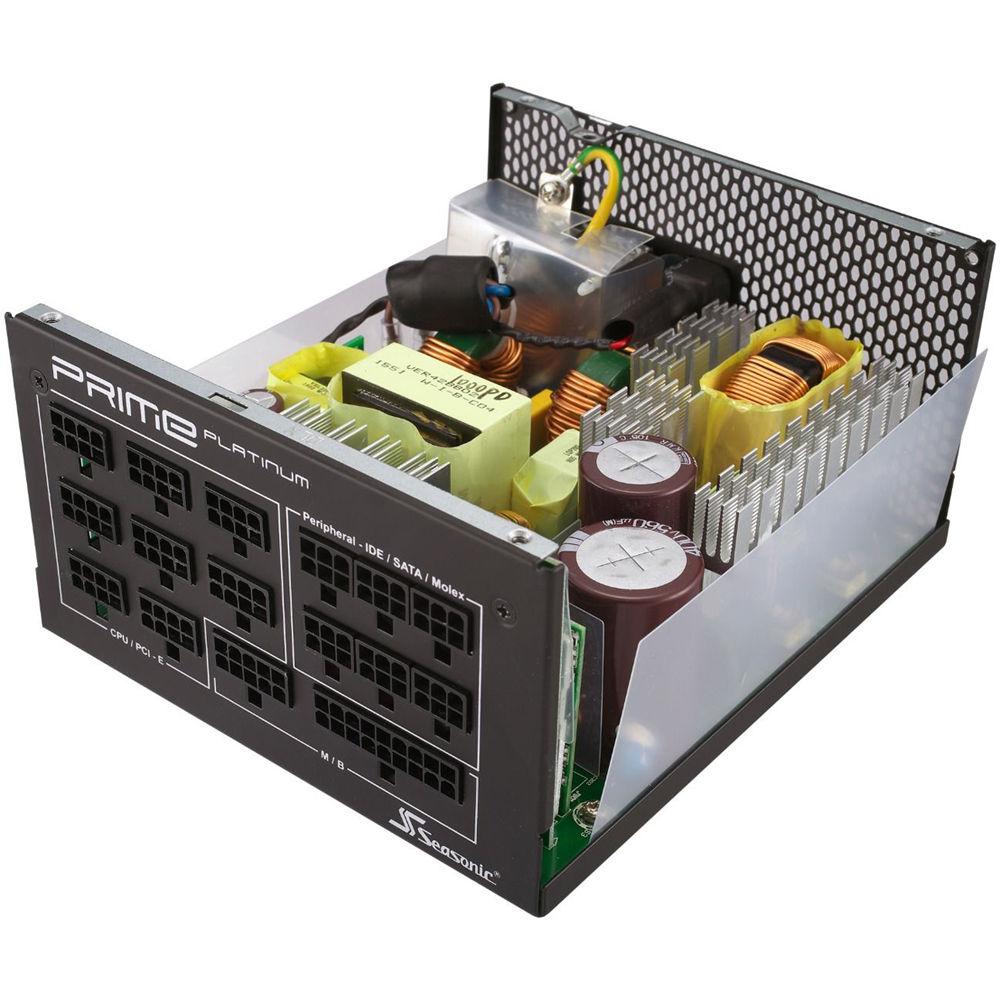

- With a special design feature, the back panel and PCB (Printed Circuit Board) are connected by a copper plate. This solution lowers the chance of production errors during manual insertion and improves output power quality.
- Multi-GPU Setup
- 8 PCIe (6+2-pin) connections are available to support multi-GPU setups.
- Gold-Plated Connectors
- Gold plating critical connector pins (motherboard, CPU and PCIe cables) extends the lifetime of the connectors and increases the efficiency of current transmission.
In the Box SeaSonic Electronics PRIME 1300W 80 Plus Platinum Modular ATX Power Supply Package of Modular Cables Power Cord Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SeaSonic Electronics PRIME 1300W 80 Plus Platinum Modular ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSeaSonic Electronics Prime 1300 W Platinum Specs | Voltage | 100 - 240 VAC | | Current | 15 - 7.5 A | | Frequency | 50 - 60 Hz | | Output | +3.3 V - 25 A
+5 V - 25 A
Maximum Power: 125 W
+12 V - 108 A
Maximum Power: 1296 W
-12 V - -0.3 A
Maximum Power: 3.6 W
+5 Vsb - 3 A
Maximum Power: 15 W | | Connectors | 1 x Main Power 24/20-pin
2 x CPU 8/4-pin
12 x PCIe 8/6-pin
12 x SATA
5 x 4-pin peripheral
1 x Floppy | | Cables | Main Power 24/20-Pin - 24.02" / 610 mm
CPU 8/4-Pin - 25.59" / 650 mm
PCIe 8/6-Pin - 26.57" / 675 mm
SATA - 17.72" / 450 mm
4-Pin Molex - 1 x 17.72" / 450 mm, 1 x 13.78" 350 mm
Floppy: 3.98" / 101 mm | | | | Size | 135 mm | | Fan Bearing | Fluid dynamic bearing (FDB) | | Life Expectancy | 50,000 hours at 104°F / 40°C, 15 to 65% RH | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | MTBF | 150,000 hours at 77°F / 25°C, excluding fan | | | | 80 PLUS Certification | Platinum | | Form Factor | ATX | | Dimensions (W x H x D) | 6.7 x 5.91 x 3.39" / 170 x 150 x 86 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 13.25 x 8.0 x 5.25" |
